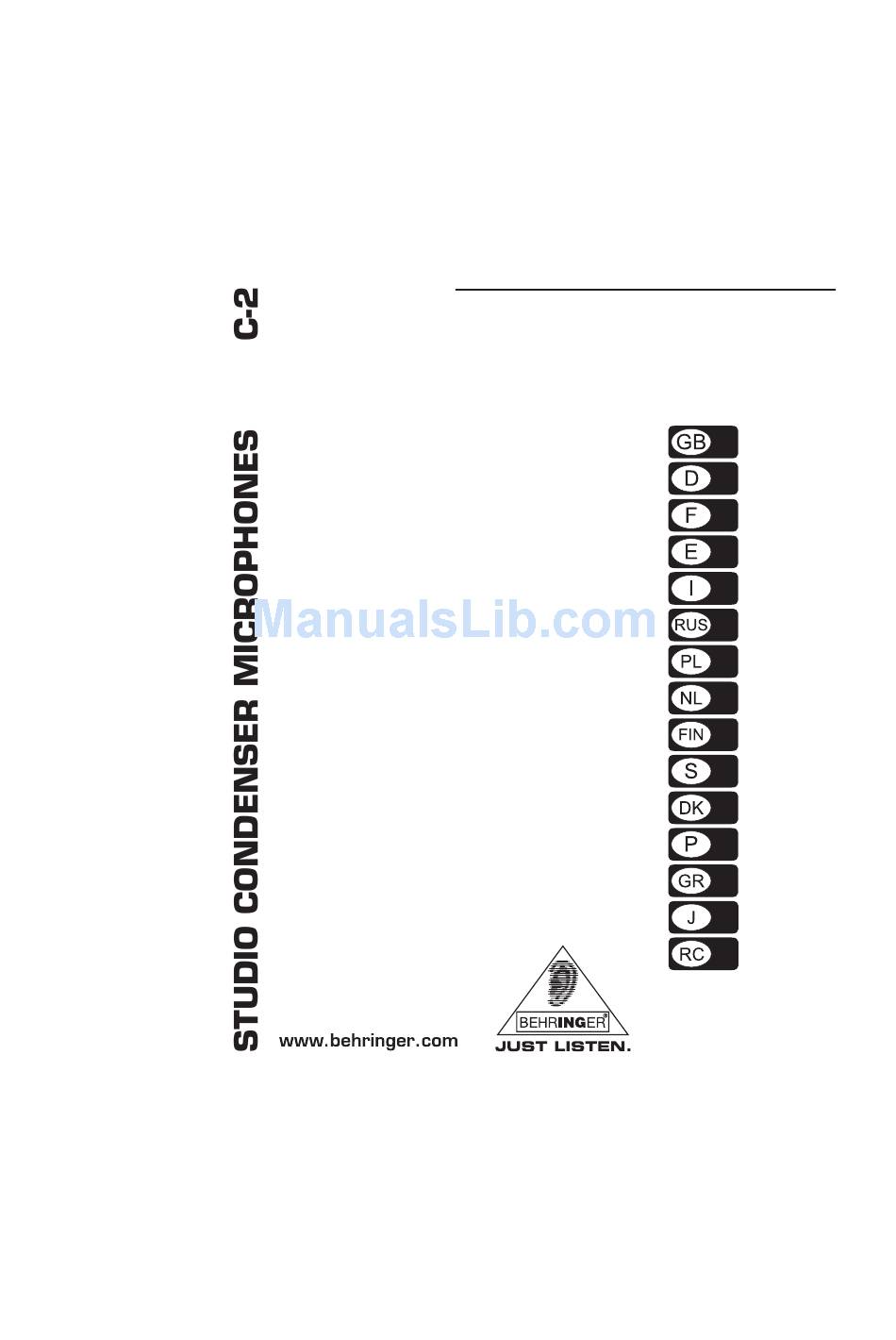

- Page 1 User’s Manual Version 1.0 April 2005...
- Page 2 3. POWER SUPPLY Phantom power (+48 V) is required to operate your microphone. We assume no liability for damage caused to your C-2 through deffective phantom power. Before activating phantom power, mute your playback system and connect the C-2 to the microphone input of your mixing console.
- Page 3 6. LOW CUT-FILTER AND LEVEL ATTENUATION (-10 dB) The C-2 studio microphones feature a switchable low-cut filter that lets you eliminate low-frequency disturbances such as subsonic noise. Set the switch to its middle position to activate the low-cut filter.
- Page 4 To connect the C-2 to your equipment, use a balanced XLR microphone cable with the following pin assignment: Pin 1 = shielding, pin 2 = +, pin 3 = -. Since all contact points of the C-2 are gold-plated, your microphone cable too should feature gold-plated connectors, if possible.
- Page 5 Thank you for your cooperation! *Customers in the European Union may have a different term, as such, please contact BEHRINGER Germany Support for further details. 11. SPECIFICATIONS Transducer type: true condenser, 16 mm (0.63") single diaphragm...
-
Page 6: Polar Pattern
Polar pattern Frequency response BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.
