RADIAL CHERRY PICKER SPECIFICATIONS
Circuit Type .............................. Passive signal path with active relay switching
Frequency Response .............. DC to 80MHz +/- 0.05dB
Dynamic range ........................ >-115dBu (above ability to measure)
Equivalent Input Noise............. <<-115dBu (below measurement threshold)
CMRR ...................................... -97db @ 55Hz
Input Impedance ...................... 10k Ohms in parallel with load impedance
Output Impedance ................... Same as source impedance + 200Ohms
S/N Ratio ................................. <<-115dB (below measurement threshold)
XLR Confi guration ................... Follows AES spec: pin-1 ground, pin-2 hot (+), pin-3 cold (-)
Power requirement .................. 15VDC / 400mA (Radial adapter supplied)
Size (W x H x D) ...................... 5.8" x 1.88" x 4.5" (148mm x 48mm x 115mm)
Weight ..................................... 2.1 lbs. (0.96 kg)
Warranty .................................. 3 years, transferable limited warranty

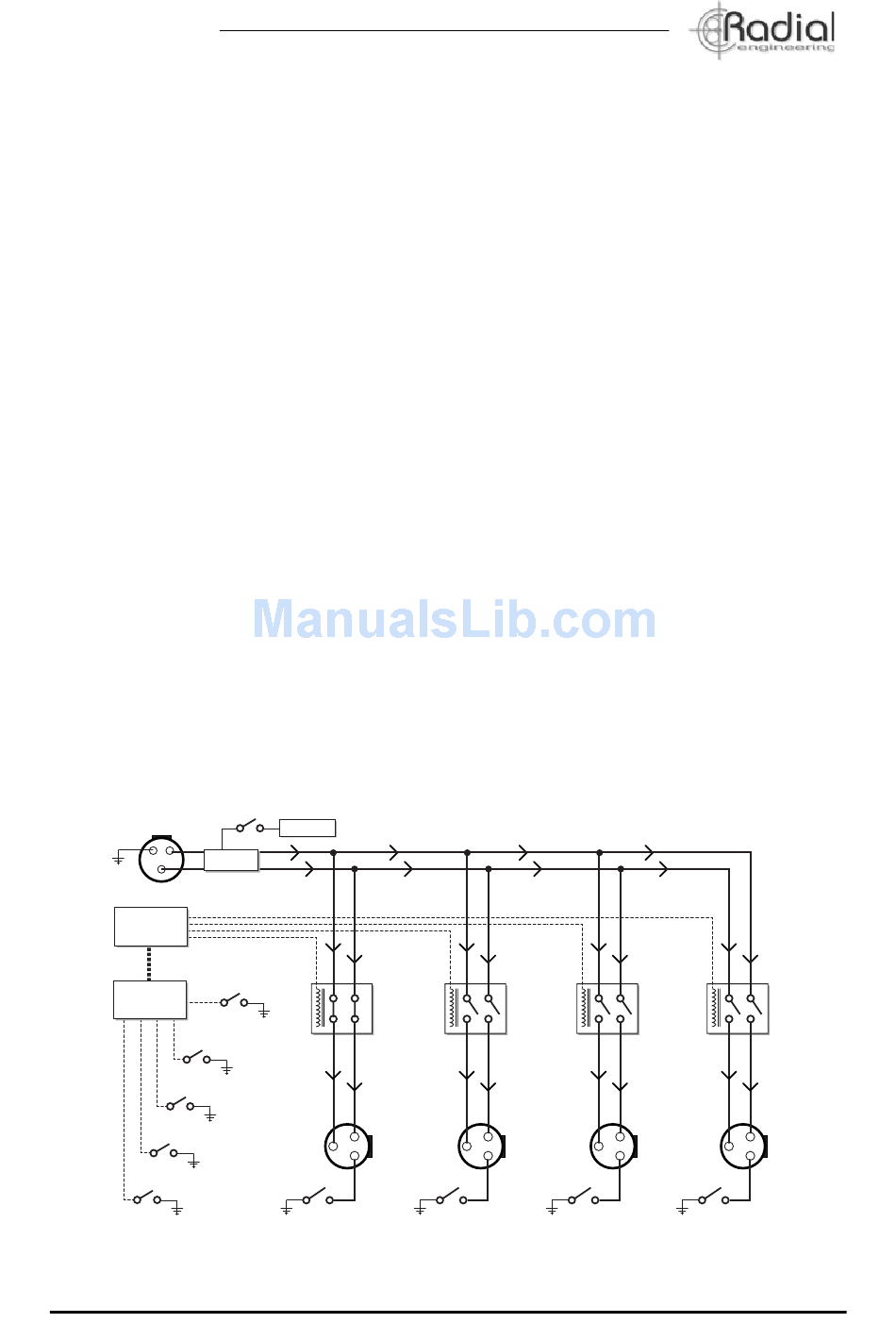

RADIAL CHERRY PICKER BLOCK DIAGRAM
INPUT
RELAY
CONTROL
MUTE
SWITCH
LOGIC
1
2
3
4
The switch logic allows one output to be selected at a time. Output 1 is automatically selected when power is connected.
Radial Engineering Ltd.
+48VDC
OUT
1
GND GND
LIFT LIFT
5
OUT OUT
2 3
GND
LIFT
®
OUT
4
GND
LIFT
Cherry Picker™
