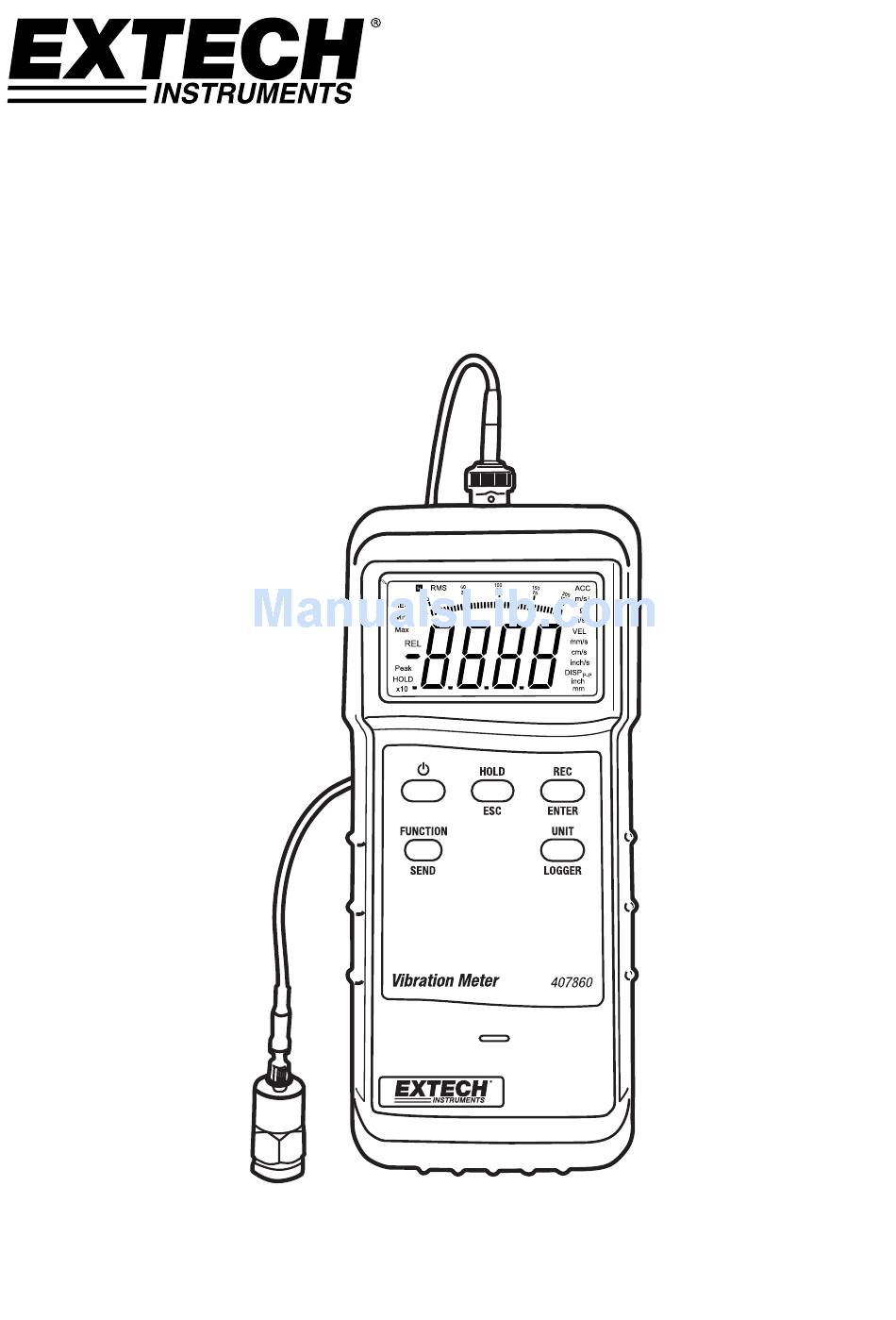

- Page 1 User Guide Heavy Duty Vibration Meter Model 407860...
-
Page 2: Meter Description
Introduction Congratulations on your purchase of the Extech 407860 Vibration Meter. The Model 407860 measures vibration levels in industrial machinery. Misalignment, poor balancing, structural compromises, and other factors can cause unwanted vibration increases. The Model 407860 has a frequency sensitivity that meets ISO-2954 and offers Displacement, Velocity and Acceleration features. -
Page 3: Meter Operation
PEAK – For measurement of the peak value. Not available in the Displacement mode. MAX_HOLD – Holds and displays the maximum value. The display will update only when a new maximum is measured. Not available in the Displacement mode. 407860-EU-EN v2.7 3/14... - Page 4 Turn the meter on and set the function to ACC and RMS. Make sure the vibration sensor is perfectly still (no vibration). Press and hold the HOLD button for > 5 seconds to allow the display to reach the zero value. 407860-EU-EN v2.7 3/14...
-
Page 5: Data Logging
When the display shows the sample rate, release the HOLD and REC buttons. Press and hold the REC button for > 5 seconds. The display will indicate 0 when the memory is clear. Cycle the meter power to return to normal operation. 407860-EU-EN v2.7 3/14... - Page 6 With HOLD and REC not selected press and hold the SEND button for > 2 seconds. “232” (flashing) will appear in the display. Press the SEND button again and the data will be sent to the meter’s RS-232 port and onto the connected PC. Press the ESC button to return to normal operation. 407860-EU-EN v2.7 3/14...
-
Page 7: Battery Replacement
You can hand over your used batteries / accumulators at collection points in your community or wherever batteries / accumulators are sold! Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle 407860-EU-EN v2.7 3/14... -
Page 8: Specifications
Velocity peak range: 1.0 to 199.9mm/s Calibration point: 50mm/s @ 160Hz Displacement 1.999mm ±(5% + 2 digits) (peak to peak) inch 0.078in Calibration point: 0.141mm @ 160Hz Note: Accuracy stated from 80 to 160Hz @ 23 ± 5°C 407860-EU-EN v2.7 3/14... -
Page 9: Appendix A: Machinery Classification
4.51 to 11.20 Dangerous Greater than 11.20 GROUP T – Large Turbo Machinery on Special Foundations Testing Status Vibration Severity (mm/s) Good 0 to 2.80 Acceptable 2.81 to 7.10 Permissible 7.11 to 18.00 Dangerous Greater than 18.00 407860-EU-EN v2.7 3/14... -
Page 10: Appendix B: Relative Sensitivity Table (Iso 2954)
The RMS amplitude of vibration is 0.707 times the peak amplitude value The RMS value of a vibration signal is an important measure of its amplitude. Copyright © 2014 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com 407860-EU-EN v2.7 3/14...
Need help?
Do you have a question about the 407860 and is the answer not in the manual?
Questions and answers
This model can be used in construction activities to determine the ground shaking?
The Extech Instruments 407860 Vibration Meter is designed to measure vibration levels in industrial machinery, detecting issues like misalignment, poor balancing, and structural compromises. It provides measurements in displacement, velocity, and acceleration and complies with ISO-2954 standards. However, the manual does not mention its suitability for measuring ground shaking in construction activities, which typically require seismographs or specialized ground vibration monitors. Therefore, it is not explicitly designed for construction-related ground shaking measurements.
This answer is automatically generated
@Mr. Anderson. It is unfortunate. I received the instrument this week, and we plan to use it for ground shaking measurements. However, could you recommend a solution or adaptation for using this instrument effectively? For instance, any specific attachments that would make it suitable for construction activities?
