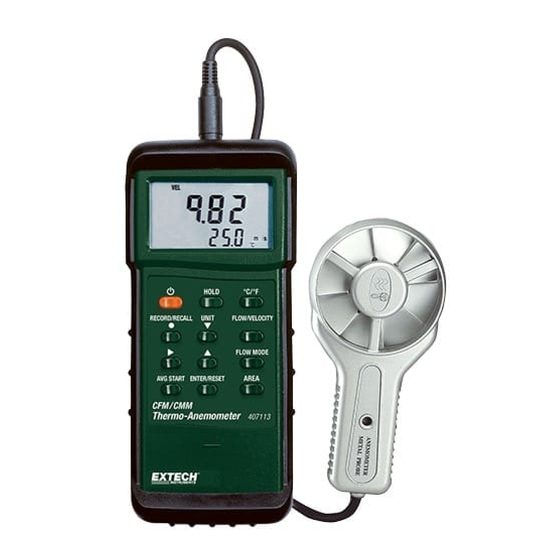

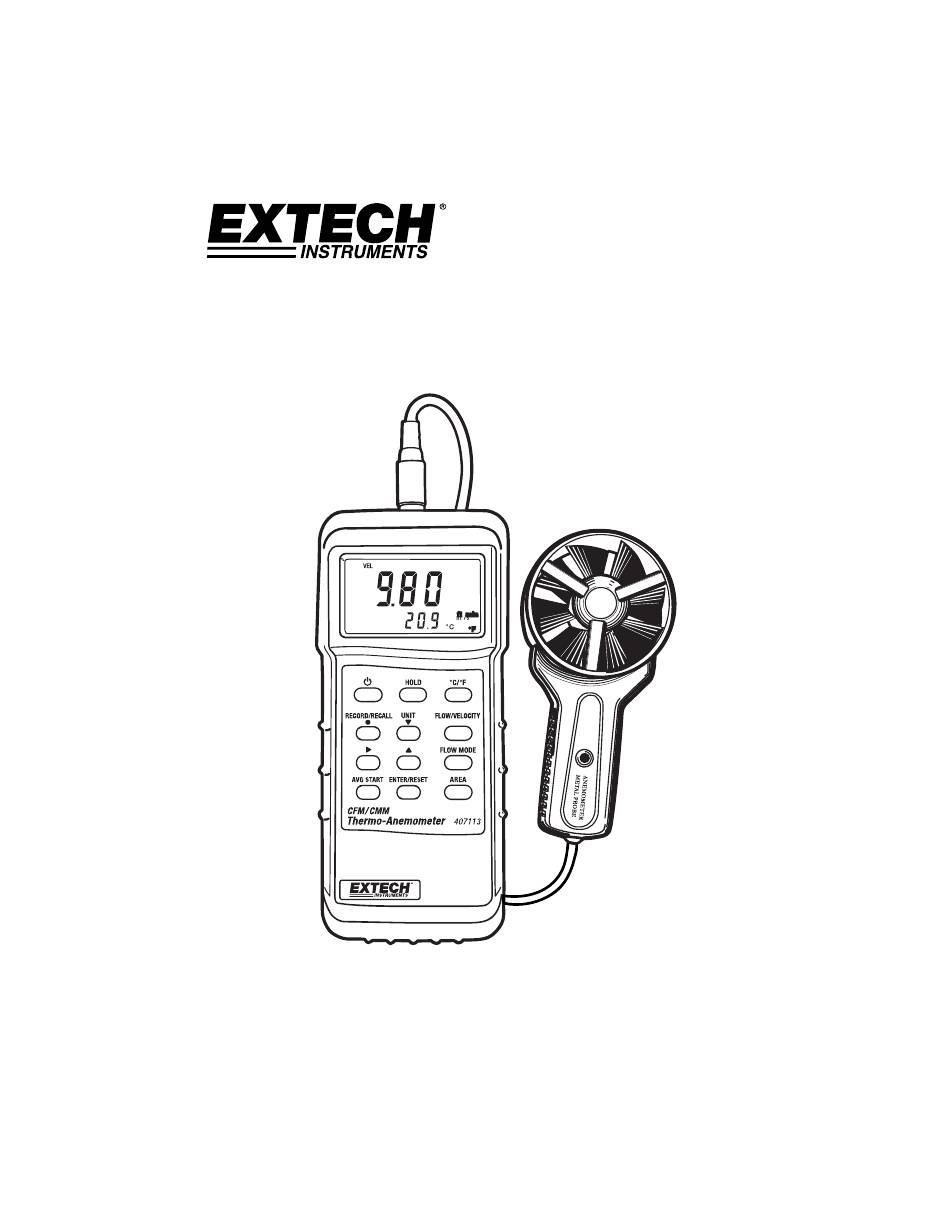

- Page 1 User Guide Heavy Duty CFM Thermo-Anemometer Model 407113 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Specifications
Introduction Congratulations on your purchase of the Extech 407113 CFM meter. This handheld meter can display Air Flow (CFM) with Area or Air Velocity with Temperature on a 10,000-count (0 to 9999) dual display LCD. Other functions include MIN/MAX Record/Recall, RS-232 PC interface, and Data Hold. - Page 3 CFM (cubic feet per minute) 0-999,900 ft /min 0.001 to 100 0 to 9,999ft Air Temperature Range Resolution Accuracy 32 to 175 F (0 to 80 F (0.8 407113-EN v3.6 4/14 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 4: Meter Description
RS-232 PC Interface jack LCD Display Vane Rubber Holster Keypad Battery compartment (rear) Note: To access the rear battery compartment, first remove the rubber holster that jackets the meter. 407113-EN v3.6 4/14 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 5: Operation
Press HOLD again to return to normal operation. Maximum and Minimum Recording The 407113 allows the user to record and view the highest (MAX) and lowest (MIN) readings. Press the RECORD/RECALL button once. The REC indicator will appear on the display and the meter will begin recording the MAX and MIN values. - Page 6 RS-232 PC Interface The 407113 is equipped with a 3.5mm phone jack (meter top) for connection to a PC for data acquisition purposes. For streaming of data to a PC via the RS232 Output jack, the optional 407001-USB kit (RS232 to USB cable and driver CD) along with the 407001 software at are required.
-
Page 7: Useful Equations And Conversions
1 m/s 196.87 1.944 2.24 1 ft/min 0.00508 0.00987 0.01829 0.01138 1 knot 0.5144 101.27 1.8519 1.1523 1 km/h 0.2778 54.69 0.54 0.6222 1 MPH 0.4464 87.89 0.8679 1.6071 407113-EN v3.6 4/14 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 8: Warranty
Warranty FLIR Systems, Inc. warrants this Extech Instruments brand device to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department for authorization. -
Page 9: Garantie
Garantie FLIR Systems, Inc. garantit que cet appareil Extech Instruments est exempt de défauts matériaux et de fabrication pendant un an à partir de la date d envoi (une garantie limitée de six mois s applique aux capteurs et aux câbles). Si le renvoi de l appareil pour réparation devient nécessaire durant ou après la période de garantie, contactez le service client pour autorisation. - Page 10 Garantía FLIR Systems, Inc., garantiza este dispositivo marca Extech Instruments para estar libre de defectos en partes o mano de obra durante un año a partir de la fecha de embarque (se aplica una garantía limitada de seis meses para cables y sensores). Si fuera necesario regresar el instrumento para servicio durante o después del periodo de garantía, llame al Departamento de Servicio a...
