1 Description of the Operating Elements

Warning : Shock Hazard - do not open!
Vorsicht : Lebensgefahr - nicht öffnen!
Avis : Risque de choc Electrique - ne pas ouvrir!
230 V~
max. 500mAT
37 36
1.1

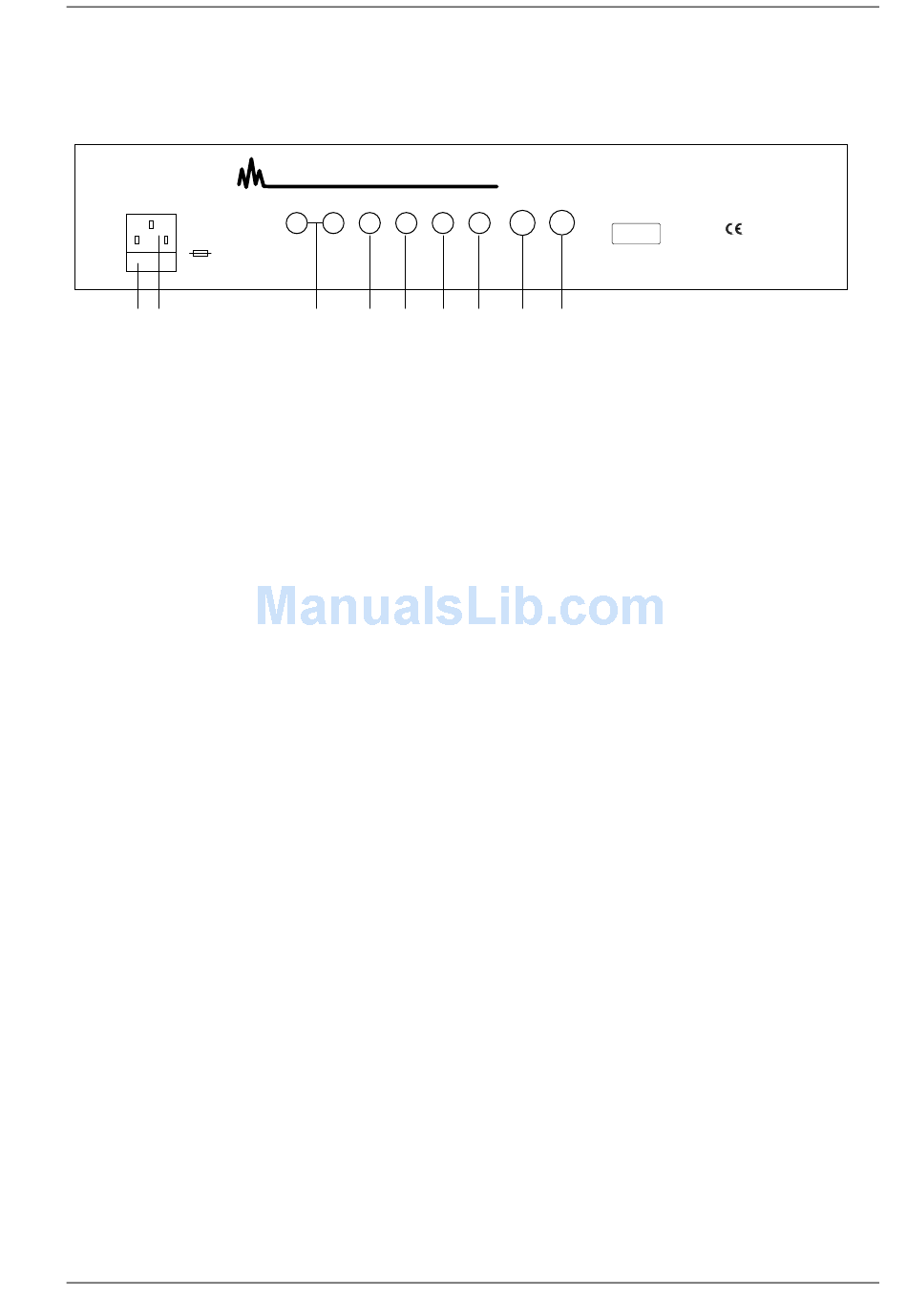

Sockets on the Rear of the Housing

36. Power socket
37. Fuse compartment, fuse max. 500 mA, 250V type
38. Audio outputs right / left
39. External VCO input, switched on with switch (7)
40. External modulation input, selected with selector switch (22)
41. Gate input/output (dependent on the jumper setting inside the unit, standard setting: output)
42. CV input / output (dependent on the jumper setting inside the unit, standard setting: output)
43. MIDI Thru socket
44. MIDI IN socket
Service Manual ProTone
SPECTRAL AUDIO GmbH
Out Out Extern Extern
Gate
Right Left VCO LFO
5V:On
Input Input
0V:Off
0.7 Veff 0.7 Veff
38 39 40 41
Page 3 of 20
ProTone
MIDI MIDI
CV
Thru IN Serial No.
1V/Oct
42 43 44
