6 Digital PCB

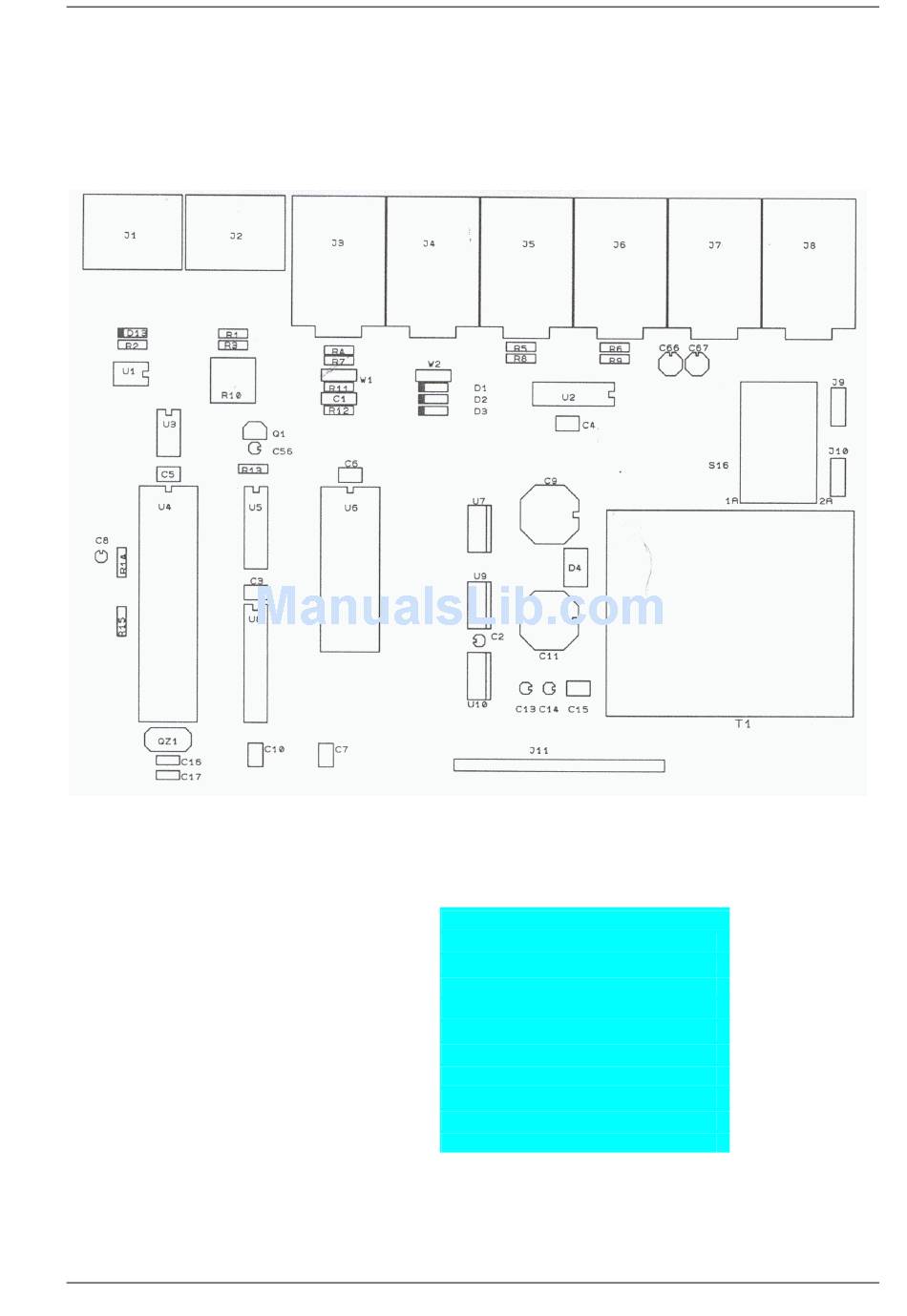

6.1 Assembly plan
6.2 Part list
Resistors
R1
220
R2
220
R3
220
R4
1k
R5
10k
R6
10k
R7
1k
R8
47k
R9
47k
R10
2k
R11
10k
R12
10k
R13
220
R14
10k
R15
1K
Service Manual ProTone
Metal Film Resistor, 1%:
100R
4k7
24k
30k
62k
91k
100k
300k
Trimmer
1M
Page 11 of 20
© 1996-2001 Spectral Audio
