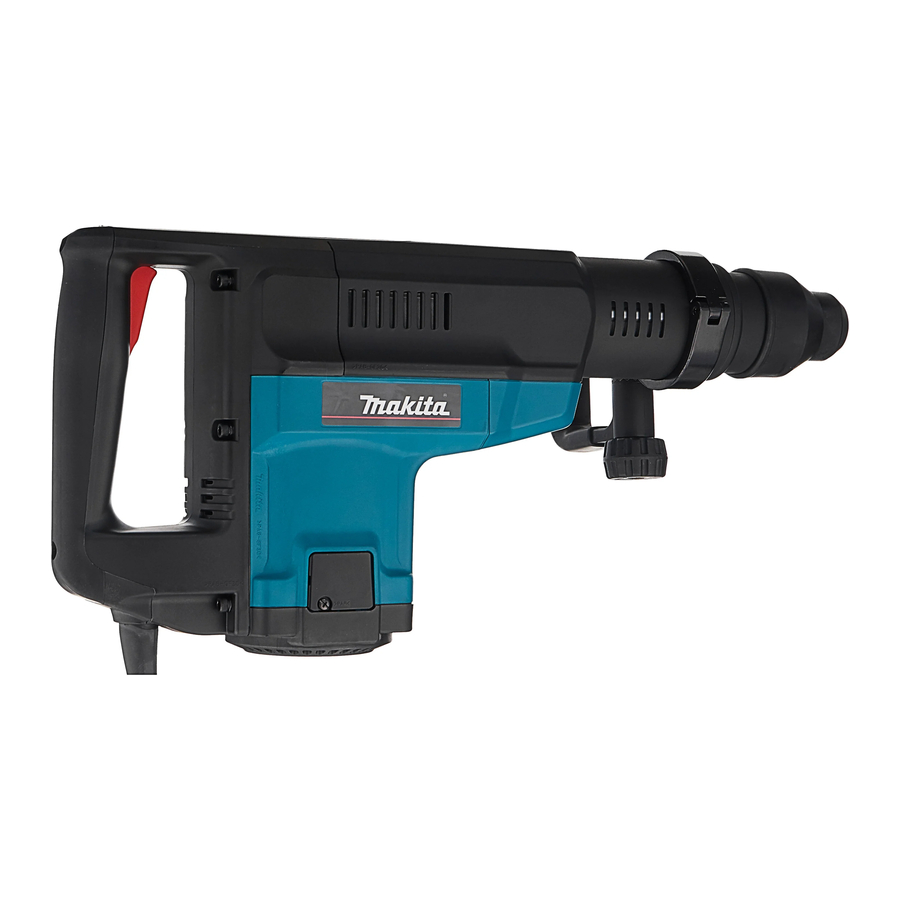

Makita HR5001C Instruction Manual

Rotary hammer
Hide thumbs Also See for HR5001C:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Technical Information, Instruction Manual
INSTRUCTION MANUAL
Rotary Hammer
HR5001C
003102
DOUBLE INSULATION
IMPORTANT: Read Before Using.
1

Advertisement

Table of Contents
loading

Related Manuals for Makita HR5001C

Summary of Contents for Makita HR5001C

  • Page 1 INSTRUCTION MANUAL Rotary Hammer HR5001C 003102 DOUBLE INSULATION IMPORTANT: Read Before Using.

  • Page 2: Specifications

    ENGLISH (Original instructions) SPECIFICATIONS Model HR5001C Carbide-tipped bit 50 mm Capacities Core bit 160 mm No load speed (min 120 - 240 Blows per minute 1,100 - 2,150 Overall length 610 mm Net weight 11.5 kg Safety class • Due to our continuing programme of research and development, the specifications herein are subject to change without notice.

  • Page 3: Rotary Hammer Safety Warnings

    If operating a power tool in a damp location is accessories, or storing power tools. Such unavoidable, use a residual current device preventive safety measures reduce the risk of (RCD) protected supply. Use of an RCD reduces starting the power tool accidentally. the risk of electric shock.

  • Page 4: Functional Description

    Under normal operation, the tool is designed FUNCTIONAL DESCRIPTION to produce vibration. The screws can come loose easily, causing a breakdown or accident. Check tightness of screws carefully before CAUTION: operation. Always be sure that the tool is switched off and •...

  • Page 5: Indicator Lamp

    Selecting the action mode Indicator lamp Rotation with hammering 1. Service indicator lamp (red) 1. Change lever 2. Power-ON 2. Pointer indicator lamp 3. Lock button (green) 003138 The green power-ON indicator lamp lights up when the 003130 For drilling in concrete, masonry, etc., depress the lock tool is switched ON.
  • Page 6 If the bit cannot be pushed in, remove the bit. Pull the 1. Side handle chuck cover down a couple of times. Then insert the bit 2. Clamp nut again. Turn the bit and push it in until it engages. After installing, always make sure that the bit is securely held in place by trying to pull it out.

  • Page 7: Operation

    Depth gauge Chipping/Scaling/Demolition 1. Depth gauge 2. Clamp screw 003184 003206 The depth gauge is convenient for drilling holes of Set the change lever to the symbol. uniform depth. Loosen the clamp screw and adjust the Hold the tool firmly with both hands. Turn the tool on and depth gauge to the desired depth.
  • Page 8 2. Brush holder cap 003243 Wipe out the old grease inside and replace with a fresh grease (60 g). Use only Makita genuine hammer grease (optional accessory). Filling with more than the specified 003232 amount of grease (approx. 60 g) can cause faulty Lubrication hammering action or tool failure.

  • Page 9: Optional Accessories

    Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. SDS-Max Carbide-tipped bits • SDS-Max bull point • SDS-MAX cold chisel •...
  • Page 12 Makita Corporation Anjo, Aichi, Japan www.makita.com 884188G228...
