INDEX
Page
Contents
2
Safety information
3
Unpacking and preparation
4
Installation and start-up
5
Control panel
7
Menu setting
14
Maintenance
16
Optional accessories
19
Technical information
19
Cause and solution of problems
20
Channel functions

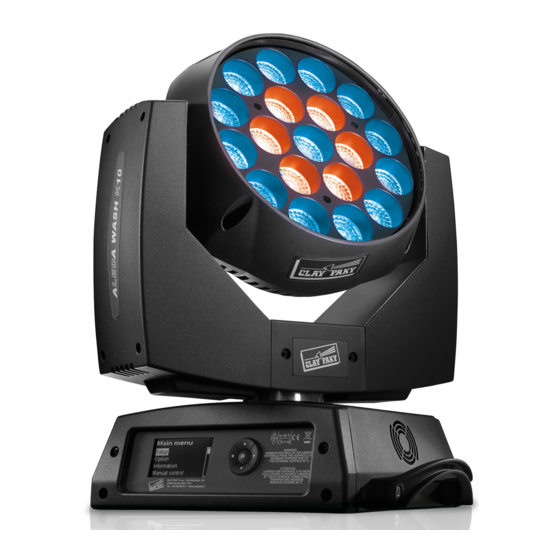

A LEDA WASH K5
A LEDA WASH K10
A LEDA WASH K20

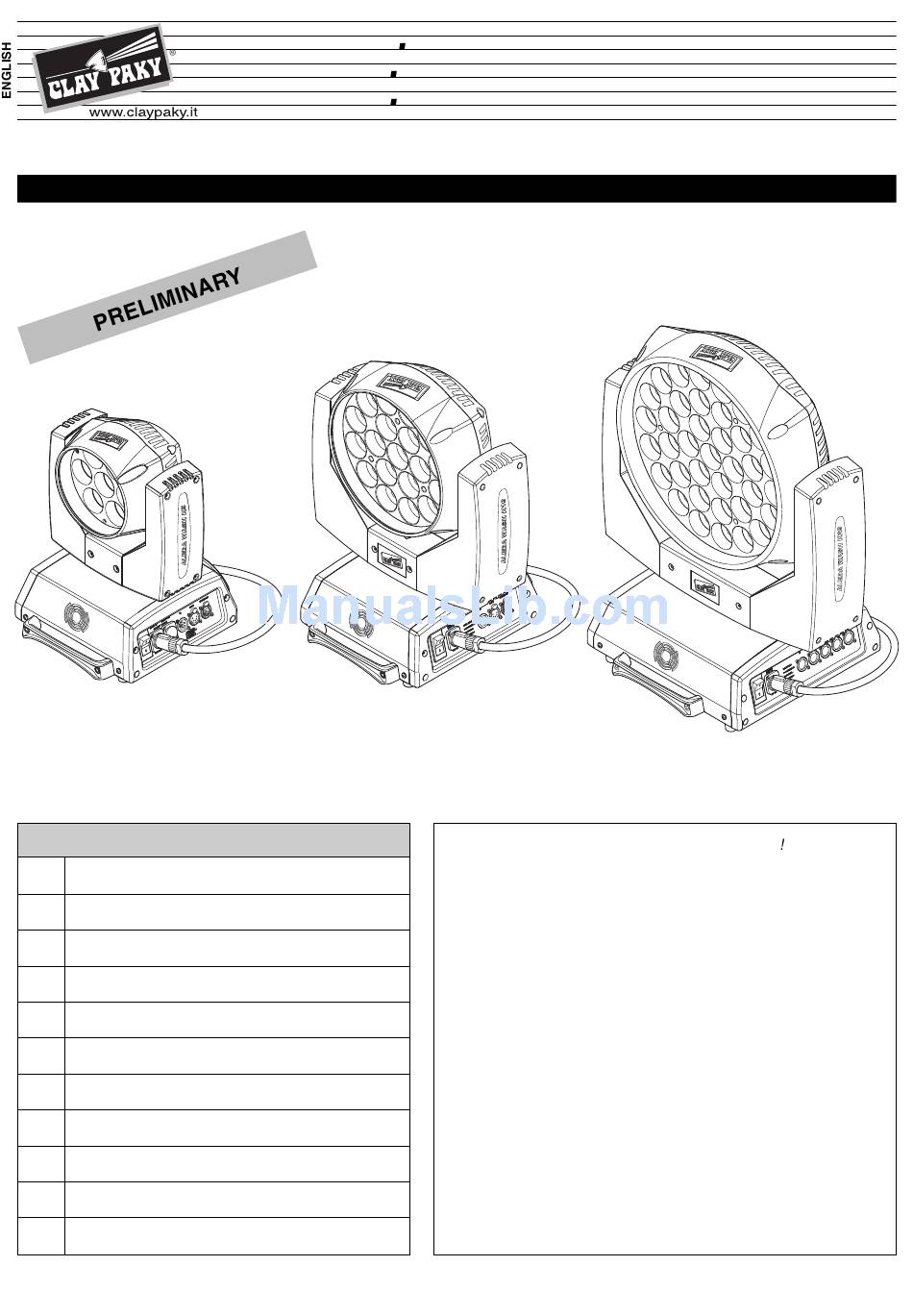

INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
1
C61401
C61405
C61410

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C61401 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clay Paky C61401

Summary of Contents for Clay Paky C61401

  • Page 1 Menu setting CLAY PAKY S.p.A. disclaims all liability for damage to the fitting Maintenance or to other property or persons deriving from installation, use and...

  • Page 2: Safety Information

    SAFETY INFORMATION • Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary support system fails, the fitting falls as little as possible.

  • Page 3: Unpacking And Preparation

    UNPACKING AND PREPARATION 099117 2 x 183102/802 Packing contents - Fig. 1 UNLOCKED LOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 A LEDA WASH...

  • Page 4: Installation And Start-Up

    INSTALLATION AND START-UP Installing the projector - Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.

  • Page 5: Control Panel

    CONTROL PANEL Mains NB: connecting one “A.leda Wash K5” to the mains, it is possible to connect up to a maximum of 11 “A.leda Wash K5” in parallel at the same time. Connecting to the mains supply - Fig. 5 DMX 512 5 PIN SCREEN...
  • Page 6 Reversal of the display - Fig. 8 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512).

  • Page 7: Menu Setting

    MENU SETTING Invert System Set Up Option Pan / Tilt Information Address Errors Invert Channel Fixture Tilt Mode Hours Swap Pan-Tilt System Fixture ID Version Encoder Pan-Tilt Ethernet Board Interface Diagnost. Silent Standard Mode Quiet Option Monitor Display Fans Information Monitor Default Setting...
  • Page 8 NOTE: On grey the default options SET UP MENU DMX ADDRESS NOTE: without the DMX signal the Address (XXX) flashing Set Up Address xxx Allows you to select the DMX ADDRESS. Address 1) Press - the current DMX Adress appear on the display. 2) Use the UP and DOWN , RIGHT...
  • Page 9 OPTIONS MENU PAN / TILT Invert Invert pan Option Pan / Tilt Used for reversing Pan movement. 1) Press - the current settings appear on the display (On or Off). 2) Use the UP and DOWN keys to enable (On) or disable (Off) PAN inversion.

  • Page 10: Information Menu

    SETTING Default Reset To Used to save 3 different settings of the items in the options menu and Setting Preset Dafault relative submenus. 1) Press - “Default preset” appears on the display. Go Back 2) Use the UP and DOWN keys to select one of the following User Load...

  • Page 11: Manual Control

    BOARD DIAGNOSTIC Board Status Err% Board 0:PT-3f Good 0.00 Used for displaying the status error of each board installed in the projector: Diagnost. 1: Ld - Kxx Good 0.00 0: PT-3f (Scheda Pan / Tilt) 1: Ld - Kxx (Scheda LED) DMX MONITOR Monitor Used for displaying the projector DMX channel level in bit (Val) and in...
  • Page 12 ADVANCED MENU To enable the Advanced Menu set up the Access code (1234) using the Code Advanced , DOWN , RIGHT keys. 1234 Press - Menu advanced appears on the display UP LOAD FIRMWARE Transfer the firmware on all Allows you to transfer the firmware from 1 fixture to all the connected fixtures. the connected fixtures ? Upload Are you sure ?
  • Page 13 Battery removal - Fig. 9 This product contains a rechargeable lead-acid battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 A LEDA WASH...

  • Page 14: Maintenance

    MAINTENANCE Opening the covers - Fig. 10 Removing/Assembling the lens unit - Fig. 11 NB: Apply Loctite 222 (p/n COL002) to the threads of the 3 screws (1) before tightening them. A torque of 0.3N is recommended in order to avoid damaging the zoom movement actuators.
  • Page 15 DIM002/001 Replacing the line actuator - Fig. 12 NB: It is highly recommended to use the DIM002/001 (1) template whenever it is necessary to replace one of the three Zoom movement line actuators. DIM002/001 ensures the actuator group is centred correctly on the lens plate before tightening the 2 screws (2) that fasten the actuator in place. A LEDA WASH...

  • Page 16: Optional Accessories

    OPTIONAL ACCESSORIES A.LEDA WASH K5 275216-001 275216-002 Cover - Fig. 13 275216/001 - Transparent cover 275216/002 - Frosted cover 092037/002 Transparent mask - Fig. 14 A LEDA WASH...
  • Page 17 A.LEDA WASH K10 270216-001 270216-002 Cover - Fig. 15 270216/001 - Transparent cover 270216/002 - Frosted cover 270201-802 Transparent mask - Fig. 16 Continue A LEDA WASH...
  • Page 18 A.LEDA WASH K20 274216-001 274216-002 Cover - Fig. 17 275216/001 - Transparent cove 275216/002 - Frosted cover 274201-802 Transparent mask - Fig. 18 A LEDA WASH...

  • Page 19: Technical Information

    TECHNICAL INFORMATION Power supplies available (8.66") 100-240V 50/60Hz (6.10") Input power (6.10") • K20 - 750VA • K10 - 450VA (9.65") • K5 - 170VA (14.72") Max 1800VA (with 11 A.leda Wash K5 connected in parallel) Lamp LED Osram Ostar RGBW - 15W Motors (15.00") 5 (k10...

  • Page 20: Channel Functions

    CHANNEL FUNCTION A.LEDA WASH K5 STANDARD SHAPES EXTENDED CHAN- CHAN- CHAN- CHANNEL MODE CHANNEL MODE CHANNEL MODE Red fine Red fine Red fine Green Green Green Green fine Green fine Green fine Blue Blue Blue Blue fine Blue fine Blue fine White White White...
  • Page 21 A.LEDA WASH K10 STANDARD EXTENDED CHAN- CHAN- CHAN- CHANNEL MODE CHANNEL MODE CHANNEL MODE BLUE LED 10 (If BLUE channel 3 to 0) Red fine Red fine RED LED 11 (If RED channel 1 to 0) Green Green Green fine GREEN LED 11 (If GREEN channel 2 to 0) Blue Green fine...
  • Page 22 A.LEDA WASH K20 STANDARD EXTENDED CHAN- CHAN- CHAN- CHANNEL MODE CHANNEL MODE CHANNEL MODE GREEN LED 16 (If GREEN channel 2 to 0) Red fine Red fine BLUE LED 16 (If BLUE channel 3 to 0) Green Green RED LED 17 (If RED channel 1 to 0) Green fine Green fine...
  • Page 23 NOTE: On conclusion of resetting in case of absence of DMX signal, Pan & Tilt move to the Home position (Pan 50% - Tilt 50%) all the others channels stay at 0%. • RED – GREEN - BLUE - WHITE •...
  • Page 24 • PAN • TILT Operation with option InvertPan Operation with option InvertPan (Tilt conventionally represented at 14% and option Invert Tilt Off) (Tilt conventionally represented at 14% and option Invert Tilt Off) • PAN FINE • TILT FINE Operation with option InvertPan Operation with option InvertPan (Tilt conventionally represented at 14% and option Invert Tilt Off)
  • Page 25 • FUNCTION • ZOOM EFFECT EFFECT WIDE BEAM UNUSED RANGE 32,5 78 - 82 30,5 - 32,0 RGB GAMMA 2,00 73 - 77 28,7 - 30,0 RGB GAMMA 1,75 68 - 72 26,7 - 28,2 RGB GAMMA 1,50 (Default) 63 - 67 24,7 - 26,2 RGB GAMMA 1,25 58 - 62...
  • Page 26 A.LEDA WASH K5 TILT: channel 16 at 80% A.LEDA WASH K10 TILT: channel 16 at 80% A LEDA WASH...
  • Page 27 A.LEDA WASH K20 TILT: channel 16 at 80% A LEDA WASH...
  • Page 28 Beam time Dimmer - Zoom TIME TABLE Seconds Seconds Seconds Seconds Seconds Seconds Full 10.2 10.4 10.6 Follow cue Data CLAY PAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
