DVI Splitter
U S E R
M A N U A L
www.gefen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVI Splitter and is the answer not in the manual?

Questions and answers

Related Manuals for Gefen DVI Splitter

Summary of Contents for Gefen DVI Splitter

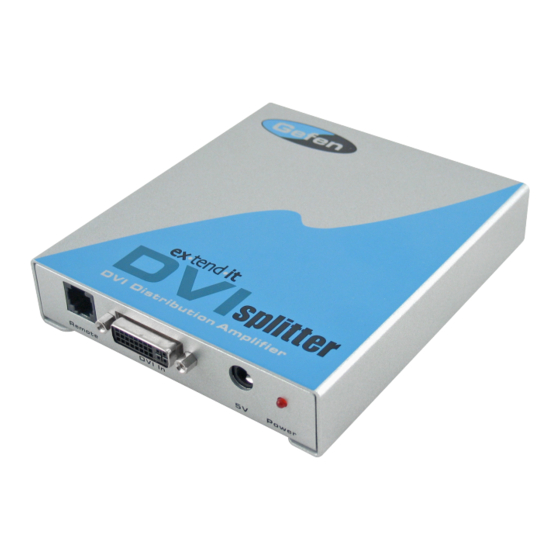

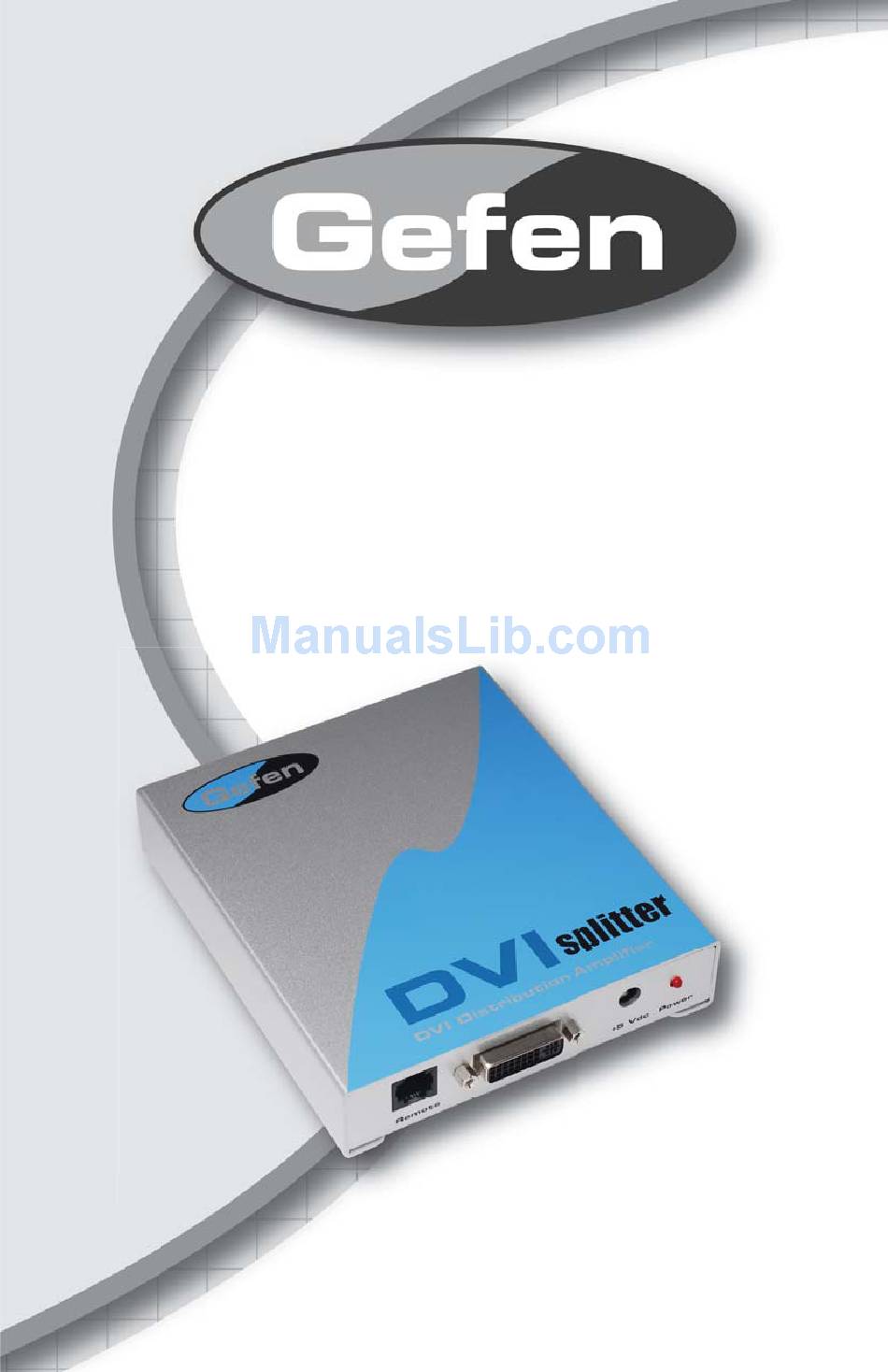

  • Page 1 DVI Splitter U S E R M A N U A L www.gefen.com...
  • Page 2 Chatsworth, CA 91311 support@gefen.com www.gefen.com Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. is a trademark of Gefen Inc. DVI Splitter © 2008 Gefen Inc., All Rights Reserved...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction 1x2 DVI Splitter Features 1x2 DVI Splitter Panel Descriptions 1x4 DVI Splitter Features 1x4 DVI Splitter Panel Descriptions 1x6 DVI Splitter Features 1x6 DVI Splitter Panel Descriptions Connecting and Operating the DVI Splitter Specifi cations Warranty...

  • Page 4: Introduction

    How It Works The DVI Splitter is connected with a DVI (male to male) cable from the DVI graphic source to the DVI Splitter input. There are two DVI outputs in each module. DVI output one is the primary connection and is used for the main display. DVI output two follows the main display.

  • Page 5: 1X2 Dvi Splitter Features

    1x2 DVI SPLITTER FEATURES Features • Connects computers with DVI graphics cards to two DVI compatible monitors • Can be confi gured as a DVI Switcher with multiple outputs • Allows up to two DVI displays or projectors to be connected to one DVI source •...

  • Page 6: 1X2 Dvi Splitter Panel Descriptions

    1x2 DVI SPLITTER PANEL DESCRIPTIONS DVI In 5v Power Input DVI Out 2 DVI Out 1...

  • Page 7: 1X4 Dvi Splitter Features

    1X4 DVI SPLITTER FEATURES Features • Connects computers with DVI graphics cards to four DVI compatible monitors • Can be confi gured as a DVI Switcher with two inputs • Allows up to four DVI displays or projectors to be connected to one DVI source •...

  • Page 8: X4 Dvi Splitter Panel Descriptions

    1X4 DVI SPLITTER PANEL DESCRIPTIONS DVI In 2 DVI In 1 5v Power Input DVI Out 4 DVI Out 3 DVI Out 2 DVI Out 1...
  • Page 9 1X6 SPLITTER FEATURES Features • Connects computers with DVI graphics cards to six DVI compatible monitors • Can be confi gured as a DVI Switcher with three inputs • Allows up to six DVI displays or projectors to be connected to one DVI source •...
  • Page 10 1X6 SPLITTER PANEL DESCRIPTIONS DVI In 3 DVI In 1 DVI In 2 5v Power Input DVI Out 5 & 6 DVI Out 1 & 2 DVI Out 3 DVI Out 4...

  • Page 11: Connecting And Operating The Dvi Splitter

    How to Connect the DVI Splitter to your devices * EDID information is saved in the DVI Splitter from DVI Out 2. In order for the EDID to be saved properly, DVI Out 2 must be connected fi rst before power is.

  • Page 12: Specifi Cations

    Maximum Single Link Range ............1920 x 1200, 1080p DVI Input/Output Connector Type ..............DVI-D Power Consumption ................20 Watts (max.) Power Supply ....................5V DC 1x2 DVI Splitter (EXT-DVI-144): Dimensions ..................5”W x 1”H x 4.5”D Shipping Weight ....................3 Lbs 1x4 DVI Splitter (EXT-DVI-145): Dimensions ..................
