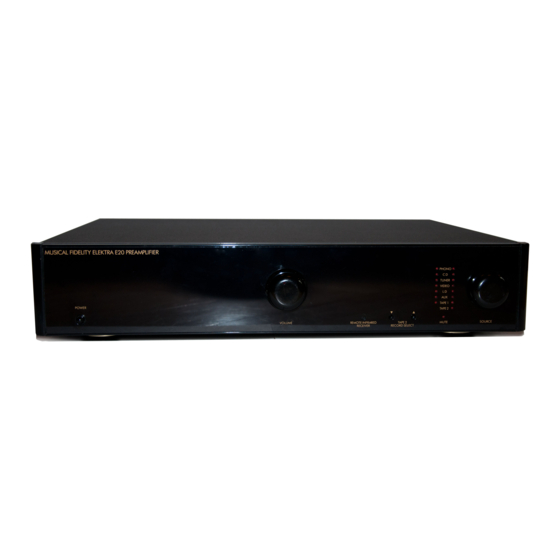

E20 REMOTE CONTROL STEREO
PREAMPLIFIER
INSTRUCTIONS FOR USE
Thank you for purchasing the Musical Fidelity
Elektra E20 Preamplifier . Used properly and care-
fully, it should give you many years of outstanding
musical reproduction.
The E20 is the result of many years painstaking
research and development. The E20 is designed for
ultra-high definition performance and is equipped
with full remote control facilities.
Aesthetically, the E20 is a perfect match for the
Elektra E30 power amplifier, E50 tuner and the E60
CD player. Together, they form one of the finest hi fi
systems that you can own today.
Dust regularly with a soft duster or soft brush but
do not use cleaning or polishing agents - they may harm
the surface finish.
If you have any questions about anything in your
audio system, please consult your dealer who is there
to help and advise you.
E20

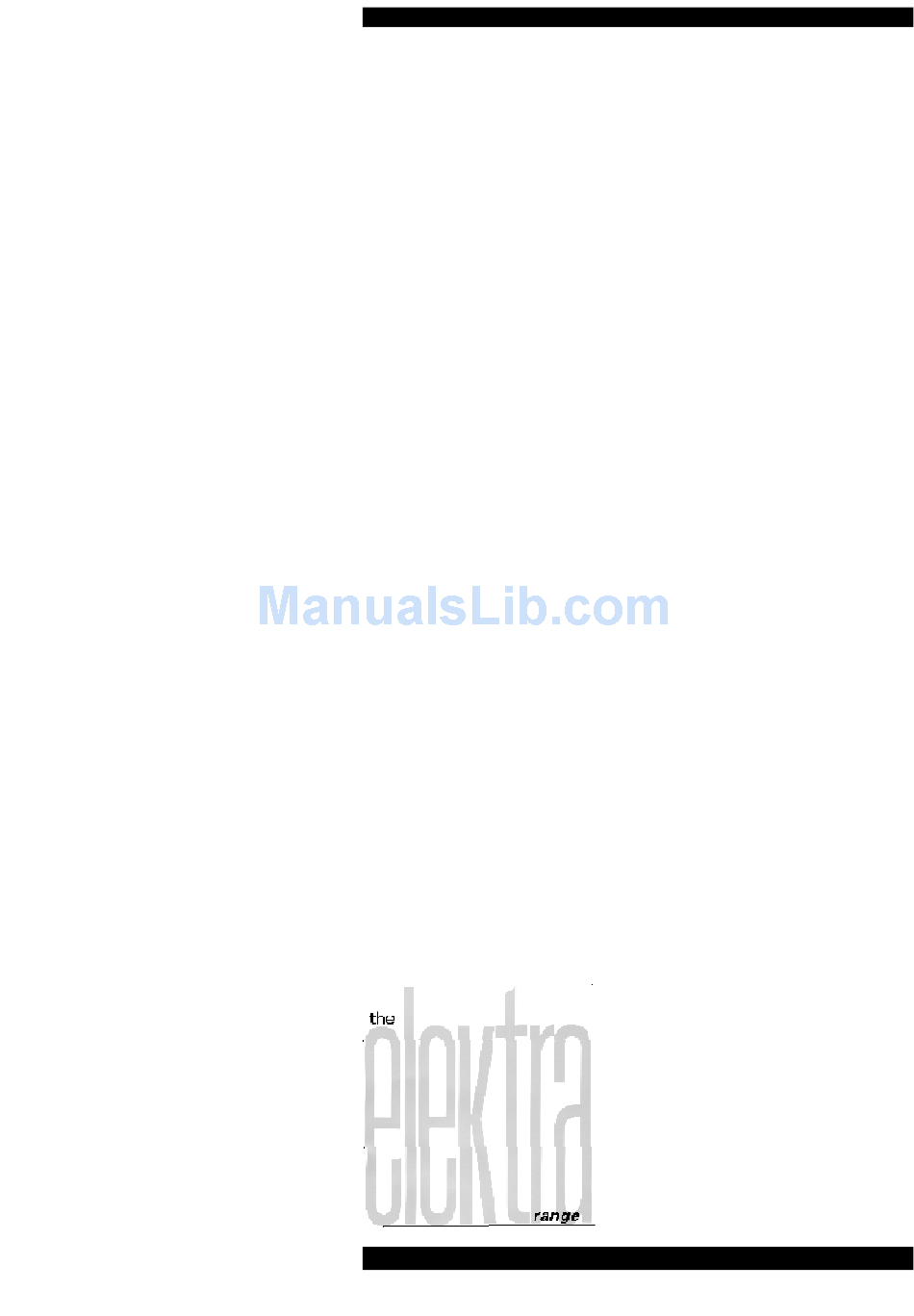

Instructions For Use. Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Musical Fidelity Electra E20
Summary of Contents for Musical Fidelity Electra E20
- Page 1 Elektra E20 Preamplifier . Used properly and care- fully, it should give you many years of outstanding musical reproduction. The E20 is the result of many years painstaking research and development. The E20 is designed for ultra-high definition performance and is equipped with full remote control facilities.
-
Page 2: Please Read
RFI the unit may be susceptible and not perform as expected. In the unlikely event of this happening on a regular basis, please contact Musical Fidelity's service department. The unit has also been tested to ensure that it does not radiate excessive levels of RFI that could affect other pieces of electronic or electrical equipment. - Page 3 CONNECTIONS AND FACILITIES FRONT PANEL Power on/off switch Volume control knob Remote receiver lens Tape 2 record selectors Mute indicator Source selector knob LED, indicates volume setting Output to Tape 2 indicators Source (listen) indicators BACK PANEL Phono/Chassis Earth Phono cartridge type button Phono input CD input Tuner input...
-
Page 4: Installation
INSTALLATION INSTALLATION PRECAUTIONS Your new E20 is designed and built to provide trouble-free performance but it is necessary to observe a few precautions. Please ensure that you have complied with them before you connect any AC power to your amplifier. Retain this guide for future reference. - Page 5 Source Up or Source Down button with the power OFF. on the remote control, the preamp will The E20 has inputs for Phono (MM and then cycle through the inputs until the MC), CD, Tuner, Video, LD, Auxiliary desired one is selected. The volume and two Tape decks (1 and 2).
-
Page 6: Troubleshooting
If none of these actions effect a cure, please contact your dealer, or an author- ised Musical Fidelity service agent. Remember, never open the case of the E20 yourself, as this will invalidate the guarantee. Instructions For Use. Page 6... -
Page 7: Specifications
SPECIFICATIONS ELEKTRA E20 REMOTE CONTROL PREAMPLIFIER Output (Unbalanced) 0.775V < 0.01% Frequency Response 20Hz - 20kHz +/- 1dB Inputs. 5 Line, 2 Tape, 1 Phono. Input sensitivity Line 250mV/47K S/N Ratio Line >85dB Tape output Dependent on input Power consumption...
