E30 STEREO POWER AMPLIFIER
INSTRUCTIONS FOR USE

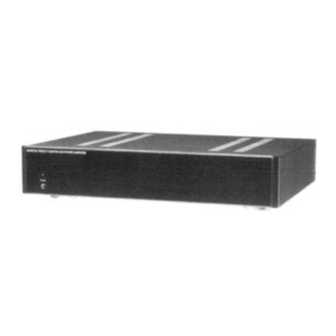

Thank you for purchasing the Musical Fidelity
Elektra E30 Power Amplifier . Used properly and
carefully, it should give you many years of outstand-
ing musical reproduction.
The E30 is the result of many years painstaking
research and development. The E30 is designed for
ultra-high definition performance.
Aesthetically, the E30 is a perfect match for the
Elektra E20 preamplifier, E50 tuner and the E61 CD
player. Together, they form one of the finest hi fi
systems that you can own today.
Dust regularly with a soft duster or soft brush but
do not use cleaning or polishing agents - they may harm
the surface finish.
If you have any questions about anything in your
audio system, please consult your dealer who is there
to help and advise you.
E30
Instructions For Use. Page 1
Advertisement
Table of Contents
Related Manuals for Musical Fidelity E30
Summary of Contents for Musical Fidelity E30
- Page 1 Elektra E30 Power Amplifier . Used properly and carefully, it should give you many years of outstand- ing musical reproduction. The E30 is the result of many years painstaking research and development. The E30 is designed for ultra-high definition performance.
-
Page 2: Please Read
PLEASE READ IMPORTANT! This unit is supplied in the UK with a mains lead fitted with a moulded 13 amp plug. If, for any reason, you need to cut off this plug, please observe the following safety precautions. Please dispose of the cut-off plug safely. It must not be plugged into a mains power supply. -
Page 3: Front Panel
CONNECTIONS AND FACILITIES Elektra E30 Power Amplifier MUSICAL FIDELITY ELEKTRA E30 POWER AMPLIFER P O W E R FRONT PANEL BACK PANEL Power on/off switch Right Input Channel Power LED Left Input Channel Right Speaker Output Left Speaker Output AC Mains Input... -
Page 4: Installation Precautions
INSTALLATION INSTALLATION PRECAUTIONS Your new E30 is designed and built to provide trouble-free performance but it is necessary to observe a few precautions. Please ensure that you have complied with them before you connect any AC power to your amplifier. Retain this guide for future reference. - Page 5 The power indicator will To get the best from your E30 for a come on. realistic soundstage and full dynamic range, use it with loudspeakers of a reasonable efficiency.
-
Page 6: Troubleshooting
If none of these actions effect a cure, please contact your dealer, or an author- ised Musical Fidelity service agent. Remember, never open the case of the E30 yourself, as this will invalidate the guarantee. Instructions For Use. Page 6... -
Page 7: Specifications
SPECIFICATIONS ELEKTRA E30 POWER AMPLIFIER 2 x 100watts 8 Ω, 2 x 160 watts 4 Ω. Power Output < 0.05% Frequency Response 20Hz - 20kHz +/- 1dB Input sensitivity 0.775V/33kΩ Power consumption 400 Watts Power requirements 100-120 Volts, AC 50/60Hz...
