Disassembling Your Scooter - Invacare Taurus Instruction Booklet

Extreme care must be taken when assembling or disassembling the
scooter. Please take care near any moving parts and finger traps, between
opening and closing parts.
Taking apart your scooter enables you to save space when keeping it in
storage or to carry it along in your vehicle when going away from home.
Having the scooter disassembled is easier than ever since no tools are
required. Please follow these steps:

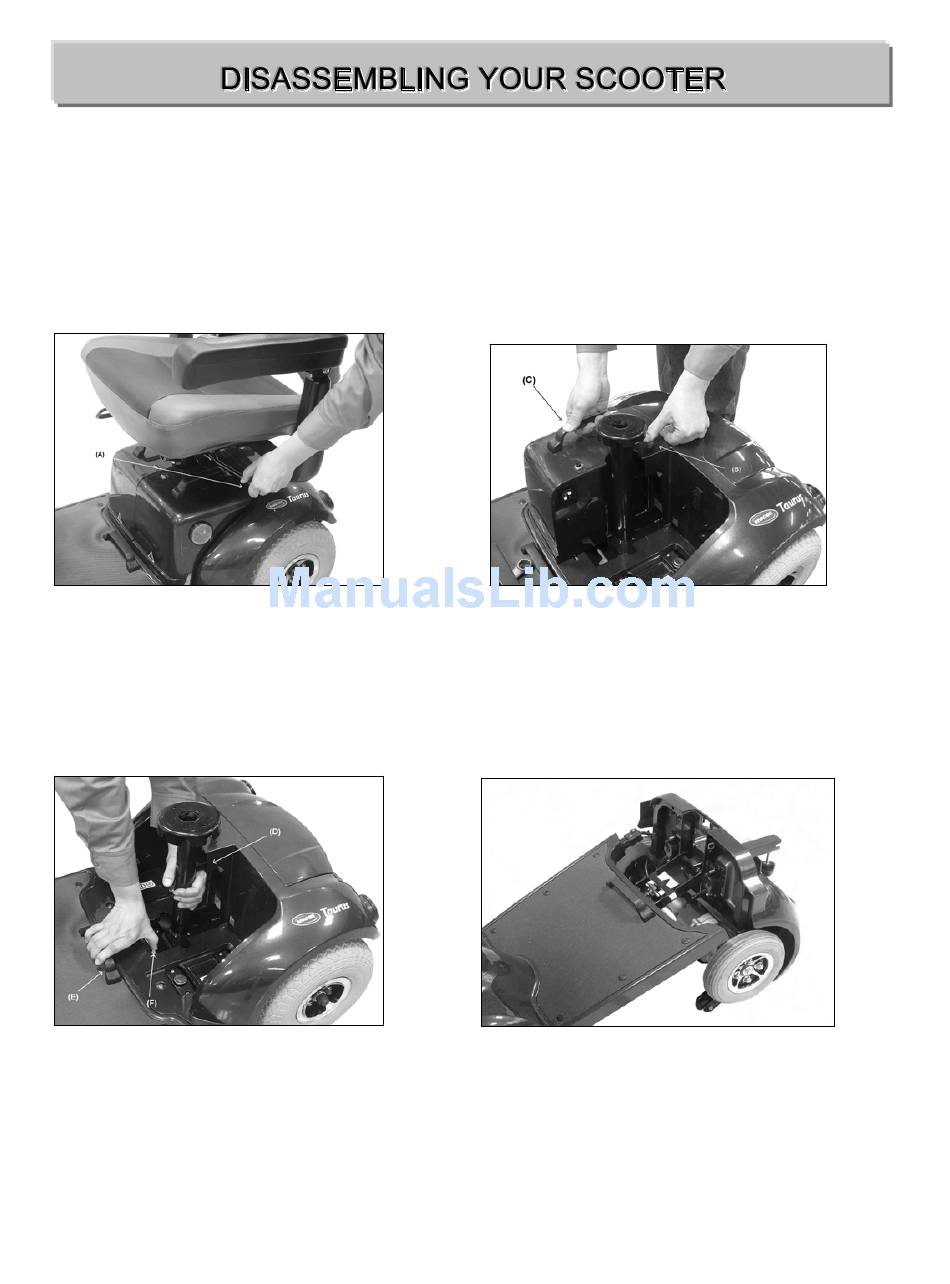

Figure 1.
Remove the seat by pulling up
Seat Rotation Lever (A) and lift
off.
Figure 3.
Hold the Seat Receiving Post (D) and
the Handle (E) on the floorboard.
Squeeze the Release Lever (F) to
the device.
Figure 2.
Press the Battery Locking Button the(B)
and use the Battery Case Handle(C) to
pull the batteries and off the scooter.
Batteries are heavy. When lifting please
adopt the correct lifting posture to avoid
injury. Ask for assistance if necessary.
Figure 4.
Push back on the seat post to pivot
rearward until the rear section
standing vertically on it's bumper. unlock
10
