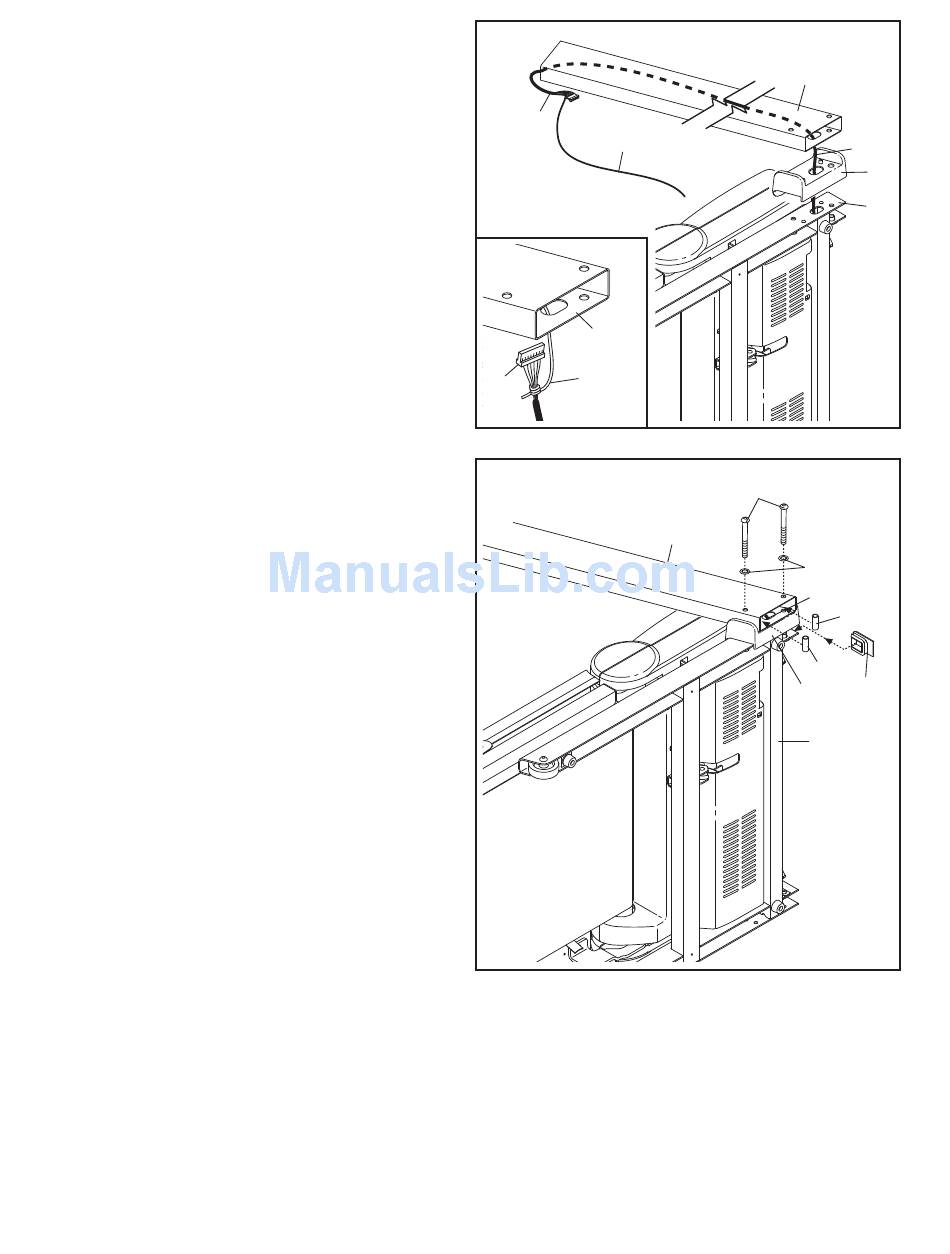

3. Identify the Right Upright (80) and the Right
Upright Spacer (82), which are marked with
"Right" stickers.
Insert the Upright Wire (79) through the Right
Upright Spacer (82) as shown. Set the Right
Upright Spacer on the Base (87).
Have a second person hold the Right Upright
(80) near the Base (87). See the inset drawing.
Tie the wire tie in the Right Upright securely
around the end of the Upright Wire (79). Then,
pull the other end of the wire tie until the Upright
Wire is routed completely through the Right
Upright.
4. Hold a Bolt Spacer (81) inside the lower end of
the Right Upright (80). Insert a 3/8" x 4" Bolt (9)
with a 3/8" Star Washer (12) into the Right
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (81), 3/8" x 4" Bolt
(9), and 3/8" Star Washer (12).
Hold the Right Upright (80) against the Right
Upright Spacer (82). Be careful not to pinch
the Upright Wire (79). Tighten the 3/8" x 4"
Bolts (9) until the heads of the Bolts touch the
Upright; do not fully tighten the Bolts yet.
Press a Base Cap (83) into the Base (87).
3
79
Wire Tie
80
Wire
79
Tie
4
8
80
9
80
12
79
81
81
82
87
79
82
87
83
