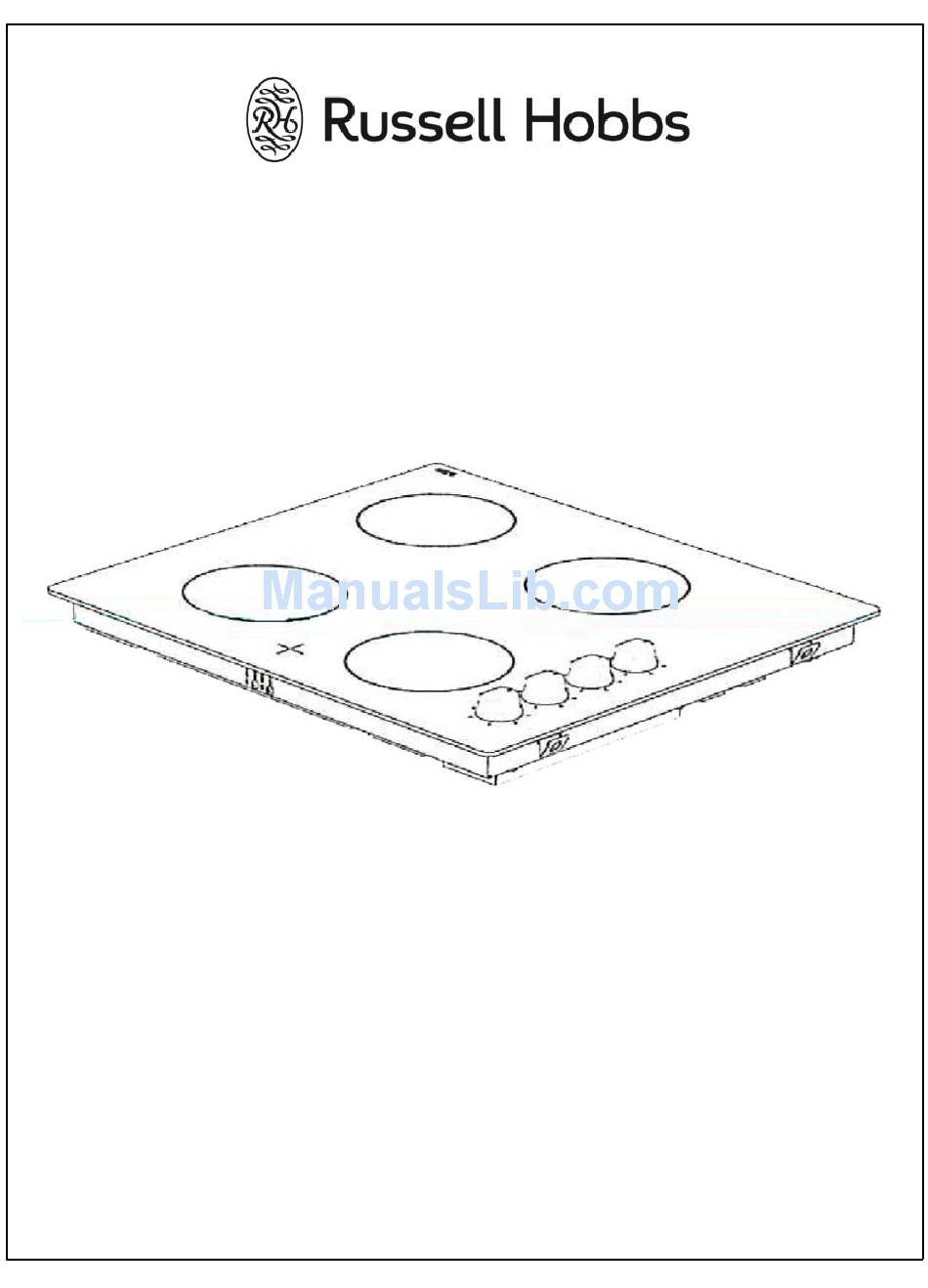

Built in Electric Ceramic Hob Instruction Manual Model number: RHEH1 For Customer Services & Spare Parts please call 0845 208 8750 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com...
Safety Instructions • Please comply with these instructions. If you do not, any damage resulting from improper, incorrect or negligent use or improper connection or installation is not covered by the manufacturer’s guarantee. • Electric oven and hobs must be connected to an electrical cooker powerpoint - consult a qualified electrician.
Safety Instructions • Use only stable flat-based pans. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Before using the appliance • Electric oven and hobs must be connected to an electrical cooker powerpoint - consult a qualified electrician. Products must be installed in accordance with the manufacturer's safety recommendations. • This appliance must only be used for its intended purpose, domestic cooking. Any other form of usage is to be considered as inappropriate, dangerous and will void the manufacturer’s guarantee •...
Installation Electric oven and hobs must be connected to an electrical cooker powerpoint - consult a qualified electrician. Products must be installed in accordance with the manufacturer's safety recommendations. Failure to do so will void the manufacturer’s guarantee. Before connecting your appliance to the mains at home, make sure to check the conformity of the voltage settings.
Page 7
Installation Once the cut-out in the work surface has been made and you have checked the hob will fit correctly into it. Apply the one-sided self-adhesive sealing tape supplied all the way round the lower edge of the hob surface along the outer edge of the glass ceramic panel. Important note Do not stretch the self-adhesive sealing tape Screw the 4 worktop mounting brackets on the side walls of product.
Page 8
Installation Electrical connection • Electric oven and hobs must be connected to an electrical cooker powerpoint - consult a qualified electrician. Products must be installed in accordance with the manufacturer's safety recommendations. • Before proceeding with the electrical connection, verify that the current carrying capacity of the system and the socket is adequate for the maximum power rating of the hob.
Installation • For the Vitroceramic hob, the cable must be H05VV-F 3X2,5 mm² / 60227 IEC 53. You will find the connection diagram shown on the back of your appliance. • During installation, please insure that isolated cables are used. An incorrect connection might damage your appliance and will void the manufacturer’s guarantee.
How to use The appliance is operated by using the dial controls that are located on the right side of the product. The dial that operates a specific cooking zone is shown by indicator diagram next to each dial. Each cooking zone dial has 6 heat levels: Keep warm 2 &...
Maintenance Cookware • Cookware with rough bottoms should not be used since these can scratch the ceramic glass surface. The bottom of the good cookware should be as thick and as flat as possible. • Before using any cookware with hob, make sure that the bottoms of the cookware are clean and dry.
Trouble shooting • Electric oven and hobs must be connected to an electrical cooker powerpoint - consult a qualified electrician. Products must be installed in accordance with the manufacturer's safety recommendations. • All repairs must be carried out by an authorised service personal or a qualified electrician.
Specification Specification Model RHEH1 Dimension (mm) (H)47.5 X (W)590 X (D)520 Cut-out dimensions (mm) (W)560 x (D)490 Vitroceramic Ø145mm radiant element (W) 1200 Ø180mm radiant element (W) 1700 Hot surface indicator light Maximum total power (depends on model) (kW) Voltage (V)
Spare parts Spare part Contact details Adhesive tape Available at www.productcareuk.com call 0845 208 8750 Dials Available at www.productcareuk.com call 0845 208 8750 Other Available at www.productcareuk.com call 0845 208 8750 For Customer Services & Spare Parts please call 0845 208 8750 Opening times: Monday - Friday 8am –...
For Customer Services & Spare Parts please call 0845 208 8750 Opening times: Monday - Friday 8am – 6pm & Saturday 9am –1pm or visit us at www.productcareuk.com Revision 1 This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
