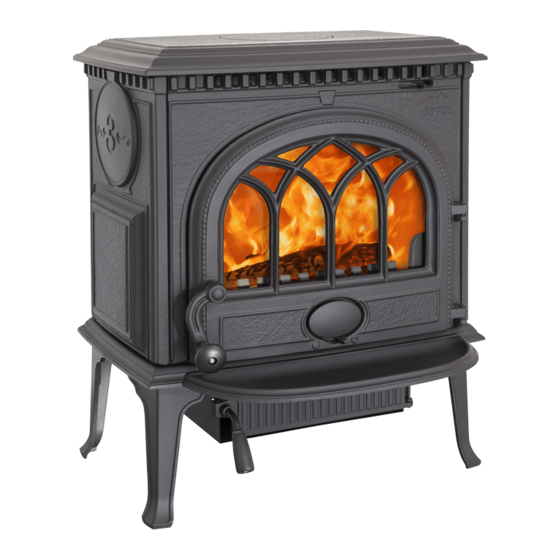

Jøtul F3 USA Installation And Operating Instructions Manual
Hide thumbs
Also See for F3 USA:
- Installation instructions with technical data (56 pages) ,
- Installation and operating instructions manual (56 pages) ,
- Installation and operating instructions manual (22 pages)
Related Manuals for Jøtul F3 USA
Summary of Contents for Jøtul F3 USA

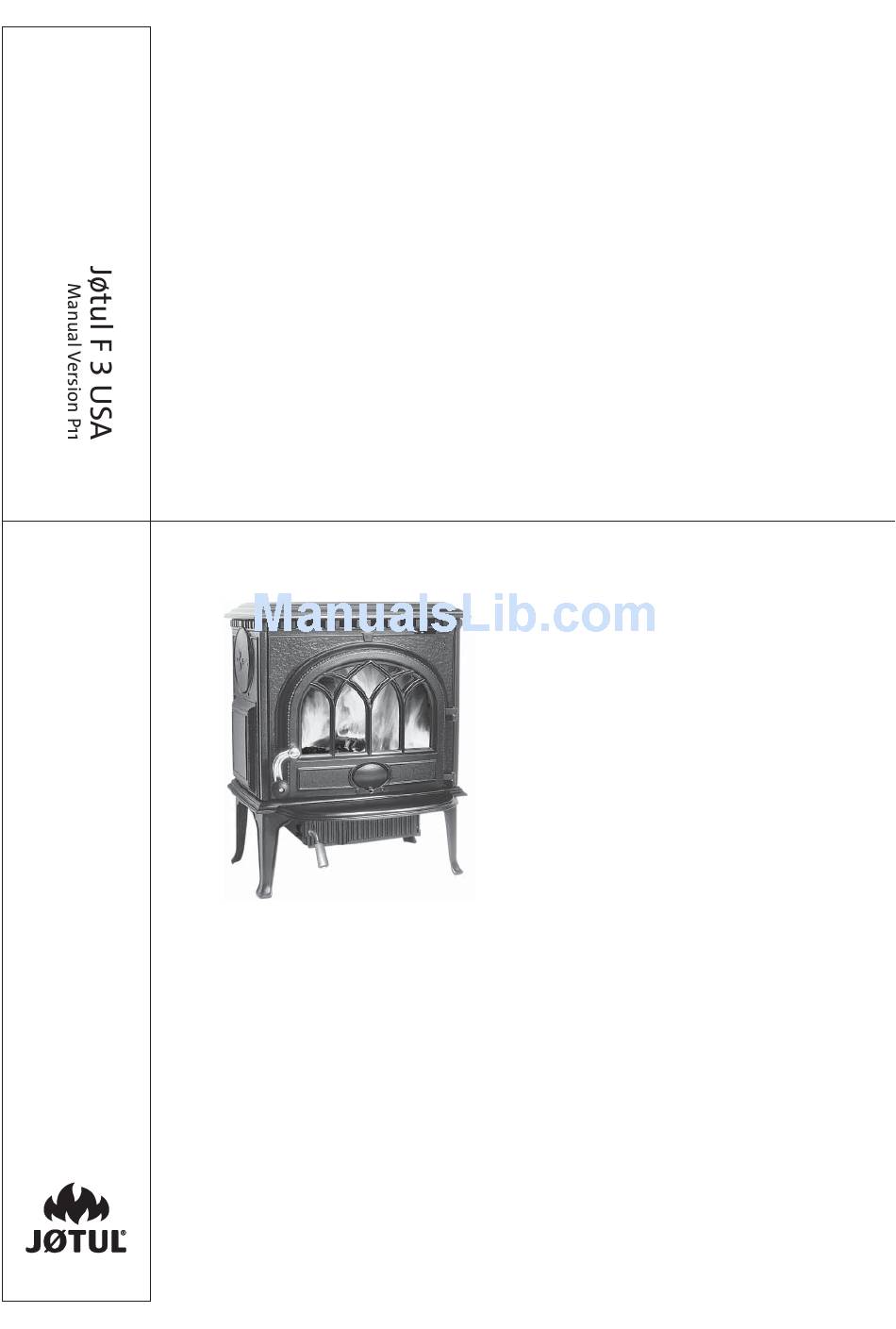

- Page 1 Jøtul F 3 USA Installation and Operating Instructions for the USA and Canada Exploded view Kindly save these instructions for future reference.
-
Page 2: Table Of Contents
USA/Canada Table of contents: Standards and Safety Notices ......3 1.0 Installations ..........4 2.0 Chimney Requirements ....... 6 Masonry Chimney ................ 6 Prefabricated Chimney ............... 7 Chimney height ................7 Wall pass-throughs ..............7 3.0 Connecting to the Chimney ......8 Masonry chimneys ............... -
Page 3: Standards And Safety Notices
USA/Canada Installation and Operation Instructions for USA/Canada Installation et fonctionnement pour Canada Safety notice: If this solid fuel room heater is not properly installed, a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area. -
Page 4: Installations
USA/Canada Notices Reminder: • Be sure to read this entire manual before you install Your local officials have final authority in determining if a or use your new Jøtul F 3. proposed installation is acceptable. Any requirement, that is requested by the local authority having jurisdiction, that is •... - Page 5 USA/Canada Using a claw hammer or a small sledge hammer strike the Fig. 3 center of the 6” “knock-out” disc from the outside of the Direction into the stove. The “knock-out” disc will break into four wedges stove and may need to be tapped out. Touch up any remaining sharp edges with a file or hand grinder.
-
Page 6: Chimney Requirements
USA/Canada This prevents any amount of condensed or liquid creosote CHIMNEY INSPECTION: A Level II (camera) inspection from running down the outside of the pipe or the stove of an existing chimney system must be conducted by top. All joints, including the flue collar connection must be a qualified technician as specified by NFPA 211 when secured with three sheet metal screws to ensure that the verification of the suitability of the chimney for new or... -
Page 7: Prefabricated Chimney
USA/Canada Prefabricated chimneys Wall pass-throughs If a prefabricated metal chimney is to be used it must be When your installation unavoidably requires the chimney a chimney type that is tested and listed for use with solid connector to pass through a combustible wall to reach the fuel burning appliances. -
Page 8: Connecting To The Chimney
USA/Canada 3.0 Connecting to the Fig. 7 chimney Wood Stud 2” Clearance to Flue Liner Chimney Masonry chimney Header When installing a Jøtul F 3 into a masonry chimney through 12” a “thimble”(the opening through the chimney wall to the 30.5 cm flue), the thimble must be lined with ceramic tile or metal and be securely cemented in place. -
Page 9: Prefabricated Chimney
USA/Canada Fig. 9 Fig. 10 Listed Cap Storm Collar Fig. 11 Listed Flashing Chimney Tile liner Attic Insulation Specified Shield Clearance Connector extends to first flue tile Combustible Ceiling Ceiling Joists Stove Support Damper opening is sealed with sheetmetal plate and Chimney Connector sealant... -
Page 10: Clearances
USA/Canada 4.0 Clearances to combustibles Clearances to walls and ceilings The following clearances have been tested to UL and ULC standards and are the minimum clearances specifically Floor protection established for the Jøtul F 3. (See next page) Floor protection under the Jøtul F 3, must be one of the following: The following charts and diagrams give the required 1. -
Page 11: Wall Shields
USA/Canada Wall Shield for close clearance Combustible wall Wall Shield Must be 30” wide and centred behind the stove. Must be 1” off the wall and 1” off the floor. With standard legs, the shield must be 32” high. With optional short legs, the shield must be 30” high. Combustible wall Wall Shield The wall shield must extend... -
Page 12: Stove Clearances
USA/Canada Jøtul F 3 Clearances Stove Clearances Unprotected Surfaces Protected Surfaces Top vent/vertical per NFPA 211 or CAN/CSA-B365-M Side Rear Corner Side Rear Corner Rear heatshield with 24” 25” 18” 10” 14” 10” Single wall pipe 610mm 635mm 460mm 255mm 355mm 255mm Rear heatshield with 18”... -
Page 13: Alcove Installations
USA/Canada Minimum protected alcove: Notice Assumes- Accessories for woodstoves for clearance reduction have Top exit, double wall pipe, and stove’s rear heatshield. been developed by many manufacturers. If not following Minimum alcove width = 35” (890mm) the methods of the installation codes, be sure that any Maximum alcove depth= 24”... -
Page 14: Operation
USA/Canada 5.0 Operation When first starting a fire: The primary control lever should be at the far right position, and the start-up air lever should be in the far right position. This will allow for the Before building a fire in your new Jøtul F 3, please read the maximum amount of air to enter the stove and assist in following section carefully and completely. -
Page 15: Starting/Maintaining
USA/Canada Adding fuel Never overfire the stove When reloading the stove while it is still hot and a bed of If any part of the stove or chimney glows, you are hot embers still exist, follow this reloading procedure: overfiring, and a house fire or serious damage to the stove •... -
Page 16: Maintenance
USA/Canada 6.0 Maintenance 2. Carefully remove all of the glass clips from the inside of the door. 3. Gently remove all pieces of the glass panel and Ash removal: Of course, for your protection always wear gasketing. safety gloves when handling the ash pan. 4. -
Page 17: General Maintenance
USA/Canada Gasket list for the Jøtul F 3 7.0 General Maintenance Description Order # Size Length Top plate gasket 100038 3/8” ld 6’ As with your car, regular maintenance will prolong the life Ash housing gasket 128213 of your stove and ensure satisfactory performance. sheet gasket Ash door gasket 200024... -
Page 18: Accessories
USA/Canada 8.0 Accessories Many accessories have been manufactured for use with the Jøtul F 3. Only use accessories that are specifically designed for the Jøtul F 3. Firescreen (part # 350168) The Jøtul F 3 has been approved for use as an open fireplace, with front door open. -
Page 19: Appendix A (Alternate Floor Protecion)
Appendix A: Alternate floor protection All floor protection materials must be non-combustible ie. Metal, brick, stone, mineral fiber boards). Any combustible material may not be used. The easiest means of determining if a proposed alternate floor material meets requirements listed in this manual is to follow this procedure. -
Page 20: Parts Diagram
USA/Canada... -
Page 21: Part List
USA/Canada Part list for Jøtul F 3 No Description, Dim./Spec. 59 Burn plate left Nut brass, M6x20 DIN 1587 60 Insulation, Firemaster blanket (after X-607) 2 Heat shield aluz. f/ivory en. 61 Screw , M8x25 st.8.8 2 b Heat shield 62 Cover/sec. -
Page 22: Exclusions And Limitations
USA/Canada 9.0 Jøtul N. A. wood- Exclusions and limitations burning product limited Notice: This warranty is void if installation or service is performed by someone other than an authorized installer or service agency, warranty or if installation is not in conformance with the installation and operating instructions contained in this owner’s manual or local and/or national fire and building regulations. - Page 23 USA/Canada The dollar value of JØTUL’s liability for breach of this warranty shall be limited exclusively to the cost of furnishing a replacement component. JØTUL shall not in any event be liable for the cost of labor expended by others in connection with any defective component.
- Page 28 à nos clients une qualité et une sécurité reposant sur la vaste expérience accumulée par Jøtul depuis sa création en 1853. Jøtul North America Inc 55 Hutcherson Drive Gorham, Maine 04038, USA Jøtul AS, P.o. box 1411 N-1602 Fredrikstad, Norway www.jotul.com...
