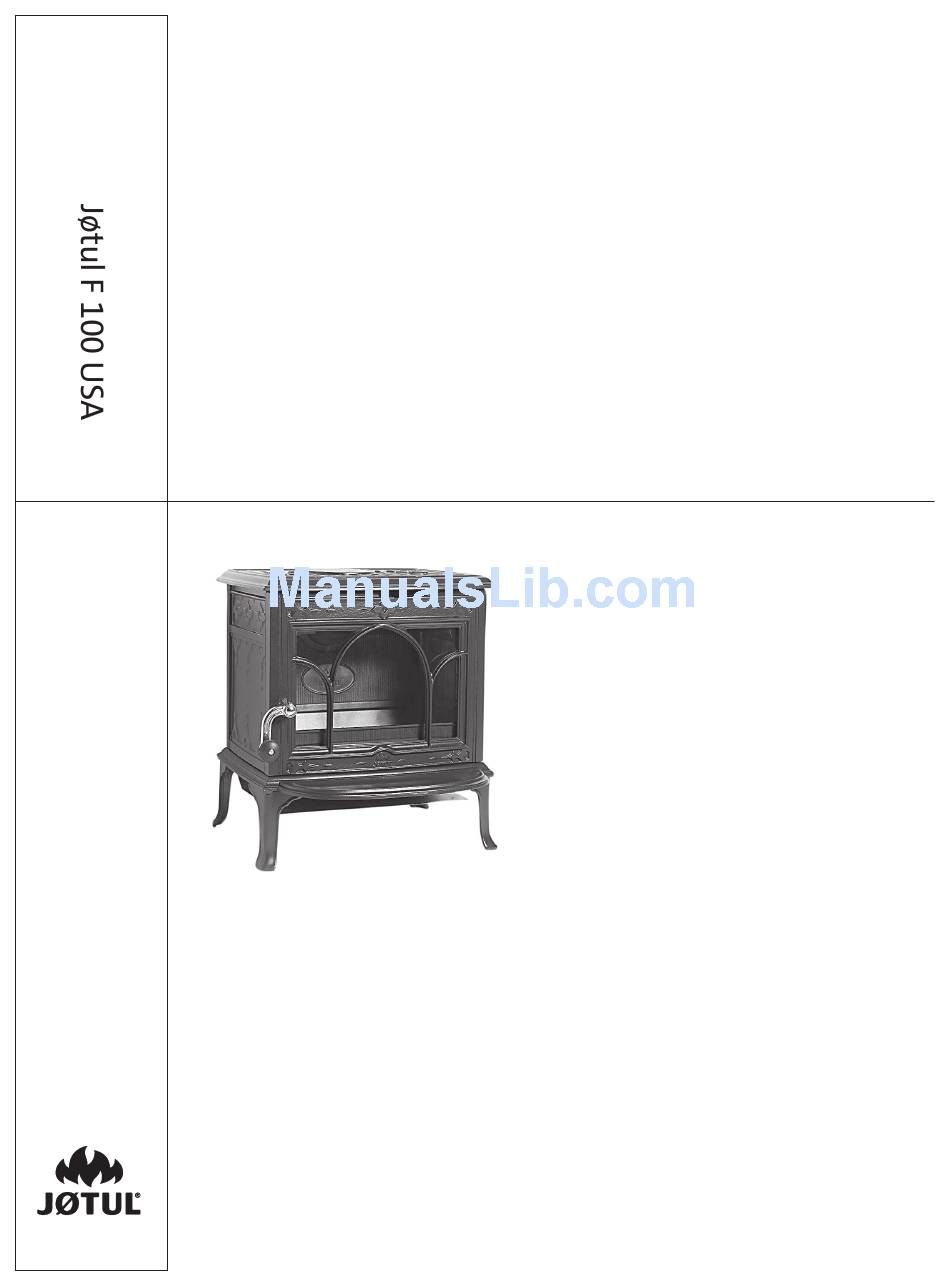

- Page 1 Jøtul F 100 USA Installation and Operating Instructions for USA and Canada Keep these instructions for future reference.
-
Page 2: Standards / Codes
Under specific test conditions, this heater has shown heat output at rates ranging from 7,700 to 27,000 BTU’s per hour. The Jøtul F 100 USA woodstove is only listed to burn wood. Do not burn any other fuels. Read this entire manual before you install and use your new room heater. -
Page 3: Table Of Contents
USA/Canada 20 3/4” Table of Contents 527 mm Standards and Safety Notices Standards / Codes ... 2 Safety Notices ... 4 Installation 22 1/2” 570 mm Flue Collar Installation ... 4 Chimney Connector ... 5 Chimney Requirements Masonry Chimneys ... 6 Prefabricated Chimneys ... -
Page 4: Safety Notices
• Avoid creating a low pressure condition in the room where the stove is operating. Be aware that operation of an exhaust fan or clothes dryer can create a low pressure area and consequently promote flow reversal through the stove and chimney system. -
Page 5: Chimney Connector
Cut at these points Figure 1. Rear flue collar cut-out. Figure 2. Remove the Rear Flue Outlet Coverplate. Install the Ashlip Attach the ashlip to the front by engaging the center tab with the slot located under the front door. Assemble the Door Knob Locate the white washer between the handle and the knob. -
Page 6: Chimney Requirements
Do not connect the stove to any air distribution duct or system. Masonry Chimneys When installing the Jøtul F 100 USA into a masonry chimney you must conform to all of the following guidelines: • The masonry chimney must have a fireclay liner or equivalent, with a minimum thickness of 5/8”... -
Page 7: Wall Pass-Throughs
Chimneys shorter than 14 feet (4.27 m) may not provide adequate draft. Inadequate draft can result in smoke spillage when loading the stove, or when the door is open. Poor draft can also cause back puffing (ignition of gas build-up inside the firebox) and sluggish performance. The minimum height does not, in itself, guarantee proper chimney performance. -
Page 8: Connecting To The Chimney
Connecting to the Chimney Masonry Chimney When installing a Jøtul F 100 USA into a masonry chimney through a “thimble” (the opening through the chimney wall to the flue), the thimble must consist of ceramic tile or steel and be securely cemented in place. -
Page 9: Prefabricated Chimneys
A: 8” (21 cm) B: 16” (US) B: 46 cm (Can) Floor Protection The Jøtul F 100 USA requires one of the following forms of hearth protection: 1. Any UL, ULC or WH listed hearth board. (No bottom heat shield required). -
Page 10: Clearances To Walls And Ceilings
Flue C Flue Collar Hea ollar Hea Alcove Installation The Jøtul F 100 USA can be installed in an Alcove as diagrammed in figures 10 and 11. 1. The stove must be installed with listed double wall pipe. 2. In a protected alcove installation both side walls and rear wall must be protected per NFPA 211 or CAN/ CSA-B365. - Page 11 5. Minimum ceiling height in an unprotected installation, off the top of the stove is 60”(153 cm). The minimum ceiling height off the top of the stove in a protected ceiling installation is 48” (122 cm). Clearances to Fireplace Mantels and Surround Trim See the Clearance Chart on page 12 for approved clearances to combustible materials that may be part of...
-
Page 12: Clearance Chart
USA/CANADA Jøtul F 100 USA Clearance Chart All clearances established with included stove rear heat shield installed. Stove Clearances Installation Side Single-wall Connector 15” 381 mm Single-wall Connector with Connector Shields 17” or Double-wall Connector* 432 mm Chimney Connector Unprotected Surface... -
Page 13: Clearance Diagrams
Unprotected Surface Parallel To The Wall Connector heatshields and double wall pipe must be a listed product. Always follow the manufacturer’s instructions. Unprotected Surface Corner Installation Protected Surface Parallel To The Wall PER NFPA 211 or CAN/CSA-B365 Important: Protected Surface Corner Installation PER NFPA 211 or CAN/CSA-B365... -
Page 14: Operation
Break-In Procedure The Jøtul F 100 USA is constructed of cast iron and high temperature furnace cement. This type of construction requires the stove to be “broken-in” gradually so that heat expansion does not occur too quickly and cause damage. -
Page 15: Starting / Maintaining The Fire
is out and the stove has cooled to room temperature, continue the break-in procedure. Never attempt to reduce the temperature by removing burning logs from the fire. Breakin Odors: It is normal for a new painted stove to emit odor and smoke during the first few fires. This is caused by curing of the high temperature paint and will diminish with each fire. -
Page 16: Maintenance
USA/Canada Maintenance Ash Removal Ash removal will be required periodically, depending on how frequently the stove is used. Avoid letting the ash accumulate to spill over the Ash Fettle. For your protection, always wear safety gloves when handling the ashes. Use an ash shovel to remove the accumulation from the bottom of the firebox. -
Page 17: General Maintenance
100030 5/16" LD Chimney System The Jøtul F 100 USA is designed to burn cleanly and efficiently when used according to the guidelines in this manual. In order to maintain proper performance, you should inspect the chimney and chimney connector at least twice a year and clean when creosote and fly ash deposits exceed 1/4”... -
Page 18: Parts List
USA/Canada Illustrated Parts Breakdown. Only use replacement parts provided through your authorized Jøtul dealer. - Page 19 Pos. no. Description Side plate , left Gasket (for rear plate) Cover for air manifold Heat shield rear, black Smoke outlet cover Rear plate Gasket (for top) Baffle Smoke outlet, dripless Ø125 Gasket (for smoke outlet) Top plate , complete Inner bottom Burn plate, side Side plate , right...
- Page 20 Jøtul AS pursues a policy of constant product development. Products may therefore differ in specification, colour and type of accessories from those illustrated and described in this manual. Quality Jøtul AS utilizes quality controls conforming to NS-EN ISO 9001 for product development, manufacturing, and distribution of stoves and fireplaces.
