Travis Industries 1080 CF Owner's Manual

Hide thumbs Also See for 1080 CF:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Maintenance Manual, Installation Manual

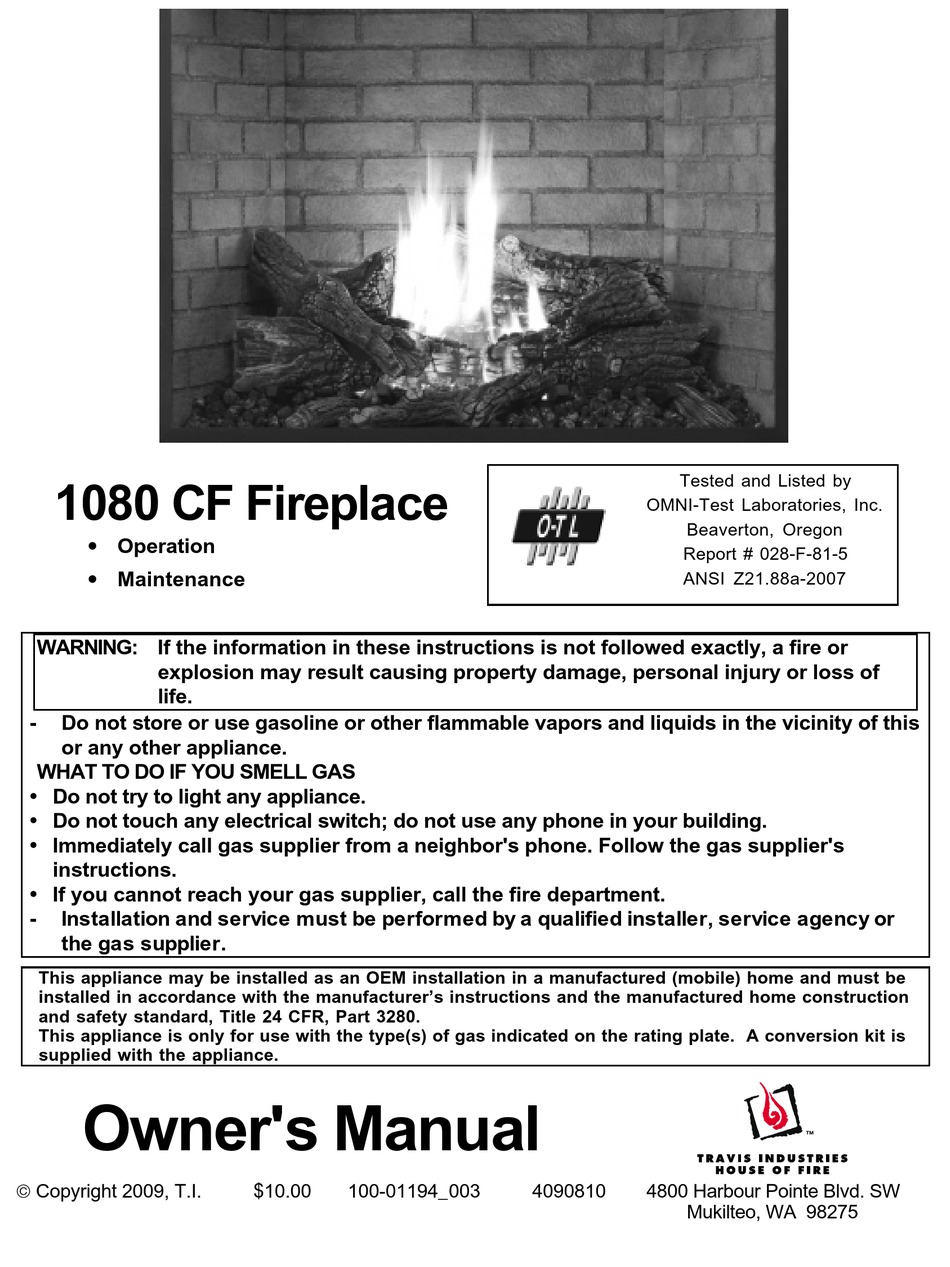

1080 CF Fireplace
• Operation
• Maintenance
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of
life.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or
the gas supplier.
This appliance may be installed as an OEM installation in a manufactured (mobile) home and must be
installed in accordance with the manufacturer's instructions and the manufactured home construction
and safety standard, Title 24 CFR, Part 3280.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is
supplied with the appliance.
Owner's Manual
 Copyright 2009, T.I.
$10.00
100-01194_003
Tested and Listed by
OMNI-Test Laboratories, Inc.
Beaverton, Oregon
Report # 028-F-81-5
ANSI Z21.88a-2007
4090810
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1080 CF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Travis Industries 1080 CF

Summary of Contents for Travis Industries 1080 CF

  • Page 1 Tested and Listed by 1080 CF Fireplace OMNI-Test Laboratories, Inc. Beaverton, Oregon • Operation Report # 028-F-81-5 • Maintenance ANSI Z21.88a-2007 WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

  • Page 2: Introduction

    Introduction Introduction We welcome you as a new owner of a 1080 CF gas fireplace. This manual details operation and maintenance of this fireplace. Please familiarize yourself with the Owner's Manual before operating your heater and save the manual for future reference.

  • Page 3: Table Of Contents

    Introduction Table of Contents Introduction and Important Information Maintenance Introduction ............. 2 Yearly Service Procedure.......... 9 Important Information ..........2 Glass Frame Removal and Installation......10 Installation Warnings ..........2 Log Set Installation ..........11 Features ..............3 Wiring Diagram............20 Gas Input Specifications ...........

  • Page 4: Safety Precautions

    Safety Precautions IF YOU SMELL GAS: * Do not light any appliance * Extinguish any open flame * Do not touch any electrical switch or plug or unplug anything * Open windows and vacate building * Call gas supplier from neighbor's house, if not reached, call fire department This unit must be installed by a qualified installer to prevent the possibility of an explosion.
  • Page 5 Safety Precautions Do not place clothing or other Light the heater using the built- flammable items on or near in electronic igniter. Do not the heater. Because this use matches or any other heater can be controlled by a external device to light your thermostat there is a possibility heater.

  • Page 6: Operation

    Operation Before You Begin Read this entire manual before you use your new fireplace (especially the section "Safety Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage, bodily injury, or even death. Controls Remote Control The remote control can turn the fireplace on and off or operate as a thermostat.

  • Page 7: The Two Modes Of Operation

    Operation The Two Modes of Operation This fireplace uses both a wall switch and thermostat to control the fireplace. NOTE: Whichever component is operated last controls the fireplace. If you are using the remote and you press any button on the wall switch, the remote NOTE: Whichever control is is no longer in control of the...

  • Page 8: Starting The Fireplace For The First Time

    Operation Starting the Fireplace for the First Time • Burn the heater at a high setting for an extended period (up to 48 hours). This will cure the painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. This is normal.

  • Page 9: Maintenance

    Maintenance Yearly Service Procedure WARNING: Prior to removing the glass, shut off gas to the appliance (or remove the batteries from the battery box and shut off electricity to the fireplace). This prevents any chance of accidental burner ignition when accessing the firebox. •...

  • Page 10: Glass Frame Removal And Installation

    Maintenance Glass Frame Removal and Installation WARNING: Prior to removing the glass, shut off gas to the appliance (or remove the batteries from the battery box and shut off electricity to the fireplace). This prevents any chance of accidental burner ignition when accessing the firebox. Warning: The appliance must be completely cool before removing the glass.

  • Page 11: Log Set Installation

    Maintenance Log Set Installation Overview Below is a picture detailing log placement for this fireplace. Follow the directions on the following pages to place the logs correctly. Rear Log Left Twig Right Twig Left Front Right Front Log Left Ember Center Ember Right Ember ©...
  • Page 12 Maintenance Rear Log The rear log has two grooves that fit over the grate. These grooves allow for proper adjustment of the rear log. After the logs are in place, and the fireplace has run for 15 minutes, you may wish to verify the log is correctly positioned.
  • Page 13 Maintenance Right Front Log The right front log has a pocket on the bottom of the log. This pin fits into the pocket. When in place, the log rests level as shown in the picture to the right. © Travis Industries 100-01194_003 4090810...
  • Page 14 Maintenance Left Front Log The left front log has a groove on the bottom of the log. This groove fits over the air deflector on the burner. When in place, the log rests level as shown in the picture to the right. Note how the right portion of the log lines up with the right front log, creating the appearance of one log.
  • Page 15 Maintenance Right Twig The right twig is installed in the direction shown in the photo to the right. You will notice a flat spot on the front right log. The right twig rests on this flat spot and on top of the rear log. When in place, the twig should look as shown in the picture to the right.
  • Page 16 Maintenance Left Twig The left twig is installed in the direction shown in the photo to the right. You will notice a flat spot on the front left log. The left twig rests on this flat spot and on the grate at the front of the firebox.
  • Page 17 Maintenance Ember Chunks The left ember chunk is placed on the floor fireback and burner (do not cover any burner holes). NOTE: If using the optional andirons, you may need to reposition this ember slightly. The center ember chunk has a notch in the center.
  • Page 18 Maintenance Ember Placement Place the embers along the firebox floor and burner to help conceal the burner. Make sure none of the embers are directly over the burner holes. See the photo below. Note how the embers do not cover any burner holes. Place the embers around the burner to create a realistic effect.

  • Page 19: Glass Cleaning

    Maintenance Glass Cleaning The glass may be cleaned with a non-abrasive cleaner. To clean the inside of the glass, simply remove the glass frame, place it on a non-scratching surface, and clean the inside surface. WARNING: do not operate the fireplace without the glass assembly in place. Battery Installation HINT: When the flame height adjustment no longer operates, this is an indication that the battery box batteries are low and require replacement.

  • Page 20: Wiring Diagram

    Maintenance Wiring Diagram Pilot Assembly Igniter ("I") Wire (Orange - with fiberglass Receiver insulation) Battery Box Module Battery Box Wires (DC Motor Drive) - 12' Length Sensor ("S") Wire (White) Black, Brown, Red, and Orange wires DCMD Wires (DC Motor Drive) - 12' Length Red and Black/Red wires (w quick connects) AC Adapter (wire orientation does not matter)
  • Page 21 Warranty To register your TRAVIS INDUSTRIES, INC. 7 Year Warranty, complete the enclosed Warranty card and mail it within ten (10) days of the appliance purchase date to: TRAVIS INDUSTRIES, INC., 4800 Harbour Pointe Blvd. SW, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows: Check with your dealer in advance for any costs to you when arranging a warranty call.

  • Page 22: Optional Equipment

    Optional Equipment Accessories The accessories listed below are available at your Travis dealer. To locate a dealer, visit: www.travisproducts.com Andirons These decorative additions attach to the grate inside the firebox and enhance the wood-fire look of your fireplace. Trim Kit This decorative upgrade adds a unique touch to the perimeter of the glass ©...
  • Page 23 Optional Equipment © Travis Industries 100-01194_003 4090810...

  • Page 24: Warranty

    Index Index Accessories............22 Normal Operating Odors ........8 Adjusting the Flame Height ........8 Odors............... 8 Before You Begin ..........6 On/Off Operation ..........7 Cleaning............19 Optional Equipment List ........22 Continuous Pilot – For Very Cold Conditions ..8 Parts..............20 Controls - Location ..........6 Pilot - Starting ...........
