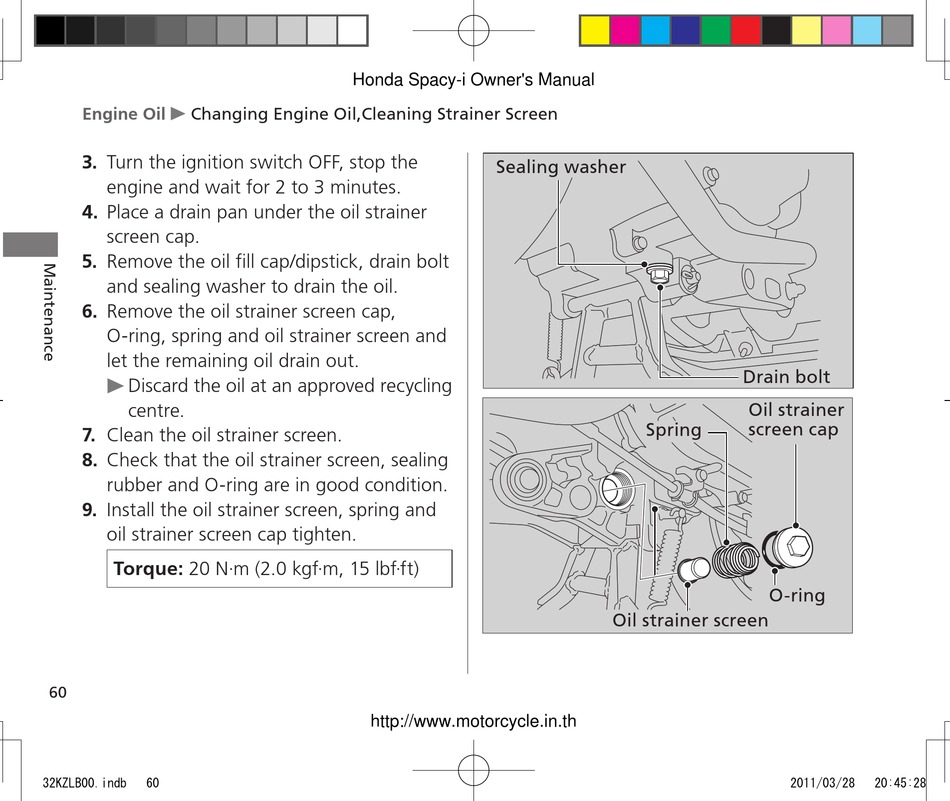

Engine Oil Changing Engine Oil,Cleaning Strainer Screen
a
3. Turn the ignition switch OFF, stop the
engine and wait for 2 to 3 minutes.
4. Place a drain pan under the oil strainer
screen cap.
5. Remove the oil fill cap/dipstick, drain bolt
and sealing washer to drain the oil.
6. Remove the oil strainer screen cap,
O-ring, spring and oil strainer screen and
let the remaining oil drain out.
Discard the oil at an approved recycling
a
centre.
7. Clean the oil strainer screen.
8. Check that the oil strainer screen, sealing
rubber and O-ring are in good condition.
9. Install the oil strainer screen, spring and
oil strainer screen cap tighten.
Torque: 20 N·m (2.0 kgf·m, 15 lbf·ft)
60
Honda Spacy-i Owner's Manual
Sealing washer
http://www.motorcycle.in.th
Drain bolt
Oil strainer
Spring screen cap
O-ring
Oil strainer screen
