Owner's Operation and Maintenance Manual

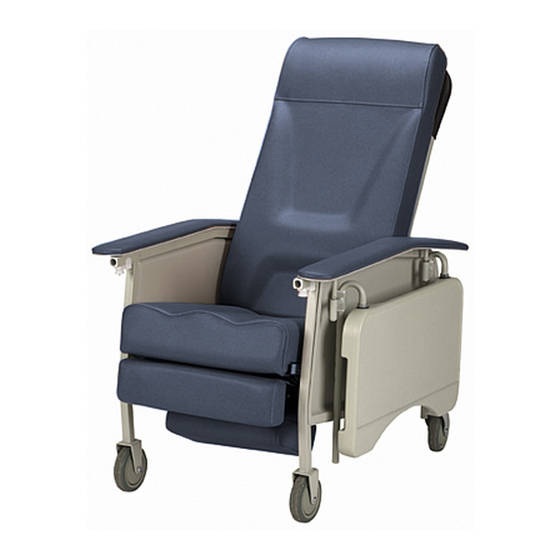

Invacare Mobile
Three-Position Recliner
Deluxe Three-Position
Recliner Model IH6065 series
DEALER: This manual MUST be given to
the user of the product.
USER: BEFORE using this product, read this
manual and save for future reference.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com
Recliners
Model IH6074A
Clinical Recliner
Model IH6077A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Invacare Deluxe Three-Position IH6065 series
Summary of Contents for Invacare Deluxe Three-Position IH6065 series
-
Page 1: Model Ih6074A
Model IH6077A DEALER: This manual MUST be given to the user of the product. USER: BEFORE using this product, read this manual and save for future reference. For more information regarding Invacare products, parts, and services, please visit www.invacare.com Recliners... - Page 2 ACCESSORIES WARNING INVACARE PRODUCTS ARE SPECIFICALLY DESIGNED AND MANUFACTURED FOR USE IN CONJUNCTION WITH INVACARE ACCESSORIES. ACCESSORIES DESIGNED BY OTHER MANUFACTURERS HAVE NOT BEEN TESTED BY INVACARE AND ARE NOT RECOMMENDED FOR USE WITH INVACARE PRODUCTS. NOTE: Updated versions of this manual are available on www.invacare.com. Invacare Mobile Recliners...
-
Page 3: Table Of Contents
Reclining the Chair ...15 Models IH6074A and IH6065 series...15 Model IH6077A ...16 Positioning the Articulating Headrest...17 Locking/Unlocking the Rear Wheels...18 Installing/Storing the Tray...18 Model IH6074A ...18 Model IH6065A ...19 Model IH6077A ...19 Adjusting the Tray Position...20 Part No. 1141494 Invacare Mobile Recliners... -
Page 4: Register Your Product
2. Ensuring long-term maintenance and servicing of your product. 3. Receiving updates with product information, maintenance tips and industry news. Register ONLINE at warranty.invacare.com Please have your model number and purchase date available to complete your registration. Invacare Mobile Recliners... -
Page 5: Label Location
When unoccupied ensure the legrest is down. Keep hands and feet clear of mechanism. NOTE: Model IH6074A shown. IH6065 series and IH6077A labels are in the same locations. Part No. 1141494 DO NOT press down or stand on the footrest. 1143177 Rev. A - 4/25/06 1143178 Rev. A - 4/25/06 Invacare Mobile Recliners... -
Page 6: Special Notes
To date, Invacare does not have, nor do we have any say, in the recommendation of the manufacture of Mobile Recliner transportation systems. -
Page 7: Typical Product Parameters
105 lbs MODEL NO. IH8077A 49 inches 30¾ inches 38 inches 74 inches 31 inches 19½ inches 32 inches 22 inches 14° - 35° 29° - 77° 10 x 19 inches 250 lbs 89 lbs 105 lbs Invacare Mobile Recliners... -
Page 8: Section 1-General Guidelines
Service Information After the first six months of operation, inspect all pivot points and fasteners for wear. If the metal is worn, the parts MUST be replaced. Make this inspection every six months thereafter. Regular maintenance of the mobile recliner and accessories is necessary to assure proper operation. Operation Information Check all parts for shipping damage. In case of damage, DO NOT use. Contact Carrier/ Dealer for further instructions. ALWAYS keep hands and fingers clear of moving parts to avoid injury. DO NOT use near an open flame or heat source, as all upholstery materials, even though treated with flame retardant, can ignite when exposed to open flame. Rear caster wheels MUST be locked during user transfer to or from recliner and while tilting and/or reclining or inclining (sitting up). Ensure that casters are free of debris. Casters and axle bolts require inspection every six months to check for tightness and wear. DO NOT enter or exit the recliner when footrest is elevated. DO NOT sit on the footrest when recliner is extended. The recliner will tip and bodily injury may occur. DO NOT push or pull footrest to position the recliner. DO NOT stand on the footplates. When getting in or out of the wheelchair, make sure that the footplates are in the upward position or swing the footrests towards the outside of the wheelchair. DO NOT place hands or feet into any openings when adjusting the recliner. Attendant or care provider should always verify placement of user’s hands and feet prior to adjusting the recliner. Failure to do so may result in serious bodily injury. Invacare Mobile Recliners Part No. 1141494... -
Page 9: Weight Limitation
DO NOT attempt to stop the recliner with the wheel locks, while in motion. Wheel locks are not brakes. Before attempting to transfer in or out of the recliner, every precaution should be taken to reduce the gap distance. Turn the recliner toward the object you are transferring onto. When transferring to and from the recliner, ALWAYS engage both wheel locks. Special care MUST BE taken with people that have physical limitations which may require an assistant. DO NOT traverse, climb or go down ramps or slopes greater than 9°. Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invacare products. Weight Limitation The weight limitation for Invacare Mobile Recliners is 250 lbs (113.6 kg). The weight limitation for model IH6065WD Wide Recliner is 400 lbs (181.44 kg). The tray for models IH6074A, IH6065A, and IH6077A has a weight limitation of 40 lbs (18.2 kg). Recline Option Operated by an Attendant Test the recline feature of the recliner first without an occupant to ensure the gas cylinder is operational. DO NOT operate the recline option if the gas cylinder is not operational. ALWAYS make sure that the recliner is stable before using the recline option. Make sure the patient is properly positioned in the recliner before reclining or inclining to maintain maximum stability and safety. When returning the occupant of the recliner to the full upright position, more body strength will be required for approximately the last twenty degrees of incline (sitting up). Make sure to use proper body mechanics (use your legs) or seek assistance to avoid injury. Physical limitations of a user and larger occupants of the recliner can present conditions that can injure the assistant. When in doubt, assure that additional assistants are present before operating the recline feature. Part No. 1141494 Invacare Mobile Recliners... -
Page 10: Section 2-Safety Inspection
❑ Ensure that the recliner rolls straight (no excessive drag or pull to one side). ❑ Ensure seat, back and/or armrest upholstery have no rips and do not sag. Replace if necessary. ❑ Ensure that the seat upholstery is fastened to the seat frame. ❑ Clean seat upholstery and armrests. ❑ Inspect caster assembly to ensure it has proper tension when caster is spun. Caster should come to a gradual stop. ❑ Loosen/tighten caster locknut if wheel wobbles noticeably or binds to a stop. ❑ Ensure that the caster assembly is free from debris. ❑ Inspect for any loose hardware on the recliner. ❑ Check that all labels are present and legible. Replace if necessary. ❑ FOR IH6077A ONLY ‐ Ensure that the trigger release cables completely release and the handles return when released. ❑ FOR IH6077A ONLY ‐ Inspect the gas cylinders for leaking oil. Inspect/Adjust Weekly ❑ Ensure that the seat upholstery is fastened to the seat frame. ❑ Ensure seat, back and/or armrest upholstery have no rips and do not sag. Replace if necessary. ❑ Ensure that the caster assembly is free of debris. Invacare Mobile Recliners CAUTION Part No. 1141494... - Page 11 ❑ FOR IH6077A ONLY ‐ Ensure that the trigger release cables completely release and the handles return when released. Inspect/Adjust Monthly ❑ Ensure that the recliner rolls straight (no excessive drag or pull to one side). ❑ Ensure that the seat upholstery is fastened to the seat frame. ❑ Inspect caster assembly to ensure it has proper tension when caster is spun. Caster should come to a gradual stop. ❑ Loosen/tighten caster locknut if wheel wobbles noticeably or binds to a stop. ❑ Inspect for any loose hardware on the recliner. ❑ FOR IH6077A ONLY ‐ Ensure that the trigger releae cables completely release and the handles return when released. Inspect/Adjust Periodically ❑ Ensure recliner rolls straight (no excessive drag or pull to one side). ❑ Ensure seat, back and/or armrest upholstery have no rips and do not sag. Replace if necessary. ❑ Clean upholstery and armrests. ❑ Check that all labels are present and legible. Replace if necessary. ❑ FOR IH6077A ONLY ‐ Inspect the gas cylinders for leaking oil. Part No. 1141494 Invacare Mobile Recliners...
-
Page 12: Section 3-Assembly
Tighten mounting screws securely. Failure to do so may result in bodily injury or damage to the recliner. Assembling Models IH6074A and IH6065 series NOTE: For this procedure, refer to FIGURE 3.1 on page 13. 1. Remove back frame with back cushion from its carton. 2. Lock the rear casters. Work from the rear of the recliner base. NOTE: Ensure that footrest is in closed position before installing the back frame with cushion. 3. Lift the chair back in an upright position behind the rear seat cross brace. 4. Slide the back tubes into the open tube ends of the rear seat cross brace. 5. Lift the plastic skirt mounted on the bottom of the seat and align behind the rear seat frame crossbrace (Detail “A”). 6. Align the holes in the skirt to the holes in the chair back by fastening the hardware. 7. Securely tighten the two hex screws to secure the back cushion to the back frame. Invacare Mobile Recliners WARNING WARNING Part No. 1141494... -
Page 13: Assembling Model Ih6077A
8. Insert a clevis pin through the gas spring bracket and through the mounting bracket on the seat frame and secure with a retaining ring. 9. Lift the plastic skirt mounted on the bottom of the seat. 10. Align the holes in the skirt to the holes in the chair back by fastening the hardware. 11. Install the side panels. Refer to Removing/Installing the Side Panel on page 28. Part No. 1141494 Screw Mounting Hole Guide Tube Mounting Hole Screws Plastic Skirt DETAIL “A” - PLASTIC SKIRT Plastic Rear Seat Skirt Frame Crossbrace Hex Head Screws Head Invacare Mobile Recliners... - Page 14 Bolt C Seat Frame Actuator DETAIL “C” - SIDE PANEL See Detail “A” See Detail “A” Gas Spring Side Bracket Panel Side View Push Buttons FIGURE 3.2 Assembling the Recliner - Assembling Model IH6077A Invacare Mobile Recliners Part No. 1141494...
-
Page 15: Section 4-Operation
- otherwise injury or damage may result. CAUTION Ensure that there is adequate room to operate the Invacare Mobile Recliner. There must be at least three feet clearance between the top of the recliner back and the surrounding objects, otherwise damage to the recliner and or surrounding property may occur. -
Page 16: Model Ih6077A
NOTE: For this procedure, refer to FIGURE 4.3. 1. While seated in the recliner, grip the armrests and simultaneously lean body weight back and push forward with your arms until a recline position is reached. NOTE: The footrest assembly will elevate automatically as the chair is reclined. NOTE: The occupant should not be required to exert excessive force to change recline positions. If the recliner exhibits difficulty in reclining, an attendant should be called for assistance. FIGURE 4.3 Reclining the Chair - Model IH6077A - User Recline Invacare Mobile Recliners Position Lock Lever Storage Position FIGURE 4.2 Reclining the Chair - Models IH6074A and IH6065 series - Assisted Recline... -
Page 17: Positioning The Articulating Headrest
POSITION 2 (SHOCK) Release Handle Chair Back Chair Back FIGURE 4.4 Reclining the Chair - Model IH6077A - Assisted Recline Positioning the Articulating Headrest Headrest NOTE: For this procedure, refer to FIGURE 4.5. 1. Grasp the headrest and push or pull it FIGURE 4.5 Positioning the Articulating into the desired position. Headrest Part No. 1141494 Invacare Mobile Recliners... -
Page 18: Locking/Unlocking The Rear Wheels
DETAIL “A” - FRONT VIEW Mounting Bracket (Hidden from View) Tray Plunger Alignment Rods Release Knob FIGURE 4.7 Installing/Storing the Tray - Model IH6074A Invacare Mobile Recliners Wheel Lock Mechanism DETAIL “B” - SIDE VIEW Armrest Alignment Rod Tray Mounting... -
Page 19: Model Ih6065A
FIGURE 4.9. 1. To lower tray, pull out the tray and lower. Part No. 1141494 DETAIL “A” - DETAIL “B” - FRONT VIEW SIDE VIEW Tray Tray Armrest Mounting Brackets Plunger Release Knob FIGURE 4.9 Installing/Storing the Tray - Armrest Hangers Tray Model IH6077A Invacare Mobile Recliners... -
Page 20: Adjusting The Tray Position
To Set the Tray to a Locked Position 1. Pull down on the plunger release knob below the armrests of the chair (seated) and push/pull the tray to the desired position. 2. Ensure tray locks in place. To Set the Tray to Freeflow 1. Pull down on the plunger release knob below the right arm rest of the chair (seated) and push/pull the tray to the desired position. 2. Slide the plastic keeper forward and release the plunder knob. 3. Slide the tray in or out to desired position. Tray Plunger Release Knob FIGURE 4.10 Adjusting the Tray Position Invacare Mobile Recliners Plastic Keeper Part No. 1141494... -
Page 21: Section 5- Maintenance
1. Align back cushion with the back frame. 2. Install four long hex screws to secure the back cushion to the back frame. Securely tighten. 3. Secure the headrest bracket to the back cushion with four short hex screws. 4. Securely tighten. Repeat for remaining headrest bracket. Back Cushion Back Frame FIGURE 5.1 Replacing the Back Cushion - Model IH6074A and IH6065 series Part No. 1141494 WARNING Headrest Bracket Short Hex Screws Long Hex Screws Invacare Mobile Recliners... -
Page 22: Model Ih6077A
FIGURE 5.2 Replacing the Back Cushion - Model IH6077A Replacing the Footrest Cushion DO NOT stand on the footrest or seat when entering or exiting the recliner. The recliner will tip and bodily injury may occur. NOTE: For this procedure, refer to FIGURE 5.3 on page 23. Invacare Mobile Recliners Push Headrest Handle Bracket... -
Page 23: Replacing The Recline Mechanism Guard
5. Remove existing recline mechanism guard. 6. Position new recline mechanism guard against the side frame with the folded edge down. 7. Align holes of new recline mechanism guard with holes on side frame. 8. Secure new recline mechanism guard to side frame with bolts A, B, C, and D. Securely tighten. 9. Install the side panel. Refer to Removing/Installing the Side Panel on page 28. 10. Place chair in the upright position. NOTE: If binding or pinching of recline mechanism guard occurs, contact Invacare. 11. Carefully tip recliner onto the left side. Ensure there are no obstructions on or around the floor before doing this. 12. Repeat STEPS 3‐10 to install remaining recline mechanism guard. Part No. 1141494 Footrest Cushion Hex Screws FIGURE 5.3 Replacing the Footrest Cushion Invacare Mobile Recliners Footrest Assembly Recline Mechanism... -
Page 24: Replacing The Elbow Pads - Model Ih6077A Only
3. Remove mounting bolt and locknut securing the gas spring recline cylinder to the back frame. 4. Recline the back until cylinder can be removed from mounting bracket easily (approximately a 45° angle). 5. Remove gas spring recline cylinder. 6. Loosen the locknut on the bottom of the cylinder (Detail ʺAʺ). 7. Hold the bottom bracket and turn the cylinder until cable becomes taut. NOTE: If the cylinder was not locking when the lever was actuated, turn cylinder clockwise. If the cylinder was not locking when the lever was released, turn cylinder counterclockwise. Invacare Mobile Recliners Side View Seat Cushion Footrest Recline Mechanism Bolt C Bolt D Bolt B FIGURE 5.5 Replacing the Elbow Pads - Model IH6077A Only... -
Page 25: Replacing The Release Handle And Cable Assembly - Model Ih6077A Only
5. Secure new release handle to the push handle with the existing mounting screw. Securely tighten (Detail ʺAʺ). Part No. 1141494 Gas Spring Recline Cylinder Back Frame Mounting Bolt Locknut Gas Spring Recline Cylinder Clevis Pin Cable CAUTION DETAIL “A” - LOOSENING THE LOCKNUT DETAIL “B” - TIGHTENING THE CABLE Cylinder Bottom Bracket Invacare Mobile Recliners... -
Page 26: Replacing Position Lock Lever - Models H6074A And Ih6065 Series Only
FIGURE 5.8. Removing Position Lock Lever 1. Remove two screws, nylon washers and locknuts securing the position lock lever to the seat frame. Installing Position Lock Lever 1. Secure the position lock lever to the seat frame with the two screws, nylon washers and locknuts. Invacare Mobile Recliners DETAIL “B” - CABLE ASSEMBLY Actuator Push Handle Release Lever Nylon Washer Position Lock FIGURE 5.8 Replacing Position Lock Lever... -
Page 27: Replacing Casters
DETAIL “A” - CASTER ASSEMBLY Recliner Frame Hex Head Screw Caster Locknut Insert Part No. 1141494 DETAIL “B” - CASTER WHEELS Fork Axle Bolt Caster Wheel FIGURE 5.9 Replacing Casters Locknut Axle Bolt Locking Acruator Caster Wheel Invacare Mobile Recliners... -
Page 28: Replacing Plunger Release Knob
Installing Side Panel 1. Slip the top of the right side panel into the mounting tab. 2. Push the side panel upward until the side panel fit into the side frame. 3. Pop the side panel into position when the push buttons are visible, through the push pin holes, near the bottom of the side frame. Invacare Mobile Recliners Plunger Pin Spring Glide Plunger Release Knob Retaining Ring FIGURE 5.10 Replacing Plunger Release Knob Push Buttons FIGURE 5.11 Removing/Installing the Side... -
Page 29: Replacing The Armrest Cushion
DO NOT use paint remover or any liquid brush cleaner. NOTE: A variety of solvents may be used to clean the upholstery on the recliner dependant upon the severity of the stain. The following list should be helpful: • Ordinary dirt stains: Clean upholstery with warm water and mild detergent to remove superficial soil. • Ground‐in dirt stains: Use soft bristle brush and powdered cleanser or similar detergent. • Tar, asphalt or creosote: These will stain and should be removed as soon as possible. Area can be cleaned with kerosene or naptha. • Chewing gum: Scrape off carefully. Remove remainder with kerosene or naptha. • Paint or shoe polish: Remove immediately. Use a white cloth dampened with kerosene, naptha or turpentine. • Excrement: Remove immediately. Clean with 1:10 mix of bleach and water. NOTE: The wearability of your chair can be improved by using a quality paste wax periodically. Part No. 1141494 FIGURE 5.12 Replacing the Armrest Cushion DANGER WARNING Screws Invacare Mobile Recliners... - Page 30 SECTION 5—MAINTENANCE NOTES Invacare Mobile Recliners Part No. 1141494...
- Page 31 SECTION 5—MAINTENANCE NOTES Part No. 1141494 Invacare Mobile Recliners...
-
Page 32: Limited Warranty
Recline Cylinder from the date of purchase. If within such warranty period any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare’s option. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product.
