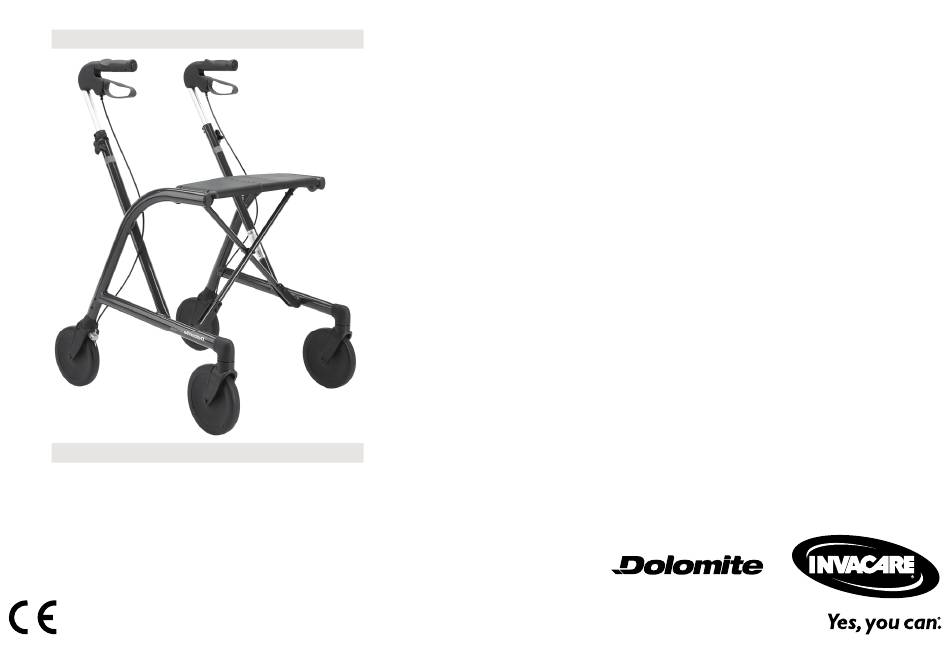

- Page 1 Dolomite® Gloss® en Rollator User Manual This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read and saved for future reference.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
-
Page 3: Table Of Contents
Contents 5.2 Inspection Checklist......16 5.3 Cleaning and Disinfection ......16 5.3.1 General Safety Information. -
Page 4: General
Dolomite® Gloss® For more information about the product, for example 1 General product safety notices and product recalls, contact your Invacare distributor. See addresses at the end of this 1.1 Introduction document. This user manual contains important information about the In case of a serious incident with the product, you should handling of the product. -
Page 5: Other Symbols
General 1.6 Limitation of Liability 1.2.1 Other Symbols Invacare accepts no liability for damage arising from: Triman Indicates recycling and sorting rules (only • Non-compliance with the user manual relevant for France). • Incorrect use • Natural wear and tear 1.3 Compliance... -
Page 6: Safety
Dolomite® Gloss® 2 Safety WARNING! Risk of Serious Injury Incorrect use can lead to hazardous situations. 2.1 General Safety Information – Do not use on stairs or on escalators. – Do not stand on the product. WARNING! – Be careful when walking on sloping or slippery Risk of Serious Injury or Damage ground or on uneven surfaces. -
Page 7: Labels And Symbols On The Product
YYMXX0000 – Only use original parts for the product in use. – Due to regional differences, refer to your local Invacare catalogue or website for available A Product name E Maximum user weight options or contact your Invacare distributor. - Page 8 Dolomite® Gloss® Symbols European Medical Device Conformity Manufacturer Read user manual Date of Serial number manufacture Maximum user Maximum width weight Indoor / Outdoor 1660781-A...
-
Page 9: Product Overview
Product Overview 3.4 Scope of Delivery and Main Parts 3 Product Overview 3.1 Product Description The four-wheeled walking aid is equipped with a central seat that can be folded up for storage and transportation. Front wheels are steering wheels. Rear wheels are provided with a brake system for slowing down and for locking the wheels. -
Page 10: Usage
2. Adjust the push handles to the lowest position, refer to – Do not use a defective product. 4.3 Adjusting the Handle Height, page 12. Invacare presumes a healthcare professional has made an a. Pull the push handles outwards. individual assessment of the user to determine his risk level b. - Page 11 Usage When in operating position, the release handle of the seat 3. Press the push handles C inwards to fold the rollator. will “click” into a locked position. Folding CAUTION! Risk of injury or damage When lifting the unfolded rollator at the seat, it can accidently fold and cause injury.
-
Page 12: Adjusting The Handle Height
Dolomite® Gloss® Max. Attach the fixation strap A to both knobs. 4.3 Adjusting the Handle Height 1. Loosen the hand knob, but do not remove it. 2. Adjust the handle to suitable height. WARNING! 3. Retighten the hand knob. Press on the handle to check Risk of falling for secure fit. -
Page 13: Sitting Down On A Chair
Usage 4.6 Rising to a Standing Position WARNING! Risk of tipping – Do not use the walking aid to pull yourself up from a sitting position. 1. Place the walking aid slightly in front of you and take a step towards it while using the hand grips for support. 4.5 Sitting Down on a Chair 1. -
Page 14: Sitting On The Walking Aid
Dolomite® Gloss® 4.7 Sitting on the Walking Aid Locking the Hand Brakes in Parking Position WARNING! Risk of Falling – Use the walking aid for stationary seating only. – Before sitting down, lock both brakes in parking position and make sure the walking aid stands stable. -
Page 15: Attaching The Basket
Usage 8 + 10 mm spanner (not included) The brake handle must be in unlocked position to adjust the braking effect. 1. Loosen the counter nut A. 2. To decrease the braking effect, turn the adjusting nut B clockwise. To increase the braking effect, turn the adjusting nut B counter clockwise. -
Page 16: Maintenance
– Never use a solvent (cellulose thinner, acetone Instructions on how to change hand grips can be etc.) that changes the structure of the plastic obtained from your provider or Invacare distributor. or dissolves the attached labels. Verify brake operation. -
Page 17: Cleaning Intervals
Maintenance 5.3.2 Cleaning Intervals 5.3.4 Disinfection Instructions In Domestic Care NOTICE! Regular cleaning and disinfection enhance smooth • Disinfectant: We recommend using an alcohol-based operation, increases the service life and prevents surface disinfectant (with 70-90% alcohol). contamination. Read the instructions on the label of your Clean and disinfect the product: disinfectant. -
Page 18: After Use
Dolomite® Gloss® 6 After Use 6.1 Disposal Be environmentally responsible and recycle this product through your recycling facility at its end of life. Disassemble the product and its components, so the different materials can be separated and recycled individually. The disposal and recycling of used products and packaging must comply with the laws and regulations for waste handling in each country. -
Page 19: Technical Data
Technical Data 7 Technical Data 7.1 Dimensions and Weights [mm] Gloss 450 Gloss 520 Gloss 600 Gloss 680 Total width A 635 – 770 725 – 860 795 – 920 915 – 1050 Total height B Seat width C Seat height D Total length E Width when folded 1250 –... -
Page 20: Material
Dolomite® Gloss® [kg] Gloss 450 Gloss 520 Gloss 600 Gloss 680 Weight Max. user weight Max. load basket Max. load tray 7.2 Material Frame Polyester powder-coated aluminium Handle bars Anodised aluminium Hand grips Wheels Polypropylene with treads of TPE Plastic parts Material according to marking (PA, PP) Screws Steel, rust protected... - Page 21 Notes...
