EN

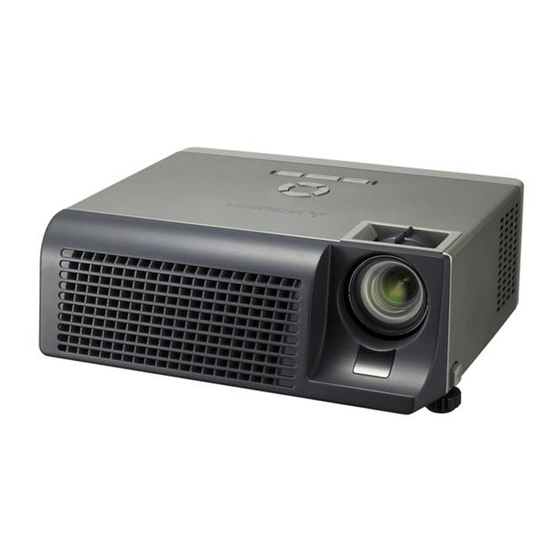

DATA PROJECTOR
MODEL
XD206U
XD206U-G
User Manual
XD206U
XD206U-G
This User Manual is important to you.
Please read it before using your projector.

Advertisement

   Related Manuals for Mitsubishi Electric XD206U

   Summary of Contents for Mitsubishi Electric XD206U

  • Page 1 DATA PROJECTOR MODEL XD206U XD206U-G User Manual XD206U XD206U-G This User Manual is important to you. Please read it before using your projector.
  • Page 2 The attached power cord is to be used exclusively for this product. Never use it for other products. Note: This symbol mark is for Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality EU countries only. materials and components which can be recycled and reused.
  • Page 3: Table Of Contents

    Lamp replacement ..........................22 Troubleshooting ............................23 Indicators ..............................26 Specifications ............................27 Declaration of Conformity Model Number : XD206U / XD206U-G Trade Name : MITSUBISHI ELECTRIC Responsible party : Mitsubishi Digital Electronics America, Inc. 9351 Jeronimo Road, Irvine, CA 92618 U.S.A Telephone number : +1-(949) 465-6000 This device complies with Part 15 of the FCC Rules.
  • Page 4: Important Safeguards

    Important safeguards Please read all these instructions regarding your projector and retain Overloading them for future reference. Follow all warnings and instructions marked Do not overload wall outlets and extension cords as this can on the projector. result in a fire or electric shock. Read instructions Objects and liquids All the safety and operating instructions should be read before...
  • Page 5 WARNING: Do not touch the air outlet grilles and bottom plate. Do not touch them or put other equipment close to the air outlet Unplug immediately if there is something wrong with grilles because they become hot during operation. The heated air your projector.
  • Page 6: Overview

    Overview FOCUS ring ZOOM ring Control panel Air outlet grille Remote control sensor Air inlet grille Air inlet grille Terminal board Air inlet grille 10 Speaker 11 Adjustment feet (front) 11 13 9 12 Lock bar 13 Foot adjustment buttons (Left/Right) Control panel Power button AUTO POSITION /...
  • Page 7: Bottom Side

    Bottom side Lamp cover Adjustment feet (front) Caution: Do not replace the lamp immediately after using the pro- jector because the lamp would be extremely hot and it may cause burns. Remote control ON button STILL button AUTO POSITION button ENTER button MENU button KEYSTONE button...
  • Page 8: Remote Control

    Remote control Battery installation Use two AA (R6) size batteries. Remove the back cover of the remote control by pushing the battery compartment door in the direction of the arrow. Load the batteries making sure that they are positioned correctly (+ to +, and - to -). •...
  • Page 9: Installation

    Installation Layout of the projector Image size varies depending on the distance between the screen and the projector. Front projection L : Between the screen and the front edge of the projector Hd : Height of the projected image Screen Distance from the screen : L Diagonal size Width : W...
  • Page 10: Basic Connections

    Basic connections This projector can be connected with various devices such as a VCR, video camera, videodisc player, and personal computer that have analog RGB output connectors. Important: • Make sure that the connected device is turned off before starting connection. •...
  • Page 11 Projector + Computer For computer with Mini D-SUB RGB cable for PC COMPUTER IN Computer to MONITOR port AUDIO OUT AUDIO MONITOR OUT AUDIO OUT Audio cable (option) MONITOR OUTPUT Necessary when outputting to both RGB cable for PC (option) a PC monitor and the projector.
  • Page 12: Preparation

    Preparation Preparation for projection Tilt up the project to the appropriate angle. Press the foot adjustment buttons next to the adjustment feet, Attach the provided power cord to the projector. and the adjustment feet will come out. Plug the power cord in the wall outlet. Release the buttons to lock the adjustment feet to that position.
  • Page 13: Basic Operation

    Basic operation 3, 1, Power-on • By blinking red, the STATUS indicator indicates that the lamp should be replaced soon. Replace the lamp when the STATUS Turn on the device connected to the projector first. indicator blinks red. (See page 23 and 26.) Plug the power cord in the wall outlet.
  • Page 14 Basic operation (continued) Power-off Volume from the speaker Use the following procedure to turn off the projector. Press the KEYSTONE button on the remote control to switch the KEY- STONE / VOLUME adjustment. When the VOLUME control bar Press the POWER button on the control panel or the OFF button appears on the screen, press the VOLUME + or -button to change the on the remote control.
  • Page 15: Menu Operation

    Menu operation IMAGE CONTRAST ±30 (0) BRIGHTNESS ±30 (0) 0 ~10 WHITE ENHANCE COLOR TEMP . (STANDARD) 0~100 (50) CONTRAST R HIGH CONTRAST G 0~100 (50) USER CONTRAST B 0~100 (50) COLOR 0~100 (50) TINT 0~100 (51) SHARPNESS 0~31 (15) GAMMA MODE (AUTO) / DYNAMIC / STANDARD / THEATER INSTALLATION...
  • Page 16 Menu operation (continued) 1 IMAGE CONTRAST ..........Use to adjust the image contrast. The contrast becomes opt. XGA60 higher as the value increases. BRIGHTNESS..........Use to adjust the image brightness. The image becomes IMAGE brighter as the value increases. CONTRAST WHITE ENHANCE........Use to adjust the white level of the projected image. BRIGHTNESS COLOR TEMP ..........Use to adjust the color temperature.
  • Page 17 3 FEATURE MENU POSITION ........Use to select the position of the menu on the screen, opt. XGA60 (upper left) or (lower right). CINEMA MODE ......... When AUTO is selected, the film mode will be automati- FEATURE cally activated when a film source signal is inputted. MENU POSITION When OFF is selected, the film mode will not be acti- CINEMA MODE...
  • Page 18: Image Adjustment

    Image adjustment Image adjustment Color temperature You can adjust the image using the IMAGE menu. Select COLOR TEMP. in the IMAGE menu. Press the button to select USER opt. XGA60 Press the ENTER button. IMAGE IMAGE CONTRAST CONTRAST R BRIGHTNESS CONTRAST G WHITE ENHANCE CONTRAST B...
  • Page 19: Adjustment Of The Image From The Computer

    Adjustment of the image from the computer Simple adjustment method This projector adjusts the format of the video signal supplied from the Select HORIZ. POSITION in the SIGNAL menu. computer. However, sometimes images are not projected correctly Press the button to adjust the horizontal start position owing to the type of the computer used.
  • Page 20: Advanced Feature

    Advanced feature Still To stop the motion in the image temporarily (or to display a still image): Press the STILL button on the remote control. • The image will freeze temporarily. To resume the motion in the image: Press any button on the remote control. Important: •...
  • Page 21: Password Function

    Password function To cancel the password function: This projector is equipped with the password function that is Display the FEATURE menu. designed for prevention of wrong operation by children and restriction Press the button to select PASSWORD FUNCTION. on operation by other than specified users. Press the ENTER button.
  • Page 22: Lamp Replacement

    • Be sure to use the lamp exclusive to this projector, VLT-XD206LP. XD206U / XD206U-G Use of other lamps may cause a failure of the projector. Reverse the projector gently. *1 2850 Hours...
  • Page 23: Troubleshooting

    Troubleshooting The following offers solutions to some of the common problems you may encounter. We suggest that you consult this chart before contacting your dealer. Images aren’t projected on the screen. Problem Cause and solution • Check the states of the indicators. POWER STATUS CONDITION...
  • Page 24: Images Aren't Projected Correctly

    Troubleshooting (continued) Images aren’t projected correctly. Problem Cause and solution • Check that the cable connected to the external device isn’t intermittent. Projected images are shaking. • Connect the cable’s plug with the external device’s connector firmly. • Press the AUTO POSITION button. Projected images are displaced.
  • Page 25 Others Problem Cause and solution Hot air is emitted from the air outlet grilles. • This air comes out as a result of cooling the inside of the projector. This isn’t a product malfunction. No audio is output. • Check that the volume isn’t set to low. Sound cannot be heard from the external audio out- put (* Only applicable to the models which have the •...
  • Page 26: Indicators

    Indicators This projector has two indicators, each of which shows the operation condition of the projector. The following offer solutions to possible problems. If these problem persist, turn the projector off and consult your dealer. STATUS indicator POWER indicator Normal condition POWER STATUS CONDITION...
  • Page 27: Specifications

    Specifications Type DLP™ DATA projector Model XD206U / XD206U-G Rated power supply 100 - 240 V AC, 50 / 60 Hz Rated input 2.9 A 0.55-inch Single chip Digital Micromirror Device (DMD) with R,G,B,W color wheel Display Technology Pixels 1024 x 768 = 786432 pixels...
  • Page 28 02552-0072-00 1 Remote control 1 VIDEO cable 02552-0068-00 1 Safety manual/Quick start up AC power cord 1 CD-ROM (XD206U) either for US 02552-0063-01 2 Battery or for EU 02552-0066-01 1 Lens cap or for UK 02552-0065-01 1 Soft case (XD206U-G)
  • Page 29 Specification of RGB signals in each computer mode of the projector resolution horizontal vertical XD206U / XD206U-G Signal mode (H x V) frequency (kHz) frequency (Hz) (H x V) TV60, 480I 15.73 59.94 1024 x 768 TV50, 576I 15.63 50.00...
  • Page 30 Fax : +886-2-2833-9813 MEU-IR (Mitsubishi Electric Europe B.V. Irish Ltd.) 7th Floor, Manulife Tower, 169 Electric Road, North MKY (Mitsubishi Electric Kang Yong Watana Co., Ltd.) Branch)http://www.mitsubishi.ie/ Point, Hong Kong Sales Inquiries http://www.mitsubishi-kyw.co.th/Road, Huamark Bangkapi, Westgate Business Park, Ballymount, Dublin 24,...
