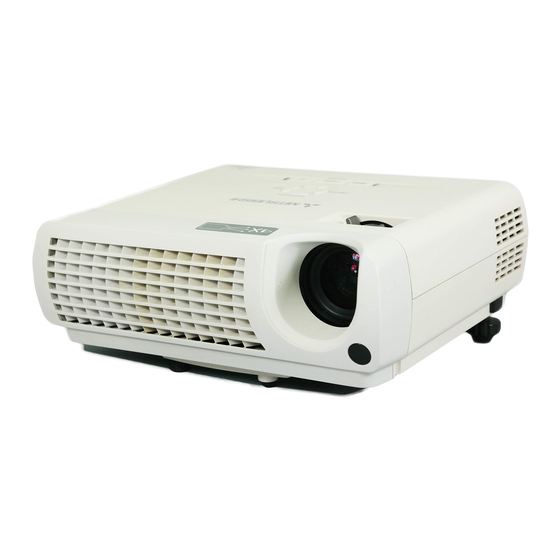

Mitsubishi Electric XD205U User Manual

Mitsubishi xd205u: user manual.
Hide thumbs

Advertisement

EN
DATA PROJECTOR
MODEL
XD205U
SD205U
User Manual
XD205
SD205
This User Manual is important to you.
Please read it before using your projector.

Advertisement

   Related Manuals for Mitsubishi Electric XD205U

   Summary of Contents for Mitsubishi Electric XD205U

  • Page 1 DATA PROJECTOR MODEL XD205U SD205U User Manual XD205 SD205 This User Manual is important to you. Please read it before using your projector.
  • Page 2 EN55022 Class B device. Please follow WARNING instructions. Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.
  • Page 3: Table Of Contents

    XD205U/SD205U Trade Name : MITSUBISHI ELECTRIC Responsible party : Mitsubishi Digital Electronics America, Inc. 9351 Jeronimo Road, Irvine, CA 92618 U.S.A Telephone number : +1-(949) 465-6000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4: Important Safeguards

    Do not block these openings or allow them to be blocked by placing the projector on a bed, sofa, rug, or bookcase. Ensure that there is adequate ven- tilation and that the manufacturer’s instructions have been...
  • Page 5 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced Radio / TV technician for help. Changes or modifications not expressly approved by Mitsubishi could void the user’s authority to operate this equipment. COMPLIANCE NOTICE OF INDUSTRY CANADA This Class B digital apparatus complies with Canadian ICES-003.
  • Page 6: Overview

    Overview Control panel Terminal board EN-6 1 FOCUS ring 2 ZOOM ring 3 Control panel 4 Air outlet grille 5 Remote control sensor (Front) 6 Air inlet grille 7 Air inlet grille 8 Terminal board 9 Kensington Security Lock Standard connector 10 Air inlet grille 11 Speaker 1 Power button...
  • Page 7: Bottom Side

    KEYSTONE VOLUME 1 Lamp cover 2 Adjustment feet Caution: Do not replace the lamp immediately after using the projector because the lamp would be extremely hot and it may cause burns. 1 ON button 2 STILL button 3 AUTO POSITION button...
  • Page 8: Remote Control

    When the remote control is pointed to the screen, the distance from the remote control to the projector via the screen should be 5 m or less. However, the operation distance varies depending on the type of the screen used.
  • Page 9: Installation

    Put a hard board under the projector to facilitate ventilation. • Place the projector at least 50 cm (or 20 inch) away from the wall to prevent the air inlet grille and the air outlet grilles that emit hot air from being blocked.
  • Page 10: Basic Connections

    Important: • Make sure that the connected device is turned off before starting connection. • Plug in the power cords of the projector and the connected devices firmly. When unplugging, hold and pull the plug. Do not pull the cord.
  • Page 11 • This projector uses stereo pin jack for its audio input. Check the type of the audio output terminal of the connected computer and prepare a proper cable for connection. Some computers don’t have the audio output terminal.
  • Page 12: Preparation

    Remove the lens cap. Warning: • Do not look into the lens directly when the projector is on. • The lens cap is for protecting the lens. If you leave the lens cap on the lens with the projector turned on, it may be deformed because of heat build-up.
  • Page 13: Basic Operation

    • Do not cover the lens with the lens cap while the lamp is on. Do not strip off the aluminum sheet inside the lens cap. • The projector starts warming up when the POWER button is pressed. During the warm-up process, images may appear dark and no commands are accepted.
  • Page 14 • The lamp can’t be lit again for one minute after turned off for safety purpose. It will take another one minute for the STA- TUS indicator to go out. If you want to turn on the projector again, wait until the indicator goes out, and then press the POWER button.
  • Page 15: Menu Operation

    Menu operation IMAGE CONTRAST BRIGHTNESS WHITE ENHANCE COLOR TEMP . SHARPNESS GAMMA MODE INSTALLATION AUTO POWER ON AUTO POWER OFF SPLASH SCREEN BACK COLOR LAMP MODE IMAGE REVERSE FEATURE MENU POSITION CINEMA MODE VIDEO SIGNAL ANAMORPHIC PASSWORD FUNCTION LANGUAGE RESET ALL SIGNAL HORIZ.POSITION VERT.POSITION...
  • Page 16 LAMP MODE ...Use to change the brightness of the lamp. When LOW is chosen, the lamp brightness is kept low and the projector operating noise is reduced, resulting in a longer lamp replacement interval. • When the lamp mode is switched, the projected image may flicker. This is not a product mal- •...
  • Page 17 HORIZ. POSITION... Use to adjust the horizontal position of the image. VERT. POSITION ... Use to adjust the vertical position of the image. FINE SYNC ... Use to synchronize the projector with the PC input signal so that the image is not blurred.
  • Page 18: Image Adjustment

    When the color temperature rises, white appears bluish. button to button to This projector adjusts this color temperature by changing the values of contrast blue and red. To rise the color temperature: Increase the CONTRAST B (blue) and decrease the button to CONTRAST R (red).
  • Page 19: Adjustment Of The Image From The Computer

    Adjustment of the image from the computer This projector adjusts the format of the video signal supplied from the computer. However, sometimes images are not pro- jected correctly owing to the type of the computer used. When the image from the computer isn’t projected correctly, press the AUTO POSITION button.
  • Page 20: Advanced Feature

    Switch the pages using the PAGE UP or DOWN button on the remote control. Connection To control the computer using the remote control, connect the projector with the computer as shown below. USB 4-pin (type B) to USB port...
  • Page 21: Password Function

    Password function This projector is equipped with the password function that is designed for prevention of wrong operation by children and restriction on operation by other than specified users. MENU ACCESS ...All the buttons except for the POWER button on the projector are disabled. (The buttons on the remote control are enabled.) You can use this mode as a...
  • Page 22: Lamp Replacement

    • Do not touch the lamp directly. It may break and cause injury or burn. • Be sure not to drop the lamp lid screw into the projector. Also be sure not to put metal or any flammable objects inside because it may cause fire or electric shock. If any objects should fall inside, unplug and contact your dealer.
  • Page 23: Troubleshooting

    • If the projector was turned off before the lamp cooled down completely, the fans may start rotat- ing and the POWER button may not function when you plug the power cord into the wall outlet next time. Wait for the fans to stop and press the POWER button to turn on the lamp again.
  • Page 24: Images Aren't Projected Correctly

    Adjust the projector and the screen so that they are perpendicular to each other. (See page 12.) • This symptom is normal for a DLP projector and is not a malfunction. (A very small number of pixels may stay lit or out, but such symptom is not a malfunction. Pixels of 99.99% or more are effective.)
  • Page 25 Maintenance Caution: Be sure to turn off the lamp and unplug the power cord from the wall outlet before you perform any maintenance on the projector. Cleaning of the projector and the ventilation slots Use a soft cloth to clean the projector and the ventilation grilles. When the grilles become dirty, wipe them with a soft cloth dampened with diluted mild detergent, and then wipe them with a dry cloth.
  • Page 26: Indicators

    Indicators This projector has two indicators, each of which shows the operation condition of the projector. The following offer solutions to possible problems. If these problem persist, turn the projector off and consult your dealer. STATUS indicator Normal condition POWER...
  • Page 27: Specifications

    This projector has a Kensington Security Standard connector for use with Kensington MicroSaver Security System. Refer to the infor- mation that came with the Kensington System for instructions on how to use it to secure the projector. Please contact Kensington Technology Group below.
  • Page 28 UK 246D036-10 (UK only) 1 RGB cable for PC 246D037-10 1 VIDEO cable 246D039-10 Replacement part (Option / Not included in the box) Spare lamp (for XD205U/SD205U) (VLT-XD205LP) EN-28 COMPUTER IN/OUT (Mini D-SUB 15-pin) Spec. pin No. R(RED)/C G(GREEN)/Y...
  • Page 29 Specification of RGB signals in each computer mode of the projector resolution Signal mode (H x V) TV60, 480i(525i) TV50, 576i(625i) 1080i 60 (1125i 60) 1080i 50 (1125i 50) 480p (525p) 576p (625p) 720p 60 (750p 60) 720p 50 (750p 50)
  • Page 30 307 Alexandra Road, Mitsubishi Electric Building, 289245,Singapore Main Line Sales & Technical Support AMS (Antah Melco Sales & Services Sdn Bhd (A Joint-Venture Company of Mitsubishi Electric Corporation)) http://www.antahmelco.com. my 6, Jalan 13/6, Petaling Jaya, Selangor Darul Ehsan, Malaysia...
