Quick Setup Guide
Step

Getting Connected

S t e p

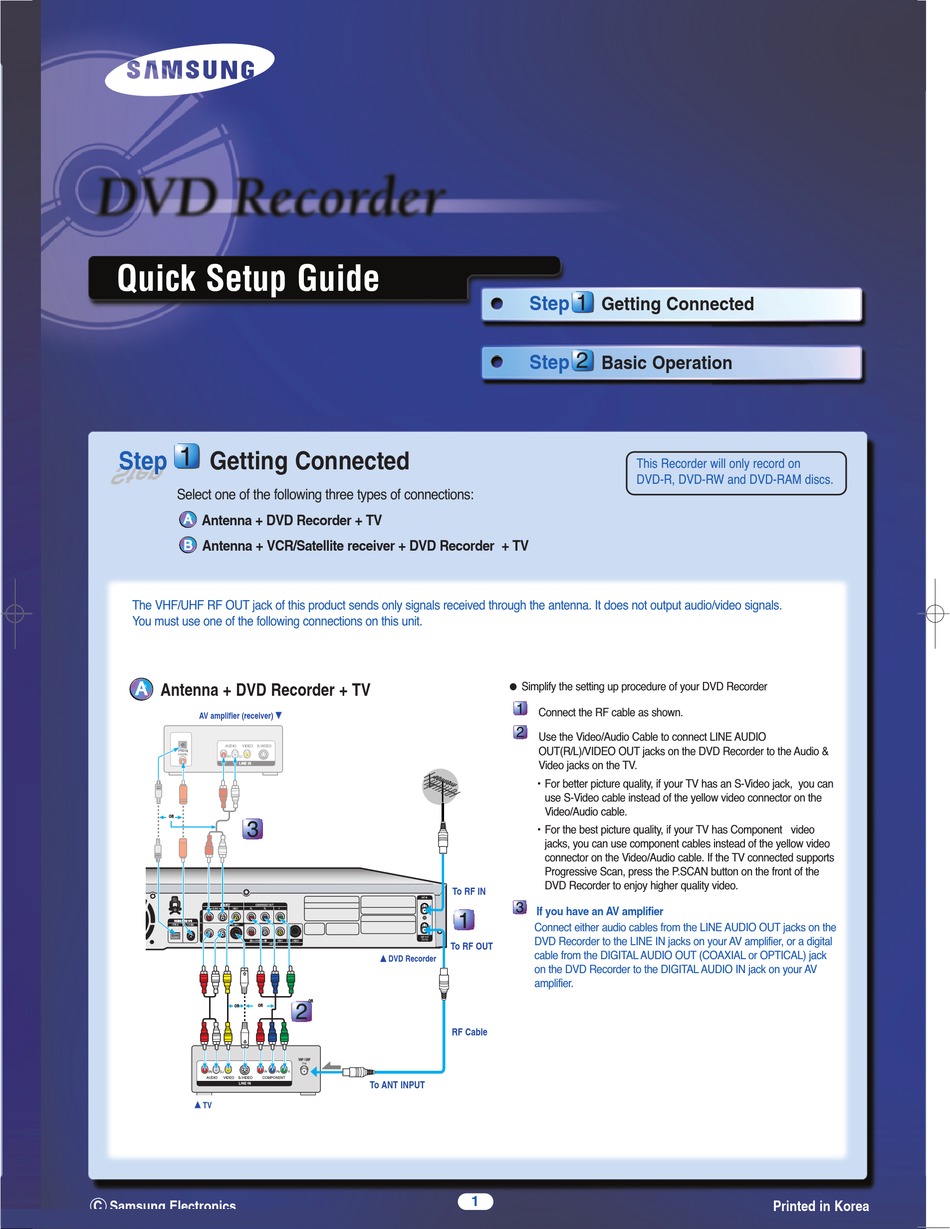

Select one of the following three types of connections:
Antenna + DVD Recorder + TV
Antenna + VCR/Satellite receiver + DVD Recorder + TV
The VHF/UHF RF OUT jack of this product sends only signals received through the antenna. It does not output audio/video signals.
You must use one of the following connections on this unit.
Antenna + DVD Recorder + TV
AV amplifier (receiver) † †
OR
OR
... ... TV
C Samsung Electronics
... ... DVD Recorder
OR
OR
To ANT INPUT
Step
Getting Connected
Step

Basic Operation

G
Simplify the setting up procedure of your DVD Recorder
Connect the RF cable as shown.
Use the Video/Audio Cable to connect LINE AUDIO
OUT(R/L)/VIDEO OUT jacks on the DVD Recorder to the Audio &
Video jacks on the TV.
• For better picture quality, if your TV has an S-Video jack, you can
use S-Video cable instead of the yellow video connector on the
Video/Audio cable.
• For the best picture quality, if your TV has Component video
jacks, you can use component cables instead of the yellow video
connector on the Video/Audio cable. If the TV connected supports
Progressive Scan, press the P.SCAN button on the front of the
DVD Recorder to enjoy higher quality video.
To RF IN
If you have an AV amplifier
Connect either audio cables from the LINE AUDIO OUT jacks on the
DVD Recorder to the LINE IN jacks on your AV amplifier, or a digital
To RF OUT
cable from the DIGITAL AUDIO OUT (COAXIAL or OPTICAL) jack
on the DVD Recorder to the DIGITAL AUDIO IN jack on your AV
amplifier.
RF Cable
1
This Recorder will only record on
DVD-R, DVD-RW and DVD-RAM discs.
