Owner's Operator and Maintenance Manual

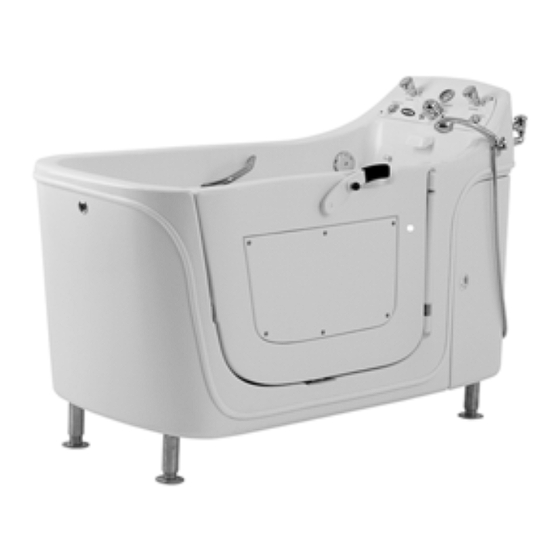

Side Entry Whirlpool Tub
Model 3600 & Model 3600XL
AFTER INSTALLATION, PLEASE CALL CUSTOMER SERVICE AT
1-800-668-2337 TO ARRANGE FOR AN IN-SERVICE ON THE TUB
DEALER: This manual MUST be given to
the user of the tub.
USER: BEFORE using this tub, read this
manual and save for future reference.
For more information regarding
Invacare Continuing Care, Inc. products, parts, and
services, please visit www.invacare-ccg.com
or call 800-668-2337
Model 3650
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Invacare 3600
Summary of Contents for Invacare 3600
-
Page 1: Model 3650
DEALER: This manual MUST be given to the user of the tub. USER: BEFORE using this tub, read this manual and save for future reference. For more information regarding Invacare Continuing Care, Inc. products, parts, and services, please visit www.invacare-ccg.com or call 800-668-2337 Model 3650... - Page 2 ACCESSORIES WARNING Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories. Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for use with Invacare products. For further information on this product, please call the following: Customer Service ‐ 1‐800‐668‐2337 Technical Support ‐ 1‐800‐668‐2337...
-
Page 3: Table Of Contents
SPECIAL NOTES ... 5 LABEL LOCATION ... 6 TYPICAL PRODUCT PARAMETERS ... 7 FEATURES ... 8 Models 3600 and 3600XL...8 Model 3650 ...9 SECTION 1—GENERAL GUIDELINES ... 10 Important Safety Instructions ...10 Instructions Pertaining to a Risk of Fire, Electric Shock, or Injury to Persons ...10 Installation ...10... - Page 4 TABLE OF CONTENTS SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING ... 28 Safety Inspection Checklists...28 Initially...28 Before Each Use ...28 Every 80-150 Baths...28 Every Six Months...28 Cleaning ...29 Cleaning the Door Seal Gasket ...29 Removing Soap Film and Hard Water Deposits...29 Removing Calcium Deposits, Scale and Lime Build-up ...29 Cleaning Your Tub...29 Heavy Duty Cleaning Procedure ...30 Calibrating the Disinfectant Flow Meter...31...
-
Page 5: Special Notes
SPECIAL NOTES Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury or property damage. Refer to the following table for definitions of the signal words. SIGNAL WORD DANGER Danger indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING Warning indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Caution indicates a potentially hazardous situation which, if not avoided, may result in property damage or minor injury or both. -
Page 6: Label Location
Invacare recommends you check local plumbing code requirements to determine if RPZs are required on your tub installation. RPZs are NOT supplied by Invacare and are to be provided by the customer if required. Side Entry Whirlpool Tub... -
Page 7: Typical Product Parameters
DRAIN SIZE: FILL RATE: DRAIN RATE: COLOR: WEIGHT FILLED W/O USER: EMPTY: SHIPPING: APPROVALS: Part No 1118387 3600 3600XL 7 feet x 6 feet 63 inches 72 inches 46.5 inches 56 inches 34 inches 32 inches 44 inches 35.5 inches... -
Page 8: Features
FEATURES FEATURES Models 3600 and 3600XL Control Panel Tub Fill Valve Flow Water Thermometer Shower ON/ OFF Valve Tub Spout Whirlpool Aerator Valve Water Temperature Control Valve Whirlpool ON/OFF Button Tub Interior Control Panel (See Above) Burp Fitting Shower Massage... -
Page 9: Model 3650
FEATURES Model 3650 Control Panel Water Temperature Control Valve Flow Water Thermometer Tub Fill Valve Shower ON/ OFF Valve Whirlpool Whirlpool ON/OFF Button Aerator Valve Tub Interior Control Panel (See Above) Burp Fitting Tub Spout Whirlpool Jets Drain Plug Door Handle Whirlpool Inlet Drain Safety Pin... -
Page 10: Section 1-General Guidelines
SECTION 1—GENERAL GUIDELINES SECTION 1 - GENERAL GUIDELINES contains important information for the safe operation and use of this product. Check all parts for shipping damage before using. In case of damage, DO NOT use the equipment. Contact the ICCI dealer for further instructions. SAVE THESE INSTRUCTIONS Important Safety Instructions Instructions Pertaining to a Risk of Fire, Electric Shock, or Injury to Persons To reduce the risk of injury, DO NOT permit children to use this unit unless they are closely supervised at all times. -
Page 11: Electrical
Plumbing Be certain all plumbing work is performed by a qualified plumber and is in compliance with local codes. Some state and local plumbing codes require the installation of a “reduced pressure zone” (RPZ) assembly on both the incoming hot and cold supply lines to prevent back flow contamination into the potable water system. Invacare recommends you check local plumbing code requirements to determine if RPZs are required on your tub installation. RPZs are NOT supplied by Invacare and are to be provided by the customer if required. When operating water pressure exceeds 55 PSI, pressure regulators (similar to the ¾‐inch Watts U5) MUST be installed. The hot water supply to the tub MUST not exceed 110° F (43° C) to protect the user from scalding. Part No 1118387... -
Page 12: Maintenance And Inspection
SECTION 1—GENERAL GUIDELINES Maintenance and Inspection DANGER ELECTRICAL SHOCK HAZARD. All disassembly and maintenance of the tub MUST be done by a qualified technician, certified electrician or plumber. Disconnect electrical supply or turn off circuit breaker before performing any maintenance to the tub. If any part of the system is not functioning properly, DO NOT use the system. Have the ... - Page 13 The effects of hyperthermia include: • Failure to perceive heat • Failure to recognize the need to exit the spa or hot tub • Unawareness of impending hazard • Fetal damage in pregnant women •...
-
Page 14: Section 2-Parts And Installation
SECTION 2—PARTS AND INSTALLATION SECTION 2—PARTS AND INSTALLATION Parts Information For parts information, please contact ICCI Technical Service at (800) 668‐2337. About Installation WARNING Access for servicing the tub MUST be provided. Install the tub in a location that will permit access to the service panels, plumbing and electrical hook-ups. CAUTION DO NOT lift the tub by the plumbing. - Page 15 Models 3600 and 3600XL Service Access Panel Right Side of Tub Rear of Floor Drain LETTER DESCRIPTION Work Area Width Work Area Length Tub Rear Clearance Door Swing Clearance Length of Tub Tub Front Clearance Drain Outlet Front to Tub Front...
-
Page 16: Securing Tub
DO NOT adjust height of legs more than 1 inch (25.4 mm) for Model 3650 or 2 inches (50.8 mm) for Models 3600 and 3600XL; leg will disassemble from leg mounting pad and serious injury may occur. 7. Level the tub by adjusting the telescopic legs either up or down, using a wrench, to ... -
Page 17: Electrical And Plumbing Hook-Up Locations On The Tub
SECTION 2—PARTS AND INSTALLATION Electrical and Plumbing Hook-up Locations on the Tub NOTE: For this procedure, refer to FIGURE 2.3 on page 17. NOTE: For installation details refer to Electrical Installation on page 17 and Plumbing Installation on page 20. Models 3600 and 3600XL Model 3650 Electrical Line Routing Hole Electrical Line Routing Hole ¾-inch Hot and Cold Hot Water Inlet Water Inlets... - Page 18 All electrical conduit, fittings and wire to unit are to be supplied and installed by a professional electrician in accordance with the National electrical code as a minimum requirement, including the supply and installation of a Ground Fault Circuit Interrupter (GFCI). For Canadian installation, ground fault interrupter and a 30-minute maximum timer MUST be installed in the electrical circuit.
- Page 19 Models 3600 and 3600XL Service Access Panel DETAIL “A” - 115V ELECTRICAL HOOK-UP 115 V Electrical 115 V Electrical DETAIL “C” - MOTOR COVER Air Switch Line FIGURE 2.4 Electrical Installation Part No 1118387 Electrical Line Routing Hole DETAIL “B” -...
-
Page 20: Plumbing Installation
Invacare recommends you check local plumbing code requirements to determine if RPZs are required on your tub installation. RPZs are NOT supplied by Invacare and are to be provided by the customer if required. -
Page 21: Post Installation Checklist
Part No 1118387 In House Water Service Optional Pressure Regulator Tub Fill Valve (Nearest Tub) Back Flow Preventer Flowmeter Check Valve Invacare Disinfectant Suction Return Line COLD RADA Mixing Valve Shower Control Valve Backflow Preventor 2-Way Selector Valve Burp Fitting... -
Page 22: Section 3-Operating Instructions
SECTION 3—OPERATING INSTRUCTIONS SECTION 3—OPERATING INSTRUCTIONS Overview The tub is designed to improve the efficiency and environmental safety of your facilityʹs operation. However, if the tub is not operated or maintained properly, the benefits designed into the system will not be realized. The purpose of this manual is to provide you with recommended procedures to help you obtain the maximum efficiency and safety while using your tub. When using the tub, perform these procedures in the following order: 1. Make sure the tub has been disinfected before use. 2. Open the tub door. 3. Transfer the resident into the tub. 4. Bathe the resident. 5. Transfer the resident from the tub. 6. Disinfect the tub, including the door seal. Side Entry Whirlpool Tub Part No 1118387... -
Page 23: Disinfecting The Tub Using The Closed Loop System
- or in some instances, not disinfected at all. If using any disinfectant with a dilution ratio or viscosity level different than that of Invacare disinfectant or if switching from one type of disinfectant to another type, the disinfectant flowmeter MUST be calibrated before performing this procedure. -
Page 24: Opening/Closing The Tub Door
If the door does not lock, contact a qualified maintenance technician. 1. Close the door. 2. Push down on the door handle to lock door into position. 3. Lift the door handle to ensure the safety pin has engaged the door properly. 4. If the door handle lifts, repeat STEPS 1‐3. Door Handle Safety FIGURE 3.2 Opening/Closing the Tub Door Side Entry Whirlpool Tub WARNING WARNING Models 3600 and 3600XL Safety Door Handle Door Model 3650 Part No 1118387... -
Page 25: Tub Operation
The effects of hyperthermia include: •Failure to perceive heat •Failure to recognize the need to exit the spa or hot tub •Unawareness of impending hazard •Fetal damage in pregnant women •Phyical inability to exit the spa or hot tub... -
Page 26: Operating Shower/Massage Wand
Operating Shower/Massage Wand NOTE: For this procedure, refer to FIGURE 3.4. NOTE: STEPS 1 ‐ 3 are to be performed while holding the shower/massage wand over the tub. 1. Turn shower/massage wand on to desired flow by rotating shower On/Off valve (Detail “A”). 2. Adjust water temperature using the water temperature valve while watching the flow water thermometer (Detail “B”). 3. Adjust shower spray by rotating shower wand head (Detail “C”). NOTE: Refer to following chart for shower head adjustment settings. 4. Turn shower On/Off valve to off position when finished. DETAIL “A” Flow Water Thermometer Water Temperature Valve Shower On/Off Valve FIGURE 3.4 Operating Shower/Massage Wand Filling Tub NOTE: For this procedure, refer to FIGURE 3.5 on page 27. 1. Close the drain (Detail “A”). 2. Turn tub fill On/Off valve to on position by rotating valve (Detail “B”). 3. -
Page 27: Hydromassage
DETAIL “A” Models 3600 and 3600XL Drain Hydromassage Before starting hydromassage, water level MUST be completely above whirlpool jets otherwise severe damage to the motor/pump will result. NOTE: For this procedure, refer to FIGURE 3.6 on page 27. 1. Close the aerator by rotating the aerator valve two turns clockwise. 2. Open the whirlpool inlet by pushing the inlet plug in. 3. Open all whirlpool jets by pulling the center of the whirlpool jet out or rotating the center counterclockwise (Detail “A”). 4. Fill the tub. Refer to Filling Tub on page 26. 5. After water level covers whirlpool jets and after bathing the resident, add Invacare ... -
Page 28: Section 4-Safety Inspection/Troubleshooting
SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING SECTION 4—SAFETY INSPECTION/ TROUBLESHOOTING NOTE: Every six months or as necessary have a qualified technician perform a thorough inspection and servicing. Routine maintenance will extend the life and efficiency of your tub. Safety Inspection Checklists Initially Ensure that the maximum water supply temperature does not exceed 115° F. Ensure that the maximum water pressure does not exceed 65 PSI. Verify the water flow temperature with a separate thermometer. Visually inspect for cracks in the tub surface. Ensure that the door handle locks the door closed. Ensure that the safety pin properly engages the door. Check that all labels are present and legible. Replace if necessary. Before Each Use Disinfect the tub. Ensure that the maximum water supply temperature does not exceed 115° F. Ensure that the maximum water pressure does not exceed 65 PSI. Visually inspect for cracks in the tub surface. Ensure that the door handle locks the door closed. ... -
Page 29: Cleaning
SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING Cleaning Cleaning the Door Seal Gasket The rubber door seal gasket should remain clean and free of debris. Use a working solution of a commercially available heavy duty cleaner such as Invacareʹs Heavy Duty Cleaner and a sponge to thoroughly wipe the entire length of the rubber seal, making sure to remove all traces of soap scum and other debris. Removing Soap Film and Hard Water Deposits Use a commercially available cleaner such as Invacareʹs Heavy Duty Cleaner to thoroughly spray the exposed surfaces, including the openings of the tub jets and tub suction fitting. Use a long handled soft brush or similar product to wipe down all surfaces and allow the heavy duty cleaner to remain in contact with the exposed surfaces for approximately ten minutes. Rinse off surfaces using the shower wand, adjusted to spray position. Removing Calcium Deposits, Scale and Lime Build-up Spray a commercially available cleaner (full strength) for the intended application on all surfaces to be cleaned. Allow the cleaner to remain in contact with surfaces for at least five minutes to as long as 12 hours. Rinse off surfaces using the shower wand, adjusted to the spray position. Use the cleaner according to the manufacturerʹs instructions. Cleaning Your Tub In addition to disinfecting your tub after every use, you will need to do the heavy duty ... -
Page 30: Heavy Duty Cleaning Procedure
The use of any disinfectant with a dilution ratio (½ oz. per gallon) or viscosity level different than that of Invacare disinfectant will result in an improper mixture of disinfectant and water. This may cause your system to be improperly disinfected - or in some instances, not disinfected at all. If using any... -
Page 31: Calibrating The Disinfectant Flow Meter
The disinfectant dispensing system has been factory tested and calibrated for use with Invacare disinfectant. The use of any disinfectant with a dilution ratio (½ oz. per gallon) or viscosity level different than that of Invacare disinfectant will result in an improper mixture of disinfectant and water. - Page 32 11. Close all jets by pushing the center of each jet in or turning the center of the jet clockwise. 12. Close the whirlpool inlet by pulling the inlet plug out. 13. Turn the disinfectant valve to the on position. NOTE: Liquid will be heard filling the interior plumbing of the tub. 14. Note the position of the floating ball in the flow meter. 15. Adjust the injector by performing one of the following: • Bottom of Floating Ball Reads Greater Than 35 ‐ Less disinfectant needs to be added to the mixture. Loosen the screw on the injector to draw less disinfectant into the solution. • Bottom of Floating Ball Reads Less Than 35 ‐ More disinfectant needs to be added to the mixture. Tighten the screw on the injector to draw more disinfectant into the solution. 16. When the bottom of the floating ball is near 35, turn the black adjustment knob on the flow meter until the bottom of the floating ball is at 35. 17. Place the bucket/pail under the burp fitting to collect the disinfectant. Use a funnel if necessary. 18. Note the number of ounces in the graduated plastic bottle. 19. Let the bucket/pail fill to one gallon. 20. Turn the disinfectant valve to the off position. 21. Remove the disinfectant draw tube from the plastic bottle. 22. Examine the amount of disinfectant remaining in the plastic bottle. 23. Subtract the amount of disinfectant remaining from the amount noted in STEP 18. 24. Perform one of the following: •...
-
Page 33: Troubleshooting
Models 3600 and 3600XL DETAIL “A” Burp Fitting NOTE: Model 3650 shown. Models 3600 and 3600XL have the same contents in the disinfecting cabinet. Injector Screw DETAIL “C” Disinfectant Siphon Tube FIGURE 4.1 Calibrating the Disinfectant Flow Meter Troubleshooting SYMPTOMS Hydromassage System System will not start. No electrical power to tub. System not prepared. Switch hose disconnected System is ineffective. -
Page 34: Maintenance Record
SECTION 4—SAFETY INSPECTION/TROUBLESHOOTING Maintenance Record DATE MAINTENANCE TYPE OF MAINTENANCE NOTES PERSON PERFORMED Side Entry Whirlpool Tub Part No 1118387... - Page 35 NOTES NOTES Part No 1118387 Side Entry Whirlpool Tub...
-
Page 36: Limited Warranty
All rights reserved. Trademarks are identified Location: by the symbols ™ and ®. All trademarks are 899 Cleveland Street owned by or licensed to Invacare Corporation Elyria, OH 44036 or its subsidiaries unless otherwise noted. Betadine is a registered trademark of Purdue Pharma LP.
