Using Telnet - Trycom Technology TRP-C31M User Manual

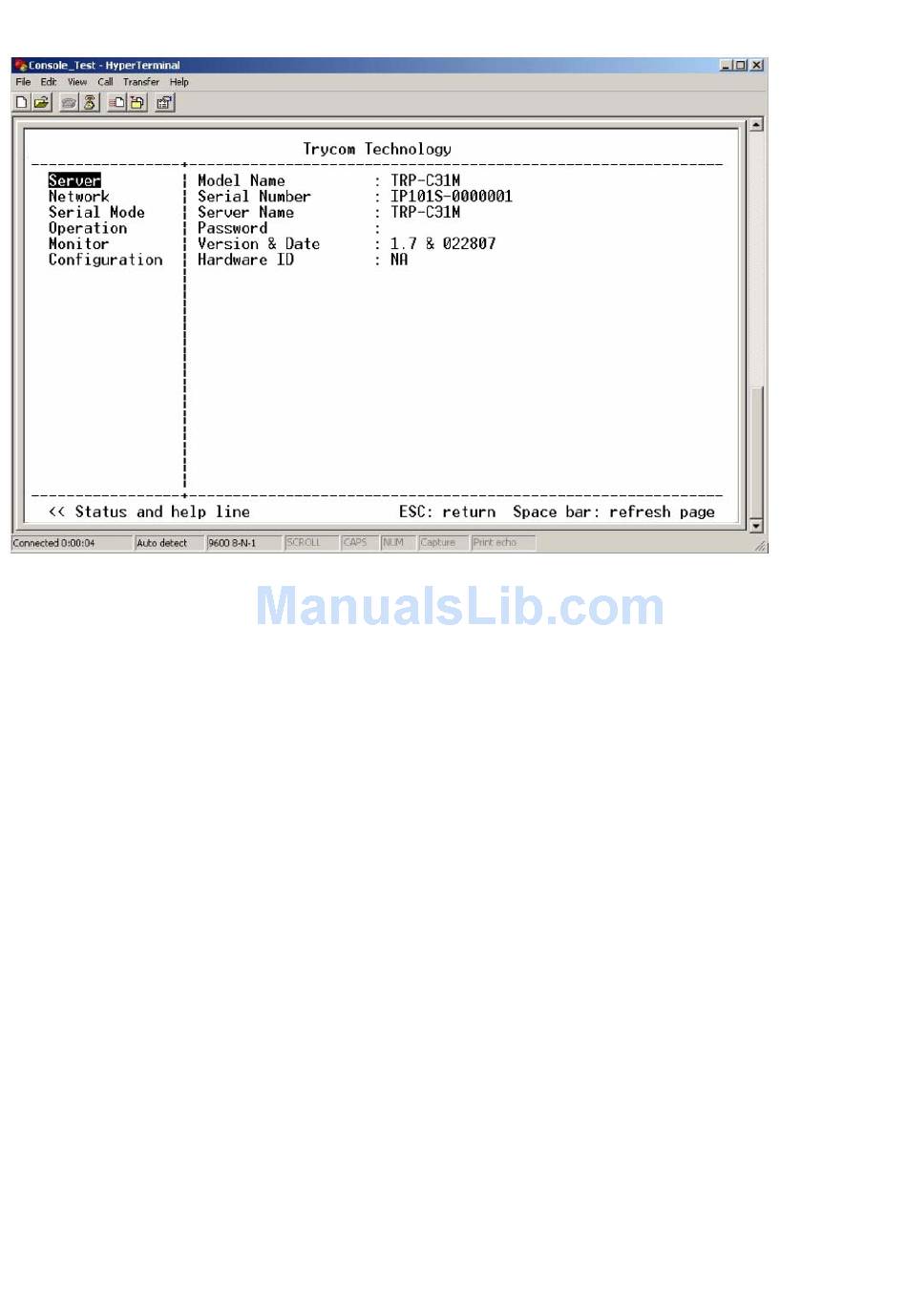

STEP4. Press the "Space bar" the TRP-C31M firmware setting screen will show.
You can set the TRP-C31M by Console mode.

9. Using Telnet

Telnet can be used to configure the TRP-C31M Serial Server from any PC on the LAN. The Telnet
window displays the same configuration information shown in Console Mode and allows server
properties to be configured. See chapter 6 for details on Server Properties.
Ensure the PC and TRP-C31M are connected to the LAN, and the serial server is in RS-232,
RS-422 or RS-485 mode before you can telnet to it and access the configuration screens. From the
Desktop, click Start, and then run. The Run dialogue box will open. Type in Telnet and the IP
address of the Serial Server which to be configured, click OK.
STEP1. Select Start then Click "RUN" then key in the "Telnet IP"
