Trycom Technology TRP-C31M User Manual page 13

6-4. Searching on LAN TRP-C31M
Once the TRP-C31M is connected to the LAN the TRP-C3XM Manager software will search all the
on LAN TRP-C31M and display them in a window by name and IP address.
Select TRP-C3XM Manager in the program file menu. If the default location was selected during the
installation the program will be found under Start/Programs/Modbus. Select TRP-C3XM Manager.

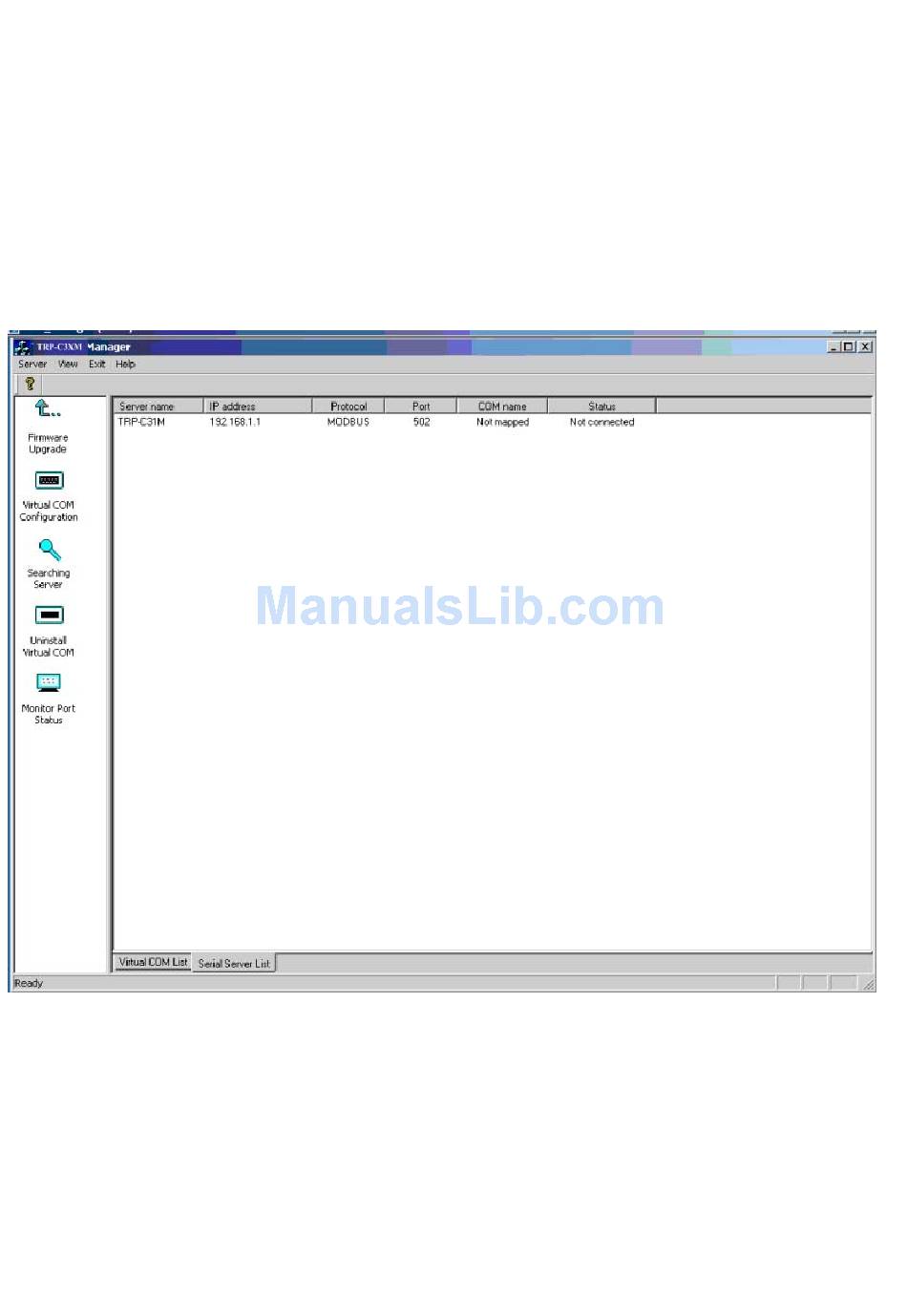

As soon as the TRP-C3XM Manager opens it will initiate Searching Server and after a few seconds
the MODBUS gateway list will display all (TRP-C31M) MODBUS gateways on the local area
network.
To manually initiate a searching, on the menu side bar double click the Searching Server button.
The Search Setup box will appear. It provides two options for searching for servers on the network:
• Specify the IP address of the MODBUS gateway
• Search all reachable servers
Enter the IP Address assigned to the desired MODBUS gateway or click Search all reachable
servers, then OK. The Searching window is shown until all active MODBUS gateways on the LAN
