Trycom Technology TRP-C31M User Manual

Modbus tcp to rtu/ascii
Hide thumbs

Advertisement

Quick Links

Download this manual

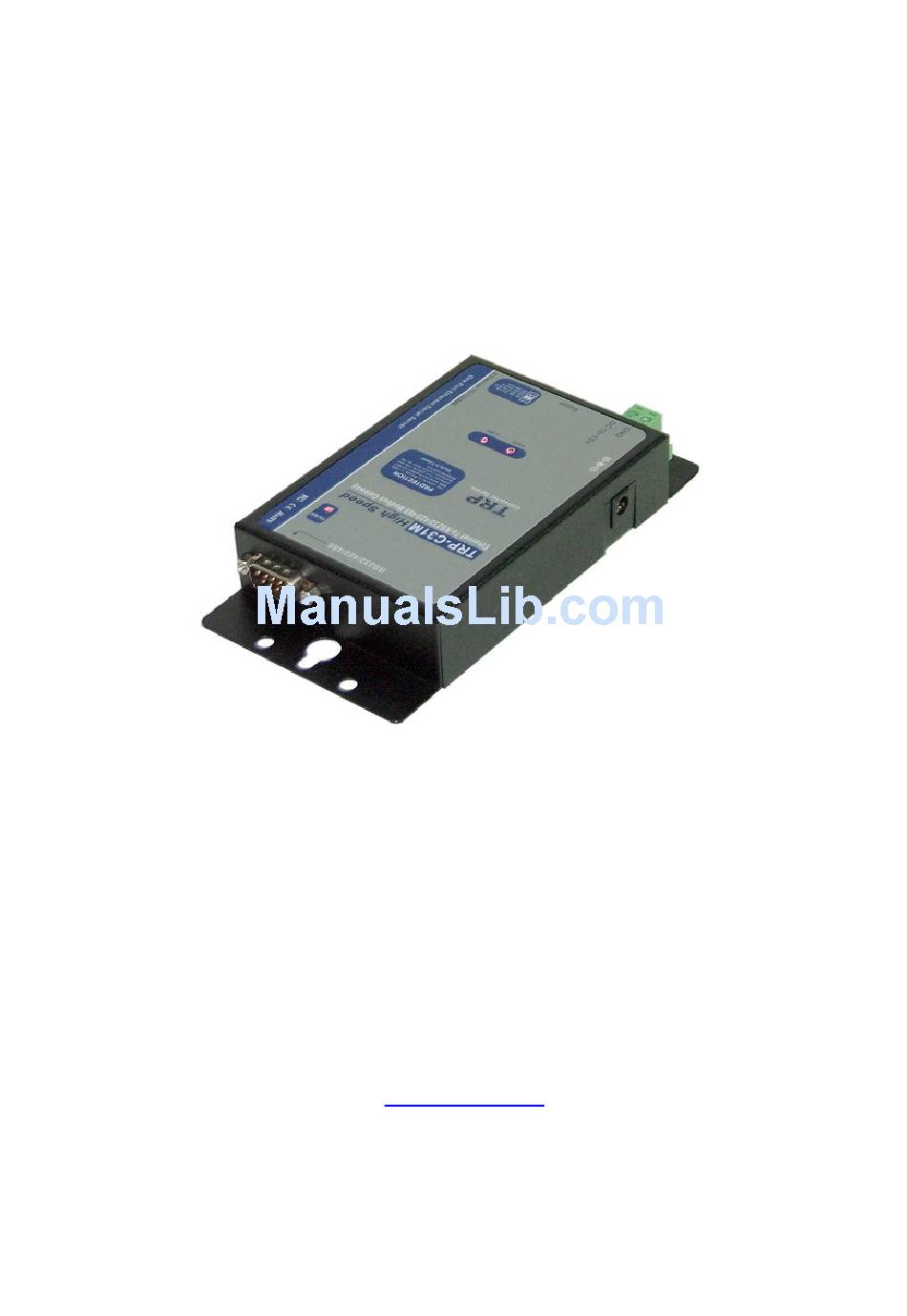

TRP-C31M
MODBUS TCP to RTU/ASCII
Gateway
User's Manual
Printed Feb. 2007 Rev 1.0
Trycom Technology Co., Ltd
1F, No.2-11, Sihu street, Yingge Township, Taipei, Taiwan ROC
Tel: 886-2-86781191, Fax: 886-2-86781172
Web:
www.trycom.com.tw
Copyright
Copyright Notice: The information in this manual is subject to change without prior notice in order to improve reliability,
design and function and dosed not represent a commitment on the part of the manufacturer. No part of this manual may
be reproduced, copied, or transmitted in any form without the prior written permission of manufacturer.
Acknowledgment Products mentioned in this manual are mentioned for identification purpose only. Products manes
appearing in this manual may or may not be registered trademarks or copyright of their respective companies.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRP-C31M and is the answer not in the manual?

Questions and answers

Related Manuals for Trycom Technology TRP-C31M

Summary of Contents for Trycom Technology TRP-C31M

  • Page 1 TRP-C31M MODBUS TCP to RTU/ASCII Gateway User’s Manual Printed Feb. 2007 Rev 1.0 Trycom Technology Co., Ltd 1F, No.2-11, Sihu street, Yingge Township, Taipei, Taiwan ROC Tel: 886-2-86781191, Fax: 886-2-86781172 Web: www.trycom.com.tw Copyright Copyright Notice: The information in this manual is subject to change without prior notice in order to improve reliability, design and function and dosed not represent a commitment on the part of the manufacturer.
  • Page 2 TRP-C31M function as MODBUS RTU/ASCII master to MODBUS TCP slaves: it can connect up to 8 MODBUS TCP slaves. User can specify a UID range for each MODBUS TCP slave. TRP-C31M provides inactive timeout that allows user to specify a time period to disconnect TCP/IP connection to prevent one connection slot was occupied if there is no activity in the network., or prevent any...

  • Page 3: Hardware Description

    Power Requirements: 9 ~15 VDC / 500 Ma. Operating Temperature: 0 to 60 °C. Storage Temperature: -20 to 70 °C Humidity: 10~ 90% Non-Condensing. Dimensions: 151mm x 77mm x 26mm. Weight: 377g. 2. Hardware Description 2-1.Panel Layout...
  • Page 4 Hyper-terminal program window. The serial port settings must be 8-N-1 at 9600 baud. When the DIP switches are switched to the ON OFF position, the TRP-C31M will work at Loop back Mode, all data is sent back immediately.
  • Page 5 When all of the DIP switches are switched back to the OFF position, the TRP-C31M will enter Data Mode (RS-232, RS-422 or RS-485). 3. TRP-C31M typical application. 3-1. Ethernet master link to multiple serial slaves (up to 31)
  • Page 6 The TRP-C31M has one serial port. The port can be configured as a Console Mode connection or as RS-232, RS-422 or RS-485 interface to the TRP-C31M (if all of the DIP switches are in the OFF position) using the TRP-C3XM software, via Telnet, or using the Web Server.
  • Page 7 Using the TRP-C3XM Manager software, the serial port of TRP-C31M can be set to Console Mode, Default Mode or Upgrade Mode. The serial port can be configured for RS-232, RS-422 or RS-485 operation. The TRP-C31M also can be set to Console Mode by placing all the DIP switches into the ON position.
  • Page 8 5-2. Upgrade Mode The newest firmware can be upgraded to TRP-C31M using the PC’s serial port . 5-3.Default Mode When Default Mode is selected and the Gateway Properties are updated (saved), all configuration settings return to their default values.
  • Page 9 5-5.RS-422 Mode The RS-422 mode supports 4 channels with full duplex operation for Receive, Transmit, RTS (Request to send) and CTS (Clear to Send). The data lines are in differential pairs. Ground provides a common mode reference. To use handshaking Flow Control must be set to RTS/CTS during configuration.
  • Page 10 TRP-C3XM manager software. So It is recommended the user install the TRP-C3XM software and do a search for all TRP-C31M over the network. When the searching process is completed, a window will list all the on LAN devices, user may make them available for configuration.
  • Page 11 Step2.Select Next when the TRP-C31M Setup window appears. Step3 .In the Choose Destination Location window, select “Next” to install the TRP-C3XM software in the default location, or select “Browse” to install into a user selected directory. The installation progress will be shown until complete.
  • Page 12 If loaded in the default location Go to Start/Programs/Modbus/TRP-C3XM manager to open. Connect the TRP-C31M to the LAN and apply power. The PWE LED will flash indicating power has been applied and communications begin; and the Link LED indicates an Ethernet connection has been made.
  • Page 13 6-4. Searching on LAN TRP-C31M Once the TRP-C31M is connected to the LAN the TRP-C3XM Manager software will search all the on LAN TRP-C31M and display them in a window by name and IP address. Select TRP-C3XM Manager in the program file menu. If the default location was selected during the installation the program will be found under Start/Programs/Modbus.

  • Page 14: Gateway Properties

    are listed in the MODBUS gateway List window. 6-5. Configuring Gateway Properties Highlight the MODBUS gateway in the list window and double click to open the Gateway Properties window. The Gateway Properties window is used to configure and store the Server configuration settings.
  • Page 15 Server Name The server name is user configurable. He default server name is TRP-C31M. It is recommended users assign different server name on each TRP-C31M if more than one TRP-C31M connected to the LAN. When the TRP-C3XM Manager software searches for servers on the LAN it will display the server name allowing the user to distinguish between TRP-C31Ms.
  • Page 16 When enabled, TRP-C31M will send a DHCP request to the DHCP server, which will assign a dynamic IP address, Netmask, and gateway to the TRP-C31M. If a DHCP server is not available on the network the TRP-C31M will time out after 10 seconds and the default values will remain. When DHCP is enabled, the IP address, Netmask and Gateway fields become inaccessible and cannot be changed by the user.
  • Page 17 Virtual COM mode. In Virtual COM mode the application program can setup this parameter on the fly by sending normal COM command and TRP-C31M will set it on the fly as if TRP-C31M’s serial port is one of PC’s COM port.
  • Page 18 The flow control setting must match the connected serial device unless using Virtual COM mode. In Virtual COM mode the application program can setup this parameter on the fly by sending normal COM command and TRP-C31M will set it on the fly as if TRP-C31M’s serial port is one of PC’s COM port.
  • Page 19 TRP-C31M can correctly parse the message and convert the MODBUS RTU packet into MODBUS TCP packet. Message Timeout This parameter allows you to set the time during for TRP-C31M to wait for the response message. When message timeout occurs, TRP-C31M would response an exception to MODBUS master if generate exception is enabled.
  • Page 20 All other queries will be queued until the previous query is finished or timeout. TRP-C31M can queue up to 8 queries. If there are more than 8 queries at one time, those queries will be discarded and eventually TCP master will get a timeout.
  • Page 21 UID Range TRP-C31M use UID range to map a query from a MODBUS serial master with an UID within this range to an IP address and a TCP port. This is only used when the gateway type is MODBUS TCP slave to MODBUS serial master.
  • Page 22 • Save – stores the configuration data to the MODBUS gateway flash memory and resets it. • Default – restores the configuration data to factory default settings. • Running – restores the configuration data to the last values stored in the flash memory. •...
  • Page 23 8 Using Console Mode Before the TRP-C31M is installed on a LAN the Console Mode can be used to change the settings from the defaults. Connect a null modem cable between the TRP-C31M serial port with PC COM port. Apply power to the TRP-C31M.
  • Page 24 STEP2.Select “New Connection” and Enter a name, click “OK” STEP3. Enter the COM Port number that TRP-C31M connect using, click “OK”...

  • Page 25: Using Telnet

    You can set the TRP-C31M by Console mode. 9. Using Telnet Telnet can be used to configure the TRP-C31M Serial Server from any PC on the LAN. The Telnet window displays the same configuration information shown in Console Mode and allows server properties to be configured.
  • Page 26 STEP2. Click the “OK” TRP-C31M firmware setting will show as following screen. You can set the TRP-C31M by Telnet mode.
  • Page 27 New firmware may be available at times on our web site and may be downloaded and flashed to the TRP-C31M currently in use. The user can upgrade using a direct connection to the TRP-C31M serial port or the Virtual COM port feature.
  • Page 28 9. TRP-C31M will reset itself to complete the upgrade process.
