Server Name
The server name is user configurable. He default server name is TRP-C31M. It is recommended
users assign different server name on each TRP-C31M if more than one TRP-C31M connected to
the LAN. When the TRP-C3XM Manager software searches for servers on the LAN it will display
the server name allowing the user to distinguish between TRP-C31Ms.
Serial Number
Each TRP-C31M has a unique serial number. This is locked and cannot be changed.
Password
Entering a password activates a security feature on the MODBUS gateway. Once a password is
entered it will be required to access the menu and make changes.
Version & Date
The currently loaded version of the firmware, and when it was released, are shown here.

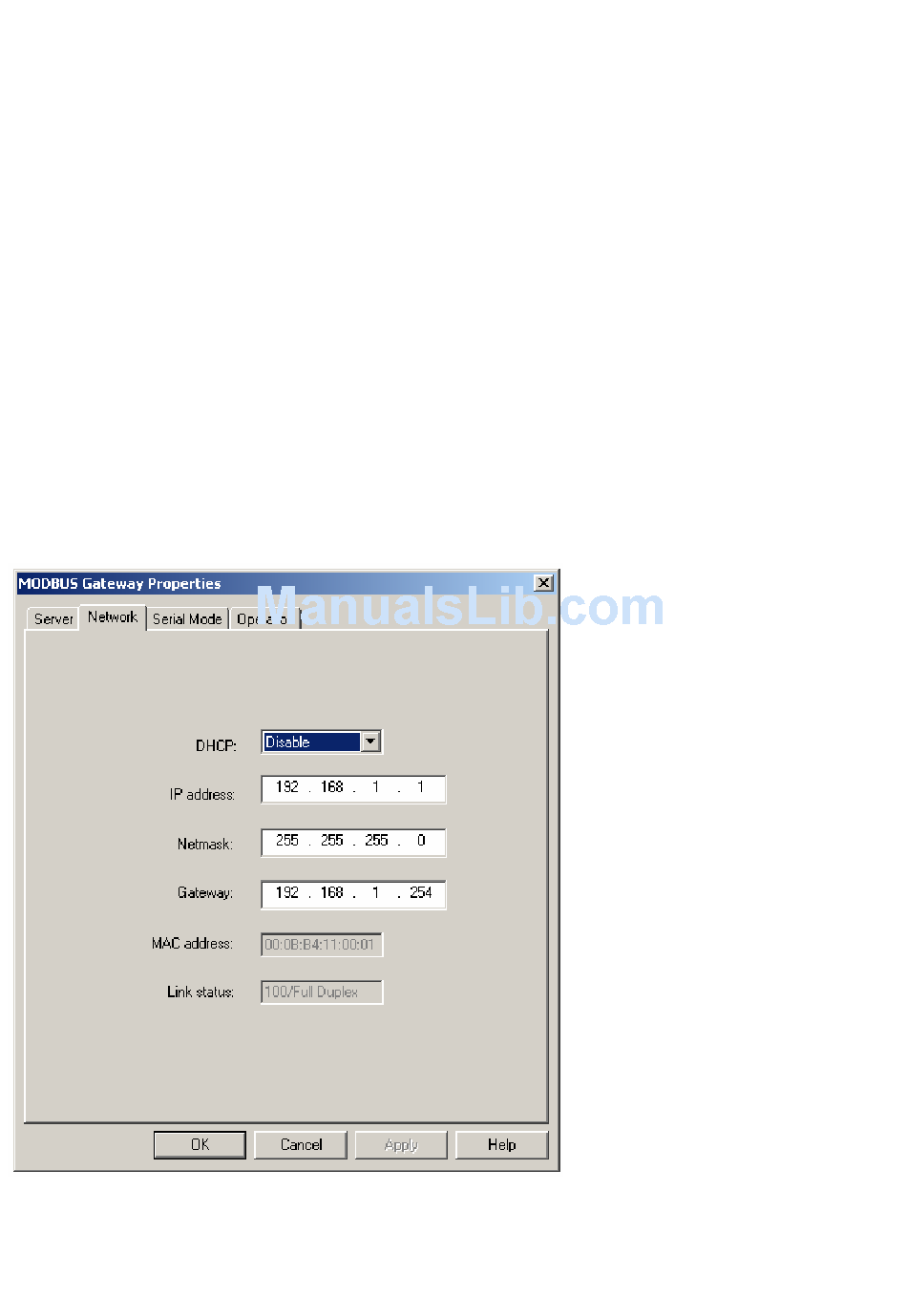

7-2.Network configuration
