Congratulations on purchasing a MDB Family product. This crib will provide many years of service if
you adhere to the following guidelines for assembly, maintenance and operation. This crib is for resi-
dential use only. Any institutional use is strictly prohibited.
Please be sure to follow the instructions for proper assembly. Use a Phillips head screwdriver for
assembling the crib in addition to the Allen wrench included in the hardware box. Do not use power
screwdrivers. All of our cribs are made from natural woods. Please understand that natural woods have
color variations which are the result of nature and not defects in workmanship.
DO NOT SUBSTITUTE PARTS. ALL MODELS HAVE THE SAME QUANTITY OF PARTS AND HARD-
WARE. YOUR MODEL MAY LOOK DIFFERENT FROM THE ONE ILLUSTRATED DUE TO STYLIS-
TIC VARIATIONS.
* The Ashbury 4 in 1 crib can later be converted into a toddler
bed or a full-size bed. To convert to a toddler bed, turn to
page10. To convert to a full-size bed, turn to page 11.
revised 07JUN2011

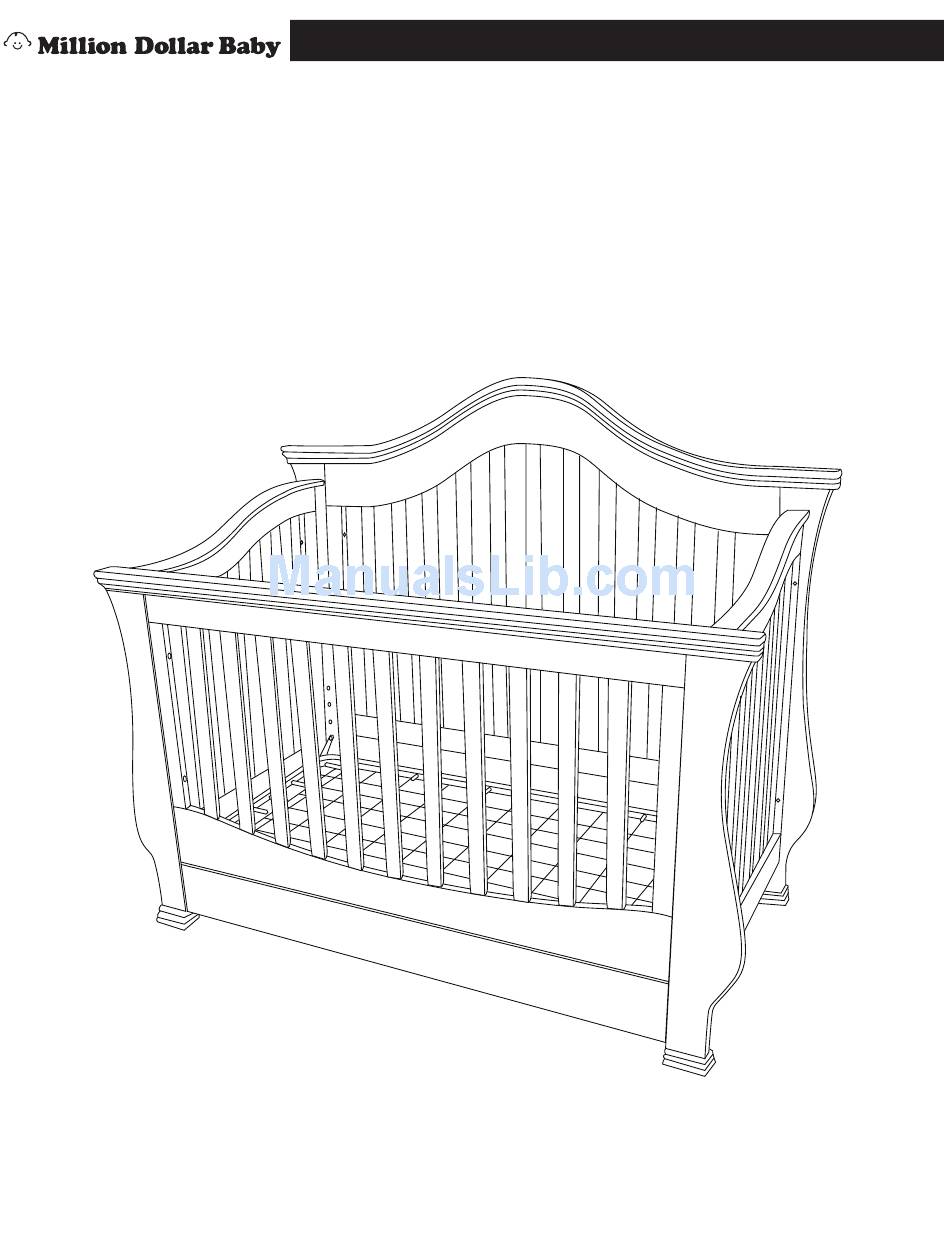

Ashbury 4 in 1 Crib (8201) - Assembly and Operation Manual
page 1
Advertisement
Table of Contents
Related Manuals for Million Dollar Baby Ashbury 4 in 1
Summary of Contents for Million Dollar Baby Ashbury 4 in 1
- Page 1 WARE. YOUR MODEL MAY LOOK DIFFERENT FROM THE ONE ILLUSTRATED DUE TO STYLIS- TIC VARIATIONS. * The Ashbury 4 in 1 crib can later be converted into a toddler bed or a full-size bed. To convert to a toddler bed, turn to page10.
- Page 2 PARTS B. Front Panel A. Back Panel E. Front F. Front Left leg Right leg C. Right Side Panel D. Left Side Panel G. Rear H. Rear Left leg Right leg J. Foot (4) K. Back Top Bar L. Front Top Bar R.
- Page 3 T. Left Drawer Panel W. Drawer Front Panel U. Mid Drawer Y. Drawer Panel Bottom Board (2) X. Drawer Back Panel V. Right Drawer Panel Z. Cap (2) HARDWARE H3. 3/4” Allen H1. 3” Round Head Bolt (4) H2. 2 -1/4” Allen Head Bolt (16) Head Bolt (4) H4.
- Page 4 STEP 2. Set up posts. J. Foot E. Front F. Front G. Rear H. Rear Left Leg Right Leg Left Leg Right Leg STEP 3. Attach Side Top Bar, posts and glide support rails to sides panels. G. Rear H. Rear Left Leg Right Leg M.
- Page 5 STEP 4. Set up back panel and back top bar. K. Back Top Bar DO NOT OVERTIGHTEN. Left Side Panel STEP 5. Right Side Panel Attach the spring frame. Swing out four hangers at corner of the spring frame (R) carefully. Attach spring frame FLAT SIDE UP. Choose the height of the spring frame.
- Page 6 STEP 6. Set up front panel and front top bar. STEP 7. Attach drawer glides to drawer panels. T. Left Drawer V. Right Drawer Panel Panel H16. Left H14. Right Drawer Glide Drawer Glide page 6...
- Page 7 STEP 8. Set up drawer panels. STEP 9. Attach drawer front panel. Inset A Inset B Rotate clockwise to secure page 7...
- Page 8 STEP 10. Slide drawer under the crib. Recheck all screws and bolts to be sure they are fastened securely. Do not overtighten. Before using your crib, please read all caution- ary statements on the insert sheet. KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE.
- Page 9 WARNING: WARNING: Failure to follow these warnings and Please do NOT remove any wood screws in the normal disassembly of the crib. the assembly instructions could result in serious injury or death. ONE YEAR LIMITED WARRANTY: READ ALL INSTRUCTIONS BEFORE ASSEMBLING We will replace any missing parts at the time CRIB.
- Page 10 Ashbury 4 in 1 Crib (8201) - Toddler Bed Conversion Assembly Instructions * All of the parts and hardware you will need are supplied with the crib at the time of purchase. STEP 1. STEP 2. Unscrew the Allen head bolts and lock washers Move the spring frame to the and remove the front panel assembly.
- Page 11 Conversion Rails (5789 - Sold Separately) - Assembly Instructions * For all 4 in 1 cribs, please contact a retailer to order your full size adult wooden bed rails for your full size bed convers Congratulations on purchasing a MDB Family product. This product will provide many years of service if you adhere to the following guidelines for assembly, maintenance and operation.
