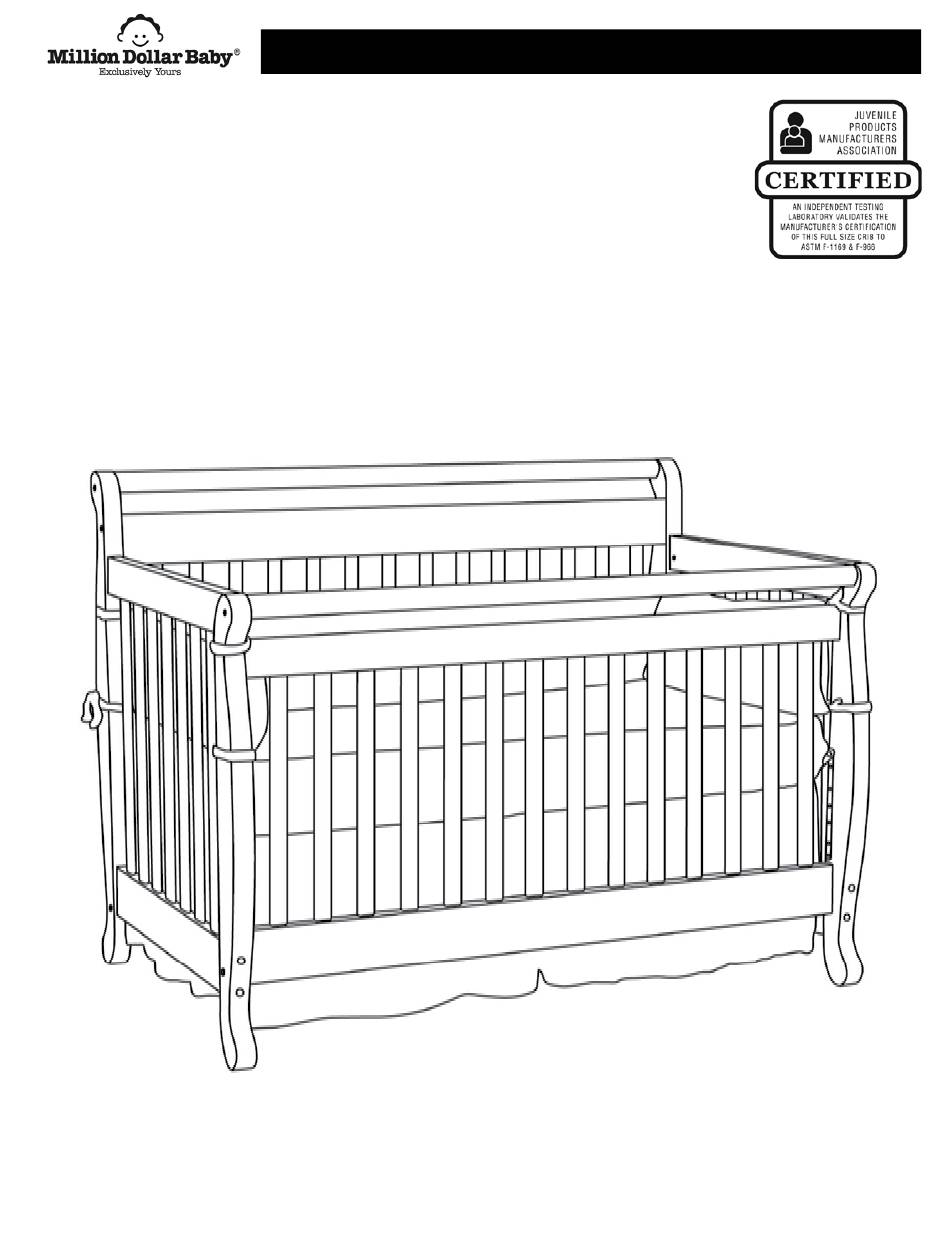

Emily Crib (M4791)-
Assembly and Operation Manual
Congratulations on purchasing a Million Dollar Baby Product. This crib will provide many years of service
if you adhere to the following guidelines for assembly, maintenance, and operation. This crib is for
residential use only. Any institutional use is strictly prohibited.
Please be sure to follow the instructions for proper assembly. Use a Phillips head screwdriver for
assembling the crib in addition to the Allen wrench included in the hardware box. Do not use power
screwdrivers. All of our cribs are made from natural woods. Please understand that natural woods have
color variations which are the result of nature and not defects in workmanship.
DO NOT SUBSTITUTE PARTS. ALL MODELS HAVE THE SAME QUANTITY OF PARTS AND HARDWARE.
YOUR MODEL MAY LOOK DIFFERENT FROM THE ONE ILLUSTRATED DUE TO STYLISTIC VARIATIONS.
revised 04-2007
page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Emily Crib M4791 and is the answer not in the manual?

Questions and answers

Summary of Contents for Million Dollar Baby Emily Crib M4791

  • Page 1 Emily Crib (M4791)- Assembly and Operation Manual Congratulations on purchasing a Million Dollar Baby Product. This crib will provide many years of service if you adhere to the following guidelines for assembly, maintenance, and operation. This crib is for residential use only. Any institutional use is strictly prohibited.
  • Page 2 CRIB PARTS A. Headboard B. Footboard C. Left side D. Right side panel panel I. Spring Frame E. Left F. Right G. Left H. Right front leg front leg rear leg rear leg J. Cross bar (2) R. Guard rail K.
  • Page 3 STEP 1. Attach the post brackets (K) to each of the four legs using three wood screws (M) for each bracket. STEP 2. Insert a metal dowel (R) into each end of the cross bar (J). Insert barrel nuts (N) in the holes in the headboard (A) and one cross bar (J).
  • Page 4 STEP 4. Insert barrel nuts (N) into the holes in the side panel assemblies and attach them to the headboard assembly with 6 Allen head bolts (S) and lock washers (T). Be sure that the post brackets face to the inside of the crib. Use the provided Allen wrench (Q) to tighten the bolts securely.
  • Page 5 STEP 7. Insert barrel nuts (N) into the holes in the footboard (B) and attach it between the side panels using 4 Allen head bolts (O) and lock washers (T). Tighten the bolts securely with the Allen wrench. Now go back and tighten all of the bolts on the crossbar and spring frame.
  • Page 6 Ask your dealer or easier than before. You can register contact Million Dollar Baby for replacement parts and instructional your product on our website at literature if needed. DO NOT substitute parts.
  • Page 7 Emily Crib (M4791)- Daybed conversion assembly All of the parts and hardware you will need is supplied with the crib at the time of purchase. STEP 2. STEP 1. Unscrew the six Phillips head bolts (O) and Move the spring frame to the lowest level. remove the cross bar (J( and footboard (B).
  • Page 8 Emily Crib (M4791)- Full size conversion assembly You can order full size conversion bed rails to match the finish of your crib. just visit our website to order M4799 Wooden bed rails. www.milliondollarbaby.com STEP 1. Unscrew the eight Phillips head bolts (O) and remove the side panel assemblies.
