Congratulations on purchasing a Million Dollar Baby Product. This crib will provide many years of service if you adhere to the
following guidelines for assembly, maintenance, and operation. This crib is for residential use only.
Any institutional use is strictly prohibited.
Please be sure to follow the instructions for proper assembly. Use a Phillips head screwdriver for assembling the crib in addi-
tion to the Allen wrench included in the hardware box. Do not use power screwdrivers. All of our cribs are made from natural
woods.
Please understand that natural woods have color variations which are the result of nature and not defects in workmanship.
DO NOT SUBSTITUTE PARTS. ALL MODELS HAVE THE SAME QUANTITY OF PARTS AND HARDWARE. YOUR MODEL
MAY LOOK DIFFERENT FROM THE ONE ILLUSTRATED DUE TO STYLISTIC VARIATIONS.

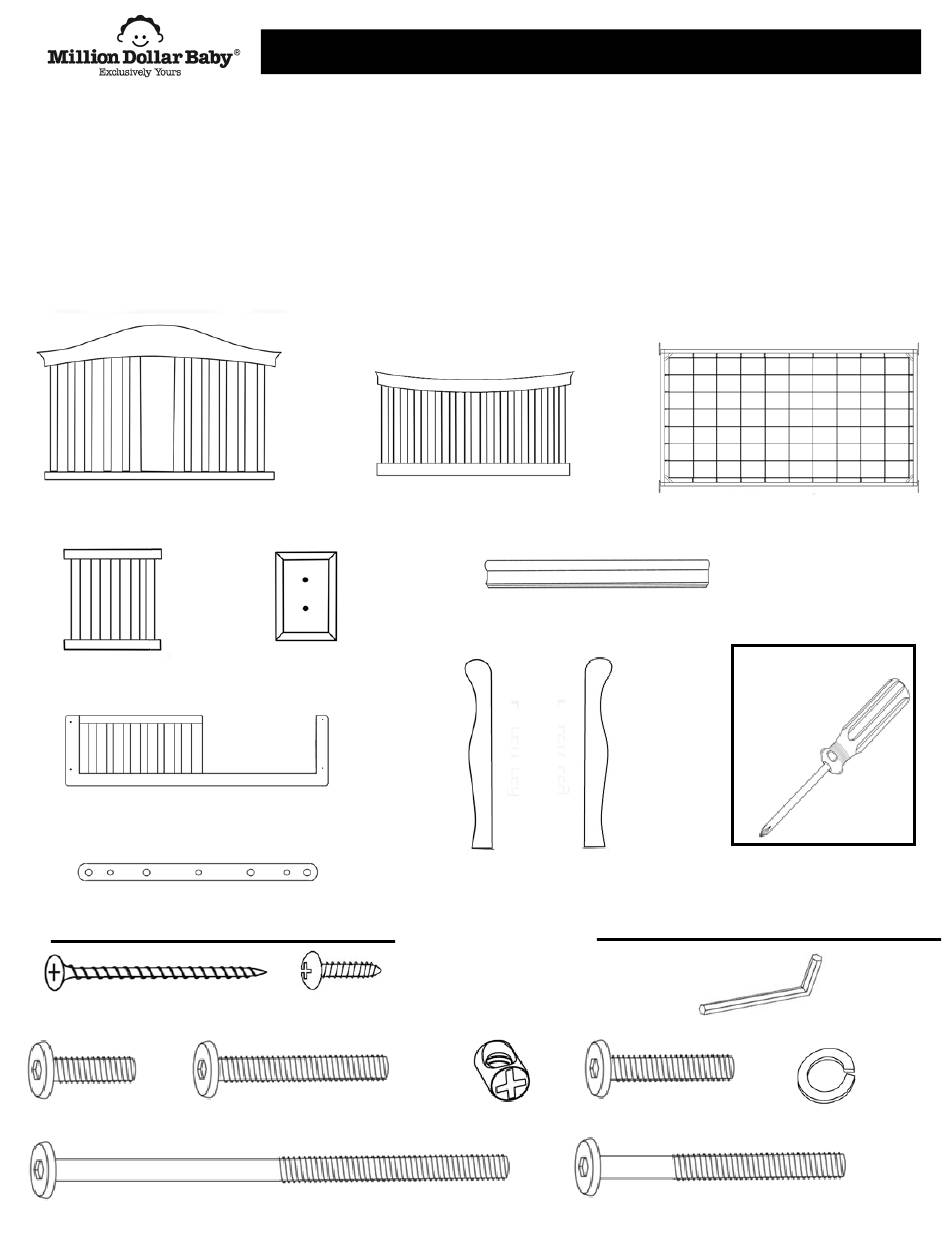

A.Headboard
D. Side (2)
G. Guard Rail
I. Post bracket (4)
K. 1 3/4" flat head
wood screw (8)
O. 3/4" Allen
head bolt (4)
S. 4" Allen
head bolt (8)
Parker Crib (K5101)-
E. Foot (4)
HARDWARE
L. 5/8" Wood
screw (12)
P. 1 1/2" Allen
head bolt (4)
Assembly and Operation Manual
B. Front Rail
F. Side Rail (2)
H. Left Leg (2)
J. Right Leg (2)
Q. Barrel nut (16)
C. Spring Frame
Tools Needed
(not included)
M. Allen wrench
R. 1 1/4" Allen
head bolt (4)
U. Lock washer (4)
T. 2 1/4" Allen
head bolt (8)
Phillips
screwdriver
revised 11-2006
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Million Dollar Baby Parker K5101
Summary of Contents for Million Dollar Baby Parker K5101
- Page 1 Parker Crib (K5101)- Assembly and Operation Manual Congratulations on purchasing a Million Dollar Baby Product. This crib will provide many years of service if you adhere to the following guidelines for assembly, maintenance, and operation. This crib is for residential use only.
- Page 2 STEP 1. Attach the post brackets (I) to the left legs (H) and the right legs (J). Use three woodscrews (L) for each bracket. STEP 2. Insert barrel nuts (Q) into the top and bottom holes on the left and right sides of the headboard (A). STEP 3.
- Page 3 STEP 8. Align the side rails (F) with the grooves in the crib sides (D). Attach with the Allen head bolts (P) through the pre-drilled holes. STEP 9. Swing out the four hangers at the corners of the spring frame (C). Be careful to avoid scratching the crib finish.
-
Page 4: One-Year Limited Warranty
Ask your dealer or than before. You can register your contact Million Dollar Baby for replacement parts and instructional product on our website at literature if needed. DO NOT substitute parts. - Page 5 Parker Crib (K5101)- Daybed conversion assembly R. 1 1/4” Allen STEP 1. head bolt (4) U. Lock washer (4) All of the parts and hardware you will need were supplied with the crib at the time of purchase. STEP 2. Unscrew the 6 Allen head bolts (T) and remove the side rail (F) and side panel (D).
- Page 6 Parker Crib (K5101)- Full size conversion assembly (W) 3” Phillips head bolt (8) (Q) Barrel nut (8) STEP 1. You can order full size conversion bed rails to match the finish of your crib. just visit our website to order M4799 Wooden bed rails.
- Page 7 Parker Crib (K5101)- Trundle drawer assembly A. Drawer Back E. Left Front Corner G. Left Rear Corner F. Right Front Corner H. Right Rear Corner B. Drawer Front (large) (small) C. Drawer Side (2) D. Center Support J. Drawer Bottom HARDWARE K.
- Page 8 STEP 5. Attach the center support (D) between the drawer front and back using the Phillips head screws (K). STEP 6. Screw the casters (P) into the threaded inserts in the bottom of each corner. Tighten them securely with the caster wrench (N).
