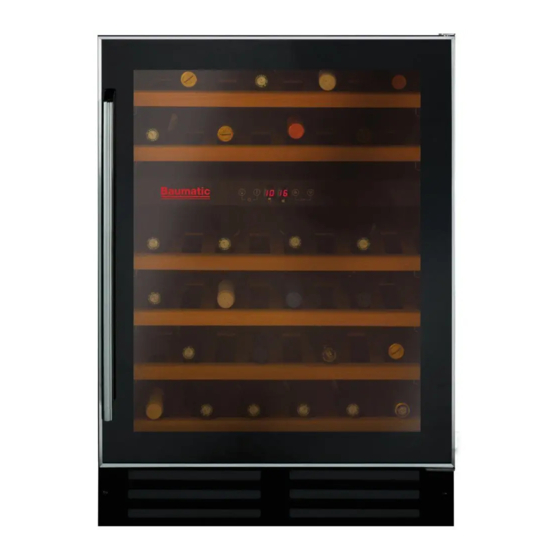

USER MANUAL FOR YOUR
BWWC600SS
60 cm 46 Bottle dual
temperature wine cabinet
NOTE
: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference, for
you or any person not familiar with the operation of the appliance.
GS 04/10/12
Advertisement
Table of Contents
Related Manuals for Baumatic BWWC600SS
Summary of Contents for Baumatic BWWC600SS
- Page 1 USER MANUAL FOR YOUR BWWC600SS 60 cm 46 Bottle dual temperature wine cabinet NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference, for you or any person not familiar with the operation of the appliance.
-
Page 2: Table Of Contents
Contents Environmental note Important safety information 4–5 Specifications of your wine cabinet 6-10 Dimensions Specifications 6 - 7 Description of the appliance Control panel Description of the product features 9-10 Using your wine cabinet 10-16 Before switching on During first use 10-11 Switching on the appliance and setting the temperature 11-12... -
Page 3: Environmental Note
Environmental note Note : Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance. -
Page 4: Important Safety Information
Important safety information Your safety is of the utmost importance to us. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Advice Li IMPORTANT: Any installation work must be carried... - Page 5 Child safety o Packaging material should be kept away from children. o Children should not be allowed to touch the controls or play with the appliance. General safety o Do not pull on the power supply cable to remove the plug from your mains supply socket.
-
Page 6: Specifications Of Your Wine Cabinet
Specifications of your wine cabinet Dimensions of appliance** Height: 870 - 890 mm Width: 595 mm Depth: 568 mm ** Please refer to the installation instructions for specific information on the size of aperture that you will require. o Gross capacity: 145 litres o Net capacity: 138 litres... - Page 7 o Stainless steel door frame and handle o Reversible door o Adjustable feet o Tempered door glass o Designed to store wine at its optimum temperature between + 5°C - 22°C IMPORTANT: When you install your appliance it is important to bear in mind its climatic rating.
-
Page 8: Description Of The Appliance
Description of the appliance 1) Stainless steel door 2) Stainless steel handle 3) Digital control panel 4) Adjustable shelves 5) Adjustable foot... -
Page 9: Control Panel
Control panel The control panel is located in the middle of the appliance. 1) Light control button 2) Temperature control button 3) Upper zone display 4) Lower zone display 5) Temperature plus button 6) Temperature minus button This icon indicates that the control panel is for the upper cooling zone. -
Page 10: Using Your Wine Cabinet
o Each cooling zone has an independent temperature control and temperature display. 3) Interior light o The wine cabinet has an interior light. The light can be switched on and off by using the light control button (1). 4) The wine cabinet shelves o The wooden shelves are fully adjustable to suit various wine bottle shapes and sizes. -
Page 11: During First Use
During first use IMPORTANT: When you use the wine cabinet for the first time or restart the appliance after it has been turned off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED display. -
Page 12: Changing Between Fahrenheit And Celsius
o The temperature will increase by 1°C or 1°F if you touch the plus button once and will decrease by the same amount of you press the minus button once. o When you set a new temperature for either of the zones, the display will show this temperature for 5 minutes before showing the actual zone temperature. -
Page 13: Loading The Wine Cabinet
Loading the wine cabinet o IMPORTANT: Your appliance is ideally suited to store 0.75 litre Bordeaux style wine bottles. Whilst it can store larger bottles, you must make sure that they do not prevent the door from shutting properly. o Always check that you can close the door without it fouling on a wine bottle, before shutting it. -
Page 14: Storing Your Wines
Storing your wines The chart below indicates the ideal storage temperatures for different types of wine:- Type of wine Temperature Temperature (Celsius) (Fahrenheit) Red wine (*) 15.5 – 18.5°C 59.9 – 65.3°F White wine (**) 10 - 15°C 50 – 59°F Sparkling 7.2 –... -
Page 15: Wine Storage Problems
o Special stoppers that keep wine sparking and Champagne bubbling for one or two days after opening, can be bought at most good wine shops. o When stored correctly, white wines can keep well for up to two years. Full bodied reds will age well for ten years and dessert wines will age well for up to twenty years. -
Page 16: Cleaning And Maintenance
Slight effervescence in still wine- this isn’t really a problem with the way the wine has been stored, but as a result of incomplete malolactic fermentation before the wine was bottled. A good way to get rid of the effervescence is to let the wine breathe. Alternatively you can use a bottle vacuum device, after about five minutes the effervescence will vanish. -
Page 17: Defrosting
o Do not use abrasive products, detergents or soaps. o After washing the appliance, wipe over the area that you have cleaned with a damp cloth and then dry it thoroughly. o When cleaning is complete, dry your hands and then reconnect the plug to your mains supply. -
Page 18: Power Failure
Moving your wine cabinet If you need to move your wine cabinet to another location you should follow the steps outlined below. o Remove all items from the wine cabinet. o Securely tape down all loose items such as the shelves inside the appliance. -
Page 19: Installation
Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found on the front left edge of the inside of the wine cabinet. -
Page 20: Positioning
o When the connection is completed, no stray strands or cut wire should be present. The cord clamp must be secured over the outer sheath. Positioning o It is advisable that your appliance is only installed in a location where the ambient temperature of the room, corresponds with the climate classification that is stated on the rating plate of your appliance. -
Page 21: Built-In Installation
Built-in installation o Your wine cabinet can be used as a freestanding or a built in unit. The clearances shown in the above drawing should be followed for both types of installation. o In particular the depth dimension must be observed. o IMPORTANT: The vent at the base of the appliance is for ventilation. -
Page 22: Installing The Handle
Installing the handle o Remove the door gasket on the side you wish to install the handle. You can see two designated holes for handle installation. o Install the handle tightly as shown in the diagram above with the two screws, lock washers and flat washers provided. o Replace the door gasket. - Page 23 o Pull down to remove the glass door and place it on a padded surface to prevent scratching it. o Remove the right top hinge and right lower hinge. o Take the left top hinge and left lower hinge from the plastic bag that contained this manual then install them...
-
Page 24: Troubleshooting
not be creased or crushed; otherwise there will be a gap between it and the inside of the door. o The seal must adhere properly all the way around the door. o If the seal is not adhering to the cabinet properly, then you should either:- a) Use a warm damp cloth and manipulate the seal until it does adhere to the cabinet properly, all the way around the door. - Page 25 will take at least four hours for it to get down to temperature again. Temperature inside the appliance is too The temperature controls are set too cold cold. Set the temperature controls to a warmer setting and allow several hours for the temperature to stabilise.
-
Page 26: Technical Data
Technical Data Manufacturer HOMEKING Model Number BWWC600SS Product Category 2 – Refrigeration-cellar, Cellar and wine storage appliances Energy Efficiency Class (1) Annual Energy Consumption (2) 247 kWh Storage Volume of Fridge 138 litres Compartment Storage Volume of Freezer Compartment Star Rating Coldest Storage Temperature Upper Zone: 5°C / Lower Zone:... -
Page 28: Contact Details
United Kingdom 6 Bennet Road, Reading, Berkshire RG2 0QX United Kingdom Customer Care (0118) 933 6918...
