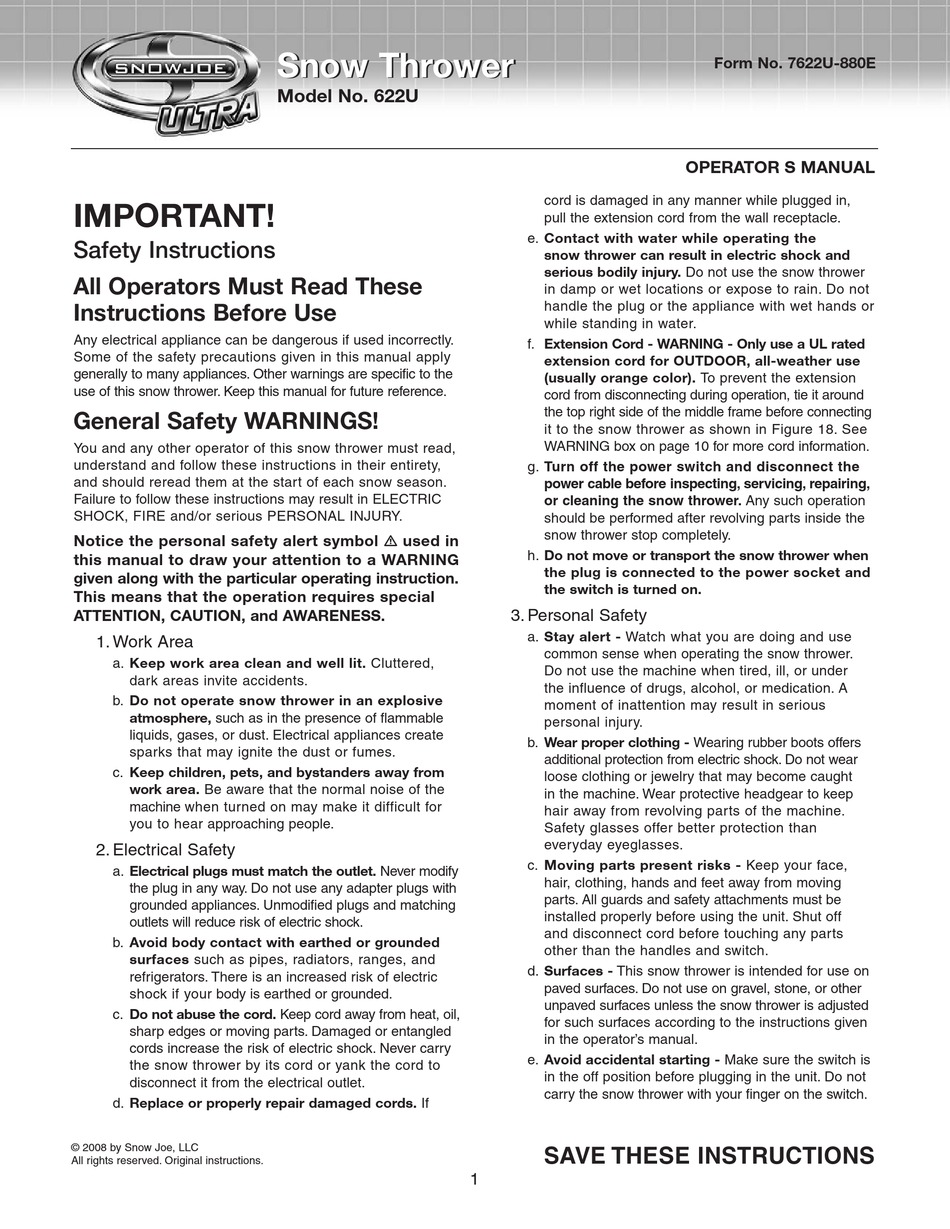

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

Any electrical appliance can be dangerous if used incorrectly.

Some of the safety precautions given in this manual apply

generally to many appliances. Other warnings are specific to the

use of this snow thrower. Keep this manual for future reference.

General Safety WARNINGS!

You and any other operator of this snow thrower must read,

understand and follow these instructions in their entirety,

and should reread them at the start of each snow season.

Failure to follow these instructions may result in ELECTRIC

SHOCK, FIRE and/or serious PERSONAL INJURY.

Notice the personal safety alert symbol

this manual to draw your attention to a WARNING

given along with the particular operating instruction.

This means that the operation requires special

ATTENTION, CAUTION, and AWARENESS.

1. Work Area

a. Keep work area clean and well lit. Cluttered,

dark areas invite accidents.

b. Do not operate snow thrower in an explosive

atmosphere, such as in the presence of flammable

liquids, gases, or dust. Electrical appliances create

sparks that may ignite the dust or fumes.

c. Keep children, pets, and bystanders away from

work area. Be aware that the normal noise of the

machine when turned on may make it difficult for

you to hear approaching people.

2. Electrical Safety

a. Electrical plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with

grounded appliances. Unmodified plugs and matching

outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges, and

refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

c. Do not abuse the cord. Keep cord away from heat, oil,

sharp edges or moving parts. Damaged or entangled

cords increase the risk of electric shock. Never carry

the snow thrower by its cord or yank the cord to

disconnect it from the electrical outlet.

d. Replace or properly repair damaged cords. If

Snowthrower

Snow Thrower

Snowthrower

Model No. 622

Model No. 622U

used in

cord is damaged in any manner while plugged in,

pull the extension cord from the wall receptacle.

e. Contact with water while operating the

snow thrower can result in electric shock and

serious bodily injury. Do not use the snow thrower

in damp or wet locations or expose to rain. Do not

handle the plug or the appliance with wet hands or

while standing in water.

f. Extension Cord - WARNING - Only use a UL rated

extension cord for OUTDOOR, all-weather use

(usually orange color). To prevent the extension

cord from disconnecting during operation, tie it around

the top right side of the middle frame before connecting

it to the snow thrower as shown in Figure 18. See

WARNING box on page 10 for more cord information.

g. Turn off the power switch and disconnect the

power cable before inspecting, servicing, repairing,

or cleaning the snow thrower. Any such operation

should be performed after revolving parts inside the

snow thrower stop completely.

h. Do not move or transport the snow thrower when

the plug is connected to the power socket and

the switch is turned on.

3. Personal Safety

a. Stay alert - Watch what you are doing and use

common sense when operating the snow thrower.

Do not use the machine when tired, ill, or under

the influence of drugs, alcohol, or medication. A

moment of inattention may result in serious

personal injury.

b. Wear proper clothing - Wearing rubber boots offers

additional protection from electric shock. Do not wear

loose clothing or jewelry that may become caught

in the machine. Wear protective headgear to keep

hair away from revolving parts of the machine.

Safety glasses offer better protection than

everyday eyeglasses.

c. Moving parts present risks - Keep your face,

hair, clothing, hands and feet away from moving

parts. All guards and safety attachments must be

installed properly before using the unit. Shut off

and disconnect cord before touching any parts

other than the handles and switch.

d. Surfaces - This snow thrower is intended for use on

paved surfaces. Do not use on gravel, stone, or other

unpaved surfaces unless the snow thrower is adjusted

for such surfaces according to the instructions given

in the operator's manual.

e. Avoid accidental starting - Make sure the switch is

in the off position before plugging in the unit. Do not

carry the snow thrower with your finger on the switch.

SAVE THESE INSTRUCTIONS

Form No. 7622U-880E

Form No. 7322-880

OPERATOR S MANUAL

Table of Contents

Chapters

Table of Contents

Need help?

Do you have a question about the 622U and is the answer not in the manual?

Questions and answers

Pyarali Hemraj

February 19, 2025

How do we change drive pulley in SNOWJOE 622U

Summary of Contents for SNOWJOE 622U

Page 1: Snow Thrower
Snow Thrower Snowthrower Form No. 7622U-880E Form No. 7322-880 Model No. 622 Model No. 622U OPERATOR S MANUAL cord is damaged in any manner while plugged in, IMPORTANT! pull the extension cord from the wall receptacle. e. Contact with water while operating the...
Page 2 Snowthrower Snowthrower Form No. 7322-880 Model No. 622 not use the machine until it has been properly repaired. f. Body position - Maintain proper footing and balance Always perform a test run the first time you use the at all times. Place heels firmly on the ground and snow thrower or after replacing parts to ensure that the tightly grasp the handle bar.
Page 3: Safety And Instruction Decals
To reduce the risk of electric shock, replace damaged cord immediately. Manuel de rechange disponible sur envoi du numéro de modèle et du numéro de série à : Snow Joe, LLC, 61 Executive Avenue, Edison, NJ 08817, ou visiter le site www.snowjoe.com PELIGRO No emplee las manos para desatascar la tolva.
Page 4 Snowthrower Snowthrower Form No. 7322-880 Model No. 622 Assembly CAUTION Inspect wiring, which, if damaged during shipping, may cause serious bodily injury during equipment use. If any damage is seen or suspected, do not assemble. Instead, contact Snow Joe Customer Service for assistance.
Page 5 Figure 3 Figure 5 A-Middle frame B-Lower frame A-Joint fixing knob B-Washers 3. Connect the upper frame to the middle frame in the same way as described in step 2. Use the joint fixing T-bolts, washers, and knobs to secure the connection on both sides (Figs.
Page 6: Figure
Snowthrower Snowthrower Form No. 7322-880 Model No. 622 4. Locate the three cable clips in the parts bag. Secure the power cord to the frame of the unit by clipping them onto the frame at evenly spaced intervals (Fig. 9). Figure 7 A-Joint fixing T-bolt B-Washer...
Page 7: Figure
Snowthrower Snowthrower Model No. 622 Figure 10 Figure 12 A-Chute deflector C-Discharge chute A-Chute deflector B-Chute deflector knob B-Chute deflector knob 3. Locate the upper chute crank in the parts bag. Remove the screw and nut from the upper chute crank using a Phillips screwdriver and the wrench provided (Fig.
Page 8: Figure
Snowthrower Snowthrower Form No. 7322-880 Model No. 622 4. Slide the upper chute crank into the lower chute crank, aligning 5. Remove the washer and nut from the eye bolt with rubber the screw holes. Tighten the screw into the aligned holes grommet found on the upper chute crank.
Page 9: Figs
Operation Note: Before using this machine, make sure that the power source you will use complies with the specifications detailed in this manual. Before inserting the plug into the socket, verify that the snow thrower’s roll shaft and rubber plates are firmly secured with screws, and that the rubber plates are facing the correct direction.
Page 10: Powering On And Off
2. Pull the handle bar toward you and grasp hold of it firmly with both hands to start the machine (Fig. 21). The machine WARNING can only be started by pressing the switch button first, followed by squeezing the handle bar. Reverse operation Damaged electrical cords present risk of fire, cannot start the machine.
Page 11: Figs
snow thrower is in use, stop the snow thrower, unplug the Moving the Machine and Plowing extension cord, and inspect for frozen parts. Free all parts the Snow before restarting or operating the snow thrower. Never force controls that have frozen. 10.
Page 12 2. The chute deflector on the top of the discharge chute controls the height of the snow stream. Loosen both chute deflector knobs to raise or lower the deflector to the desired height of snow you wish to throw. Tighten the knobs to secure the deflector (Fig.
Page 13: Replacing Rubber Plates
Maintenance WARNING WARNING Make sure to turn off the switch and disconnect the extension cord before performing any maintenance task on your snow thrower. Lifetime Lubrication Lubrication is not necessary and may damage the unit. The snow thrower is lubricated for lifetime use at the factory Figure 25 before shipment.
Page 14: Replacing The Scraper
1. Detach the worn scraper from the snow thrower by removing the 3 screws that hold it in place (Fig. 29). Figure 27 A-Rubber plate D-Bolt B-Rivet E-Auger C-Small flat washer Figure 29 A-Scraper removal Replacing the Scraper The scraper is located at the base of the snow thrower beneath 2.
Page 15: Model And Serial Numbers
Service and Support If your Snow Joe 622 Ultra electric snow thrower requires service or maintenance, a Snow Joe Authorized Dealer will best assist you. Please call 1-866-SNOWJOE for assistance. Model and Serial Numbers When contacting the company, reordering parts, or arranging...
Page 16 A Two-Year Full Warranty for residential use in the United States and Canada General Conditions: Snow Joe, LLC warrants this product to the original purchaser for two years against defects in material or workmanship when used for normal residential purposes. In order to obtain a replacement unit or repair the existing unit, you must return the complete unit, postage prepaid, to the place of purchase, or to the Snow Joe Center, (61 Executive Avenue, Edison, NJ 08817).
