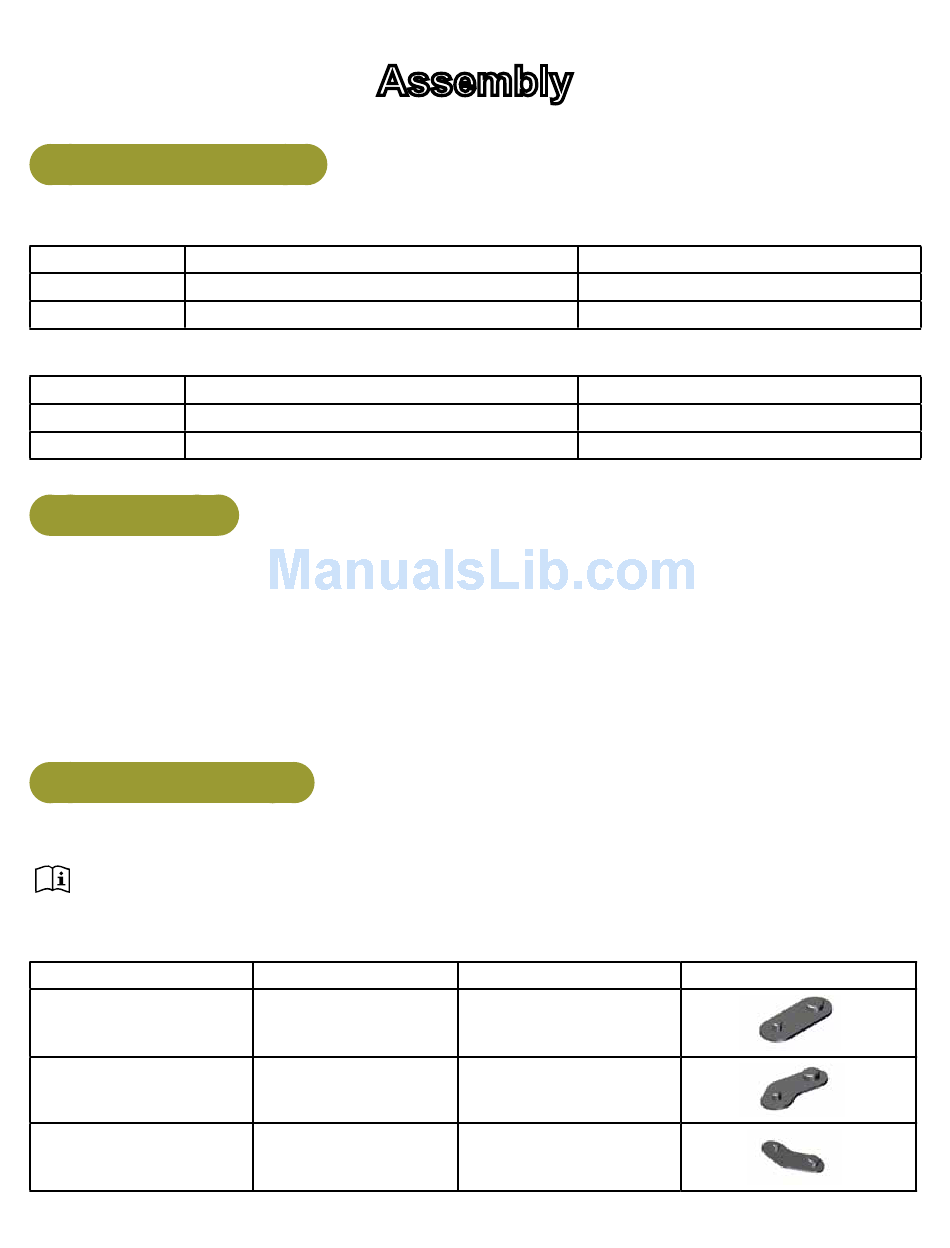

Assembly; Machine Specifications; Tools Required; Assembly Procedures - CYBEX VR1 Lat/Row Owner's Manual

Machine Specifications

Total Weight and Size VR1 Lat/Row 13250 Standard Stack
Weight
496 Lbs 73" L x 50" W x 77" H
225 Kg 185 cm L x 127 cm W x 211 cm H
Total Weight and Size VR1 Lat/Row 13250 Standard Stack
Weight
426 Lbs 73" L x 50" W x 77" H
194 Kg 185 cm L x 127 cm W x 211 cm H

Tools Required

• 7/32" Allen wrench
• 3/4" Socket or wrench
• Hammer
• 3/16" Pin punch
Two people will be required for this procedure. It is the responsibility of the facility owner/owner of the
equipment to ensure that there is appropriate clearance around each machine to allow for safe use
and passage.

Assembly Procedures

Two people will be required for this procedure.
Read and understand all instructions thoroughly before assembling this unit. Check all items
carefully. If there is damage, see the Customer Service section of this manual for proper procedure to
return, replace, or reorder parts.
Qty
5
1
1
Cybex Owner's Manual

Assembly

Machine Dimensions at Rest
Machine Dimensions at Rest
Part Number
13000-353
13000-354
13000-355
Machine Dimensions in Use
Same
Same
Machine Dimensions in Use
Same
Same
Description
Foot Pad
Foot Pad
Foot Pad
9
Diagram
