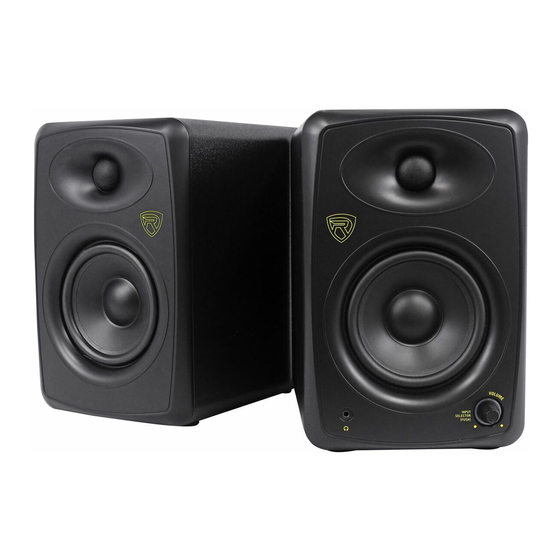

ROCKVILLE ASM5 ACTIVE SERIES
NEAR FIELD STUDIO MONITORS
USER GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASM5 Active Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rockville ASM5 Active Series

Summary of Contents for Rockville ASM5 Active Series

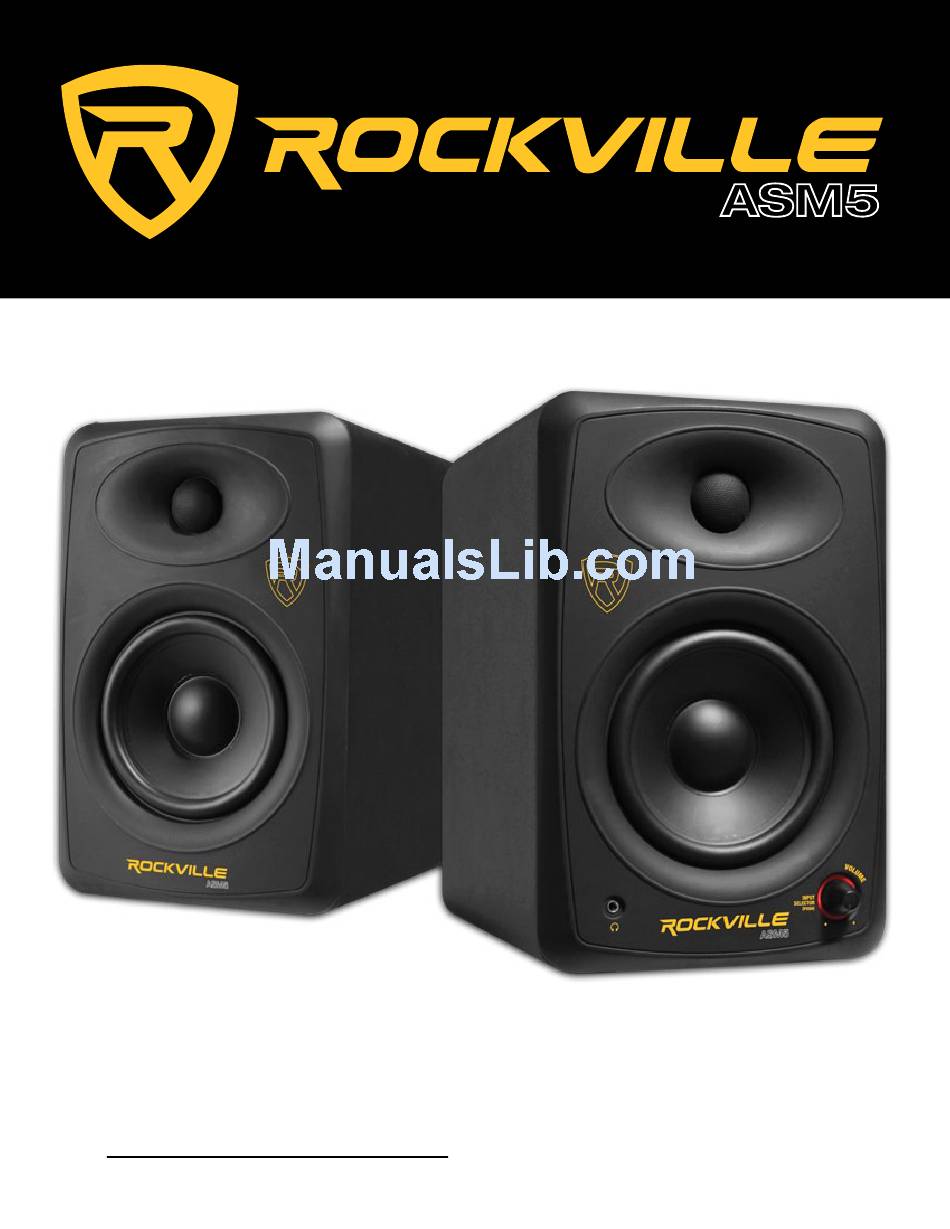

  • Page 1 ROCKVILLE ASM5 ACTIVE SERIES NEAR FIELD STUDIO MONITORS USER GUIDE...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK.) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Do not place this unit on an unstable cart, stand or tripod, bracket or table. The unit may fall, causing serious injury to a child or adult and serious damage to the unit.
  • Page 4 CONTENTS ASM5 Introduction ASM5 Features/System Controls ASM5 Volume Control/Input Selector Installing and Positioning Specifications Troubleshooting...
  • Page 5 State-of-the-art amplification, Quad 4 Amplification with OFA Unlike most studio monitors, the Rockville ASM5 studio monitors feature a Quad Amplifier design in each pair of monitors. Each woofer and tweeter features their own Frequency Optimized Amplifier, so there is no wasted energy in the amplification stage and an absolute minimum of hormonic distortion.
  • Page 6 FEATURES/SYSTEM CONTROLS • Ferro Fluid Enhanced 1" Neodymium Soft Dome Tweeter • Talc Filled, Injection Molded Graphite Composite Cone Woofer • Curved front bezel design eliminates standing wave distortion • Waveguide design provides amazing detail and imaging • Computer optimized rear-firing port provides low bass extension loading •...
  • Page 7 VOLUME CONTROL/INPUT SELECTOR Turn on main power switch on rear of unit. Speaker will be in STANDBY mode (LED indicator ring will glow red). Push once to exit STANDBY mode. Turn volume control knob left or right to decrease/increase volume. Push again for INPUT mode.
  • Page 8 INSTALLING AND POSITIONING The close-field monitor, by definition, reduces room interaction. This can be compared to the conventional stereo configuration or the large monitor arrangement in a recording studio where sounds emanating from the monitor or reflecting off ceilings, walls, and floors, all greatly affect the sound quality.
  • Page 9 INSTALLING AND POSITIONING SUBWOOFER PLACEMENT(optional) Ensure the proper phase settings(0 or 180) on subwoofer. Then further adjust the sub’s low pass filter, so that it blends seemly with your ASM5 monitors. When you have finished adjusting the phase and cross-over settings, re-adjust the level of the sub to your personal preference. 60°...

  • Page 10: Specifications

    SPECIFICATIONS MODEL ASM5 STUDIO MONITORS SPEAKER TYPE 2-WAY POWERED SYSTEM TYPE NEAR-FIELD ACTIVE STUDIO MONITORS LOW-FREQUENCY DRIVER Talc Filled, Injection Molded Graphite Composite HIGH-FREQUENCY DRIVER Ferro Fluid Enhanced 1" Neodymium Soft Dome LOW-FREQUENCY POWER 35WRMS / 70W MAX HIGH-FREQUENCY POWER 15WRMS / 30W MAX FREQUENCY RESPONSE 49HZ - 21,000 HZ...

  • Page 11: Troubleshooting

    •Ensure power cord is securely connected to its proper port •AC voltage matches to that of the operating voltage requirements. •The Rockville logo is illuminated on the front panel of the ASM5. If not, turn the power switch off and check the fuse(s).
  • Page 12 VISIT US AT: RockvillePro.com Due to constant product improvements, these specifications are subject to change without notice Copyright 2013...
