5 TON - 20" LOG SPLITTER
MODEL: KC-5LS
INSTRUCTION MANUAL
COPYRIGHT © 2006 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KC-5LS and is the answer not in the manual?

Questions and answers

Wade
May 1, 2025

What size bolt do I need to bolt the splitter to the stand . I know there's 2 of them.

1 comments:
Mr. Anderson
May 16, 2025

The specific size of the bolts needed to attach the King Canada KC-5LS splitter to the stand is not provided in the given context.

This answer is automatically generated

Summary of Contents for King Canada KC-5LS

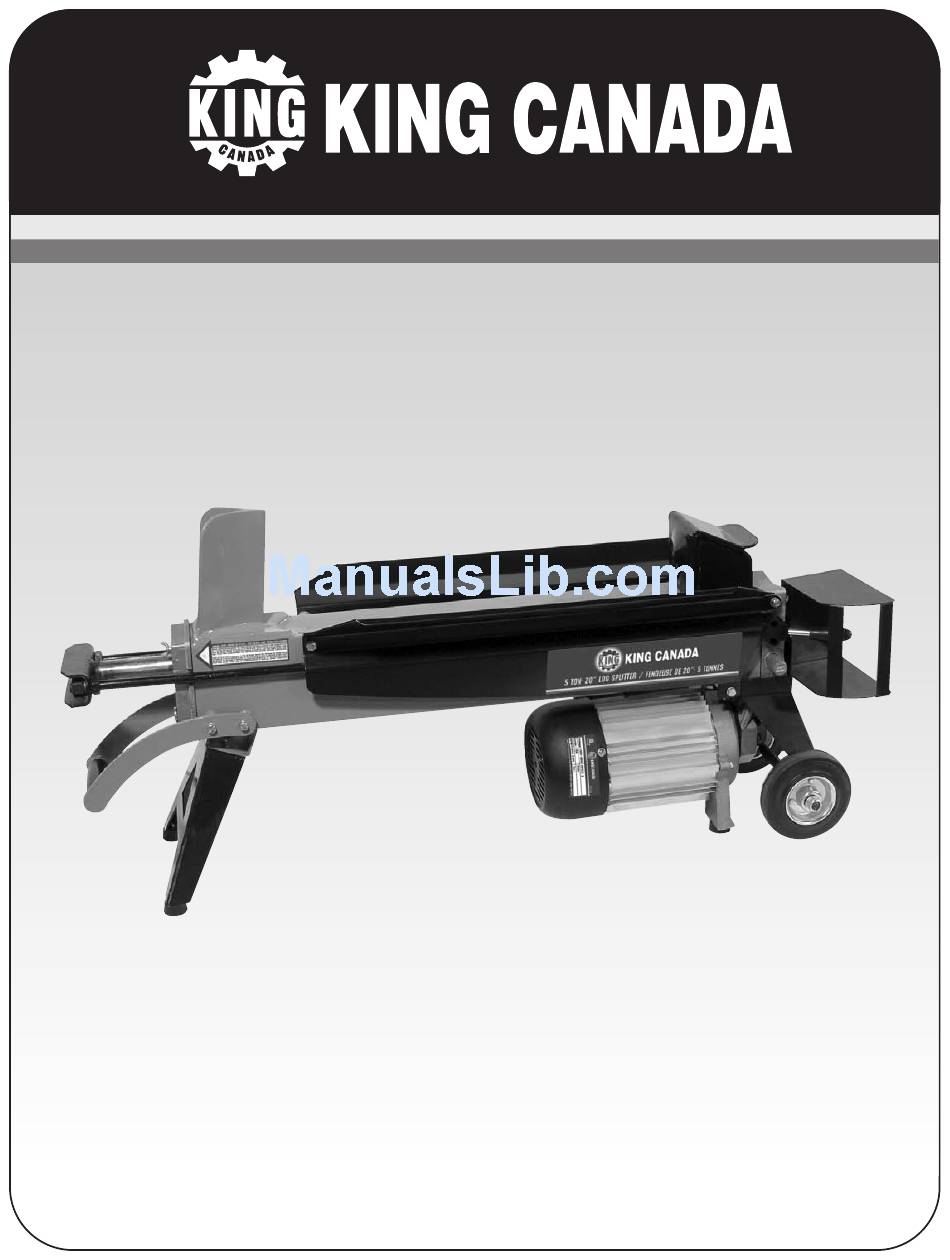

  • Page 1 5 TON - 20” LOG SPLITTER MODEL: KC-5LS INSTRUCTION MANUAL COPYRIGHT © 2006 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
  • Page 2: Proof Of Purchase

    Warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations and lack of maintenance. KING CANADA shall in no event be liable for death, injuries to persons or property or for incidental, special or consequential damages arising from the use of our products.
  • Page 3: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS 1. KNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to Always wear safety glasses (ANSI Z87.1). Everyday eye- glasses only have impact resistant lenses, thet are NOT the tool. Learn its application and limitations as well as its specific potential hazards.
  • Page 4 SPECIFIC SAFETY INSTRUCTIONS FOR THIS LOG SPLITTER 1) It is obligatory to read the instruction manual in full before using the 18) Split wood in the direction of the grain. Do not place wood across log splitter. the log splitter and leave it in that position for splitting as it is dangerous and may damage the machine or cause injury to the 2) It is obligatory to wear safety footwear at all times to provide operator.
  • Page 5 SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE LOG SPLITTER DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! KC-5LS POWER SUPPLY (110V-1 PHASE) EXTENSION CORDS WARNING: THIS LOG SPLITTER MUST BE CONNECTED TO A The use of any extension cord will cause some loss of power.
  • Page 6 GETTING TO KNOW YOUR LOG SPLITTER & OPERATING GUIDELINES Getting to Know your Log Splitter Before attempting to use the log splitter, it is recommended to familiarize yourself with all the controls, operating features and safety requirements of your log splitter. 1.
  • Page 7: Assembly And Adjustments

    ASSEMBLY & ADJUSTMENTS Warning! For your own safety, do not connect the log splitter to the power source until the machine is completely assembled and you have read and understood the entire instruction manual. Warning! For your own safety, never forget to bolt the support leg to the log splitter.
  • Page 8: Operation

    OPERATION Operation Warning! Before operating the log splitter, the bleed screw (A) Fig.7 should be loosened by some rotations until air can go in and out of the oil tank smoothly. Air flow through the bleed screw hole should be detectable while the log splitter is under operation.
  • Page 9 OPERATION Freeing a Jammed Log If a log gets jammed, follow these instructions; 1) Release both controls. 2) After the log pusher moves back and completely stops at its starting position, insert a wedge wood (A) Fig.10 under the jammed log. 3) Start the log splitter to push the wedge wood to go on completely under the jammed one.
  • Page 10: Troubleshooting Guide

    Oil drain bolt with dipstick is not tight Tighten the oil drain bolt with dipstick Hydraulic control valve assembly Contact closest service center. and/or seal(s) worn PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
