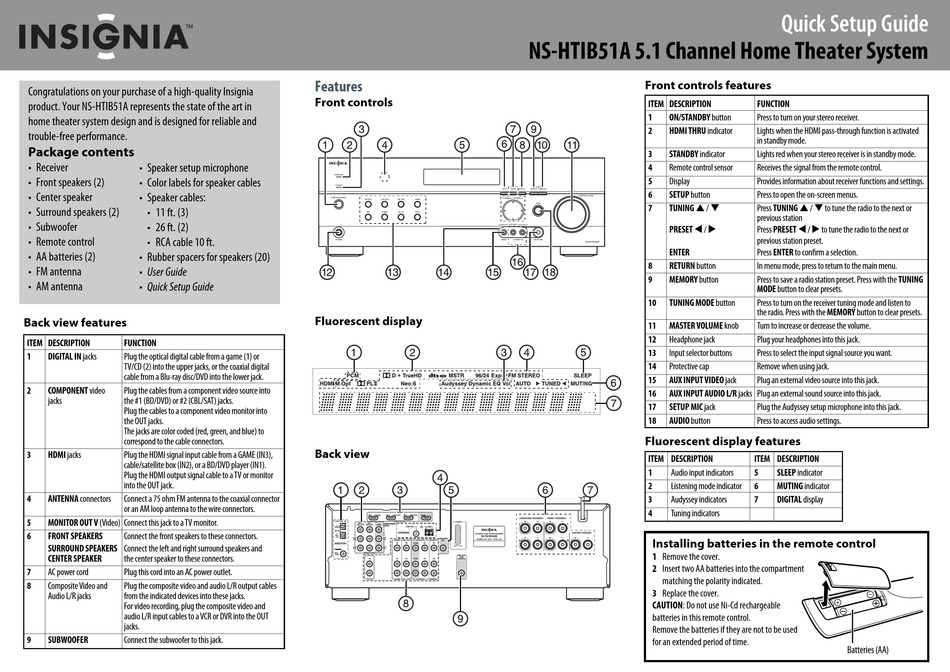

Insignia NS-HTIB51A Quick Setup Manual

Congratulations on your purchase of a high-quality Insignia
product. Your NS-HTIB51A represents the state of the art in
home theater system design and is designed for reliable and
trouble-free performance.

Package contents

• Receiver • Speaker setup microphone
• Front speakers (2) • Color labels for speaker cables
• Center speaker • Speaker cables:
• Surround speakers (2) • 11 ft. (3)
• Subwoofer
• 26 ft. (2)
• Remote control
• RCA cable 10 ft.
• AA batteries (2)
• Rubber spacers for speakers (20)
• FM antenna
• User Guide
• AM antenna • Quick Setup Guide
Back view features
ITEM DESCRIPTION FUNCTION
1 DIGITAL IN jacks Plug the optical digital cable from a game (1) or
TV/CD (2) into the upper jacks, or the coaxial digital
cable from a Blu-ray disc/DVD into the lower jack.
2 COMPONENT video Plug the cables from a component video source into
jacks the #1 (BD/DVD) or #2 (CBL/SAT) jacks.
Plug the cables to a component video monitor into
the OUT jacks.
The jacks are color coded (red, green, and blue) to
correspond to the cable connectors.
3 HDMI jacks Plug the HDMI signal input cable from a GAME (IN3),
cable/satellite box (IN2), or a BD/DVD player (IN1).
Plug the HDMI output signal cable to a TV or monitor
into the OUT jack.
4 ANTENNA connectors Connect a 75 ohm FM antenna to the coaxial connector
or an AM loop antenna to the wire connectors.
5 MONITOR OUT V (Video) Connect this jack to a TV monitor.
6 FRONT SPEAKERS Connect the front speakers to these connectors.
SURROUND SPEAKERS Connect the left and right surround speakers and
CENTER SPEAKER the center speaker to these connectors.
7 AC power cord Plug this cord into an AC power outlet.
8 Composite Video and Plug the composite video and audio L/R output cables
Audio L/R jacks from the indicated devices into these jacks.
For video recording, plug the composite video and
audio L/R input cables to a VCR or DVR into the OUT
jacks.
9 SUBWOOFER Connect the subwoofer to this jack.
Actual product may vary from image shown.
Features
Front controls
Fluorescent display
Back view
NS-HTIB51A 5.1 Channel Home Theater System
Front controls features
ITEM DESCRIPTION
1 ON/STANDBY button
2 HDMI THRU indicator
3 STANDBY indicator
4 Remote control sensor
5 Display
6 SETUP button
TUNING  / 
7
PRESET  / 
ENTER
8 RETURN button
9 MEMORY button
10 TUNING MODE button
11 MASTER VOLUME knob
12 Headphone jack
13 Input selector buttons
14 Protective cap
15 AUX INPUT VIDEO jack
16 AUX INPUT AUDIO L/R jacks Plug an external sound source into this jack.
17 SETUP MIC jack
18 AUDIO button
Fluorescent display features
ITEM DESCRIPTION
1 Audio input indicators
2 Listening mode indicator
3 Audyssey indicators
4 Tuning indicators
Installing batteries in the remote control
1 Remove the cover.
2 Insert two AA batteries into the compartment
matching the polarity indicated.
3 Replace the cover.
CAUTION: Do not use Ni-Cd rechargeable
batteries in this remote control.
Remove the batteries if they are not to be used
for an extended period of time.
Quick Setup Guide
FUNCTION
Press to turn on your stereo receiver.
Lights when the HDMI pass-through function is activated
in standby mode.
Lights red when your stereo receiver is in standby mode.
Receives the signal from the remote control.
Provides information about receiver functions and settings.
Press to open the on-screen menus.
Press TUNING  /  to tune the radio to the next or
previous station
Press PRESET  /  to tune the radio to the next or
previous station preset.
Press ENTER to confirm a selection.
In menu mode, press to return to the main menu.
Press to save a radio station preset. Press with the TUNING
MODE button to clear presets.
Press to turn on the receiver tuning mode and listen to
the radio. Press with the MEMORY button to clear presets.
Turn to increase or decrease the volume.
Plug your headphones into this jack.
Press to select the input signal source you want.
Remove when using jack.
Plug an external video source into this jack.
Plug the Audyssey setup microphone into this jack.
Press to access audio settings.
ITEM DESCRIPTION
5 SLEEP indicator
6 MUTING indicator
7 DIGITAL display
Batteries (AA)
