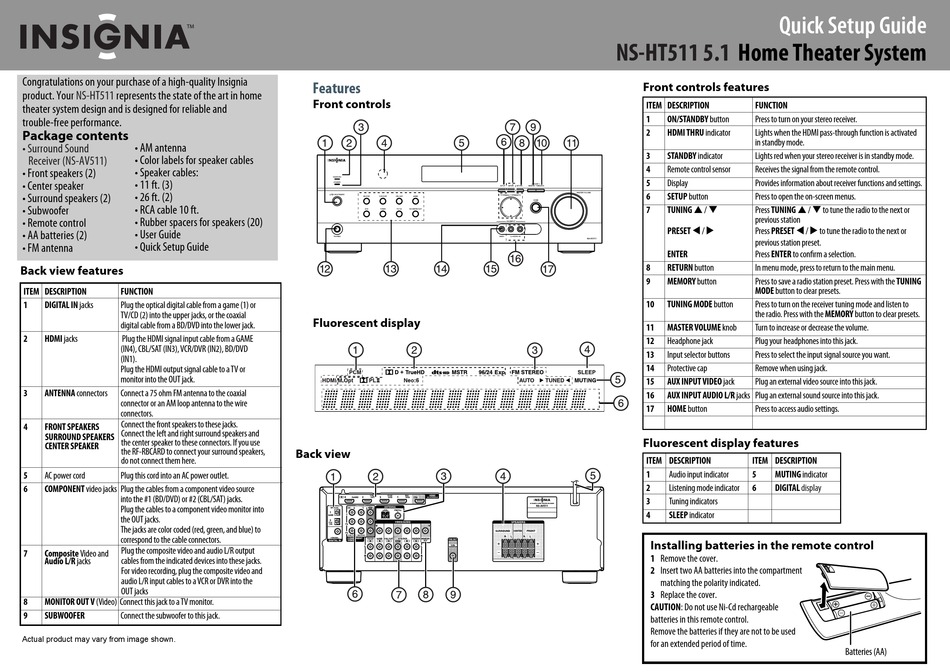

Insignia NS-HT511 Quick Setup Manual

Congratulations on your purchase of a high-quality Insignia
product. Your NS-HT511 represents the state of the art in home
theater system design and is designed for reliable and
trouble-free performance.

Package contents

• Surround Sound • AM antenna
• Color labels for speaker cables
Receiver (NS-AV511)
• Speaker cables:
• Front speakers (2)
• 11 ft. (3)
• Center speaker
• 26 ft. (2)
• Surround speakers (2)
• Subwoofer • RCA cable 10 ft.
• Rubber spacers for speakers (20)
• Remote control
• User Guide
• AA batteries (2)
• Quick Setup Guide
• FM antenna
Back view features
ITEM DESCRIPTION FUNCTION
1 DIGITAL IN jacks
Plug the optical digital cable from a game (1) or
TV/CD (2) into the upper jacks, or the coaxial
digital cable from a BD/DVD into the lower jack.
2 HDMI jacks
Plug the HDMI signal input cable from a GAME
(IN4), CBL/SAT (IN3), VCR/DVR (IN2), BD/DVD
(IN1).
Plug the HDMI output signal cable to a TV or
monitor into the OUT jack.
3 ANTENNA connectors Connect a 75 ohm FM antenna to the coaxial
connector or an AM loop antenna to the wire
connectors.
Connect the front speakers to these jacks.
4 FRONT SPEAKERS
Connect the left and right surround speakers and
SURROUND SPEAKERS
the center speaker to these connectors. If you use
CENTER SPEAKER
the RF-RBCARD to connect your surround speakers,
do not connect them here.
5 AC power cord Plug this cord into an AC power outlet.
6 COMPONENT video jacks Plug the cables from a component video source
into the #1 (BD/DVD) or #2 (CBL/SAT) jacks.
Plug the cables to a component video monitor into
the OUT jacks.
The jacks are color coded (red, green, and blue) to
correspond to the cable connectors.
Plug the composite video and audio L/R output
7 Composite Video and
cables from the indicated devices into these jacks.
Audio L/R jacks
For video recording, plug the composite video and
audio L/R input cables to a VCR or DVR into the
OUT jacks
8 MONITOR OUT V (Video) Connect this jack to a TV monitor.
9 SUBWOOFER Connect the subwoofer to this jack.
Actual product may vary from image shown.
Features
Front controls
Fluorescent display

Back view

Quick Setup Guide
NS-HT511 5.1 Home Theater System
Front controls features
ITEM DESCRIPTION FUNCTION
1 ON/STANDBY button Press to turn on your stereo receiver.
2 HDMI THRU indicator Lights when the HDMI pass-through function is activated
in standby mode.
3 STANDBY indicator
Lights red when your stereo receiver is in standby mode.
4 Remote control sensor Receives the signal from the remote control.
5
Display Provides information about receiver functions and settings.
6 SETUP button Press to open the on-screen menus.
7 TUNING  /  Press TUNING  /  to tune the radio to the next or
previous station
PRESET  /  Press PRESET  /  to tune the radio to the next or
previous station preset.
ENTER Press ENTER to con rm a selection.
8 RETURN button In menu mode, press to return to the main menu.
9 MEMORY button Press to save a radio station preset. Press with the TUNING
MODE button to clear presets.
10 TUNING MODE button Press to turn on the receiver tuning mode and listen to
the radio. Press with the MEMORY button to clear presets.
11 MASTER VOLUME knob Turn to increase or decrease the volume.
12 Headphone jack Plug your headphones into this jack.
13 Input selector buttons Press to select the input signal source you want.
14 Protective cap Remove when using jack.
15 AUX INPUT VIDEO jack Plug an external video source into this jack.
16 AUX INPUT AUDIO L/R jacks Plug an external sound source into this jack.
17 HOME button Press to access audio settings.
Fluorescent display features
ITEM DESCRIPTION ITEM DESCRIPTION
1 Audio input indicator 5 MUTING indicator
2 Listening mode indicator 6 DIGITAL
3 Tuning indicators
4 SLEEP indicator

Installing batteries in the remote control

1 Remove the cover.
2 Insert two AA batteries into the compartment
matching the polarity indicated.
3 Replace the cover.
CAUTION: Do not use Ni-Cd rechargeable
batteries in this remote control.
Remove the batteries if they are not to be used
for an extended period of time.
display
Batteries (AA)
