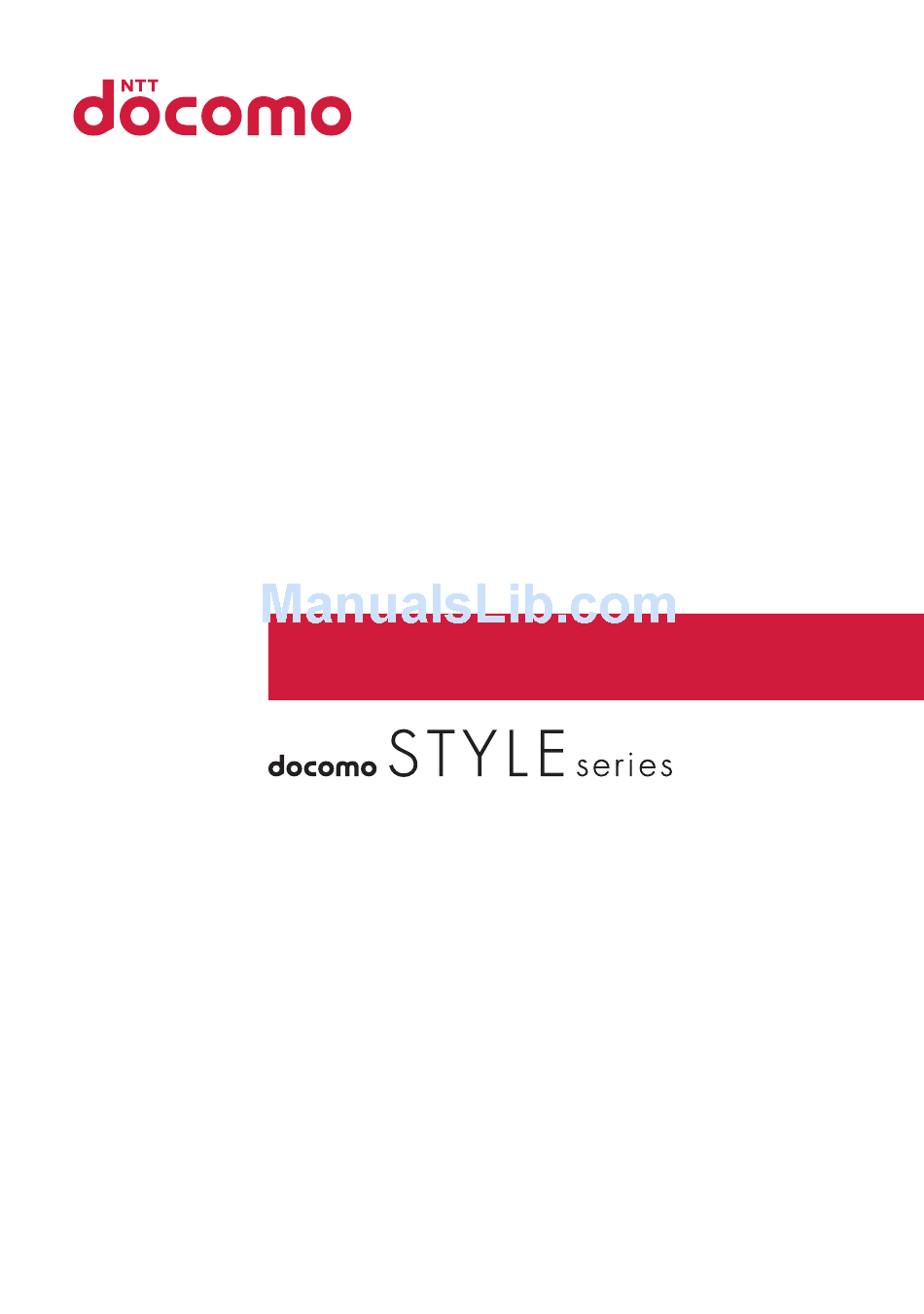

  • Page 1 N-03B ’10.1 INSTRUCTION MANUAL...
  • Page 2 P.90 Before using this manual In this N-03B INSTRUCTION MANUAL, the "N-03B" is described as the "FOMA terminal". This manual uses the default settings and screen shots for "Pink" to describe operations. The images shown in this manual are in English mode. Please switch the display from Japanese to English in (Select language).

  • Page 3: Table Of Contents

    Contents FOMA terminal ..............2 What you can do with N-03B ...........3 Introduction Part names and functions ..........4 Precautions (Always follow these directions) ....6 Waterproofness .............. 16 Before Using ..............22 Basic Screen Explanation ............27 Operation Character Entry ............... 33 Sound/Screen Setting ...........

  • Page 4: Foma Terminal

    The user hereby agrees that the user shall be solely responsible for the result of the use of SSL/TLS. Neither DOCOMO nor the certifier as listed herein makes any representation or warranty as for security in the use of SSL/TLS.

  • Page 5: What You Can Do With N-03B

    What you can do with N-03B (Guide) "Guide" is useful for checking the operation procedure of the function you want to use on the FOMA terminal. Without Instruction Manual at hand, you can find out the operation quickly (in Japanese only).

  • Page 6: Part Names And Functions

    Part names and functions Multi-function keys Front camera : Up/Down key Move the cursor or Earpiece contents etc. upward or Hear other party's voice downward from here Display the i-Widget/ Illuminance sensor search phonebook Detect brightness. Do menu screen not cover with hand or : Left/Right key put sticker on it Move the cursor to the...
  • Page 7 Illumination/Charge lamp Indicator display Display clock or FOMA terminal status FOMA antenna The FOMA antenna is Speaker (monaural) built-in. Do not cover the antenna part with Back cover your hands. * Do not remove the Infrared data port sticker on the inner side of the back cover.

  • Page 8: Precautions (Always Follow These Directions)

    Precautions (Always follow these directions) To ensure that you use your Indicates that it is an FOMA terminal correctly, read instruction-based "Precautions" carefully before compulsory conduct (must be acted). use. Keep this manual after reading for future reference. Indicates that you must The precautions must be unplug the power code observed at all times since they...
  • Page 9 Use the battery pack and adapter 2. Turn off the power. specified by NTT DOCOMO for 3. Remove the battery pack the FOMA terminal. from the FOMA terminal. Third-party products might subject...
  • Page 10 Make sure to hold the FOMA 2. Precautions for the terminal at a safe distance from FOMA terminal your ear when you use the handsfree mode. Also, when you WARNING play games or music with an earphone/microphone Do not direct the infrared data connected to the FOMA terminal, port towards your or another adjust the volume properly.
  • Page 11 In some types of vehicle, using CAUTION the FOMA terminal may Do not swing the FOMA interfere with the operation of terminal by its strap or other the vehicle's electronic parts. equipment. The FOMA terminal may strike you Do not use the FOMA terminal if or others around you, resulting in doing so may impair safe driving.

  • Page 12: Battery Pack

    Shop Doing so may cause the battery pack or Service Counter, or dispose of the to leak, overheat, explode or ignite.
  • Page 13 Do not touch the power cords 4. Precautions for the Adapter of the adapter, desktop holder and Desktop Holder or the power outlet with wet hands. WARNING Doing so may cause electric shock. Do not use the adapter if the Use the specified voltage and power cord is damaged.
  • Page 14 If water or other liquid gets Turn off the power in crowded into the adapter, immediately places such as peak-hour trains unplug it from the power if implanted electronic medical outlet or socket. devices may be in use near you. Doing so may cause electric shock, smoke emission or fire.

  • Page 15: Handling Precautions

    General Notes filled with many objects or sit down with it in a hip pocket. Excessive pressure may The N-03B is provided with the result in malfunction or damage to the LCD, waterproof performance, however, do internal circuit or the battery pack. Also, if an...
  • Page 16 Wipe with a soft, dry cloth (such as a malfunction. eyeglass cloth). Please keep a separate record of the information you have registered in your UIM (FOMA card). Please be aware that DOCOMO bears no obligation or responsibility in the event that data is altered or lost.
  • Page 17 To preserve the environment, bring Use the FeliCa reader/writer function discarded UIM (FOMA card) to a docomo only in Japan. Shop or Service Counter. The FeliCa reader/writer function of the FOMA terminal complies with radio Avoid using the FOMA terminal in standards of Japan.

  • Page 18: Waterproofness

    *1 : IPX5 means that N-03B phone keeps functioning after being subjected to a jet flow (approximately 12.5 liters/min.) discharged from a nozzle (inner diameter: 6.3 mm), from all directions (approximately 3 m from the handset) for 3 minutes or more.
  • Page 19 <Example> Opening /Closing external connector terminal cap Opening Hook your finger over the slot and open the cap in the direction of arrow. Closing Fit the tab at the rear side of the cap into the concave of FOMA terminal in the direction shown on the right, then close the cap by pressing in the direction Attaching/Removing back cover...
  • Page 20 To maintain waterproof performance, replacement of parts is required every 2 years regardless of whether the FOMA terminal appears normal or abnormal. DOCOMO replaces the parts as a chargeable service. Bring the FOMA terminal to a repair center that DOCOMO specifies.
  • Page 21 Do not remove or scratch them. Also, prevent dust from adhering to them. If the rubber packing of the external connector terminal cap or the back cover is damaged or deformed, replace it at a repair center that DOCOMO specifies. Do not insert sharp objects through external connector terminal cap and back cover gaps.
  • Page 22 In this case, drain the water so as to recover the function. DOCOMO does not guarantee actual operations under all states. Malfunctions deemed to be caused by inappropriate operation by the customer are not covered by the warranty.
  • Page 23 Softly press dry and clean cloth etc., against FOMA terminal to wipe off water remaining in the microphone, earpiece, speaker, keys or hinges * Do not wipe off water remaining in concaves directly with a cotton swab etc. Wipe off water drained from the FOMA terminal with dry and clean cloth, etc. * Water, if any, remaining in the FOMA terminal may ooze up after wiping off.

  • Page 24: Before Using

    Before Using Attaching UIM (FOMA card)/battery pack Make sure to turn the power off before removing the battery pack. Also, keep the FOMA terminal folded and held in your hand. The UIM (FOMA card) is an IC card that contains private information such as your phone number.

  • Page 25: Charging With The Desktop Holder

    Charging For the charging time and continuous talk time, refer to "Main specifications" ( P.97). The battery pack, AC adapter and provided desktop holder are not provided with waterproof performance. Never charge the battery with the FOMA terminal left wet. To prevent water from entering inside through the external connector terminal, you are advised to use the desktop holder for charging.
  • Page 26 Charging with the AC adapter Open the external connector terminal cap of the FOMA terminal ( P.17), then plug the AC adapter connector horizontally into the FOMA terminal's external connector terminal Plug the AC adapter into the outlet The charge lamp lights up in red during charging.

  • Page 27: Turning Power On

    Turning power ON (1 second or longer) Standby screen If Initial setting screen appears When you turn the power on for the first time after purchase, Initial setting screen appears. To turn the power off Press for 2 seconds or longer. Configuring default setting <Initial setting>...

  • Page 28: Checking Your Own Phone Number

    Checking your own phone number <My Profile> In My Profile screen, check your phone number (own number) stored in your UIM (FOMA card). To check your mail address is0sj For details of changing your mail address, refer to "Mobile Phone User's Guide [i-mode] FOMA version".

  • Page 29: Screen Explanation

    Screen Explanation Viewing display/icon Marks ( , , , etc.) displayed on the screen and the Indicator display are referred to as icons. Icons indicate the status of such as the FOMA terminal and signal reception. Icons indicating the status of the FOMA terminal At the top of the screen, icons indicate the status of the FOMA terminal.
  • Page 30 Reminders and Desktop Icons In the middle of the screen, icons indicate the status of new arrivals, etc. You can paste desktop icons, with which you can call functions. Reminders (examples) Missed call Record message Record VP message Voice Mail New mail Desktop icons (examples) Photo mode...
  • Page 31 Viewing Indicator display (Rear panel display) On the indicator display, incoming call, mail or alarm notifications appear with various messages, images or animations. Display example Clock (Digital 2) Alarm Receiving call Missed call/ On hold notification New mail Checking missed calls/new mail Checking missed calls Press ) to view received date/time/caller's...

  • Page 32: Main Menu

    Viewing main menu You can select various functions of the FOMA terminal from the main menu. The main menu here is in "STANDARD". Mail : Display the mail functions i-mode : Display i-mode ppli : Display the i- ppli menu Settings/NW Service : Display the setting menu of the FOMA terminal...

  • Page 33: Selecting Menu

    Selecting menu You can select various functions of the FOMA terminal from the main menu, which appears when you press on the standby screen. to move the highlight and (Select) Select the displayed menu sequentially If no key is pressed for 15 seconds while the main menu is displayed, the main menu ends and the previous screen reappears.

  • Page 34: Key Operation

    Key operation The soft keys (Function display) corresponding to are displayed on the screen. These icons appear only when the corresponding keys can be used. Performing the functions assigned to the function key Display samples and functions assignments shows (Edit), (Finish), (Send), (Settings), etc. shows (Select), (Set), etc.

  • Page 35: Character Entry

    Character Entry Entering characters When entering information to save to the phonebook, or creating mails or schedules, enter text. Switching Entering characters Converting character modes entered text Press a dial key several Convert entered text times to enter your In the character entry to Kanji or Kana.
  • Page 36 Other key operations : Delete character : Insert a line feed, switch upper case/lower case, or enter dakuten/handakuten : Return to the previous character assigned to that key (1 second or longer) : Undo the operation such as converting, pasting or cutting : Pictograms, face marks or symbols are displayed for each tab.
  • Page 37 Entering Deco-mail pictogram Deco-mail pictograms are images that meet certain conditions, including moving pictogram. Press (PI SB) and then (Pict D) on the Message screen to display the categorized Deco-mail pictogram entry screen. Use to move the frame and press (Select) to enter a Deco-mail pictogram.

  • Page 38: Sound/Screen Setting

    Sound/Screen Setting Changing ring tone Changing the ring tone for calls Settings/NW Service Incoming call Select ring tone Phone Select ring tone Melody Select ring tone Other options such as a melody, i-motion, Chaku-Uta® or Chaku- Uta-Full® can be set to ring tones.
  • Page 39 Setting manner mode Set the FOMA terminal not to play ring tones or alarms through the speaker with a single key operation. To set or release the manner " " appears on the standby screen. mode On the standby screen, (1 second or longer) Even when set to Manner mode, the FOMA...
  • Page 40 Making it difficult for others to see the display <Privacy angle> Privacy angle makes it difficult for others to see the display. On the standby screen, you can activate or deactivate this function. " " appears on the desktop when the Privacy angle is set. Setting or canceling On the standby screen, (1 second or longer)
  • Page 41 Setting Illumination for handset closing Setting the flashing mode when you close the FOMA Terminal. Settings/NW Service Other settings Illumination Closed illum. Set color Set pattern Select a color Select a pattern Reducing battery consumption <ECO mode> When ECO mode is set, all brightness, sound and screen functions are set to their Power saving modes simultaneously.
  • Page 42 Changing illumination when receiving <Illumination> Set the illumination flashing color or mode (pattern) used when you receive voice/videophone calls, mail, MessageR/F or i-concier information. Changing the Illumination of FOMA Phone Settings/NW Service Incoming call Illumination Set color Phone Select a color Set pattern Select a pattern You can set different flashing colors for calls or mail from specific phone...

  • Page 43: Lock/Security

    Any code is set at time of subscription A 4-digit number is required to verify your identity when you subscribe to some services at a docomo Shop, docomo Information Center and " " (Customer support) (in Japanese only), or when you use network services.
  • Page 44 The PUK (Personal Unlock Key) cannot be changed. If the wrong PUK (Personal Unlock Key) is entered ten times in a row, the UIM (FOMA card) is then completely locked. In this case, contact a docomo Shop Service Counter.
  • Page 45 Omakase data of phonebook etc. Lock or IC card function of Osaifu-Keitai only by For details on Omakase Lock, refer to "Mobile contacting DOCOMO. Phone User's Guide [i-mode] FOMA version". To activate Settings/NW Service Lock functions that use Lock/Security Lock...

  • Page 46: Rejecting A Call

    Rejecting a call Rejecting a call from a caller unset in Phonebook <Reject unknown> Set whether to accept or reject calls from callers not in the phonebook. Settings/NW Service Lock/Security Reject unknown Accept Reject Enter your security code This function is valid only for calls with caller ID. It is recommended that you also set "Caller ID Request"...
  • Page 47 Reset to default Resetting various functions <Reset settings> Reset the function settings to default. For the function that can be reset, see "Menu list" ( P.91). "Initialize" and "Reset settings" are different. Do not mix them up. If you perform "Initialize", you will lose all data you have stored. Settings/NW Service Other settings Reset settings...

  • Page 48: Call Telephone

    Call Telephone Making a call/videophone call Making a call/videophone call by entering the phone number Enter the phone number starting with the area code, then (voice call)/ (V.phone) (videophone call) After the call ends, Enter phone In-call screen number screen Videophone operation : Adjust zoom (1 second or longer)
  • Page 49 Notifying the other party of your phone number <Caller ID Notification> Show your phone number (caller ID) on the other party's phone (Display) when making a call. Settings/NW Service Network service Caller ID Notification Activate/Deactivate To show your caller ID when is set, add the "186"...

  • Page 50: Adjusting Earpiece Volume

    Receiving a call/videophone call When you receive an incoming call, After the call ends, Ringing Videophone screen ringing screen When you receive an Videophone operation incoming call, the ring : Adjust zoom tone sounds and the (1 second or longer) illumination flashes.
  • Page 51 When you cannot answer a call Recording a voice and videophone message <Record message> When you cannot answer a voice or videophone call, the FOMA terminal can record a voice or videophone message. Settings/NW Service Incoming call Record message Select a message Set Ring time The Record message is set and "...
  • Page 52 Using various Network Services Available network services Your FOMA terminal provides you with access to a range of useful DOCOMO network services. The network services are not available when you are outside the service area or in a place where the signal is weak.

  • Page 53: Services Available For The Foma Terminal

    Services available for the FOMA terminal Available services Phone number Directory assistance (pay : service charge + call charge) (No area code) 104 * Unlisted phone numbers cannot be given. Telegram (pay : telegram charge) (No area code) 115 Time (pay) (No area code) 117 Weather (pay) Area code for weather...
  • Page 54 Before overseas use, refer to the following: - "Mobile Phone User's Guide [International Services]" - "Mobile Phone User's Guide [Network Services]" - DOCOMO "International services website" - " " (Overseas Use Guide) (Japanese) in "Inbox" folder in "My document" under Data box For using, check if you subscribe to WORLD WING.
  • Page 55 Some services are not available, depending on what your carrier is and where you are. For countries and operators, refer to "Mobile Phone User's Guide [International Services]" or visit the DOCOMO "International services website". Overseas usage fees (Communication, Packet communication) differ from those in Japan.

  • Page 56: Mail

    Mail i-mode mail Only by subscribing to i-mode, Mail can be exchanged between i-mode users or anyone who has an Internet e-mail address. You can send up to 10 attachments (images, moving picture files, etc.) of up to 2 MB besides mail text. Also, the FOMA terminal is Deco-mail- compatible.
  • Page 57 Creating and sending Deco-mail/Decome-Anime <Deco-mail/Decome-Anime> Deco-mail Decome-Anime Deco-mail is a service that allows you to Decome-Anime is a service that allows decorate i-mode mail by changing the you to compose decorative mail character color/size and background using animation templates with Flash color, waving characters, etc.
  • Page 58 Viewing received i-mode mail <Auto receive mail> When the FOMA terminal is in the service area, the i-mode center automatically sends i-mode mail. When the reception of i-mode mail is completed, " " appears on the standby screen, indicating the mail has not been read. Inbox Select a folder...
  • Page 59 Select an item. Using SMS <Compose/Send SMS> This service allows you to exchange text messages between DOCOMO terminals, or with subscribers to overseas operators other than DOCOMO. For countries and operators, refer to "Mobile Phone User's Guide [International Services]" or the DOCOMO "International services website".

  • Page 60: Phonebook

    Phonebook Adding phonebook entries <Add to phonebook> FOMA terminal has two types of phonebooks: FOMA terminal phonebook that various functions can be set to and UIM (FOMA card) phonebook whose entries are available even in another terminal. Each phonebook can be used differently for your purpose. Adding a new phone number, mail address, etc.

  • Page 61: Editing Phonebook Entries

    Editing phonebook entries <Edit phonebook> You can add or edit information in the phonebook, such as phone numbers or mail addresses. Editing FOMA terminal phonebook entries On Phonebook detail screen, (FUNC) Edit phonebook Add or edit entries (Finish) Phonebook detail screen Deleting phonebook entries <Delete data>...

  • Page 62: I-Mode/Full Browser

    i-mode/Full Browser i-mode You can use online services such as site connection, accessing to Internet, i-mode mail, with i-mode by using display of i-mode support FOMA terminal (i-mode terminal). i-mode requires a subscription and is a fee based service. For details on i-mode, refer to "Mobile Phone User's Guide [i-mode] FOMA version".
  • Page 63 Displaying web pages designed for PC <Full Browser> The Full Browser function now makes it even easier to view websites intended for computers. Note that communications charges may be high if large volumes of data are transmitted by viewing websites containing many image data or downloading files.
  • Page 64 Operating the Site Scroll in the direction that the key is pressed Scroll up or down by screen Jump to the next page Jump to the previous page Saving frequently-visited sites /Saving site contents <Bookmark> <Screen memo> Adding bookmarks Website displayed using i-mode or Full Browser Add Bookmark (FUNC) Select a folder...

  • Page 65: I-Channel

    The ticker on the standby screen shows latest information that is automatically delivered to your terminal. "Basic Channel" : This channel is distributed by DOCOMO. Packet communications charges do not apply to automatically update basic channels.

  • Page 66: Camera

    Camera Viewing and operating shooting screen Focus frame Guide to the AF operation Remaining storage count/ Memory info Digital Anti-Shake Shooting menu Face select mode Auto timer Photo mode (still image) shooting screen Zoom Quality setting Shooting status Movie mode (moving picture) shooting screen Key operations : Shutter : Auto focus mode switching/Focus lock...
  • Page 67 Shooting still images/moving pictures <Photo mode/Movie mode> Shooting still images On the standby screen, press Select " " Frame the shot (Record) (Save) Shooting moving pictures On the standby screen, press Select " " On Photo mode shooting screen, press "...

  • Page 68: 1Seg

    1Seg Using 1Seg 1Seg service is provided by broadcasting companies (broadcasters). Packet communications charges do not apply. For details on NHK receiving fees, contact NHK. * Packet communications charges apply to view data broadcast site and i-mode site. Information charges may apply for some sites (i-mode pay sites). * For 1Seg service details, visit the following website: The Association for Promotion of Digital Broadcasting (Dpa) From PC : http://www.dpa.or.jp/english/...
  • Page 69 Watching 1Seg/Recording and playing video Before using 1Seg for the first time When you use 1Seg for the first time or move to another area, set the channels. 1Seg Channel setting Select area Select an area or prefecture To search for channels automatically 1Seg Channel setting Auto-channel setting...

  • Page 70: Music

    Music Music&Video Channel Music&Video Channel is a service that automatically performs overnight downloads of programs of up to approximately one hour in length. Also, up to approximately 30 minutes of high quality video programs can also be delivered. After just configuring it once, Music&Video Channel automatically updates content, so you can always carry the latest videos and audio programs with you.
  • Page 71 Setting/Playing programs Choose a program you want to enjoy, and the program data will be automatically downloaded overnight. You can set 2 programs at a time. Setting a program MUSIC Music&Video Channel Set program Follow the on-screen instructions to set a program Playing a program Music&Video Music&Video...
  • Page 72 Viewing and operating Music Player screen Music Player screen Portrait Artist name Title Image/Moving picture Track Playback status Elapsed time (minutes : seconds)/Total playback time (minutes : seconds) Sound quality (Equalizer)/Sound effect (Effect)/Repeat, etc. Volume (Level 0 to 20) Landscape Key Operations : Pause/Resume playback : Adjust volume...
  • Page 73 Downloading music data from sites Handling music data Before downloading music data from websites, confirm the terms of use (agreement, prohibited actions, etc.). WMA files protected by copyright protection technology are played using the specific information on your FOMA terminal. When the specific information on your FOMA terminal is changed due to malfunction, repairs or model change, WMA files saved before information changes may not be played.

  • Page 74: Playing Music Data

    Playing music data In addition to the pre-installed i-motion, you can play i-motion, movie or Chaku-Uta-Full® downloaded with i-mode Browser or Full Browser, Music&Video Channel program, or music data transferred from music CDs. Data box Select the folder of content that you want to play Select a folder Select a track...

  • Page 75: I- A Ppli

    ppli ppli are software applications that run on i-mode compatible handsets. You can automatically receive updated stock prices, weather information, etc., and play games without being connected to the network, by downloading* i- ppli from i-mode sites. * : Packet communications charges will apply. Packet communications charges incurred overseas differ from those in Japan.

  • Page 76: Downloading Widget Appli

    Using i-Widget i-Widget is a convenient function that allows you to use a single i-Widget ) to access frequently used content (Widget Appli) such as button ( calculator, clock, and stock price information. When i-Widget screen is displayed, multiple Widget Appli may be connected to network.

  • Page 77: I-Motion/Movie

    i-motion/Movie i-motion is sounds, moving pictures, etc. Download i-motion from i-motion sites to the FOMA terminal. You can download and play various movies provided on websites such as portal sites or moving picture sites. * When downloading/streaming movies, the received file size may become very large.
  • Page 78 Playing i-motion/movie Data box motion/Movie Select a folder Select a moving picture License (WMDRM (Windows Media digital rights management)) Only streaming type movies can be played when they are protected by license. Download type movies are not supported. Some movies cannot be played depending on the license setting.

  • Page 79: Osaifu-Keitai

    Transfer Service. For important data, please be sure to use any services supporting the backup service. Please be aware that DOCOMO is not responsible for disappearance and alteration of the IC card data, any monetary injuries about Osaifu-Keitai services under any circumstance such as malfunction or changing your model.

  • Page 80: I-Concier

    When you receive information, " " Pop up Pop up message message appears at the top of the screen. On the standby screen Select a pop up " " ®" (Butler sheep) ®" (Butler sheep) message ©NTT DOCOMO ©NTT DOCOMO...

  • Page 81: Convenient Tools

    QR code When you scan the QR code shown to the right with the FOMA terminal, " " (NTT DOCOMO, INC.) is displayed. CODE128 A bar code consisting of vertical lines (bars) of various widths and spaces to represent numbers, alphabets or symbols.

  • Page 82: Data Management

    2 GB and microSDHC cards of up to 16 GB (as of December, 2009). To save audio data by SD-Jukebox, use the microSD card of up to 2 GB. Make sure to format microSD card on N-03B. You may not be able to use microSD card formatted on another handset or PC.

  • Page 83: Using Microsd Card

    Using microSD card Formatting microSD card Note that all data in the microSD card will be deleted when you format it. LifeKit microSD microSD format (FUNC) Enter your security code Viewing data in the microSD card <Example: To display schedule> LifeKit microSD microSD manager...
  • Page 84 Sending/receiving data by Infrared communication <Infrared communication> Exchange data such as phonebook entries and received mail with other devices equipped with the infrared data exchange. Set the other party's device to receiving status. You may not be able to transfer data depending on the other party's device.

  • Page 85: Support

    If you are still unable to identify the problem after checking the points, please contact Repairs on the last page of this manual (in Japanese only) or a repair counter designated by DOCOMO. The power does not turn on Is the battery pack properly attached? P.22...
  • Page 86 The power loss or reboot occurs Soiled connectors of the battery pack may result in poor connections and loss of power. When soiled, wipe with dry cloth or cotton swab. Key operations are not available If you bring the FOMA terminal near magnetic products, you may not be able to perform correct key operations.
  • Page 87 If you still have problems, please contact Repairs on the last page of this manual (in Japanese only). If, after contacting DOCOMO, you are informed that your FOMA terminal needs repairs Bring it to a repair counter designated by DOCOMO. The repair counter is only open during business hours.
  • Page 88 Parts : Speaker, earpiece, near the bottom of the display N-03B is waterproof. However, if inside of the terminal gets wet or moist, immediately turn it off, remove the battery pack, and bring the FOMA terminal to a repair counter as soon as possible.
  • Page 89 When software is updated, the unique information (model, serial number, etc.) of your FOMA terminal is automatically transmitted to the server at DOCOMO. We do not use the transmitted information for any purposes other than software update. If the update fails, the message "Rewrite failed" will appear and all operations will become unavailable.
  • Page 90 Running software update by selecting the Icon Select the icon " " (Update icon) on the standby screen to update software. Select the Update icon Enter your security code Update icon When "Update is needed" appears To download the software immediately, select "Now update". To update later, select "Reserve"...
  • Page 91 The pattern data is specific to a certain model of FOMA terminal. Therefore, DOCOMO may stop distributing pattern data for a model 3 years after the model is first released. Updating pattern data <Update>...

  • Page 92: Introduction Of Options And Related Devices

    *6 : To charge N-03B, the FOMA In-Car Hands-Free Cable 01 is required. *7 : Use in Japan only. *8 : To attach N-03B to the In-Car Holder, attach to the 5th position shown in listed in "In-Car Holder 01 Manual".

  • Page 93: Menu List

    Menu list settings are reset to default by "Reset settings". Some functions that cannot be reset to default settings (or default states) may be included in settings. Main item Sub item Branch item Mail Inbox Outbox Draft Mail history box Compose message Create new Deco-Anime Compose SMS...
  • Page 94 Main item Sub item Branch item Software list ppli microSD microSD software microSD data ppli call logs Auto-start set ppli action info End stand-by display Security error history Auto-start info Trace info Settings/NW Service Kisekae Tool setting Incoming call Ring volume Select ring tone Stereo&3D sound Vibrator...
  • Page 95 Main item Sub item Branch item Settings/NW Service Display Viewer settings Icons Icons setting Privacy angle Image display mode Quick Info setting Machi-chara setting Information display Screen effect Call time/Charge Call data Notify cost limit Reset total Auto reset total cost Clock Set main time Set sub clock...
  • Page 96 2in1 setting Nuis. call blocklng Caller ID Request Arrival Call Act Set in-call arrival Remote Control Dual Network English Guidance Additional service Contact DOCOMO Multi Number Roam. Guidance Other settings Keypad sound Charge sound Battery Network status Side key guard...
  • Page 97 Main item Sub item Branch item LifeKit Enjoy Exercise Life history viewer Data security serv. Connect to Center Exchanging history Sndg img in Phonebook Schedule Alarm To Do list Text memo Calculator Play/Erase msg. Play/Erase VP msg. Voice memo Voice announce UIM operation My Profile Forwarding image...
  • Page 98 Main item Sub item Branch item Osaifu-Keitai IC card content DCMX ToruCa IC card lock setting IC card lock IC lock (power-off) Setting ToruCa settings IC card notice set Check IC owner Change IC owner Search by i-mode...

  • Page 99: Main Specifications

    Main specifications Phone Product name N-03B Size (When closed) Height approx. 111 mm x Width approx. 50 mm x Thickness approx. 14.9 mm (Thickest : Approx. 17.4 mm) Weight Approx. 128 g (Battery attached) Continuous standby time [FOMA/3G] Stationary : Approx. 550 hours In transit : Approx.

  • Page 100: Battery Pack

    *3 : Recording time for 1 item under the following conditions: <Phone> Select size = QCIF (176 x 144), Quality setting = Normal, File size = 2MB, Movie type set = Normal <64 MB microSD card> Select size = QCIF (176 x 144), Quality setting = Normal, File size = Long time, Movie type set = Normal *4 : Varies depending on the broadcaster and program.
  • Page 101 All phone models should be confirmed to comply with the regulation, before they are available for sale to the public. The highest SAR value for this model phone N-03B is 0.606 W/kg. It was taken by the Telecom Engineering Center (TELEC), a Registered Certification Agency on the Radio Law.

  • Page 102: Fcc Regulations

    operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network.

  • Page 103: Declaration Of Conformity

    Declaration of Conformity The product "N-03B" is declared to conform with the essential requirements of European Union Directive 1999/5/EC Radio and Telecommunications Terminal Equipment Directive 3.1 (a), 3.1 (b) and 3.2.

  • Page 104: Intellectual Property Right

    "i-area", "WORLD WING", "Public mode", trademarks of US Sun Microsystems, Inc. "OFFICEED", "2in1", "docomo STYLE series", in the United States and other countries. "FOMA" and "iC" logo are trademarks or T9® is a trademark or registered trademark registered trademarks of NTT DOCOMO.

  • Page 105: Others

    " " is a registered trademark contents. Non-protected content is not of CANNAC, Inc. affected by disabling the function. Please All other company names and product note that, if downloading the license to use names appearing in this manual are protected content, Microsoft may include the trademarks or registered trademarks of revocation list in the license.
  • Page 106 Copyright© Ericsson, IBM, Lotus, Matsushita Copyright© 1996-2009 ACCESS CO., LTD. Communication Industrial Co., Ltd., ACCESS, NetFront and Media:/Media colon Motorola, Nokia, Openwave Systems, Inc., are trademarks or registered trademarks Palm Inc., Psion, Starfish Software, Symbian, of ACCESS CO., LTD in Japan and other Ltd.

  • Page 107: Index

    Index ECO mode ..........39 Export Administration Regulations ..101 AC adapter..........24 Acquire mail address automatically ... 26 After-Sales Service ........ 85 Felica ............77 Alarm ............79 Font type ..........37 Area Mail ..........57 Full Browser ..........61 Auto-sort (mail) ........
  • Page 108 Menu display set ........38 Reminders icon ........28 Menu list ..........91 Remote reset .......... 45 microSD card .......... 80 Reply (Mail) ..........56 Missed info (Illumination) ....40 Reset settings ........45 Movie ............75 Ring tone ..........36 Movie mode (Camera) ......
  • Page 109 WORLD WING ......... 52 Numerals, etc. 1Seg ............66 ........60...
  • Page 110 To protect environment and recycle the precious resources, mobile phone and PHS carriers collect mobile phones, batteries and battery charger to recycle regardless of brands and manufacturers at shops with the sign shown to the left. Bring the unnecessary such devices to your nearest docomo Shop.
  • Page 111 Please confirm the phone number before you dial. For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo Shop etc. near you on the NTT DOCOMO website or the i-mode site. NTT DOCOMO website http://www.nttdocomo.co.jp/english/...
  • Page 112 Setting up Dial-up ................ 29 AT Command List ................ 40 About Manual for PC Connection This manual describes necessary information for data communication using the N-03B and how to install "FOMA communication setting file" and "DOCOMO Connection Manager" provided in the provided CD-ROM.

  • Page 113: Data Communication

    It is not compatible with FOMA HIGH-SPEED Area communication. You can also access a corporate LAN connected to the FOMA network. Use an access point that supports FOMA packet communication, such as DOCOMO Internet connection service “mopera U”.
  • Page 114 64K data communication is charged according to the length of time the line is connected, regardless of the amount of data. Use an access point that supports FOMA 64K data communication, such as DOCOMO Internet connection service “mopera U”, or ISDN synchronized 64K access point.
  • Page 115 Internet. These fees must be paid directly to the Internet service provider in addition to service fees of FOMA service. Contact your Internet service provider for details. DOCOMO Internet connection service "mopera U" is available. "mopera U" is a pay service for which you need to apply.

  • Page 116: Before Using

    Internet Explorer. There is no matter with using the software. Click " " (Yes). NOTE d You can transmit data with the FOMA terminal connected to the DOCOMO PDA "sigmarion ". d This FOMA terminal is not compatible with Remote Wakeup function.

  • Page 117: Checking The Procedure

    Installing the FOMA communication setting file embeds each driver into Windows. Using DOCOMO Connection Manager, you can easily set up packet communication and 64K data communication and create a dial-up connection. Flow chart for completing the data communication setup...

  • Page 118: Connect To Pc

    (drivers) / Connect to PC a nstall the FOMA communication setting file from the "CD-ROM for N-03B" or by downloading from the DOCOMO website. a Connect the FOMA terminal to the PC with the FOMA USB Cable with Charge Function 02 (optional).
  • Page 119 Setting the USB mode setting to "Communication mode" d Set the mode before connecting to PC. i "Settings/NW Service" "External connection" "USB mode setting" "Communication mode" Connecting the devices The following procedure explains how to connect the FOMA USB Cable with Charge Function 02 (optional).
  • Page 120 Disconnecting the devices The following procedure explains how to disconnect the FOMA USB Cable with Charge Function 02 (optional). Remove the FOMA USB Cable with Charge Function 02 from the USB terminal of the PC Pull the FOMA USB Cable with Charge Function 02 out horizontally while pressing the release buttons of the external connector of FOMA USB Cable Close the external connector cap of the FOMA terminal...

  • Page 121: Setting The Pc

    The following procedure explains how to connect the FOMA terminal to PC and how to install the FOMA communication setting file (drivers). Connecting the FOMA terminal to PC Start up Windows and insert the "CD-ROM for N-03B" in the CD-ROM drive of your PC Click "...
  • Page 122 d For Windows Vista Connect the FOMA USB Cable with Charge Function 02 (optional) to the FOMA terminal When the FOMA USB Cable with Charge Function 02 has been connected to the PC in Step 4 of "Connecting the FOMA terminal to PC"...
  • Page 123 If the " " (Find new hardware wizard) screen appears, select " " (Search computer for the optimal driver software) Specify the folder to search and click " " (Next) For Windows Vista (32 bit) The folder name is "<CD-ROM drive>: ¥N-03B_USB_Driver_Vista32¥WinVista32".
  • Page 124 d For Windows XP Connect the FOMA USB Cable with Charge Function 02 (optional) to the FOMA terminal When the FOMA USB Cable with Charge Function 02 has been connected to the PC in Step 4 of "Connecting the FOMA terminal to PC"...
  • Page 125 d For Windows 2000 Connect the FOMA USB Cable with Charge Function 02 (optional) to the FOMA terminal When the FOMA USB Cable with Charge Function 02 has been connected to the PC in Step 4 of "Connecting the FOMA terminal to PC"...
  • Page 126 Checking the installed driver Check that the FOMA communication setting file (drivers) has been correctly installed. This section describes an example using Windows Vista. Select " " " " (Control Panel) For Windows XP Select " " (Start) " " (Control Panel) For Windows 2000 Select "...
  • Page 127 NOTE d When "FOMA N03B USB" is not displayed in the " " (Applications and functions) on the Windows, perform the following procedure: Insert the "CD-ROM for N-03B" in the CD-ROM drive of your PC Open " " " " (Computer) For Windows XP, open "...

  • Page 128: Docomo Connection Manager

    DOCOMO Connection Manager "DOCOMO Connection Manager" is a useful software for performing the flat-rate data communications and the measured-rate data communications. "DOCOMO Connection Manager" enables simplification of mopera U subscription, or appropriate setting on PC depending on the subscription. The fare counter function is also available for checking an indication of the data traffic or usage amount.

  • Page 129: Before Installing Docomo Connection Manager

    Click "OK" d Other connection software than DOCOMO Connection Manager d DOCOMO Connection Manager provides the same functions as the ones included in other connection software listed below, and this is all you need. Disable or uninstall the following software, if necessary.

  • Page 130: Installing Docomo Connection Manager

    Installing DOCOMO Connection Manager d When installing "DOCOMO Connection Manager", be sure to log on as Administrator. If you attempt to install the software with another account, an error may occur. Contact your PC's manufacturer or Microsoft for information on how to set Administrator privileges on your PC.
  • Page 131 Confirm the precautions and click " " (Next) Upon confirming the user agreement, click " " (Agree) to agree to it, and click " " (Next) Select the installation location and click " " (Next) If you want to change the location, click " "...

  • Page 132: Starting Docomo Connection Manager

    Connection Manager) Specify the settings by following the setting wizard The setting wizard will automatically appear when you start DOCOMO Connection Manager for the first time. Follow the guidance and you can make preparations for Internet connection. For details, refer to "...

  • Page 133: Executing Set Data Communication

    Executing Set Data Communication Start DOCOMO Connection Manager "Starting DOCOMO Connection Manager" p.20 Click the tab of the desired connection method, and click " " (Connect) For details, refer to " " (DOCOMO Connection Manager operating manual). When connection is not available, check “Setting up Dial-up Network” (p.22) and “Setting up Dial- up”...

  • Page 134: Setting Up Dial-Up Network

    Setting up Dial-up Network This section describes how to set up a dial-up connection for packet communication / 64K data communication without using DOCOMO Connection Manager. The flow of operation is described below. d It is unnecessary to set up the dial-up network for 64K data communication. Go on to "Setting up Dial-up"...
  • Page 135 Click the " " (Modem) tab to confirm the COM port of the " " (Access point) column of "FOMA N03B" and click "OK" The COM port confirmed here will be used in the access point (APN) set up (p.25). The contents displayed on the screen and the COM port number differ depending on the PC.
  • Page 136 Click the " " (Modem) tab to confirm the COM port of the " " (Access point) column of "FOMA N03B" and click "OK" The COM port confirmed here will be used in the access point (APN) set up (p.25). The contents displayed on the screen and the COM port number differ depending on the PC.
  • Page 137 Data to be registered Phone number Memory number of Phonebook Other party's name How to register Register using PC (DOCOMO Connection Manager, (Dedicated software required) etc.) Register using Mobile phone (Cannot even confirm) How to use Specify cid to connect...
  • Page 138 Click " " (Start) " " (All programs) " " (Accessories) " " (Communication) " " (Hyper terminal) to start Hyper terminal For Windows 2000 Open " " (Start) " " (Programs) " " (Accessories) " " (Communication) " " (Hyper terminal). Select the "...
  • Page 139 Enter the access point (APN) and press Enter in the format of AT+CGDCONT=<cid>, "PDP_type", "APN" <cid> Enter any number from 2 or between 4 and 10. Please be cautious because if cid has been already set, the setting will be overwritten. "PDP_type"...
  • Page 140 " (File) menu NOTE d The Caller ID needs to be set to "Notify" to use DOCOMO's internet connection service mopera U or mopera. About 186 (Notify)/184 (Not notify) in Dial-up Network You can attach 186/184 to the access point number in the Dial-up network settings as well.

  • Page 141: Setting Up Dial-Up

    Setting up Dial-up d This section takes accessing mopera U by packet communication for example. d To connect using packet communication, enter " 3#" as the number of access point for mopera U or " 1#" for mopera. To connect using 64K data communication, enter " 8701"...
  • Page 142 Right-click the icon created for the dial-up and click " " (Properties) Confirm the settings on the " " (General) tab If two or more modems are connected to the When connecting using the FOMA USB Cable with Charge Function 02, confirm that only "...
  • Page 143 Clear all the boxes and click "OK" Click "OK" Setting up dial-up on Windows XP Open " " (Start) " " (All programs) " " (Accessories) " " (Communication) " " (New connection wizard) When the " " (New Connection Wizard) screen appears, click "...

  • Page 144: Network Connections

    Enter any name you want in the "ISP " (ISP Name) and click " " (Next) Enter the number of the access point in the " " (Telephone Number) column and click " " (Next) This screen is an example of accessing mopera U by packet communication.
  • Page 145 Select the icon created for the dial- up and open " " (Properties) in the " " (File) menu Confirm the settings on the " " (General) tab If two or more modems are connected to the When connecting using the FOMA USB Cable with Charge Function 02, confirm that only "...
  • Page 146 Setting up dial-up on Windows 2000 Open " " (Start) " " (Programs) " " (Accessories) " " (Communication) " " (Network and Dial-up connections) Double-click " " (Create a new connection) in Network and Dial-up Connections If the " "...

  • Page 147: Advanced Settings

    Enter the number of the access point in the " " (Telephone number) column and click " " (Advanced settings) Uncheck " " (Use Area Code and Dial information). This screen is an example of accessing mopera U by packet communication. Set up the "...
  • Page 148 Enter any name you want in the " " (Connection name) and click " " (Next) Select " " (No) and click " " (Next) Click " " (Finish) Select the icon created for the dial-up and open " " (Properties) in the "...
  • Page 149 Click the " " (Network) tab and set up each setting Select "PPP: Windows 95/98/NT4/2000, Internet" in the " " (Type of the dial-up server to call). Check only " TCP/ IP " (Internet Protocol (TCP/IP)) for components. Click " "...
  • Page 150 Select the access point and click " " (Connect) Confirm the settings and click " " (Dial) This screen is an example for mopera U connection. You can leave user name and password blank for mopera U or mopera connection. <The Connecting screen appears>...
  • Page 151 Check the followings if you cannot connect to the network or dial-up successfully. Problem Points to check "N-03B" is not recognized Check if your PC satisfies the required operational environment (p.4). by the PC. Check if the FOMA terminal is connected to the PC and the power is turned on.

  • Page 152: At Command List

    AT Command List AT commands available on FOMA terminal d The following abbreviations are used in the AT command list; [&F] : Command of which setting is initialized by AT&F command. [&W] : Command of which setting is saved by AT&W command. The setting can be retrieved by ATZ command.
  • Page 153 AT command Outline Parameter/description Command execution example AT&W Stores the current settings. Only = 0 can be specified (can be AT&W0 omitted). AT&W AT&W? ERROR AT&W ? ERROR DANTE Displays the FOMA DANTE FOMA terminal signal reception level is displayed terminal signal reception as out of area.
  • Page 154 AT command Outline Parameter/description Command execution example AT+CBC Displays the battery status Result: +CBC:<bcs>,<bcl> AT+CBC of the FOMA terminal. bcs: +CBC:0,70 0 : FOMA terminal is powered by the battery. 1 : FOMA terminal is not powered by the battery. AT+CBC? 2 : FOMA terminal is not connected to the battery.
  • Page 155 AT command Outline Parameter/description Command execution example AT+CLIP= Displays the other party's = 0 : Not display the result (initial value) AT+CLIP=0 Caller ID on a PC when a = 1 : Display the result 64K data communication call is received. AT+CLIP? AT+CLIP? +CLIP:0,1...
  • Page 156 AT command Outline Parameter/description Command execution example AT+COPS Selects the network Format : AT+COPS=<mode>,2,<oper> AT+COPS=0 operator to connect. mode=0 : automatic (searches the network AT+COPS? and switches the network operator +COPS:0 automatically) mode=1 : manual (connects to the network AT+COPS=? operator specified in <oper>) +COPS:(2,,,"44F001"), mode=2 : Disconnects the connection to the...
  • Page 157 AT command Outline Parameter/description Command execution example AT+CPIN Enters the PIN code in the Format: AT+CPIN="<pin>","<newpin>" (The status in which FOMA terminal. +CPIN: READY is This command is to enter the PIN1, answered when PIN2, or PUK code - depending on +CPIN? is entered) the state of the result code returned AT+CPIN="1234"...
  • Page 158 AT command Outline Parameter/description Command execution example AT+CREG= Specifies whether the = 0 : Not informed (initial value). AT+CREG=1 result screen is present = 1 : Informed. regarding the inside/ (Set to informed) Informed when switching between outside the service area "Inside the service area"...
  • Page 159 FOMA communication) omitted). terminal. NO CARRIER Displays the ID code. = 0 : Displays "NTT DoCoMo". ATI0 NTT DoCoMo = 1 : Displays the product name (same with +GMM). ATI1 = 2 : Displays the version of the FOMA FOMA N03B terminal (same with +GMR).
  • Page 160 AT command Outline Parameter/description Command execution example ATS0= Specifies how many times = 0 : No automatic answer (initial value). ATS0=0 the FOMA terminal rings = 1- 255: A call is automatically answered before it automatically ATS0? after the specified number of receives a call.
  • Page 161 AT command Outline Parameter/description Command execution example ATS104= Sets the calling sub = 0 : # ATS104=0 address character. = 1 : % (initial value) = 2 : & ATS104? ATS104=? [&F] ERROR Specifies whether the = 0 : Returns the result code in numeral ATV1 result code is returned in value.
  • Page 162 d Supplementary explanation of AT command Commands which do not function The following commands do not generate errors but will not function as a command: ATT (Tone setting) ATP (Pulse setting) Command name: +CGDCONT=[parameter] Outline Sets the access point name (APN) for packet origination. Though this command is a setting command, it will not be recorded in non-volatile memory written by [&W], nor reset by [&F] or [Z].
  • Page 163 Command execution example Only the following 4 patterns can be set. (1) is set as an initial value to each cid. Command for permitting all speeds of both uplink and downlink (when cid is 2) AT+CGEQMIN=2 Command for permitting only the speed of uplink 384kbps and downlink 7,232kbps (when cid is 4) AT+CGEQMIN=4,,384,7232 Command for permitting uplink 384kbps and all speeds of downlink (when cid is 5) AT+CGEQMIN=5,,384...

  • Page 164: Result Codes

    Result codes Result codes related with data communication Number Character indication Description indication Successfully executed. CONNECT Connected. RING Incoming call. NO CARRIER Line disconnected. ERROR Command not acceptable. NO DIALTONE Unable to detect dialing tone. BUSY Busy tone detected. NO ANSWER Time out in connection completing.
  • Page 165 Result code display example When ATX0 is set Regardless of the AT¥V command (p.47) setting, only CONNECT appears when the connection is completed. Character indication example: ATD CONNECT Number indication example: ATD When ATX1 is set ATX1, AT¥V0 are set (default) Displayed in CONNECT <rate between the FOMA terminal and the PC>...
  • Page 166 Kuten Code List...

  • Page 167: Kuten Code List

    Kuten Code List <Guide to the kuten code table> First enter “digits 1-3 of the kuten code” then “digit 4”. d Some kuten codes in the table here may look different from what actually appear on screens. First to third First to third First to third Fourth digit of Kuten codes...
  • Page 168 First to third First to third First to third Fourth digit of Kuten codes Fourth digit of Kuten codes Fourth digit of Kuten codes digits of digits of digits of Kuten codes Kuten codes Kuten codes...
  • Page 169 First to third First to third First to third Fourth digit of Kuten codes Fourth digit of Kuten codes Fourth digit of Kuten codes digits of digits of digits of Kuten codes Kuten codes Kuten codes...
  • Page 170 First to third First to third First to third Fourth digit of Kuten codes Fourth digit of Kuten codes Fourth digit of Kuten codes digits of digits of digits of Kuten codes Kuten codes Kuten codes...

Table of Contents
