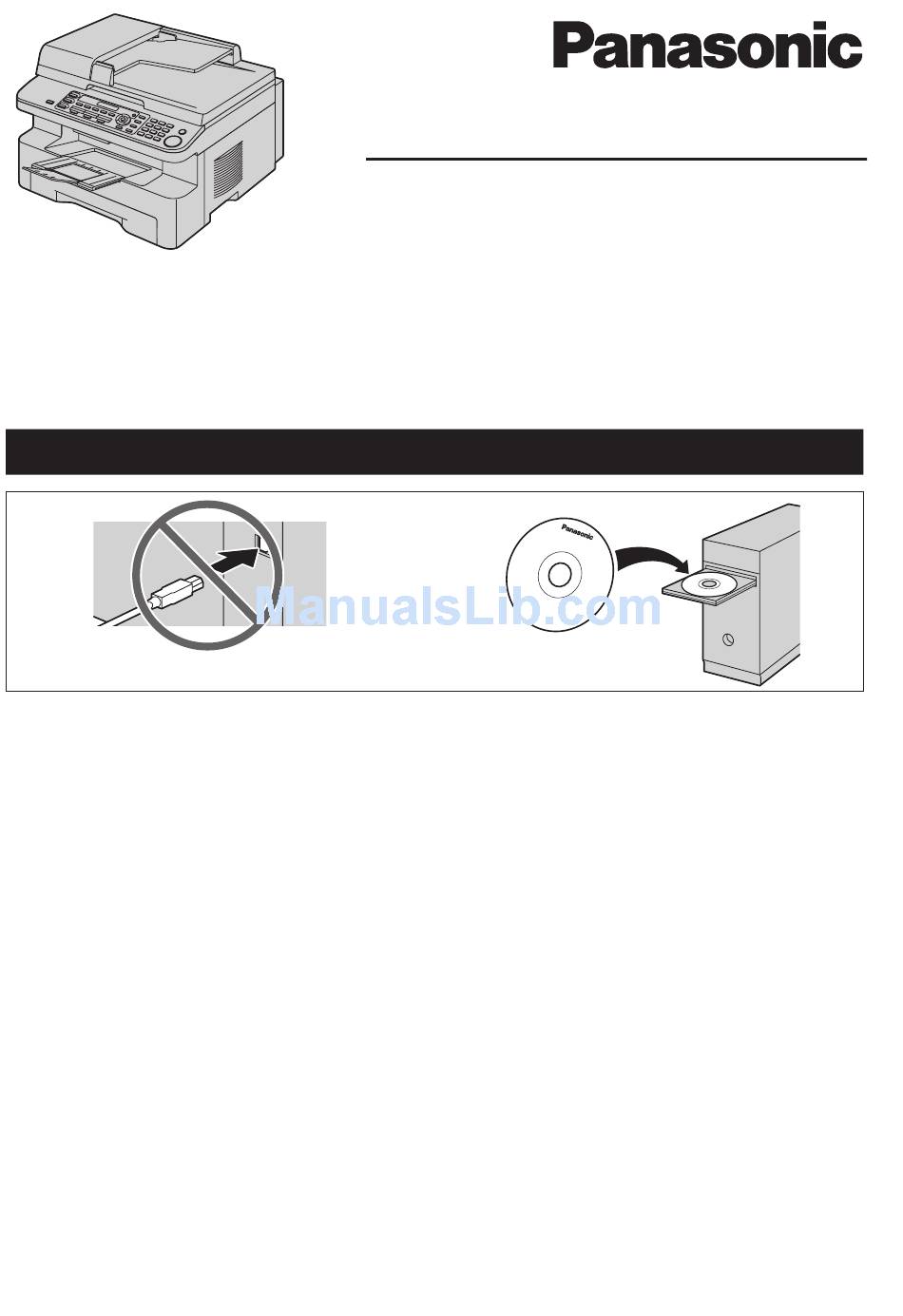

Do NOT connect the USB cable until prompted by the Multi-Function Station (CD-ROM).
1
This unit is compatible with Caller ID. Please be sure that both your line and the other party's line
support the Caller ID function.

Operating Instructions

KX-MB778TW
Model No.
KX-MB788TW
2
Multi-Function Printer

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-MB778TW

Summary of Contents for Panasonic KX-MB778TW

  • Page 1: Operating Instructions

    Operating Instructions Multi-Function Printer KX-MB778TW Model No. KX-MB788TW Do NOT connect the USB cable until prompted by the Multi-Function Station (CD-ROM). This unit is compatible with Caller ID. Please be sure that both your line and the other party’s line...
  • Page 2 L All other trademarks identified herein are the property of their respective owners. Copyright: L This manual is copyrighted by Panasonic Systems Sales Taiwan CO., Ltd. (PSST). Under the copyright laws, this manual may not be reproduced in any form, in whole or part, without the prior written consent of PSST.

  • Page 3: Important Information

    We dust build-up with a vacuum cleaner (1). cannot be responsible for problems that may be caused by a non-Panasonic toner cartridge or drum unit: – Damage to the unit – Poor print quality –...

  • Page 4: Table Of Contents

    Table of Contents 1. Introduction and Installation 1. Table of Contents Sending a computer document as a fax message from your computer ......40 Accessories Receiving Faxes Included accessories........6 Selecting the way to use your fax machine ..40 Accessory information ........6 Receiving a fax automatically –...

  • Page 5: Table Of Contents

    Table of Contents 12.Cleaning Cleaning 12.1 Cleaning the white plates and glass.... 79 12.2 Cleaning the document feeder rollers..82 13.General Information Printed Reports 13.1 Reference lists and reports ......83 Specifications 13.2 Specifications ..........83 Copyrights 13.3 Information of copyrights and licenses (KX- MB788 only) ..........

  • Page 6: Introduction And Installation

    1.1 Included accessories 1.2 Accessory information To ensure that the unit operates properly, we 1 Power cord 2 CD-ROM recommend using the Panasonic toner cartridge and drum unit. – Replacement toner cartridge L Model No. (Part No.): KX-FAT92E – Replacement drum unit L Model No.

  • Page 7: Button Descriptions

    1. Introduction and Installation Finding the Controls {BROADCAST} 1.3 Button descriptions L To send a document to multiple parties (page 38). {MANUAL BROAD} L To send a document to multiple parties manually A B CDEFG HIJK (page 38). Station keys L To use the one-touch dial feature (page 36, 37).

  • Page 8: Overview

    1. Introduction and Installation 1.4.2 Rear view 1.4 Overview 1.4.1 Front view * The pictured model is KX-MB788. A Recording paper guides B Speaker C Power inlet D Manual input tray (Rear cover) 1 Top cover E External telephone jack 2 ADF (Auto Document Feeder) cover F Telephone line jack 3 Document guides...

  • Page 9: Toner Cartridge And Drum Unit

    L We cannot be responsible for any damage to the unit or degradation of print quality which may occur from the use of a non-Panasonic toner cartridge and drum unit. L Do not leave the toner cartridge out of the protection bag for a long time.
  • Page 10 1. Introduction and Installation Lift the top cover release lever (7) and open the top Install the drum and toner unit (k) by holding the cover (8). tabs. Note: L Do not touch the transfer roller (9). L If the lower glass (j) is dirty, clean it with a soft and dry cloth.
  • Page 11 “REPLACE DRUM” appears on the display, replace the toner cartridge and drum unit. L To ensure that the unit operates properly, we recommend the use of Panasonic toner cartridge (Model No. KX-FAT92E) and drum unit (Model No. KX-FAD93E). See page 6 for accessory...

  • Page 12: Output Tray

    1. Introduction and Installation If the top part of the extender is detached 1.6 Output tray 1. With the top part of the extender in the open position, Pull the output tray extender (1) forward gently until it insert the tab (1) into the left hole (2) of the clicks into place, then press the centre part of the extender.

  • Page 13: Recording Paper

    1. Introduction and Installation If the extender is detached 1.7 Recording paper 1. Line up the extender (1) with the left side of the The paper input tray unit can hold: output tray. Make sure that the triangles (2) match, –...
  • Page 14 1. Introduction and Installation Load the paper, print-side up (2). Insert the paper input tray to the unit, lifting the front part of the tray. Then push it completely into the unit. Important: L Push and lock the plate (3) in the paper input tray, if it is lifted.

  • Page 15: Preparation

    2. Preparation 2 Preparation Connections and Setup Note: 2.1 Connections L If any other device is connected to the same telephone line, this unit may disturb the network Caution: condition of the device. L When you operate this product, the power outlet L If you use the unit with a computer and your internet should be near the product and easily provider instructs you to install a filter (5), please...

  • Page 16: Dialling Mode

    2. Preparation 2.2 Dialling mode 2.3 Selecting the operation mode If you cannot dial (page 35), change this setting (Scan/Copy/Fax) according to your telephone line service. You can select the desired mode by pressing one of the following buttons. {MENU} {SET} {MENU} i {#}{1}{2}{0} DIALLING MODE...

  • Page 17: Setting The Original

    2. Preparation Document Requirements 2.4.2 Using the auto document feeder 2.4 Setting the original 2.4.1 Using the scanner glass Insert the document (up to 20 pages) FACE UP into the feeder until a single beep is heard. Adjust the width of the document guides (1) to fit the actual size of the document.

  • Page 18: Help Function

    2. Preparation Minimum document size Help 2.5 Help function The unit contains helpful information on the following topics which can be printed for reference purposes, as follows: – “BASIC SETTINGS” – “FEATURE LIST” 128 mm – “DIRECTORY” Maximum document size –...

  • Page 19: Adjusting Volume

    2. Preparation Volume Initial Programming 2.6 Adjusting volume 2.7 Date and time Important: L Before adjusting volume, set the operation mode {MENU} to fax mode. If the {FAX} light is OFF, turn it ON by pressing {FAX}. {FAX} {SET} {<}{>} {MENU} i {#}{1}{0}{1} i {SET} {FAX} {SET}...

  • Page 20: Your Logo

    2. Preparation 2.8 Your logo 2.9 Your fax number You can program your logo (name, company name, etc.) You can program your fax number so that it appears on so that it appears on the top of each page sent. the top of each page sent.

  • Page 21: Configuring The Unit To Access The Lan (Kx-Mb788 Only)

    2. Preparation For the subnet mask: 2.10 Configuring the unit to 1. Press {5}{0}{2}. access the LAN (KX-MB788 only) SUBNET MASK PRESS SET You can print documents, scan documents, receive 2. {SET} i Enter the subnet mask of the faxes or send faxes using a computer on the LAN. To network.

  • Page 22: Installing Multi-Function Station

    If the unit is connected to a computer with 2.11.1 Required computer environment USB cable before installing Multi-Function Panasonic Multi-Function Station software enables the Station, the [Found New Hardware Wizard] unit to carry out the following functions: dialogue box will appear. Click [Cancel] to close –...
  • Page 23 [Start] i [All Programs] or [Programs] i L If the unit is connected to your computer, the [Panasonic] i the unit’s name i [Add Printer model name will be automatically detected. L You can change the name of the unit if necessary.

  • Page 24: Starting Multi-Function Station

    [Start] i [All Programs] or [Programs] i – When the unit is connected to a computer that [Panasonic] i the unit’s name i [Multi-Function was custom-built by the user. Station] – When the unit is connected to the computer via a L Multi-Function Station will appear.

  • Page 25: Printer

    3. Printer 3 Printer Printer L If a printing error occurs, the Device Monitor will be 3.1 Printing from Windows started automatically and display the error information. applications Setting the printer properties You can print a file created in a Windows application. For You can change the printer setting in step 3.
  • Page 26 3. Printer – Any sheet of labels that has spaces in it where 3.1.1 Using the manual input tray some of the labels have been removed. You can print on plain paper and labels. – Labels that do not completely cover the backing The manual input tray is used only for printing with the sheet as follows.

  • Page 27: Scanner

    4. Scanner 4 Scanner Scanner L The scanned image will be displayed in the 4.1 Scanning from the unit (Push [Multi-Function Viewer] window after scanning. However, when you select PDF as a Scan) file format, the software that is associated to open PDF file will start.
  • Page 28 4. Scanner L The e-mail software will automatically start and Set the original (page 17). the scanned image will be attached to a new e- {SCAN} mail message. Press {V} or {^} repeatedly to select “OCR”. i Note: {SET} L To stop scanning, see page 60. For USB connection: L You can save the images in JPEG or PDF formats.

  • Page 29: Scanning From A Computer (Pull Scan)

    4. Scanner L The scanned image will be displayed in the 4.2 Scanning from a computer [Multi-Function Viewer] window after scanning. (Pull Scan) L To save the scanned image, select [Save As ...] from the [File] menu. Note: L To cancel scanning while the document is being L When scanning a document, we recommend using scanned, click [Cancel].

  • Page 30: Copier

    5. Copier 5 Copier Copy L The unit will start copying. 5.1 Making a copy After you finish copying, press {STOP} to reset the settings you set in step 3 and 4. Illegal copies L It is unlawful to make copies of certain Note: documents.

  • Page 31: More Copying Features

    5. Copier 5.1.2 Using the auto document feeder 5.2 More copying features L Make sure that the {COPY} light is ON. 5.2.1 To enlarge/reduce a document Set the original (page 17). Press {ZOOM} repeatedly to select the enlargement / reduction rate that fits the size of your document and recording paper.
  • Page 32 5. Copier Example: 150% enlarged copy 5.2.2 To copy 2-sided documents onto 1 Using the scanner glass (1): page (Quick ID copy feature) (Scanner Original document Enlarged copy glass only) You can make copies of both sides of 2-sided documents and print them on the same side of paper.
  • Page 33 5. Copier Original document Page layout 5.2.4 To copy several pages onto 1 page (N in 1 feature) “8 in 1” “LANDSCAPE” You can save paper by copying 2, 4 or 8 pages onto 1 page. The documents will be reduced to fit the recording paper.
  • Page 34 5. Copier Note: Original document Page layout L The unit will store the documents into memory while “8 in 1” collating the copies. If memory becomes full while “PORTRAIT” storing, the unit will only print out the stored pages. During poster feature 1.

  • Page 35: Fax

    6. Fax 6 Fax Sending Faxes To select the resolution 6.1 Sending a fax manually 1. Press {RESOLUTION} repeatedly. – “STANDARD”: For normal-sized characters. 6.1.1 Using the scanner glass – “FINE”: For small-sized characters. – “SUPER FINE”: For very small-sized characters. By using the scanner glass, you can send a page from –...

  • Page 36: Storing Items For The One-Touch Dial Feature And Navigator Directory

    6. Fax Printing a journal report 6.2 Storing items for the one- A journal report provides you with a printed record of the touch dial feature and navigator 30 most recent faxes. To print it manually, see page 83. To print it automatically after every 30 new fax directory transmissions and receptions, make sure feature #402 is activated (page 51).

  • Page 37: Sending A Fax Using One-Touch Dial Feature And Navigator Directory

    6. Fax Enter the telephone number, up to 32 digits. i 6.3 Sending a fax using one- {SET} L To program other items, repeat steps 2 to 3. touch dial feature and navigator {MENU} directory Note: Before using this feature, store the desired names and L A hyphen or a space entered in a telephone number telephone numbers into one-touch dial feature and counts as 2 digits.

  • Page 38: Broadcast Transmission

    6. Fax Enter the fax number using one-touch dial or navigator directory. 6.4 Broadcast transmission {START} By storing one-touch dial and navigator directory items (page 36) into the broadcast memory, you can send the same document to multiple parties (up to 20). Your programmed items will remain in the broadcast memory, allowing frequent re-use.

  • Page 39: Sending The Same Document To Pre- Programmed Parties

    6. Fax Press {V} or {^} repeatedly to display the desired 2. If necessary, change to the desired resolution (page broadcast memory (“<BROADCAST>” or “<MANUAL 35) and the desired contrast (page 35). BROAD>”). i {MENU} i {*} 3. Press {BROADCAST} or {MANUAL BROAD}. Press {V} or {^} repeatedly to display the desired item you want to add.

  • Page 40: Sending A Computer Document As A Fax Message From Your Computer

    6. Fax Receiving Faxes 6.5 Sending a computer 6.6 Selecting the way to use your document as a fax message from fax machine your computer Depending on your situation, select the way you prefer to use your fax machine. You can access the fax function from a Windows –...

  • Page 41: Receiving A Fax Automatically - Auto Answer On

    6. Fax How to receive phone calls and faxes You have to answer all calls manually. 6.7 Receiving a fax automatically To receive a fax document, press {START}. – Auto answer ON 6.6.3 Use with answering machine 6.7.1 Activating FAX ONLY mode Your situation Press {FAX AUTO ANSWER} repeatedly to display You want to use the fax machine with an answering...

  • Page 42: Receiving A Fax Manually - Auto Answer Off

    6. Fax 6.8 Receiving a fax manually – 6.9 Using the unit with an Auto answer OFF answering machine Important: 6.9.1 Setting up the unit and an answering L Use this mode with an extension telephone. machine 6.8.1 Activating TEL mode Connect the answering machine (1).

  • Page 43: Receive Polling (Retrieving A Fax Placed On Another Fax Machine)

    6. Fax If a fax calling tone is detected, the fax machine will receive a fax automatically. 6.11 Junk fax prohibitor L Regarding the remote access code for the answering (preventing fax reception from machine, see the operating instructions of the answering machine.

  • Page 44: Receiving A Fax Into Your Computer

    6. Fax 2. Press {>} repeatedly to display “JUNK LIST DISP.”. i {SET} 6.12 Receiving a fax into your 3. Press {V} or {^} repeatedly to display the desired computer item. i {<} You can receive a fax document on your computer. The L To cancel erasing, press {STOP}, then press received fax document is saved as an image file (TIFF- {MENU}.

  • Page 45: Caller Id

    7. Caller ID 7 Caller ID Caller ID To confirm caller information by printing the Caller 7.1 Caller ID service ID list This unit is compatible with Caller ID. Please be sure – To print manually, see page 83. that both your line and the other party’s line support –...

  • Page 46: Viewing And Calling Back Using Caller Information

    7. Caller ID Note: 7.2 Viewing and calling back L The edited telephone number will not be saved in the caller information. To save in the directory, see page using caller information Important: To correct a mistake L If the area code of the received telephone 1.

  • Page 47: Erasing Caller Information

    7. Caller ID 7.4 Erasing caller information 7.5 Storing caller information 7.4.1 Erasing all caller information 7.5.1 Into the one-touch dial feature and navigator directory Press {MENU} repeatedly to display “CALLER SETUP”. i {SET} {CALLER ID} L “CALL LIST ERASE” will be displayed. Press {V} or {^} repeatedly to display the desired {SET} item.

  • Page 48: Programmable Features

    8. Programmable Features 8 Programmable Features Features Summary 8.1 Programming {MENU} {SET} {MENU} Press {#} and the 3-digit code (page 49 to page 55). Press the desired selection to display the desired setting. L This step may be slightly different depending on the feature.

  • Page 49: Basic Features

    8. Programmable Features 8.2 Basic features Feature/Code Selection Setting the date and time Enter the date and time using the dial keypad. See page 19 for details. {#}{1}{0}{1} Setting your logo Enter your logo using the dial keypad. See page 20 for details. {#}{1}{0}{2} Setting your fax number Enter your fax number using the dial keypad.
  • Page 50 8. Programmable Features Feature/Code Selection Changing the ring count in {1} “1” FAX ONLY mode {2} “2” (default) {3} “3” {#}{2}{1}{0} {4} “4” {5} “5” {6} “6” {7} “7” {8} “8” {9} “9” L If you are using the unit with an answering machine, set to more than 4 (page 42).

  • Page 51: Fax Features

    8. Programmable Features 8.3 Fax features Feature/Code Selection Printing a sending report {0} “OFF”: Sending reports will not be printed. {1} “ON”: A sending report will be printed after every fax transmission. {#}{4}{0}{1} {2} “ERROR” (default): A sending report will be printed only when fax transmission fails.
  • Page 52 8. Programmable Features Feature/Code Selection Setting the Error Correction This feature is available when the sending / receiving fax machines are ECM Mode (ECM) compatible. {0} “OFF”: Deactivates this feature. {#}{4}{1}{3} {1} “ON” (default): If there is an error during fax transmission / reception, the unit will support the communication.
  • Page 53 8. Programmable Features Feature/Code Selection Receiving a fax into the If you wish to receive a fax into the computer, activate this feature and run [PC computer FAX] from Multi-Function Station. {0} “OFF” (default): Deactivates this feature. {#}{4}{4}{2} {1} “ALWAYS”: If the unit recognizes the connection to the computer, it will transfer a received document to the computer.

  • Page 54: Copy Features

    8. Programmable Features 8.4 Copy features Feature/Code Selection Changing the default copy To change the default resolution setting for copying. resolution {1} “TEXT/PHOTO”: For documents containing both text and photographs. {2} “TEXT” (default): For documents containing only text. {#}{4}{6}{1} {3} “PHOTO”: For documents containing photographs, shaded drawings, etc. Holding the previous page {0} “DISABLED”...

  • Page 55: Scan Features

    8. Programmable Features 8.6 Scan features Feature/Code Selection Setting the scan mode for {1} “VIEWER” (default): The scanned image will be displayed in the [Multi- Push Scan Function Viewer] window. {2} “FILE”: The scanned image will be saved as a file. {#}{4}{9}{3} {3} “E-MAIL”: The scanned image will be saved for e-mail attachment.

  • Page 56: Lan Features (Kx-Mb788 Only)

    8. Programmable Features 8.7 LAN features (KX-MB788 only) Feature/Code Selection LAN setting with a DHCP {0} “DISABLED”: Deactivates this feature. server {1} “ENABLED” (default): The following will be allocated automatically using a DHCP (Dynamic Host Configuration Protocol) server. {#}{5}{0}{0} – IP address –...
  • Page 57 8. Programmable Features Feature/Code Selection Setting HTTPD for the LAN {0} “DISABLED”: Denies access to the web browser. connection {1} “ENABLED” (default): Allows access to the web browser. {#}{5}{3}{4}...

  • Page 58: Network Features (Kx-Mb788, Lan Connection Only)

    8. Programmable Features 8.8 Network features (KX-MB788, LAN connection only) These features can be programmed only by using the web browser. Feature Selection Setting the location [LAN FEATURE] Enter the location information of the unit. where you use this unit SMTP setting for scan to [E-MAIL FEATURE] Enter the SMTP server information to send scanned...

  • Page 59: Character Entry

    9. Useful Information 9 Useful Information Useful Information 1. Press {V} repeatedly to display the desired 9.1 Character entry character. Characters will be displayed in the following order: The dial keypad is used to enter characters and 1 Uppercase letters numbers.

  • Page 60: Status Of The Unit

    9. Useful Information 9.2.2 Using Device Monitor 9.2 Status of the unit You can confirm the setting information and current status of the unit from your computer. 9.2.1 Using Remote Control Start Multi-Function Station. You can easily operate the following functions from your [Utilities] i [Device Monitor] computer.
  • Page 61 9. Useful Information L When “USER STOPPED” is not displayed, go to step 2. To cancel printing: Press {STOP} repeatedly to display “STOP PRINTING?”. To cancel scanning: Press {STOP} repeatedly to display “STOP SCANNING?”. To cancel copying: Press {STOP} repeatedly to display “STOP COPYING?”.

  • Page 62: Help

    10. Help 10 Help 10.1 Error messages – Reports If a problem occurs during fax transmission or reception, one of the following messages will be printed on the sending and journal reports (page 35). Message Code Cause & Solution COMMUNICATION ERROR 40-42 L A transmission or reception error occurred.

  • Page 63: Error Messages - Display

    10. Help 10.2 Error messages – Display If the unit detects a problem, one or more of the following messages will appear on the display. Display Cause & Solution “CALL SERVICE” L There is something wrong with the unit. Contact our service personnel. “CARRIAGE ERROR”...
  • Page 64 10. Help Display Cause & Solution “NO FAX REPLY” L The other party’s fax machine is busy or has run out of recording paper. Try again. “OUT OF PAPER INPUT TRAY L Recording paper is not installed in the manual input tray. Install paper (page #2”...

  • Page 65: When A Function Does Not Work

    10. Help Troubleshooting 10.3 When a function does not work 10.3.1 General Problem Cause & Solution The unit does not work. L Check the connections (page 15, 22). The output tray becomes full L High humidity may cause the recording paper to curl. Try turning the paper quickly or the recording over and re-inserting it.

  • Page 66: Printing Problems

    10. Help 10.3.2 Printing problems Problem Cause & Solution The printing quality is poor. L Some paper has instructions recommending which side to print on. Try turning the recording paper over. L You may have used paper with a cotton and/or fibre content that is over 20%, such as letterhead or resume paper.
  • Page 67 L The IP address of the unit may have changed. To detect the IP address, proceed as follows. [Start] i [All Programs] or [Programs] i [Panasonic] i the unit’s name i [IP Address Checker]. L The IP address for the unit will be detected.
  • Page 68 10. Help Problem Cause & Solution The other party complains L You used a coloured paper as a document. Change the contrast (page 30) that received documents are and make a lighter copy of the document, using “TEXT” resolution (page too dark and cannot be read.

  • Page 69: Using An Answering Machine

    10. Help Problem Cause & Solution I cannot hear a dial tone. L The telephone line cord is connected to the [EXT] jack on the unit. Connect to the [LINE] jack (page 15). L If you use a splitter/coupler to connect the unit, remove the splitter/coupler and connect the unit to the wall jack directly.
  • Page 70 – Device Monitor To detect the IP address, proceed as follows. [Start] i [All Programs] or [Programs] i [Panasonic] i the unit’s name i [IP Address Checker]. L The IP address for the unit will be detected.
  • Page 71 L The [Windows Firewall] dialogue box will appear. 3. Click the [Exceptions] tab. 4. Confirm that [Panasonic Trap Monitor Service] and [PCCMFLPD] are displayed and checked on the [Programs and Services] list. To confirm the security settings (For Windows Vista users) 1.
  • Page 72 10. Help L The [User Access Control] dialogue box will appear. 4. [Continue] 5. Click the [Exceptions] tab. 6. Confirm that [Panasonic Trap Monitor Service], [PCMFSMLM] and [PCCMFLPD] are displayed and checked on the [Program or Port] list.

  • Page 73: Paper Jams

    11. Paper Jams 11 Paper Jams Jams Case 1: 11.1 Recording paper jam When the recording paper has jammed near the manual input tray: 1. Pull open the paper input tray (1). 11.1.1 When the recording paper has jammed inside of the unit The display will show the following.
  • Page 74 11. Paper Jams 3. Close the paper input tray. Case 2: When the recording paper has jammed near the drum and toner unit: 1. Pull open the paper input tray (1). L Open and close the top cover (4) to clear the error message.
  • Page 75 11. Paper Jams 3. Remove the jammed paper (6) carefully by pulling it 4. Close the paper input tray. upwards. 5. Close the top cover until locked. Remove the jammed paper (7) carefully by pulling it toward you.
  • Page 76 11. Paper Jams Case 3: 3. Remove the jammed paper (6) carefully by pulling it When the recording paper has jammed near the upwards. fuser unit: 1. Lift the top cover release lever (1) and open the top cover (2). 4.
  • Page 77 11. Paper Jams 11.1.2 When the recording paper is not fed 11.1.3 When the recording paper in the into the unit properly manual input tray is not fed into the unit The display will show the following. properly The display will show the following. CHECK PAPER #1 PRESS START CHECK PICK UP...

  • Page 78: Document Jams (Auto Document Feeder)

    11. Paper Jams When the document has jammed near the 11.2 Document jams (Auto document exit: document feeder) Caution: L Do not pull out the jammed document forcibly before lifting the ADF cover. Close the ADF cover. Open the ADF cover (1) while holding the document cover (2).

  • Page 79: Cleaning

    12. Cleaning 12 Cleaning Cleaning Close the document cover (5). 12.1 Cleaning the white plates and glass Clean the white plates and glass when a black line, a white line or a dirty pattern appears on: – your recording paper, –...
  • Page 80 12. Cleaning Clean the lower glass (6) with a soft and dry cloth. 12.1.2 Lower glass Disconnect the power cord. Lift the top cover release lever (1) and open the top cover (2). Reinstall the drum and toner unit (7) by holding the tabs.
  • Page 81 12. Cleaning L Make sure that the triangles (8) match, to install Caution: the drum and toner unit correctly. L To prevent injuries, be careful not to put your hands under the top cover. Re-connect the power cord. Close the top cover until locked.

  • Page 82: Cleaning The Document Feeder Rollers

    12. Cleaning Close the ADF cover. 12.2 Cleaning the document feeder rollers Clean the rollers when the document frequently misfeeds. Disconnect the power cord. Open the ADF cover (1) while holding the document cover (2). Re-connect the power cord. Clean the document feeder rollers (3) with a cloth moistened with isopropyl rubbing alcohol, and let all parts dry thoroughly.

  • Page 83: General Information

    13. General Information 13 General Information Printed Repor ts Specifications 13.1 Reference lists and reports 13.2 Specifications You can print out the following lists and reports for your ■ Applicable lines reference. Public Switched Telephone Network – “SETUP LIST” ■ Document size: –...
  • Page 84 – Paper with foreign objects attached, such as tabs ■ Importer: or staples Panasonic Systems Sales Taiwan Co., Ltd. – Paper which has dust, lint or oil stains 579, Yuan Shan Road, Chung-Ho, Taipei Hsien, Taiwan – Paper that will melt, vaporize, discolour, scorch or (02) 2227-6100 emit dangerous fumes near 200 °C, such as...
  • Page 85 2.4 Adjusting volume Initial Programming 2.5 Dialing mode 2.6 Date and time. 2.7 Your logo.2.8 Your fax number 3. Copy / Copying 3.1 Using the unit as a copy machine. Thank you for purchasing a Panasonic fax machine. Things you should keep a record of Attach your sales receipt here.

  • Page 86: Information Of Copyrights And Licenses (Kx-Mb788 Only)

    13. General Information Copyrights 13.3 Information of copyrights and licenses (KX-MB788 only) L This product uses a part of NetBSD kernel. The use of a part of NetBSD kernel is based on the typical BSD style license below. Copyright (c) The Regents of the University of California.
  • Page 87 13. General Information Copyright (c) 1982, 1986, 1990, 1991, 1993 The Regents of the University of California. All rights reserved. Copyright (c) 1982, 1986, 1990, 1993 The Regents of the University of California. All rights reserved. Copyright (c) 1982, 1986, 1990, 1993, 1994 The Regents of the University of California. All rights reserved.
  • Page 88 13. General Information Copyright (c) 1996,1999 by Internet Software Consortium. Copyright (c) 1996-1999 by Internet Software Consortium. Copyright (c) 1997 Jonathan Stone and Jason R. Thorpe. All rights reserved. Copyright (c) 1997 Christos Zoulas. All rights reserved. Copyright (c) 1997 Manuel Bouyer. All rights reserved. Copyright (c) 1997, 1998 The NetBSD Foundation, Inc.
  • Page 89 13. General Information L This product contains Net-SNMP software and is using it based on the following license conditions. ---- Part 1: CMU/UCD copyright notice: (BSD like) ----- Copyright 1989, 1991, 1992 by Carnegie Mellon University Derivative Work - 1996, 1998-2000 Copyright 1996, 1998-2000 The Regents of the University of California All Rights Reserved Permission to use, copy, modify and distribute this software and its documentation for any purpose and...
  • Page 90 13. General Information ---- Part 3: Cambridge Broadband Ltd. copyright notice (BSD) ----- Portions of this code are copyright (c) 2001-2003, Cambridge Broadband Ltd. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: * Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
  • Page 91 13. General Information DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
  • Page 92 13. General Information However, parts of the thttpd software are provided with the following copyright notices. Copyright 1995 by Jef Poskanzer <jef@acme.com>. Copyright 1998 by Jef Poskanzer <jef@acme.com>. Copyright 1999 by Jef Poskanzer <jef@acme.com>. Copyright 1995,2000 by Jef Poskanzer <jef@acme.com>. Copyright 1999,2000 by Jef Poskanzer <jef@acme.com>.

  • Page 93: Index

    14. Index 14. Index C Caller ID 14.1 Index Calling back: 46 Storing: 47 # #101 Date and time: 19 Caller ID list (Feature #216): 45 #102 Your logo: 20 Character entry: 59 #103 Your fax number: 20 Cleaning: 79, 82 #120 Dialling mode: 16 Collate hold (Feature #469): 54 #121 Recall/Flash time: 49...
  • Page 94 14. Index HTTPD (Feature #534): 57 Setup: 83 Telephone number: 83 IP address (Feature #501): 56 Reset fax features (Feature #459): 53 J Jams Resolution: 30, 35 Document: 78 Ring count Recording paper: 73 FAX ONLY (Feature #210): 50 Journal report (Feature #402): 36, 83 Ringer pattern (Feature #161): 19, 49 Junk fax prohibitor: 43 S Scan features: 55...
  • Page 95 Notes...
  • Page 96 PFQX2765ZA CM0807DW0 (CD)

This manual is also suitable for:
