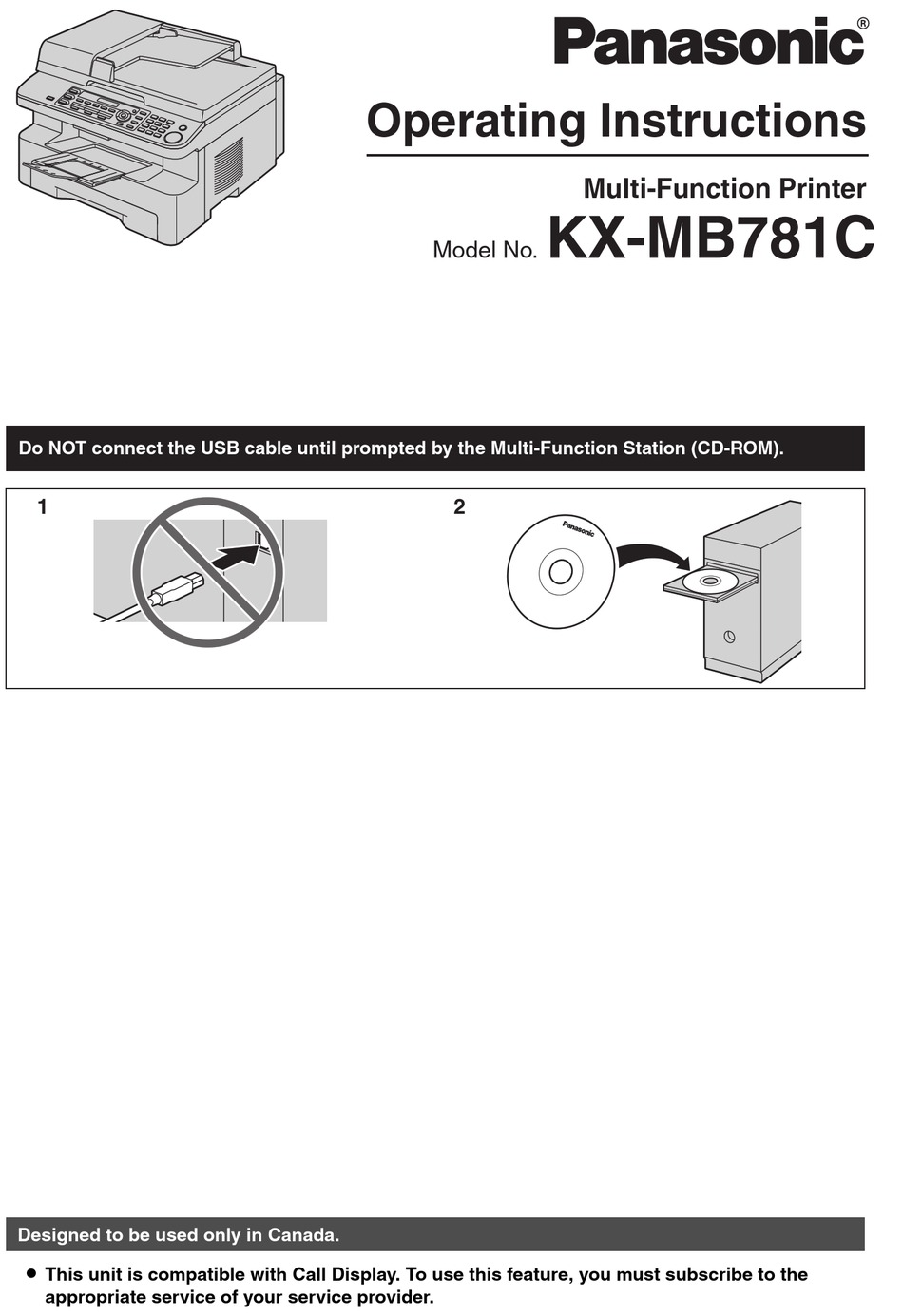

Operating Instructions

Multi-Function Printer
KX-MB781C
Model No.
Do NOT connect the USB cable until prompted by the Multi-Function Station (CD-ROM).
1
2
Designed to be used only in Canada.
L This unit is compatible with Call Display. To use this feature, you must subscribe to the
appropriate service of your service provider.
