Kodo Pro KNS-2000FH Installation Operation User Manual

X20 full hd megapixel speed dome network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

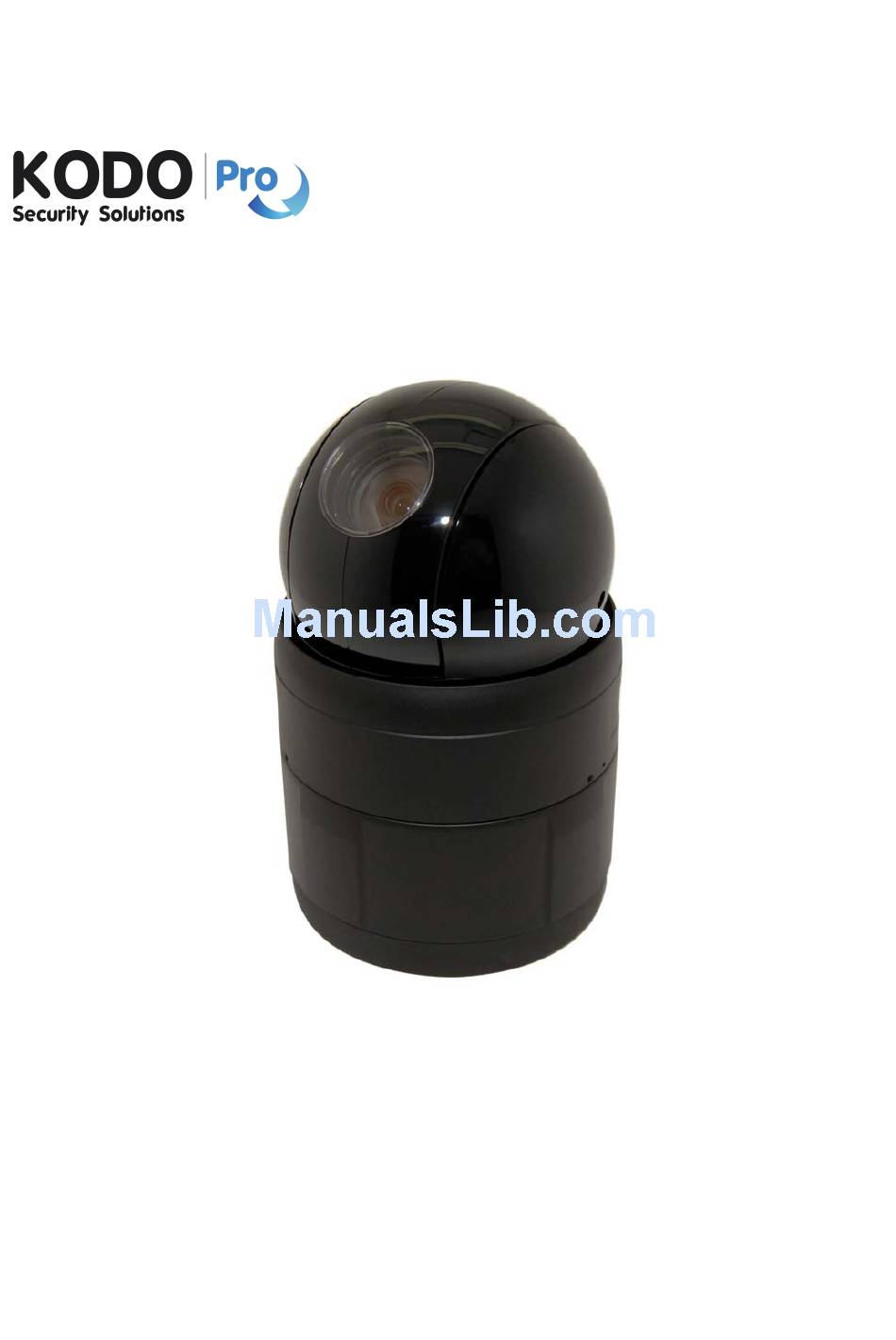

INSTALLATION / OPERATION
USER'S MANUAL
KNS-2000FH
X20 Full HD Megapixel Speed
Dome Network Camera
www.kodobr.com.br

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KNS-2000FH and is the answer not in the manual?

Questions and answers

Related Manuals for Kodo Pro KNS-2000FH

Summary of Contents for Kodo Pro KNS-2000FH

  • Page 1 INSTALLATION / OPERATION USER’S MANUAL KNS-2000FH X20 Full HD Megapixel Speed Dome Network Camera www.kodobr.com.br...

  • Page 2: Explanation Of Graphical Symbols

    WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRNIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

  • Page 3: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not us e this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ve ntilation openings. Ins tall in acc ordance with the manufacturer’s instructions.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS DESCRIPTION .............................. 12 ODELS ................................12 EATURES ..............................12 OMPONENTS ..............................13 INSTALLATION ............................14 EFORE NSTALLATION ............................ 14 TARTING NSTALLATION ..........................14 Base Installation ............................14 Basic Configuration of Fastrax X20 Network Dome Camera System ..........17 Setting Network Dome Camera Termination ..................
  • Page 6 Stream1 ..............................55 Stream2 ..............................58 Stream3 ..............................61 Stream4 ..............................64 Webcasting............................... 68 UDIO ................................69 Basic ................................69 VENT ................................71 Event In – Alarm In ..........................71 Event In – Manual Trigger ........................73 Event In – VMD Stream1 ........................74 Event In –...
  • Page 7 Network – Bonjour ..........................133 Network – Zeroconf ..........................134 Language..............................135 Maintenance............................136 Support ..............................138 BOUT ................................139 TECHNICAL SPECIFICATIONS......................140 MAGE ................................140 LECTRICAL ONNECTOR ..........................140 IDEO ................................140 PTZ ................................141 UDIO ................................142 YSTEM NTEGRATION ...........................
  • Page 8 LIST of ILLUSTRATIONS Figure 1. Typical System Configuration ..................14 Figure 2. Assemble bubble ring ass’y(Optional)................15 Figure 3. Installation .........................15 Figure 4. Dimension........................16 Figure 5. Basic installation diagram....................17 Figure 6. Layout of Switches .....................18 Figure 7. Setting Network Dome Camera Termination ..............18 Figure 8.
  • Page 9 Figure 25. Video & Image / Image – Privacy Mask..............53 Figure 26. Video & Image / Stream1..................55 Figure 27. Video & Image / Stream2..................58 Figure 28. Video & Image / Stream2 ROI Setting................59 Figure 29. Video & Image / Stream3..................61 Figure 30.
  • Page 10 Figure 49. Event / Event Out – Record ..................90 Figure 50. Event / Event Map ....................92 Figure 51. Event / Event Map – Add...................94 Figure 52. Dome Configuration / Auto Scan................96 Figure 53. Dome Configuration / Auto Scan / PTZ Control Panel ..........97 Figure 54.
  • Page 11 Figure 75. System / Network – QoS ..................131 Figure 76. System / Network – Bonjour..................133 Figure 77. System / Network - Zeroconf................... 134 Figure 78. System / Language ....................135 Figure 79. System / Maintenance..................... 136 Figure 80. System / Support....................138 Figure 81.

  • Page 12: Description

    DESCRIPTION ------------------------------------------------------------------------------------------------------------------------------------- The KNS-2000FH camera is an internet protocol based megapixel network camera with a built-in web ® based viewer on Internet Explorer . The camera has a connection feature for third-party applications and compatible with supplied Utility software for easy installation and Client software to search, configure, manage, live view, record and playback.

  • Page 13: Components

    Voice Alert Linked to Alarm Detection  The KNS-2000FH can play the audio file stored in the camera in synchronization with alarm detection by the sensor input or the motion detection function. Network Flow Control ...

  • Page 14: Installation

    INSTALLATION ------------------------------------------------------------------------------------------------------------------------------------- Before Installation Before installing the camera, thoroughly familiarize yourself with the information in this section of the manual. - Recommend connecting the camera to a network that uses a DHCP (Dynamic Host Configuration Protocol) server to address devices. - To ensure secure access to the IP camera, place the camera behind a firewall when it is connected to a network.

  • Page 15: Figure 2. Assemble Bubble Ring Ass'y(Optional)

    push bubble ring ass'y remove camera window screw push remove window assemble bubble ring ass'y Figure 2. Assemble bubble ring ass’y(Optional) NOTES It is recommended to remove camera window for improving picture quality when you use bubble ring assy. The Network Dome Camera is for use in surface mounting applications and the mounting surface should be capable of supporting loads up to 10lb (4.5kg).

  • Page 16: Figure 4. Dimension

    Figure 4. Dimension...

  • Page 17: Basic Configuration Of Fastrax X20 Network Dome Camera System

    Basic Configuration of Fastrax X20 Network Dome Camera System Figure 5. Basic installation diagram...

  • Page 18: Setting Network Dome Camera Termination

    The Network Dome Camera must be installed by qualified service personnel in accordance with all local and federal electrical and building codes. The system should be installed according to Figures 5 through 8. Figure 6. Layout of Switches Setting Network Dome Camera Termination The device which is connected at end of line, whether it is a Network Dome Camera or keyboard controller, must have the cable for communication terminated by setting the appropriate DIP switch.

  • Page 19: Figure 8. Termination Diagram

    Figure 8. Termination Diagram...

  • Page 20: Setting Network Dome Camera Address (Id)

    Setting Network Dome Camera Address (ID) To prevent damage, each Network Dome Camera must have a unique address (ID). When installing multiple Network Dome Cameras using a multiplexer, it is suggested that the Network Dome Camera address match the multiplexer port number. If you want to set the address more than 999, you should contact the service provider.

  • Page 21: Setting Network Dome Camera Protocol

    Connecting the Network  The Network Dome Camera supports the operation through the network. Therefore, it is necessary to connect a standard RJ-45 cable to it. Generally a cross cable is used for directly connection to PC, while a direct cable is used for connection to a hub. Connecting the Power ...

  • Page 22: Operation

    OPERATION ------------------------------------------------------------------------------------------------------------------------------------- Before starting the camera, installation must be complete. The camera completes a configuration sequence within approximately 40 seconds when power is supplied. The amber LED of this megapixel camera flash one time per second indicating the configuration sequence is complete. NOTES - If the DHCP is enabled but the camera is not connected to a DHCP server, the camera will be set default IP 192.168.30.220 and try to get IP from DHCP server about every two seconds.

  • Page 23: Main Menu

    3. Log On to the camera - Click the Live View icon for default live image view or the Setup icon to change the configuration values. Main Menu Figure 9. Main Menu The dialog box will be appears. admin - Type User ID and Password in the dialog box. The default User ID and Password are NOTE For security purposes, be sure to change the password after you log on for the first time.

  • Page 24: Live View

    LIVE VIEW ------------------------------------------------------------------------------------------------------------------------------------- The Live View page provides you to select the properties of video source. You can view the live image from this page and also access the Setup menu and operate the main functions. Figure 10. Main Live View Page Live Video Page Icons Hide Main Icons: Hides main icons in the live view page.
  • Page 25 Setup: Enters setup menu. Help: Shows helpful information. Source: Specify the viewable video stream source to display in live view page. View Size: Specify the viewable video size to display in live view page. Stream Type: Specify the internet protocol to display in live view page. ROI View: Specify the specially selected area to transfer using different stream feature in the primary video image.

  • Page 26: Playback

    PLAYBACK ------------------------------------------------------------------------------------------------------------------------- This Playback page provides current SD recorded file lists and information. It also supports easy access and how to playback the recorded stream. Playback View User can access the recorded image in the web browser. Figure 11. Playback View Event List: Shows the recorded lists by Alarm, Trigger and Motion event.
  • Page 27 Event Search: Select the start date and end date you want to playback, and then click the Go button to show the list. In case of you want to list up according to event type, click the arrow button and select event type. Calendar: Shows the information about playback image.
  • Page 28 Please step as follows; 1. Select Start Date/Time and End Date/Time. 2. Set Export Path. 3. Click Estimate button which is shown the file FPS and Size. 4. Click Export or Cancel button. NOTES 1. If you set successfully, the following pop-up windows will be appeared. 2.

  • Page 29: Setup

    SETUP ------------------------------------------------------------------------------------------------------------------------------------- The SETUP pages provide you to manage the camera and change the setting values. For the easy and quick access the video, the setup menu is configured two parts, which are Basic Configuration and advanced configuration. The Basic Configuration menu allows you to setup Users, basic Network and Image.

  • Page 30: Users

    NOTE The setting menu might not be available if the user does not have the permission to access this feature. The only required setting is the IP address, which is set on the Network page. All other settings are available with default values and optional. Users Use the Users tab to manage user permission to access the camera.

  • Page 31: Figure 14. Basic Configuration / User / Add User

    - Click the Add, Modify, or Remove button for managing user account. Figure 14. Basic Configuration / User / Add User To add a new user: 1. Click the Add tab, and then new pop-up window appears. 2. Click in the User name box and type a new user name (1 to 14 alphanumeric characters). User names are not case sensitive.

  • Page 32: Figure 15. Basic Configuration / User / Modify User

    Figure 15. Basic Configuration / User / Modify User To modify a user: 1. Select one of the User Name in the User List Setting you want to modify. 2. Click the Modify tab, and then new pop-up window appears. 3.

  • Page 33: Network

    Network Use the Network tab to manage basic network settings. Figure 16. Basic Configuration / Network IP Address Configuration: The DHCP (Dynamic Host Configuration Protocol) server has a feature that automatically assigns an IP address to the device if there is a device on the network. Obtain IP address via DHCP: Select the choice box if you want to assign the IP address from DHCP server automatically, and then the remaining setting are read-only text.
  • Page 34 DNS Configuration: DNS (Domain Name Service) provides the translation of host names to IP addresses on your network. Obtain DNS server via DHCP: Select the choice box if you want to use the DNS server settings provided by the DHCP server automatically, and then the remaining setting are read-only text.

  • Page 35: Image

    Image Use the Image tab to adjust the camera image setting value and orientation. Figure 17. Basic Configuration / Image...
  • Page 36 Image Appearance: The image appearance allows you to adjust the camera setting parameters and change the camera orientation. All of parameters are recommended to be modifying for good image quality suitable for installation place. Brightness: Controls the brightness of detail in a scene. The brightness can be adjusted in the range -7~7.

  • Page 37: Audio

    Audio Use the Audio tab to manage the basic audio settings for the camera. Figure 18. Basic Configuration / Audio Audio Setting: Click the Enable audio checkbox to enable audio. This page describes how to configure the basic audio settings for the camera. This camera supports the audio full duplex that can be transmits and receives audio in both directions at a time.
  • Page 38 America. G.711 μ-law tends to give more resolution to higher range signals while G.711 A-law provides more quantization levels at lower signal levels. Audio Input: Adjusts the audio volume especially from the Mike. Input volume: The Input volume can be adjusted in the range from -21.00 to 21.00 dB. The default setting is 0 dB.

  • Page 39: Date & Time

    Date & Time Use the Date and Time tab to set the camera’s date and time by manually or automatically. Figure 19. Basic Configuration / Date & Time Current Server Time: Shows the current date and time. Date: The default setting is 1970-01-01. Time: The default setting is 00:00:00.
  • Page 40 Synchronize with NTP Server: This option will obtain the correct time from an NTP server every 60 minutes. The NTP server's IP address or host name is specified in the time server. Set manually: Using this option allows you to manually enter the date and time. Date &...

  • Page 41: Live View

    Live View Use the Source tab to configure the live view video source and composite video output properties. Source Configure the default live view source in the web browser and composite video output source. Figure 20. Live View / Source View Size: Select which formats do you want as default live view source.
  • Page 42 Default TV out: Configure the composite video output properties. Mode: Check the composite video output format. Source: Select one of the composite video output sources. The default setting is stream1. Sequence If you select Sequence, the composite video output repeats the video images on a single video pane according to <Sequence Mode Setting>.

  • Page 43: Video & Image

    Video & Image Use the Video & Image tab to select a preset camera stream configuration or configure custom video stream settings. The camera features multiple video streams with selectable settings for Profile, Resolution, Bit rate control, Compression, and Frame rate. The default names for the streams are Stream1, Stream2, Stream3, and Stream4.

  • Page 44: Image - Basic

    Image – Basic Use the Image-Basic tab to adjust the camera image setting values and orientation. Figure 21. Video & Image / Image - Basic...
  • Page 45 Image Appearance: The image appearance allows you to adjust the camera setting parameters and change the camera orientation. All of parameters are recommended to be modifying for good image quality suitable for installation place. Brightness: Controls the brightness of detail in a scene. The brightness can be adjusted in the range -7~7.

  • Page 46: Image - Auto Exposure

    Image – Auto Exposure Use the Auto Exposure tab to control the Auto Exposure. Figure 22. Video & Image / Image – Auto Exposure Exposure Control: Exposure is the amount of light detected by the camera sensor. A scene with correct exposure settings has adequate detail and contrast between white and dark values. An...
  • Page 47 image with too little or too much exposure determines detail in the scene. The camera features auto and manual exposure settings. Exposure mode: Supports exposure modes to control the amount of light detected by the camera sensor base on settings for light conditions. The default setting is Auto Auto Automatic Exposure.
  • Page 48 finest light contrast and get clear image. On the other hand, the wide dynamic range (WDR) function provides clear images even under back light circumstances where intensity of illumination can vary excessively, namely when there are both very bright and very dark areas simultaneously in the field of view of the camera.

  • Page 49: Image - Auto Focus

    Figure 23. Video & Image / Image – Auto Focus Focus Control: Auto focus intelligently adjusts the camera lens to obtain focus on the subject. Focus mode: KNS-2000FH provide various focus mode. Auto Focus is automatically adjusted always. Manual Focus is automatically adjusted during zoom or PTZ position is changed.
  • Page 50 Normal Reaches the highest focus speed quickly Improves the stability of the focus. Focus limit: Set the minimum focus length under 20x zoom ratio. The Focus limit can be adjusted in the range 1cm-25m. The default setting is 30cm. NOTE Avoid continuous, 24-hour use of the auto focus.

  • Page 51: Image - White Balance

    Image – White Balance Use the White Balance tab to control the white balance. Figure 24. Video & Image / Image – White Balance White Balance Control: White Balance Control defines how the camera processes video images to render true colors in a scene. White balance is especially effective in scenes with changing lighting conditions or in scene with more than one type of light source.
  • Page 52 The white balance in a scene will be automatically adjusted while temperature color changing suitable environment with light source having color temperature in the range roughly from 2000 ~ 10000K. Manual gain Enter to the manual gain setting mode. Outdoor Auto Select when the camera is installed at outdoor.

  • Page 53: Image - Privacy Mask

    Image – Privacy Mask Use the Privacy Mask tab to hide up to 12 unwanted screens in a camera. Figure 25. Video & Image / Image – Privacy Mask Privacy Mask Setting: The following step describes how to configure the privacy mask zone. 1.
  • Page 54 3. In order to change color of privacy mask, choose the color in Color cell. 4. In order to hide or display the privacy mask, choose on or off in Enable cell. 5. Click the privacy mask ID to move specific privacy mask zone. 6.

  • Page 55: Stream1

    Stream1 The Stream1 features the H.264 compression standard for primary stream. Figure 26. Video & Image / Stream1 H.264 Setting: Configures the H.264 setting value for stream1. Profile: Selects the stream profile that is to be used for transmissions. The default setting is Main. High The primary profile for broadcast and disc storage applications, particularly for HDTV (High-Definition television) or Blu-ray Disc...
  • Page 56 NOTE The maximum resolution setting might not be obtainable due to programmed compression standard and processor power. Bit rate control: The bit rate can be set as VBR (Variable Bit Rate) or CBR (Constant Bit Rate). Automatically adjusts the bit rate according to the image complexity, using up bandwidth for increased activity in the image, and less for lower activity in the monitored area.
  • Page 57 - Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it.

  • Page 58: Stream2

    Stream2 The Stream2 features the MJPEG compression standard for ROI. Figure 27. Video & Image / Stream2 MJPEG Setting: Configures the MJPEG setting value for stream2. Resolution: Specified as the number of pixel-columns (width) by the number of pixel-rows (height). The Resolution can be adjusted in the range from 320x240 to 720x576. The default setting is 720x480.

  • Page 59: Figure 28. Video & Image / Stream2 Roi Setting

    NOTES - The maximum frame rate setting might not be obtainable due to programmed compression standard, resolution of the stream, and processor power. - A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughput.
  • Page 60 4. User can save the ROI as a preset and access to preset position in easy way. First, selects the preset position and then just click “Go” button. NOTES - The ROI setting values in this page are applied as soon as clicking / moving. - ROI ZOOM function can slow down the performance of the camera - Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it.

  • Page 61: Stream3

    Stream3 The Stream3 features the H.264 compression standard for ROI. Figure 29. Video & Image / Stream3 H.264 Setting: Configures the H.264 setting value for stream3. Profile: Choose a profile. The default setting is Main. High The primary profile for broadcast and disc storage applications, particularly for HDTV (High-Definition television) or Blue-ray Disc applications.
  • Page 62 Resolution: Specified as the number of pixel-columns (width) by the number of pixel-rows (height). The Resolution can be adjusted in the range from 320x240 to 720x576. The default setting is 352x240. NOTE The maximum resolution setting might not be obtainable due to programmed compression standard and processor power.

  • Page 63: Figure 30. Video & Image / Stream3 Roi Setting

    GOP size: The higher value saves considerably on bandwidth but may have an adverse effect on image quality. Higher values are only recommended on networks with high reliability. The GOP size can be adjusted in the range from 1 to 20. The default setting is 10. Please consult with your network administrator before changing.

  • Page 64: Stream4

    4. User can save the ROI as a preset and access to preset position in easy way. First, selects the preset position and then just click “Go” button. NOTES - The ROI setting values in this page are applied as soon as clicking / moving. - ROI ZOOM function can slow down the performance of the camera - Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it.
  • Page 65 Profile: Choose a profile. The default setting is Main. High The primary profile for broadcast and disc storage applications, particularly f or HDTV (High-Definition television) or Blue-ray Disc applications. Main Originally intended as the mainstream consumer profile for broadcast and storage applications.
  • Page 66 - A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughput. GOP structure: Describes the composition of the video stream. This GOP (Group of Picture) setting configures the number of partial frames that occur between full frames in the video stream. For example, in a scene where a door opens and a person walks through, only the movements of the door and the person are stored by the video encoder.

  • Page 67: Figure 32. Video & Image / Stream4 Roi Setting

    Figure 32. Video & Image / Stream4 ROI Setting Configure ROI as follows: 1. Move the square box to specific region or adjust the size of square box if you want. 2. User can configure ROI setting using arrow key to move the position of square box or using scroll bar to adjust the size of square box.

  • Page 68: Webcasting

    Webcasting The KNS-2000FH can stream live video to a website. Copy the HTML code generated on the screen and paste it in page code of the website you want to display live video. Figure 33. Video & Image / Webcasting Webcasting HTML code: Supports 4 streams for webcasting service.

  • Page 69: Audio

    Audio This camera supports the audio full duplex that can be transmits and receives audio in both directions at a time. Basic Use the Audio tab to manage and configure the basic audio settings for the camera. Figure 34. Audio / Basic Audio Setting: Click the Enable audio checkbox to enable audio.
  • Page 70 NOTE G.711, also known as Pulse Code Modulation (PCM), is a very commonly used waveform codec. G.711 uses a sampling rate of 8,000 samples per second, with the tolerance on that rate 50 parts per million (ppm). Non-uniform quantization (logarithmic) with 8 bits is used to represent each sample, resulting in a 64 kbit/s bit rate.

  • Page 71: Event

    Event The Event tabs describe how and when the unit will perform certain actions. Alarm In, Manual Trigger and VMD may be set up as alarm sources. Event Out is often set up to upload images, send email and activate output ports. Many event actions require an Event server for their function. This server is used to receive uploaded Motion JPEG images.
  • Page 72 Type: The default setting is NO. -- NO: Normally Open As an example, if the Normal state for a pushbutton connected to an input is Open circuit, this means that as long as the button is not pushed (and the Current state remains as Open circuit), the state will be inactive.

  • Page 73: Event In - Manual Trigger

    Event In – Manual Trigger The Manual Trigger features an alarm out signaling, JPEG file transfer to FTP server, and sends email to SMTP server whenever operator clicks Manual Trigger button in the Live View window. Figure 36. Event / Event In – Manual Trigger Manual Trigger Setting: Click the Enable manual trigger checkbox to enable manual trigger.

  • Page 74: Event In - Vmd Stream1

    Event In – VMD Stream1 The VMD (Video Motion Detection) feature generates an alarm whenever movement occurs in the image. Motion is detected in selected windows, which are placed in the video image to target specific areas. Movement in the areas outside the selected windows will be ignored. The camera can be configured with up to maximum 4 include windows.
  • Page 75 Pre-Viewer: Provides live video image to configure VMD area. Video Motion Detection Setting: The following step describes how to configure the camera for motion detection. First, Click the Enable VMD stream1 checkbox to enable the VMD settings. 1. Move the mouse to Pre-Viewer window and then click the right button of the mouse. A new pop- up menu window appears.

  • Page 76: Event In - Vmd Stream3

    Event In – VMD Stream3 The VMD (Video Motion Detection) feature generates an alarm whenever movement occurs in the image. Motion is detected in selected windows, which are placed in the video image to target specific areas. Movement in the areas outside the selected windows will be ignored. The camera can be configured with up to maximum 4 include windows.
  • Page 77 Video Motion Detection Setting: The following step describes how to configure the camera for motion detection. First, Click the Enable VMD stream3 checkbox to enable the VMD settings. 1. Move the mouse to Pre-Viewer window and then click the right button of the mouse. A new pop- up menu window appears.

  • Page 78: Event In - Vmd Stream4

    Event In – VMD Stream4 The VMD (Video Motion Detection) feature generates an alarm whenever movement occurs in the image. Motion is detected in selected windows, which are placed in the video image to target specific areas. Movement in the areas outside the selected windows will be ignored. The camera can be configured with up to maximum 4 include windows.
  • Page 79 Video Motion Detection Setting: The following step describes how to configure the camera for motion detection. First, Click the Enable VMD stream4 checkbox to enable the VMD settings. 1. Move the mouse to Pre-Viewer window and then click the right button of the mouse. A new pop- up menu window appears.

  • Page 80: Event Out - Smtp (Email)

    Event Out – SMTP (Email) Use the Simple Mail Transfer Protocol (SMTP) server to send an email notification when an event server is activated. The camera can be configured to send event and email messages via SMTP. If your mail server requires authentication, click the Use (SMTP) authentication checkbox for use authentication to log in to this server.
  • Page 81 Use Email server: Click the Use Email server checkbox and provide the following information for Email server. Email server: Enter the host names or IP addresses for your mail servers in the fields provided. NOTE If a host name is used, a valid DNS server must be specified in the Network-Basic settings. Port: Enter the SMTP server port number for the SMTP Server.

  • Page 82: Event Out - Ftp & Jpeg

    NOTE Consult with your network administrator for more information on configuring email notification on your local network. - Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it. Event Out –...
  • Page 83 both the FTP control and data connections to the target server. This is normally desirable if there is a firewall between the network camera and the target FTP server. Port: Enter the port number used by the FTP server. The Port number can be adjusted in the range 1-65535.

  • Page 84: Event Out - Http Server

    Event Out – HTTP Server Use the HTTP (Hypertext Transfer Protocol) server to send an event notification when camera detects an event. The camera can be configured to send an event to the HTTP server. Figure 42. Event / Event Out – HTTP Server. Click the Enable HTTP server checkbox and provide the following HTTP Server Setting: information for HTTP server.

  • Page 85: Event Out - Alarm Out

    Send message: Enter the test message. NOTE Consult with your network administrator for more information on configuring HTTP notification on your local network. - Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it.

  • Page 86: Event Out - Audio Alert

    -- NO: Normally Open -- NC: Normally Close - Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it. Event Out – Audio Alert When the network camera detects an event such as Alarm or Motion, it can output a predefined audio data to external speaker.
  • Page 87 NOTE For a proper operation of audio alert function, you must check the Enable audio in the Audio setting page. - Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it.

  • Page 88: Figure 47. Event / Event Out - Audio Alert / Encode Setup

    Figure 46. Event / Event Out – Audio Alert / Encode Setup NOTE All parameters must be synchronized with ones in audio setting page of network devices for a proper operation.

  • Page 89: Event Out - Ptz Preset

    Event Out – PTZ Preset The KNS-2000FH supports preset position moving with event. Figure 47. Event / Event Out – PTZ Preset PTZ Preset Setting: Click the Enable PTZ preset checkbox to enable the PTZ preset. When the camera detects an event, you can make a PTZ camera connected to its RS485 port to move to a predefined preset position.

  • Page 90: Event Out - Record

    Event Out – Record When the network camera detects an event such as Alarm or Motion, it records the stream1 according to user settings. Figure 48. Event / Event Out – Record Record Setting: Click the Enable record checkbox to activate SD recording function. Enable overwrite mode: Click checkbox to overwrite SD card Pre-event:...
  • Page 91 3. Available: Shows that SD card is ready to use. 4. Device Locked (need unlock): Shows that current SD card was locked. Unlock SD card before use. Device Remove: If you want to remove SD card from camera, click the Remove button first and then remove SD card.

  • Page 92: Event Map

    Event Map This page shows current configuration status when event is activated. The common event actions will upload images to a specified destination or send an email or active an output port Figure 49. Event / Event Map Event Map List: An event type is a set of parameters describing how the camera will perform certain actions.
  • Page 93 Modify: To modify an existing event map list, select it and click the Modify button. Remove: To delete an event map list, select it and click the Remove button.

  • Page 94: Event Map - Add

    Event Map - Add Event Map page provides how to configure the event action if there is event triggering such as Alarm-In and Manual trigger. Figure 50. Event / Event Map – Add...
  • Page 95 General: Enter the user favorite event name. Name: Click in the Name box and type a user favorite event name (1 to 31 alphanumeric characters). Event In: Shows the Event source type to be configured. Type: Selects the Event source type. Event Out: The Event Out provides that the camera will perform certain actions.

  • Page 96: Dome Configuration

    Dome Configuration Auto Scan Auto scan is to scan pre-defined area at the same frequency. This function supports up to 17 programmed angles at user-programmable speeds. Figure 51. Dome Configuration / Auto Scan Auto scan number: Select auto scan number to save or delete auto scan information. The auto scan number can be adjusted in the range 1-17.

  • Page 97: Figure 52. Dome Configuration / Auto Scan

    Normal Move from start point to end point in panning only. Vector Move from start point to end point including tilt and zoom simultaneously and linearly. In some model, the zoom is fixed at wider angle and the zoom. Random Move randomly between the start point and the end point.
  • Page 98 NOTE 09: AUTO PAN mode (Endless panning) - Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it.

  • Page 99: Preset

    Preset If you need to view specific places routinely, you should program presets. A preset is a programmed video scene with automatic pan, tilt, zoom, focus and AE settings. Once programmed, placing the number position and pressing go button on PTZ Control panel calls up that preset automatically.
  • Page 100 Figure 53. Dome Configuration / Preset Preset number: Select preset number to save or delete programmed preset. The preset number can be adjusted in the range 1-240. Title: Up to 6 characters. (alphanumeric characters and space) Dwell time: Set the Dwell Time that the PTZ will remain in a preset. 03-99 seconds. Focus: Set the focus mode in a preset.
  • Page 101 Slow auto exposure: Slow auto exposure allows you to reduce the exposure response speed. It allows you to lengthen the automatic exposure response speed from 1 second up to approximately 10 minutes. Shutter speed: Select the electronic shutter speed. It’s only available when Exposure mode is a Manual shutter mode and Manual mode.

  • Page 102: Tour

    Tour There are 8 programmable Tours. Each Tour consists of up to 40 Preset positions, Patterns, Scans or other Tours (second-level). Using second-level tours, it can be expanded to over 300 functions in a single tour. Figure 54. Dome Configuration / Tour Tour number: Select tour number to save or delete programmed tour.
  • Page 103 Title: Up to 6 characters. (alphanumeric characters and space) Scan type: Select the scan type for moving between presets. In the Tour mode, in conjunction with preset and Auto Scan, you can make the camera travel from a preset position to another preset position at a specific speed.
  • Page 104 Preset Click preset button for searching the stored preset. Tour Click tour button for searching the stored tour. Pattern Click pattern button for searching the stored pattern. Auto Scan Click pattern button for searching the stored auto scan. - Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it.

  • Page 105: Pattern

    Pattern The Pattern feature records user control of the selected dome camera. Figure 56. Dome Configuration / Pattern Pattern Setting: The following step describes how to configure the pattern 1. Click in the Title box and type a title (1 to 6 alphanumeric characters and space). 2.
  • Page 106 4. Click "X" cell to delete pattern. NOTES - If the total recording time reaches 500 seconds, it will automatically stop for the moment.

  • Page 107: Osd

    OSD Setup menu provides control of displaying OSD. Figure 57. Dome Configuration / OSD Display: All display or title will disappear when Display option sets Off. Focus exposure: Focus and Exposure display when this option sets On. (AF AE) Camera Title: Up to 6 characters.

  • Page 108: Home

    Home The Home function can be set so that the camera automatically goes to Preset, Tour, Pattern or Auto Scan after the keyboard controller has been idle for a amount of time. For example, if the controller is idle for 120 seconds, the camera goes to preset 1. Figure 58.

  • Page 109: Motor Setup

    Motor Setup Motor Setup menu provides the pan and tilt speed of a camera. Figure 59. Dome Configuration / Motor Setup Proportional P/T: Select on for using Proportional P/T mode. The default setting is on. P/T mode: Select Slow, Normal or Turbo for P/T mode. Slow Pan max: Select Pan maximum speed for slow P/T mode.

  • Page 110: View Angle

    - Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it. View Angle View Angle menu provides the pan and tilt range of a camera. Figure 60. Dome Configuration / View Angle Tilt over angle: This option is used to set the limit of the horizontal view angle so that the trim ring or ceiling does not obstruct the horizontal image when zooming out (wide angle).
  • Page 111 In some installations it is describe for the dome camera to be able to see above the horizon. When this option is chosen, the dome will tilt up over the horizon (About -10 degrees). When the lens is zoomed out, you can see the ceiling line. But when the lens is zoomed in, the viewing angle is narrower, and the ceiling line disappears.

  • Page 112: System Menu

    System Menu System menu provides the dome information and control the dome answer. Figure 61. Dome Configuration / System Menu Dome Information: The system information provides essential information about the dome if service is required. The information cannot be modified. Calibration: Select on or off for auto origin check.
  • Page 113 Backup: Click the Backup button to take a backup of all the parameters, and any user-defined script. Restore: Use a saved backup file to return the unit to a previous configuration. Restore: Click the Browse button to locate the saved backup file and then click the Restore button. - Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it.

  • Page 114: Rs485

    RS485 The Network Dome Camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS485 half-duplex serial communications signals. Figure 62. Dome Configuration / RS485 Enter identification number for external PTZ device. The ID can be adjusted in the range 1- 3999.

  • Page 115: System

    System The System tabs features various system information especially network security, advanced network setting parameters, system configurations and maintenance. Security - Information You can enter the system information. This page is very useful when you refer device information after installation. Figure 63.

  • Page 116: Security - Users

    Security - Users Use the Users tab to provide user permission to access the camera and lists User name and User Group accounting. Figure 64. System / Security – Users User Setting: Click the Enable anonymous viewer login checkbox to permit the anonymous user login to the camera.
  • Page 117 Figure 65. System / Security / Users – Add User To add a new user: 1. Click the Add tab, and then new pop-up window appears. 2. Click in the User name box and type a new user name (1 to 14 alphanumeric characters). User names are not case sensitive.
  • Page 118 Figure 66. System / Security / Users – Modify User To modify a user: 1. Select one of the User Name in the User List Setting you want to modify. 2. Click the Modify tab, and then new pop-up window appears. 3.

  • Page 119: Security - Https

    Security - HTTPS Use the HTTPS tab to allow user access to the camera using web browser encrypted communication. Figure 67. System / Security – HTTPS HTTPS Connection Policy: Provides the connection policy when user access to the camera using web browser. Connection mode: The default setting is HTTP&HTTPS.
  • Page 120 NOTES - To ensure security on the internet, all web browsers provide several security levels that can be adjusted for site that use SSL (Secure Socket Layer) technology to transfer data. SSL encrypts communications, making it difficult for unauthorized users to intercept and view user names and passwords.

  • Page 121: Security - Ip Filtering

    Security – IP Filtering Use the IP Filtering tab to active the IP address filtering function that decides which IP address will be allowed normally and which will be denied. Figure 68. System / Security – IP Filtering IP Filtering Setting: Provides the IP filtering elements such as On/Off, Priority, Policy and IP Ranges.

  • Page 122: Date & Time

    NOTES - To add a subnet of network addresses, these must be added in CIDR (Classless Inter-Domain Routing) notation. For example: entering 192.168.1.0/24 will add all the addresses in the range 192.168.1.1 to 192.168.1.254. Please contact with your network administrator for more detail. - If you are accessing the network camera via a proxy server, the IP address for the proxy server must be added as an allowed address.
  • Page 123 Time: The default setting is 00:00:00. New Server Time: Select the time zone where your camera is located. Click the Automatically adjust for daylight saving changes checkbox to automatically update the time changes caused by daylight saving. Time zone: The default setting is GMT. Time mode: The default setting is Set manually.

  • Page 124: Network

    Network Contact with your network administrator to avoid any network conflicts before setting or changing the IP address of the camera. Network - Basic Use the Network-Basic tab to manage the network settings. Figure 70. System / Network – Basic...
  • Page 125 IP Address Configuration: The DHCP (Dynamic Host Configuration Protocol) server has a feature that automatically assigns an IP address to the device if there is a device on the network. Obtain IP address via DHCP: Select the choice box if you want to assign the IP address from DHCP server automatically, and then the remaining setting are read-only text.

  • Page 126: Network - Ddns

    - Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it Network – DDNS The DDNS (Dynamic DNS) service can provide the camera with its own URL (web address), which can then be used to access it over the Internet.
  • Page 127 Internet DDNS (Dynamic Domain Naming Service): Provides user with host name to access the camera. Enable DDNS: Click the Enable DDNS checkbox to active DDNS service. DDNS server: Enter the DDNS server name. The default DDNS server is security-device.name Registered host: Enter the registered host name.

  • Page 128: Network - Rtp

    Network – RTP These RTP settings concern the IP addresses and port numbers to use for video and audio stream(s). Figure 72. System / Network – RTP Port Range: The RTP Port range defines the range of ports from which the video/audio ports are automatically selected.
  • Page 129 NOTE Limit the range of ports permitted for RTP unicast/multicast by entering the Start port and End port in the provided fields. Start port: The Start port can be entered in the range 1024-65532. The default setting is 5008. End port: The End port can be entered in the range 1024-65532.

  • Page 130: Network - Upnp

    Network – UPnP UPnP is enabled by default, and the network camera then is automatically detected by operating systems and clients that support this protocol. Figure 73. System / Network – UPnP UPnP Setting: Click the Enable UPnP checkbox to disable the UPnP. The default setting is enabling.

  • Page 131: Network - Qos

    Network – QoS Quality of Service (QoS) provides the means to guarantee a certain level of a specified resource to selected traffic on an IP network. Quality can be defined as e.g. a maintained level of bandwidth, low latency, no packet losses, etc. Figure 74.
  • Page 132 The types of traffic that can be marked are video, audio, event/alarm traffic and management network traffic. NOTES The main benefits of a QoS-aware network can be summarized as: - The ability to prioritize traffic and thus allow critical flows to be served before flows with lesser priority.

  • Page 133: Network - Bonjour

    Network – Bonjour The network camera includes support for Bonjour. When enabled, the network camera is automatically detected by operating systems and clients that support this protocol. Figure 75. System / Network – Bonjour NOTES Bonjour – Also known as zero-configuration networking, Bonjour enables devices to automatically discover each other on a network, without having to enter IP addresses to configure DNS servers.

  • Page 134: Network - Zeroconf

    Network – Zeroconf Zeroconfig allows the network camera to create assign IP address for network cameras and connect to a network automatically. Figure 76. System / Network - Zeroconf Zero configuration networking(zeoconf), is a set of techniques that automatically creates a usable Internet Protocol(IP) network without manual operator intervention or special configuration servers.

  • Page 135: Language

    Language Use the Language tab to configure the language supported. Figure 77. System / Language Language Setting: Provides the option of language supported. Language: The default setting is English. - Click the Save button to save the settings, or click the Reset button to clear all of the information you entered without saving it.

  • Page 136: Maintenance

    Maintenance Use Maintenance tab to maintain the camera especially software reset, upgrade, backup parameters and restore parameters. Figure 78. System / Maintenance Maintenance: Provides software reset of the camera when troubleshooting. Restart: The camera is restarted without changing any of the setting. Use this method if the unit is not behaving as expected.
  • Page 137 Upgrade: Provides the latest firmware into this camera. When you upgrade the firmware with a file, your camera receives the latest available functionality and unparalleled reliability. NOTE Always read the upgrade instructions and release notes before upgrading the firmware. Upgrade: Upgrades the new firmware as follows.

  • Page 138: Support

    Support The Log and Reports provides variable information on troubleshooting and contact information, should you require technical assistances. Figure 79. System / Support Log: The log file records event in the unit since the last system restart and can be a useful diagnostic tool when troubleshooting.

  • Page 139: About

    About Here you can fine basic information about this camera. Figure 80. About The About page shows basic information about this camera as follows: - Full HD / Megapixel Network Camera - Firmware version: - MAC address:...

  • Page 140: Technical Specifications

    Technical Specifications ------------------------------------------------------------------------------------------------------ Image - Lens -------------------------------------- Optical Zoom 20x (f= 4.7 ~ 94.0mm) - Imaging Device ------------------------- 1/2.8 Inch - Imager Type ---------------------------- CMOS Sensor - Imager Readout ------------------------ Progressive Scan - Resolution ------------------------------- Maximum 1920(H) x 1080(V) - Practical H-Angle ----------------------- Approx. 55.4° (w) – 2.9° (t) - White Balance Range ------------------ 2500°K - 9600°K - Low Light Sensitivity ------------------- F1.6, 50IRE -- Day Mode (Colour) --------- 1.7Lux...

  • Page 141: Ptz

    -- Stream4: H.264 - Frame Rate -------------------------------- 30fps@1920 x1080p, 30pfs@1280x1024p, 30fps@1280x960p, 30fps@1152x864p, 30fps@1280x720p, 30fps@720x576p, 30fps@720x480p, 30fps@640x480p, 30fps@320x240p - Available Resolutions and Maximum Frame Rate Maximum STREAM1 STREAM2 STREAM3 STREAM4 Frame Rate H.264 JPEG H.264 H.264 (NTSC/PAL) 1920x1080 720x576 ↓ 352x288 ↓ 352x288 ↓...

  • Page 142: Audio

    - Pattern------------------------------------------- 4 Patterns up to 200 seconds - OSD----------------------------------------------- Displays camera ID and Area name on screen Audio - Compression ----------------------------------- G.711 PCM 8 kHz (μ-law or A-law) - Streaming --------------------------------------- Full duplex - Input/Output ----------------------------------- External Microphone in / External Speaker out System Integration - Alarm Trigger ----------------------------------- External Alarm input signals, VMD, Manual - Alarm Events...

  • Page 143: Troubleshooting

    Troubleshooting ------------------------------------------------------------------------------------------------------------------------- If you suspect a problem is being caused by incorrect configuration or some other minor problem, consult the troubleshooting guide below. Upgrading the Firmware Firmware is software that determines the functionality of the network camera. One of your first actions when troubleshooting a problem should be to check the current firmware.
  • Page 144 → Check the Video & Image setting. 8. Blurred images. → Refocus the camera. 9. Poor image quality. → Increased lighting can often improve image quality. Check that there is sufficient lighting at the monitored location. Check all image and lighting settings. 10.
