Kodo Pro KSD-3610/A3 Instruction Manual

All-in-one dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

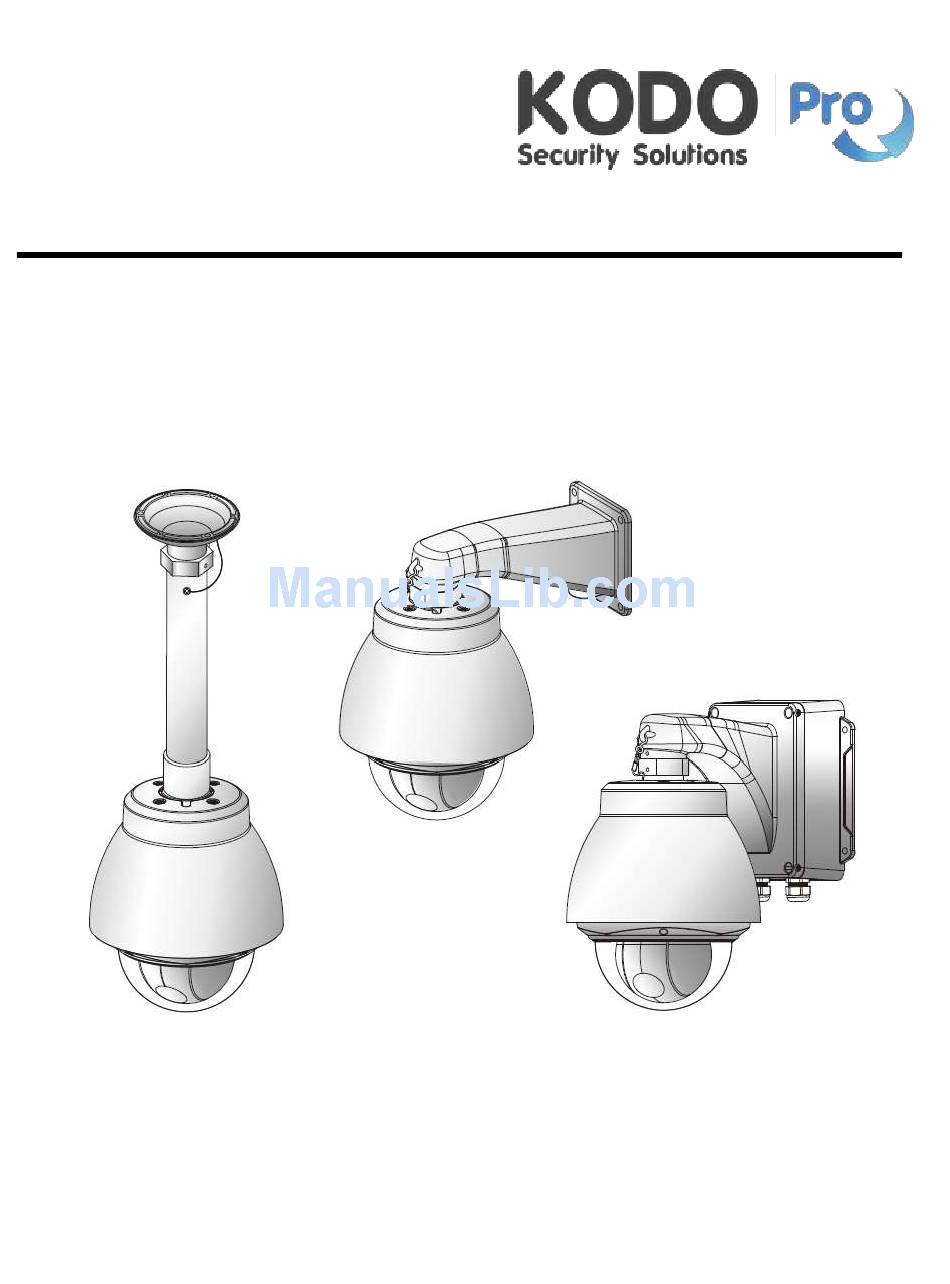

ALL-IN-ONE DOME CAMERA

Instruction Manual

KSD-3610/A3
www.kodobr.com.br
Please read this manual thoroughly before use and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSD-3610/A3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kodo Pro KSD-3610/A3

Summary of Contents for Kodo Pro KSD-3610/A3

  • Page 1: Instruction Manual

    ALL-IN-ONE DOME CAMERA Instruction Manual KSD-3610/A3 www.kodobr.com.br Please read this manual thoroughly before use and keep it handy for future reference.

  • Page 2: Warnings And Cautions

    Warnings and Cautions WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 3: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Clean only with dry cloth. 6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 — Introduction ....................1 1.1 Features ..........................1 Chapter 2 — Installation and Configuration ..............3 2.1 Package Contents ......................3 2.2 Installation ........................3 2.3 Basic Configuration of Dome Camera System .............. 4 2.4 Setting Dome Camera Termination & Fail-safe Network ..........6 2.5 Setting Dome Camera Address (ID) ................
  • Page 6 Appendix E — Wall Mount ..................48 Appendix F — Ceiling Mount ..................49...

  • Page 7: Chapter 1 - Introduction

    Chapter 1 — Introduction 1.1 Features The dome camera and the Keyboard Controller make up the building blocks for any surveillance/security system. Using multiple Keyboard Controllers and multiple dome cameras, no place is too large for monitoring. Extensible and flexible architecture facilitates remote control functions for a variety of external switching devices such as multiplexers and DVRs.
  • Page 8 Figure 1 – Typical System Configuration...

  • Page 9: Chapter 2 - Installation And Configuration

    Chapter 2 — Installation and Configuration 2.1 Package Contents AIO(All In One) is design to a compact, small size, hard Dome Camera Housing. The housing is constructed of aluminum, steel and plastic. The housing is designed to be mounted both wall and ceiling type. The housing meets the Protection Classification IP66 standards for dust and moisture resistance.

  • Page 10: Basic Configuration Of Dome Camera System

    2.3 Basic Configuration of Dome Camera System Figure 2 – Basic Installation Diagram The dome camera must be installed by qualified service personnel in accordance with all local and federal electrical and building codes.
  • Page 11 Figure 3 – Dome unlock As shown in Figure 3, Unlock by turning in the direction to remove the dome camera. Figure 4 – Layout of Switches...

  • Page 12: Setting Dome Camera Termination & Fail-Safe Network

    2.4 Setting Dome Camera Termination & Fail-safe Network Setting Dome Camera Termination The device which is connected at end of line, whether it be a dome camera or keyboard controller, must have the cable for communication terminated by setting the appropriate DIP switch.

  • Page 13: Setting Dome Camera Address (Id)

    2.5 Setting Dome Camera Address (ID) When the COMMUNICATION MODE is set to S/W Dome camera address (ID) and Protocol can be used by selecting from the MENU. You can call up the On-screen menu utility on your monitor by pressing MENU key on the keyboard controller, the following On-screen menu utility will appear: DOME MENU AUTO SCAN...
  • Page 14 When the COMMUNICATION MODE is set to H/W Dome camera address (ID) and Protocol can be used by selecting from the Hardware. To prevent damage, each dome camera must have a unique address (ID). When installing multiple dome cameras using a multiplexer, it is suggested that the dome camera address match the multiplexer port number.

  • Page 15: Setting Dome Camera Protocol

    2.6 Setting Dome Camera Protocol If a dome camera is to be installed with a Fastrax keyboard controller, select the default protocol. Consult service personnel if a dome camera is installed with device other than a keyboard controller. UNCTION NTSC S4-1 Enable Disable...

  • Page 16: Connections

    2.7 Connections Connector 1 :AC+ / AC- /G /R- /R+/G • Connecting the Power( AC+ / AC-) Connect the power of AC 24V 0.85A for the dome camera. Use certified / Listed Class 2 power supply transformer only. • Connecting to the RS485 (RS422 : Option) The dome camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS485 half-duplex serial communications signals.
  • Page 17 CONNECTOR 1 : AC+ / AC- /G /R- /R+/G CONNECTOR 2 : F+ / F- COLOR DESCRIPTION COLOR DESCRIPTION AC+: AC 24V BLACK F+: AC 24V (HEATER & FAN) AC-: ORANGE BROWN F-:AC 24V (HEATER & FAN) AC 24V YELLOW G:GND GREEN GRAY...

  • Page 18: Getting Started

    2.8 Getting Started Once installed apply power to the dome camera. The dome camera will start a configuration sequence. PRESET TITLE AREA TITLE AF AE STATUS of FUNCTION FOCUS and AE UNDER RUNNING CAMERA TITLE EMPTY DATA INFORMATION DISPLAY CAMERA ID DOMEID:0001 PAN &...

  • Page 19: Chapter 3 - Program And Operation

    Chapter 3 — Program and Operation 3.1 Dome Camera Selection Before you program or operate a dome camera, you must select the dome camera by pressing the dome camera No. + CAM Example: Pressing 1 , 0 and CAM key sequentially will select dome camera 10. The selected dome camera ID will be displayed on the LCD monitor of the keyboard controller.

  • Page 20: Auto Scan (Shortcut: Scan)

    Change value of angle CTRL + Joystick Enter the changing angle mode. IRIS Open IRIS Close Exit the changing angle mode. Escape (EXIT) 3.4 Auto Scan (Shortcut: SCAN) The Auto scan supports up to 17 programmed angles at user-programmable speeds. Follow these steps to program Auto Scan: AUTO SCAN SETUP NUMBER...
  • Page 21 TITLE EDIT MENU A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ( ) ALL DELETE EXIT (ESC TO EXIT) 5.

  • Page 22: Preset (Shortcut: Prst)

    Press SCAN key on the angle field to display with the small OSD. Then the screen will show as below. AUTO SCAN AREA SETUP (CTRL KEY) NUMBER01 START: ----- ----- --- : ----- ----- --- EXIT(ESC TO EXIT) The setting procedure is the same as above. NOTE: 09:AUTO-PAN mode(Endless panning) 3.5 Preset (Shortcut: PRST)
  • Page 23 2. Select the blank preset position to be stored by pushing the Joystick up, down, right, or left. 3. After selecting a blank position, press and hold CTRL, Use the Joystick to control the direction of the camera and lens. 4.

  • Page 24: Shortcut Of Preset Program

    8. Repeat steps 2 through 7 for each additional preset position. 9. Select Save and Exit by pushing the Joystick to the right. Press ESC to exit the Preset menu without saving. NOTE: Press the HOME key at programmed preset position(*) to delete a programmed preset view. The position, which is marked with *, already has the preset view assigned.

  • Page 25: Tour (Shortcut: Tour)

    3.7 Tour (Shortcut: TOUR) There are 8 programmable Tours. Each Tour consists of up to 42 Preset positions, Patterns, Scans or other Tours (second-level). Using second-level tours, it can be expanded to over 300 functions in a single tour. TOUR SETUP NUMBER TITLE SCAN TYPE...

  • Page 26: Pattern (Shortcut: Ptrn)

    9. Select Save and Exit and push the Joystick to the right. Press ESC to exit the program without saving. You can expand the Tour sequence by calling other programmed tours. NOTE: The speed applies in the vector mode only. NOTE: In the Tour mode, in conjunction with preset and Auto Scan, you can make the camera travel from a preset position to another preset position at a specific speed.
  • Page 27 Follow steps below to program the Pattern: 1. Press MENU to display the main menu on the monitor. Scroll to Pattern and push the Joystick to the right to enter the pattern menu. Or just press the PTRN key on the keyboard.

  • Page 28: Alarm

    3.9 Alarm ALARM SETUP NO PRI FUN IN OUT HLD LATCH 001 NC A01 NO OUT1 03 --- OFF OUT1 03 --- OFF OUT4 03 --- OFF OFF --- OFF OUT1 03 --- OFF OUT1 03 --- OFF OUT4 03 DWELL RELAY OUT SETUP SAVE AND EXIT(ESC TO CANCEL)

  • Page 29: Area Title

    ALARM SETUP ALARM DISABLED CHECK THE DIP SWITCH EXIT(ESC TO EXIT) There are 9 levels of priority. The function can be selected by Preset, Auto scan, Pattern or Tour and ―0‖ is the highest priority. Lower priority alarms won’t be serviced until the higher priority alarm is completed.

  • Page 30: Privacy Zone

    Or Press IRIS Open then the ―CTRL‖ displays. Move the desired position. Press IRIS Close then the ―CTRL‖ disappears. To adjust at the 0.1 degree interval, twist the Joystick at the pan field and the tilt field. 5. Select ―SWAP‖. Set to ON, to exchange the start angle and the end angle. 6.
  • Page 31 3. Place the cursor at the title field. Twist the Joystick to enter the title edit mode. Follow the procedure of the auto scan above to edit titles. 4. To turn the stored zone On or Off, twist the Joystick handle or press Tele or Wide Key. 5.

  • Page 32: Camera Menu

    3.12 Camera Menu CAMERA SETUP FOCUS CONTROL WB CONTROL AE CONTROL DNR CONTROL LINE LOCK CONTROL SHARPNESS : 05 RESOLUTION : LOW DIGITAL ZOOM : OFF IMAGE FLIP : OFF PRESET FREEZE : OFF STABILIZATION : OFF SAVE AND EXIT(ESC TO CANCEL) SHARPNESS The higher the value, the more edges in the picture will be enhanced (0~15)
  • Page 33 • WB (White Balance) CONTROL WB SETUP MODE R GAIN B GAIN SAVE AND EXIT(ESC TO CANCEL) MODE AWB / WAWB / INDOOR / OUTDOOR / MANUAL Computes the white balance value output using color information from the entire screen automatically. WAWB Wide range auto white balance mode.
  • Page 34 BACK LIGHT OFF / BLC / HLC (NOTE: When BLC or HLC, WDR will be disabled.) OFF / ON (NOTE: When ON, BACKLIGHT will be disabled.) WDR LEVEL LOW / MIDLOW / MID / MIDHIGH / HIGH NIGHT SHOT AUTO / ON / OFF / GLOBAL NOTE: Values in ( ) are for PAL Camera.

  • Page 35: Dome Setup

    3.13 Dome Setup CONFIGURATION MENU LANGUAGE : ENGLISH HOME FUNCTION SETUP OSD DISPLAY VIEW ANGLE SETUP INITIALIZE DATA ORIGIN OFFSET DOME RESET SYSTEM MENU SYSTEM INFORMATION SAVE AND EXIT(ESC TO CANCEL) • LANGUAGE SETUP LANGUAGE : Select the language you want. •...
  • Page 36 • OSD DISPLAY OSD DISPLAY SETUP CAMERA TITLE : DOMEID VIEW DIRECTION : OFF DOME OSD : ON AREA TITLE : OFF PRESET TITLE : CONSTANT FOCUS EXPOSURE : ON OSD POSITION SETUP SAVE AND EXIT(ESC TO CANCEL) CAMERA TITLE : up to 6 characters.
  • Page 37 • VIEW ANGLE SETUP VIEW ANGLE SETUP PANNING RANGE FLIP : 90 TILT OVER ANGLE : ON SAVE AND EXIT(ESC TO CANCEL) FLIP: OFF,90,100,110,120,AUTO(18X,26X,36X MODEL) : ON,OFF(22X MODEL) OFF: the dome camera moves until 90 vertically. 90, 100, 110, 120: allows the image to flip digitally when the camera moves over the setting angle vertically.
  • Page 38 To exchange the right and the left limit, set SWAP to ON. To apply limits on the auto pan (endless panning), set AUTO PAN to ON. NOTE: When you use the panning range, we recommend using the flip mode to AUTO. When the flip mode is 90, 100, 110...
  • Page 39 ERASE PROGRAMMED DATA AUTO SCAN : ON PRESET : ON TOUR : ON PATTERN : ON ALARM : ON AREA TITLE : ON PRIVACY ZONE : ON CAMERA : ON DOME SETUP : ON ERASE SAVE AND EXIT(ESC TO CANCEL) PRESET FOCUS DEFAULT This menu set the default mode of the focus when you save the preset.
  • Page 40 • DOME RESET DOME RESET ARE YOU SURE ? CANCEL This feature is used to re-calibrate the orientation of a selected dome camera. Origin offset value is not affected by this function. (Offset is still valid after origin set) • SYSTEM MENU SYSTEM MENU MOTOR SETUP PASSWORD EDIT...
  • Page 41 MOTOR SETUP PROPOTIONAL P/T : ON P/T MODE : NORMAL SLOW PAN MAXIMUM 40/SEC SLOW TILT MAXIMUM 40/SEC NORMAL PAN MAXIMUM 90/SEC NORMAL TILT MAXIMUM : 90/SEC TURBO PAN MAXIMUM : 360/SEC TURBO TILT MAXIMUM : 100/SEC SAVE AND EXIT(ESC TO CANCEL) PROPOTIONAL P/T : ON / OFF P/T MODE...

  • Page 42: Dome Communication

    When the password enable is on, the input password window displays to enter the menu. At this time, move the cursor to the desired character by the joystick and press CTRL or IRIS OPEN. • SYSTEM INFORMATION SYSTEM INFORMATION CAMERA TYPE : xxxx H/W VERSION : Vx.xx...

  • Page 43: Function Run

    3.15 Function Run This Function Run menu allows you to execute the function when you use a keyboard or a DVR without the function keys (Preset, Pattern, Tour and scan). FUNCTION RUN SETUP (CTRL KEY) PRESET : --- PATTERN : --- TOUR : --- SCAN...

  • Page 44: Motion Setup

    3.16 Motion Setup The motion detection function is available in the preset mode only. After you set the motion in any preset, when you call the preset with the motion, the motion detection operates. In the preset setup, you can set the motion setup as below. PRESET SETUP PRESET CAMERA SETUP NUMBER...

  • Page 45: Appendix A - Specifications

    Appendix A — Specifications 22X Optical Zoom Fastrax Dome System MODEL MODULE CCD Type 1/4" Super HAD CCD II (Double Scan) Optical / Digital Zoom 22X / 16X Resolution (NTSC/PAL) 700 TVL Focal length f = 3.9mm ~ 85.8mm 3.9mm – 49.5° (H) Angle of view 85.8mm –...
  • Page 46 Electrical 24VAC 0.85A for dome Power Requirement 24VAC 2.2A for heater and fan Maximum 20W for dome Power Consumption Maximum 50W for heater Maximum 2.4W for fan Alarm Output 4 Normal relays 24VDC/1A Max. (selectable NC/NO) Alarm Input 8 Normal dry contact (selectable NC/NO) RS-485/422 baud rate: 2400~38.4k bps Control (default: 9600bps)
  • Page 47 Figure 9 – Dimension...

  • Page 48: Appendix B - Troubleshooting

    Appendix B — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of...

  • Page 49: Appendix C - Glossary

    Appendix C — Glossary Alarm Actions The assigned responses for the dome camera when inputs change from normal to abnormal states. The dome may run a Preset, Pattern, or have no assigned action for each of the eight dome inputs. The dome may also send alarm states to the host controller for processing. See also Input Alarm and Normal Input State.

  • Page 50: Line Lock

    IR Mode A feature of the camera that permits manual or automatic switching between color and IR (black-and-white) operation. When IR mode is active, clearer images may be obtained under low-light conditions. Line Lock Allows you to phase lock the video with the AC power line. When line lock is enabled, it prevents vertical video rolling when switching multiple cameras to a single monitor.

  • Page 51: Privacy Zones

    Privacy Zones Masked areas of the dome camera's viewing area. These masks prevent operators of the surveillance system from viewing these designated zones. The Privacy Zones move in relation to the dome camera’s pan/tilt position. In addition, the apparent size of the Privacy Zone adjusts automatically as the lens zooms in or out.

  • Page 52: Appendix D - Short Cut Key

    Appendix D — Short Cut Key Short Cut Key Function PRST Pop up preset setup menu. TOUR Pop up Tour setup menu. PTRN Pop up Pattern setup menu. SCAN Pop up Auto Scan setup menu. NO.+ CTRL+PRST Store the current view at the selected number. Short Cut Key Function Short Cut Key...
  • Page 53 Short Cut Key Function Short Cut Key Function Go to the normal speed 153 + ON Go to the slow speed mode 153 + OFF mode 154 + ON Display System Information 155 + ON Flip the camera in the 180° area horizontally. 250 + PRST Set the dome ID up to 3999 888 + ENTER...
  • Page 54 Appendix E — Wall Mount 1. Select a suitable mounting location and verify there is sufficient cable to reach the middle of the Wall Mount. 2. Mark and drill mounting holes in the surface using the Wall Mount Flange. 3. Pull out cables required to connect to the dome camera from the wall or route cables through a section of 0.75 in.
  • Page 55 Appendix F — Ceiling Mount 1. Select a suitable mounting location and verify there is sufficient cable to connect with cables from the housing. 2. Mark and drill mounting holes in the surface using the ceiling mount flange. 3. Pull out cables required to connect to the dome camera from the ceiling.
  • Page 56 All-In-One DOME CAMERA PRINTED IN KOREA 50303437A...
