Congratulations on your purchase of a high-quality
Insignia product. Your NS-PRCL01 represents the state
of the art in projection clock radio design and is
designed for reliable and trouble-free performance.
Package contents
• Projection clock radio
• AC-DC adapter
• CR2032 x 1 battery
• User Guide

• Quick Setup Guide

Step 2 Install the backup battery

Install the backup battery to maintain the correct time in case the AC power fails.
1 Make sure that the AC adapter is unplugged from the power outlet.
2 Turn your clock radio around so the back is facing forward, then unscrew
the circular backup battery cover.
3 Insert one CR2032 button cell battery (included) into the battery
compartment. Make sure that the + symbol on the battery is facing out.
4 Reinstall the backup battery slot cover.
5 Plug the AC adapter into your clock radio and a power outlet.

Step 1 Get to know your Projection Clock Radio

Check out the front, side, and back panels to familiarize yourself with button controls and connection options. See your User Manual for more information on
buttons and LED.
Front
1
RADIO ON/OFF
8
ALARM 2
2
AM/FM
9
PROJECT
3
SLEEP
10 ROTATE
4
PRESET MEMORY
11 Projector lens
5
SNOOZE/DIMMER
12 LCD DISPLAY
6
TIME SET
13 Projector focus-adjustment ring
7
ALARM 1
14 Projector unit

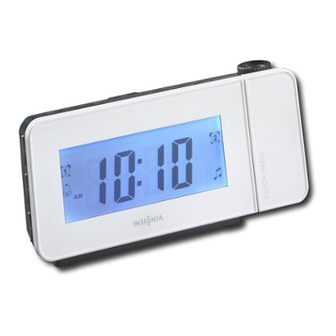

NS-PRCL01 Projection Clock Radio
Top
LED

Step 3 Plug in your Projection Clock Radio using the AC adapter

1 Place your clock radio in a convenient place near a power outlet within range
of the AC adapter.
2 Plug the AC adapter into the power outlet.
3 Plug the AC adapter into the DCIN 6V jack on the radio.
Quick Setup Guide
1
TUNING+/TIME+
2
TUNING-/TIME-
3
PRESET+
4
PRESET–
5
VOLUME+
6
VOLUME-
7
Backup battery
slot
8
DCIN 6V jack
9
ANT
10 SPEAKER
1
RADIO
2
SLEEP
3
SNOOZE
4
VOL
5
MEM
6
Alarm 2
7
Preset station
number
8
Main display
9
Alarm 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-PRCL01 and is the answer not in the manual?

Questions and answers

KENNETH BENNETT
April 27, 2025

can not set time or change radio station

0
2 comments:
KENNETH BENNETT
April 27, 2025

@KENNETH BENNETT

0
Mr. Anderson
May 15, 2025

To set the time on the Insignia NS-PRCL01:

1. Press and hold TIME SET until the hour blinks.
2. Press TIME+ or TIME– to set the hour.
3. Press TIME SET. The minutes will blink.
4. Press TIME+ or TIME– to set the minutes.
5. Press TIME SET to confirm.

To change the radio station:

1. Press RADIO ON/OFF to turn on the radio.
2. Press AM/FM to select the desired band.
3. Press TUNING+ or TUNING– to tune manually.
4. To auto search, press and hold TUNING+ or TUNING– for more than two seconds.
