Insignia NS-CLWL01 User Manual

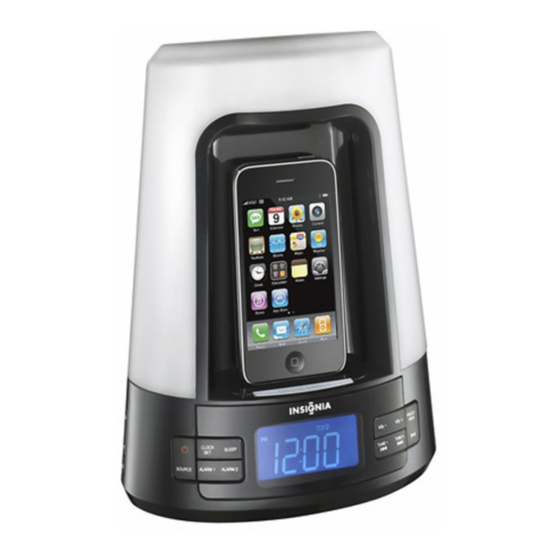

Clock radio with wake-up light and dock for ipod
Hide thumbs Also See for NS-CLWL01:
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
Clock Radio with Wake-Up Light and Dock for iPod
NS-CLWL01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-CLWL01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Insignia NS-CLWL01

Summary of Contents for Insignia NS-CLWL01

  • Page 1 User Guide Clock Radio with Wake-Up Light and Dock for iPod NS-CLWL01...

  • Page 2: Table Of Contents

    Contents Important safety information ........2 Features .
  • Page 3 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

  • Page 4: Features

    Protecting your furniture This system is equipped with non-skid black rubber “feet” to prevent the product from moving when you operate the controls. These “feet” are made from non-migrating rubber material specially formulated to avoid leaving any marks or stains on your furniture. However certain types of oil based furniture polishes, wood preservatives, or cleaning sprays may cause the rubber “feet”...

  • Page 5: Front

    Front Item Description Lamp shade Covers the wake-up light. SLEEP button Press to set the sleep timer. The sleep timer lets you select the amount of time you want your clock radio to wait before it automatically turns off. You can select , , , , , (turns off the sleep timer).

  • Page 6: Side

    Item Description SNOOZE/DIMMER In any mode, press to change the brightness of the display. button In alarm mode, press to temporarily turn off the alarm. The alarm will sound again in nine minutes. VOL+ and VOL– Press to increase or decrease the volume. buttons PRESET/MEM button Press to preset stations.

  • Page 7: Back

    Back Item Description DC IN jack Connect the AC adapter to this jack. For more information, see “Connecting the AC adapter” on page 10. Battery compartment Install the backup batteries in this compartment. For more information, see “Installing the backup batteries” on page 9. FM antenna wire Extend and adjust the antenna wire to get the best radio reception.

  • Page 8: Lcd

    Item Description AM/PM indicator Indicates whether the current time is AM or PM. FM indicator Lights when the FM radio is turned on. AUX indicator Lights when the device connected to the AUX IN jack is turned on. iPod indicator Lights when the iPod in the iPod dock is turned on.

  • Page 9: Setting Up Your Clock Radio

    Setting up your clock radio Installing the backup batteries If backup batteries are not installed, the low battery icon appears on the LCD. To install the backup batteries: 1 Push the battery cover locking tab in the direction of the arrow, then remove the cover.

  • Page 10: Connecting The Ac Adapter

    Connecting the AC adapter To connect the AC adapter: • Connect one end of the AC adapter cable into the DC IN jack on the back of your clock radio, then plug the other end into a power outlet. If you do not plan to use your clock radio for a extended period of time, unplug the AC adapter from the DC IN jack and the power outlet.

  • Page 11: Connecting An External Device

    Connecting an external device You can connect an external device, such as an MP3 player, and play files through your clock radio speakers. To connect an external device: 1 Plug an 3.5 mm audio cable (not included) into the AUX IN jack on the back of your clock radio and into the audio out jack on the external device.

  • Page 12: Setting The Time

    Setting the time To set the time: 1 Press and hold CLOCK SET for about three seconds. The hour flashes on the LCD. 2 Press TUNE+/ or TUNE–/ to set the hour, then press CLOCK SET to save your setting. The minutes flash on the LCD. You can also press and hold TUNE+/ or TUNE–/ to move quickly through...

  • Page 13: Using The Snooze Feature

    To set the sleep timer: • Press SLEEP one or more times or press and hold SLEEP to select the amount of time you want your clock radio to wait before it automatically turns off. You can select 90, 60, 45, 30, or 15 minutes.

  • Page 14: Playing Ipod Files

    To use the wake-up light: • To turn the wake-up light on or off, press wake-up LIGHT ON/OFF. • To adjust the wake-up light brightness, press LIGHT or . Playing iPod files To play iPod files: 1 Insert the iPod into the iPod dock. See “Docking an iPod or iPhone” on page 10.

  • Page 15: Troubleshooting

    Troubleshooting Problem Solution FM radio Radio does not play. • Make sure that your clock radio is turned on. • Press to make sure that FM is selected. Radio sound is distorted. • Make sure that the antenna wire on the back of your clock radio is fully extended.

  • Page 16: Specifications

    Specifications Power source AC ~120V-240V AC-DC adapter DC 3V - 2 × AAA or UM-4 batteries or equivalent for memory backup Power consumption Frequency range FM 87.5 - 107.9 MHz Output power 2 × 2W RMS Dimensions (W × D × H) 6.98 ×...

  • Page 17: 90-Day Limited Warranty

    Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 18 Damage due to incorrect operation or maintenance • Connection to an incorrect voltage supply • Attempted repair by anyone other than a facility authorized by Insignia to service the Product • Products sold as is or with all faults •...
  • Page 19 www.insigniaproducts.com...
  • Page 20 7601 Penn Avenue South, Richfield, MN USA 55423-3645 © 2011 BBY Solutions, Inc. All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
