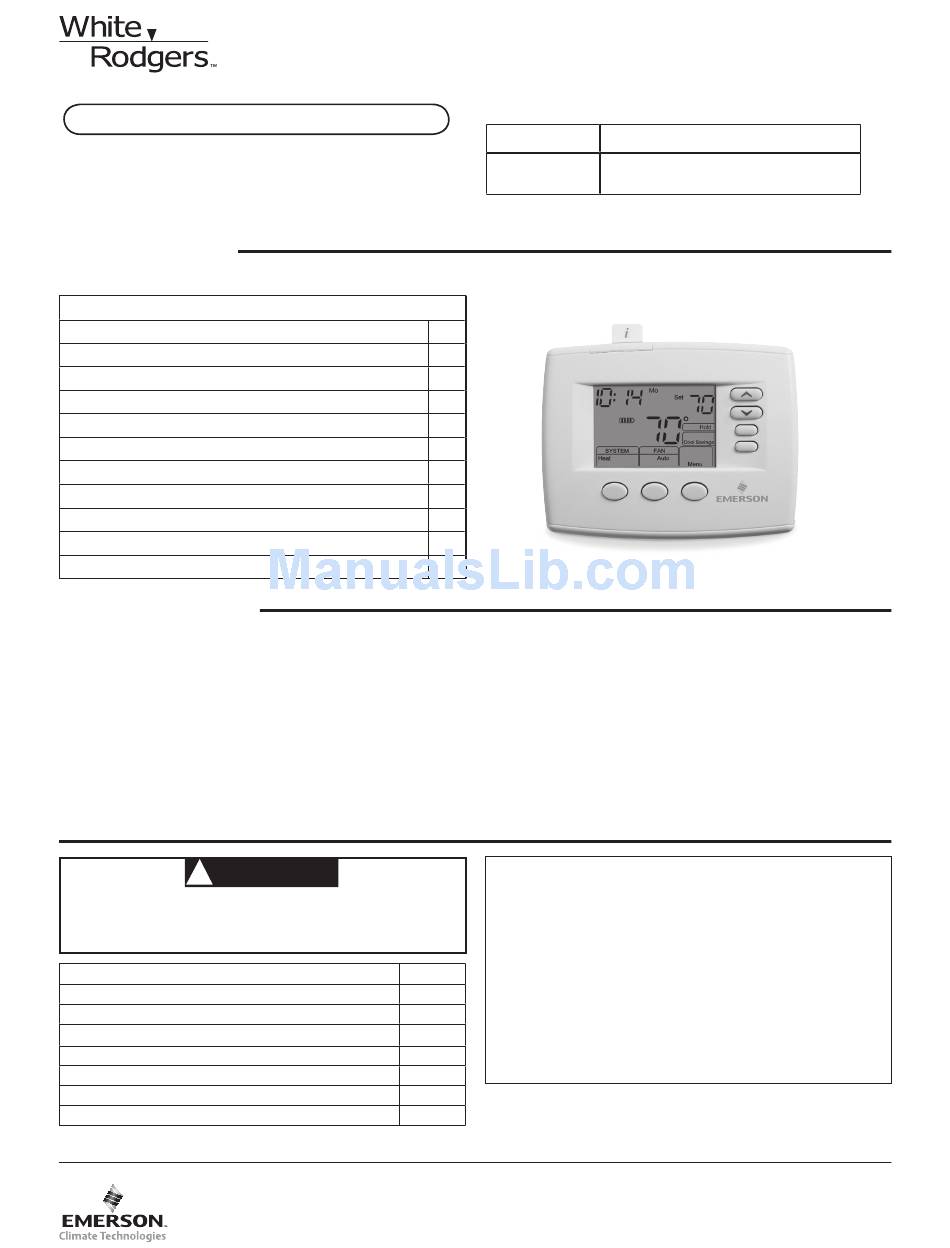

Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS
CAREFULLY BEFORE INSTALLING OR OPERATING
THIS CONTROL COULD CAUSE PERSONAL INJURY
AND/OR PROPERTY DAMAGE.
APPLICATIONS
THERMOSTAT APPLICATION GUIDE
Description
Heat Pump (No Aux. or Emergency Heat)
Heat Pump (with Aux. or Emergency Heat)
Systems with up to 2 Stages Heat, 2 Stages Cool
Heat Only Systems (with optional fan switch)
Millivolt Heat Only Systems – Floor or Wall Furnaces
Cool Only Systems
Gas or Oil Heat
Electric Furnace
Hydronic (Hot Water) Zone Heat – 2 Wires
Hydronic (Hot Water) Zone Heat – 3 Wires
Compressor with Comfort Alert II Module (1F85CA only)
SPECIFICATIONS
Electrical Rating:
Battery Power .................................................... mV to 30 VAC, NEC Class II, 50/60 Hz or DC
Input-Hardwire ................................................... 20 to 30 VAC
Terminal Load ........................................................... 1.5 A per terminal, 2.5A maximum all terminals combined
Setpoint Range ......................................................... 45° to 90°F (7° to 32°C)
Differential (Single Stage) ......................................... Heat 0.6°F; Cool 1.2°F (adjustable)
Differential (Heat Pump) ........................................... Heat 1.2°F; Cool 1.2°F (adjustable)
Operating Ambient .................................................... 32° to +105°F (0° to +41°C)
Operating Humidity ................................................... 90% non-condensing max.
Shipping Temperature Range ................................... -40° to +150°F (-40° to +65°C)
Dimensions Thermostat ............................................ 3-7/8"H x 5-1/8"W x 1-1/4"D
CAUTION
!
To prevent electrical shock and/or equipment damage,
disconnect electric power to system at main fuse or
circuit breaker box until installation is complete.
Index
Installation
Wiring Connections
Wiring Diagrams
Thermostat Quick Reference
Installer Configuration Menu
Operating Your Thermostat
Troubleshooting
80 Series Thermostat with
Automatic Heat/Cool Changeover Option
Single Stage, Multi-Stage or Heat Pump
Installation and Operating Instructions for Model:
Model
1F83-0471
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
ATTENTION: MERCURY NOTICE
This product does not contain mercury. However, this product
may replace a product that contains mercury.
Mercury and products containing mercury must not be
discarded in household trash. Do not touch any spilled
Page
mercury. Wearing non-absorbent gloves, clean up any
spilled mercury and place in a sealed container. For proper
2
disposal of a product containing mercury or a sealed
2
container of spilled mercury, place it in a suitable shipping
3
container. Refer to www.white-rodgers.com for location to
4
send product containing mercury.
5
7
7
www.white-rodgers.com
www.emersonclimate.com
Programming Choice
Non-Programmable
1F83-0471 Thermostat
PART NO. 37-7149B
Replaces 37-7149A
1
1014
Advertisement
Table of Contents
Troubleshooting
Related Manuals for White Rodgers 1F83-0471
Summary of Contents for White Rodgers 1F83-0471
-
Page 1: Specifications
THIS CONTROL COULD CAUSE PERSONAL INJURY AND/OR PROPERTY DAMAGE. APPLICATIONS THERMOSTAT APPLICATION GUIDE 1F83-0471 Thermostat Description Heat Pump (No Aux. or Emergency Heat) Heat Pump (with Aux. or Emergency Heat) Systems with up to 2 Stages Heat, 2 Stages Cool Heat Only Systems (with optional fan switch) Millivolt Heat Only Systems –... -
Page 2: Installation
INSTALLATION Figure 1 – Battery door shown open WARNING Thermostat installation and all components of the control system shall conform to Class II circuits per “AA” Alkaline Batteries the NEC code. Remove Old Thermostat A standard heat/cool thermostat consists of three basic parts: The cover, which may be either a snap-on or hinge type. -
Page 3: Wiring Diagrams
WIRING DIAGRAMS Heat Pump Connections HEAT PUMP TYPE 1 (HP 1). Single stage compressor If you do not have a heat pump system, refer to figures 4-6. system; gas or electric backup. Refer to equipment manufacturers’ instructions for specific HEAT PUMP TYPE 2 (HP 2). Multi-stage compressor or two system wiring information. -
Page 4: Thermostat Quick Reference
THERMOSTAT QUICK REFERENCE Home Screen Description Figure 7 – Home Screen Display Room Setting Temperature Temperature Displays the power level of the 2 “AA” batteries: indicates good power level indicates batteries at about half power. “Change ” indicates batteries are low and should be replaced with 2 new premium brand SYSTEM “AA”... -
Page 5: Installer/Configuration Menu
INSTALLER/CONFIGURATION MENU Press the Menu button for at least 5 seconds. The display will show item #1 in the table below. Press Menu button to advance to the next menu item. Press to change a menu item. INSTALLER/CONFIGURATION MENU DISPLAYED PRESS Press MENU... - Page 6 INSTALLER/CONFIGURATION MENU Keypad Lockout – This menu selection will display “Lk” If “Save” is not displayed and this feature is OFF, no and “OFF” (default, keypad not locked out). The change will occur when the cooling system is continu- are used to toggle the selection between “OFF” and ously running during periods of high demand.
-
Page 7: Operating Your Thermostat
INSTALLER/CONFIGURATION MENU 17) Comfort Alert with Active Protection – Turn this period from 25 to 1975 hours in 25 hours increments. feature ON to enable active protection. This allows the In a typical system, 200 hours (default) of run time is thermostat to identify fault codes sent by the Comfort approximately 30 days. -
Page 8: Reset Operation
TROUBLESHOOTING Reset Operation function correctly contact your heating/cooling service person Note: When thermostat is reset, installer configuration menu or place of purchase. settings and programming will reset to factory settings. Note: Be sure to review the installer configuration menu If a voltage spike or static discharge blanks out the display settings.
