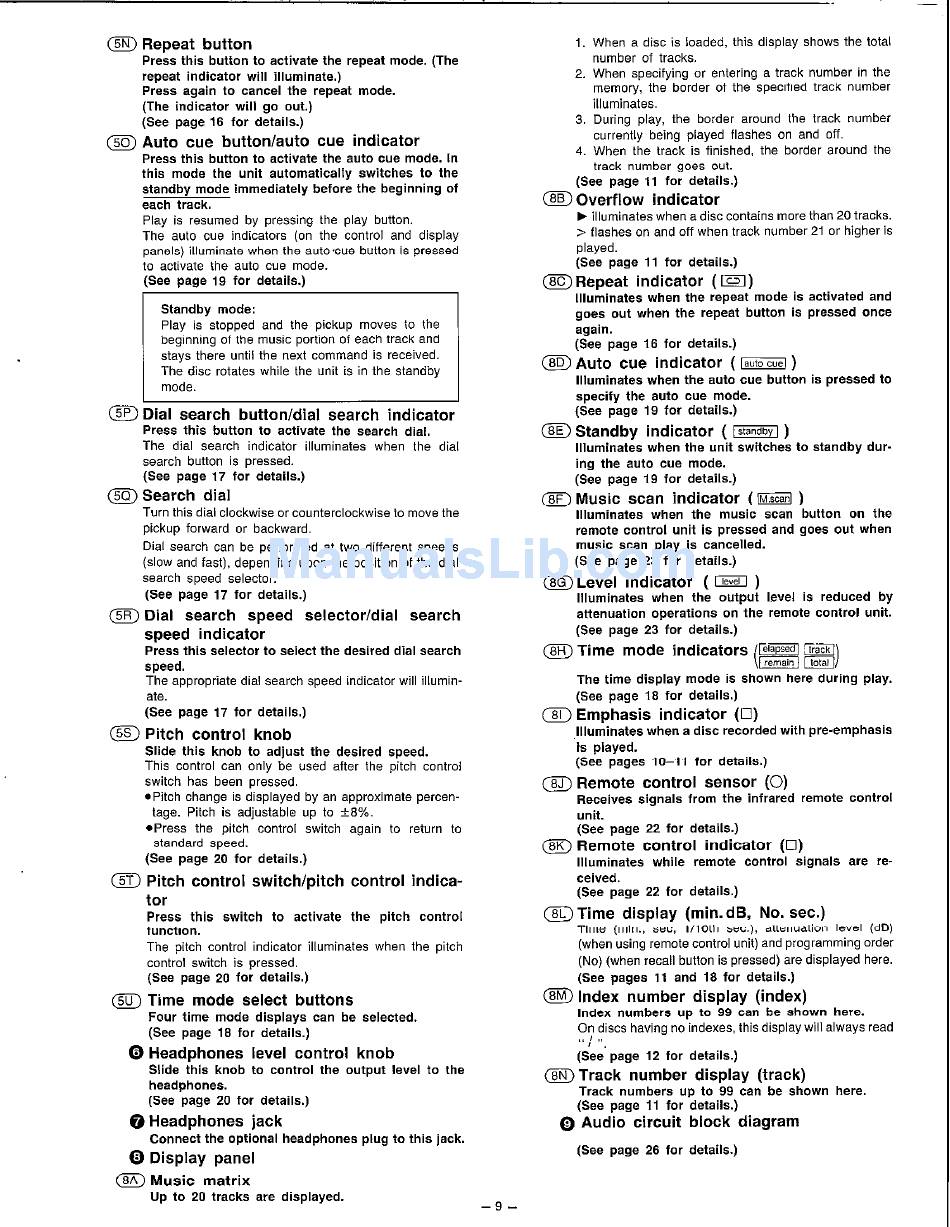

m Repeat button
Press this button to activate the repeat mode. (The
repeat indicator will illuminate.)
Press again to cancel the repeat mode.
(The indicator will go out.)
(See page 16 for details.)
a
Auto
cue button/auto cue
indiCatOr
Press this button to activate the auto cue mode. In
this mode the unit automatically switches to the
standby mode immediately before the beginning of
each track.
Play is resumed by pressing the play button.
The auto cue indicators (on the control and display
panels) illuminate when the autowe button is pressed
to activate the auto cue mode.
(See page 19 for details.)
Play is stopped and the pickup moves lo the
beginning of the music portion of each track and
The disc rotates while the unit is in the standby
8 Dial search button/dial search indicator
Press this button to activate the search dial.
The dial search indicator illuminates when the dial
search button is pressed.
(See page 17 for details.)
@Q Search dial
Turn this dial clockwise or counterclockwise to move the
pickup forward or backward.
Dial search can be performed at two different speeds
(slow and fast), depending upon the position of the dial
search speed selector.
(See page 17 for details.)
m Dial search speed selector/dial search
speed indicator
Press this selector to select the desired dial search
speed.
The appropriate dial search speed indicator will illumin-
ate.
(See page 17 for details.)
0 Pitch control knob
Slide this knob to adjust the desired speed.
This control can only be used after the pitch control
switch has been pressed.
*Pitch change is displayed by an approximate percen-
tage. Pitch is adjustable up to CM%.
*Press the pitch control switch again to return to
standard speed.
(See page 2.0 for details.)
Q Pitch control switch/pitch control indica-
tor
Press this switch to activate the pitch control
function.
The pitch control indicator illuminates when the pitch
control switch is pressed.
(See page 20 for details.)
(ZJ Time mode select buttons
Four time mode displays can be selected.
(See page 18 for details.)
@ Headphones level control knob
Slide this knob to control the output level to the
headphones.
(See page 20 for details.)
0 Headphones jack
Connect the optional headphones plug to this jack.
0 Display panel
@) Music matrix
Up to 20 tracks are displayed.
-9-
1. When a disc is loaded, this display shows the total
number of tracks.
2. When specifying or entering a track number in the
memory, the border of the specified
track
number
illuminates.
3. During play, the border around the track number
currently being played flashes on and off
4. When the track is finished, the border around the
track number goes out.
(See page 11 for details.)
@@Overflow indicator
t illuminates when a disc contains more than 20 tracks.
> flashes on and off when track number 21 or higher is
played.
(See page 11 for details.)
@QRepeat indicator (a)
Illuminates when the repeat mode is activated and
goes out when the repeat button is pressed once
again.
(See page 16 for details.)
a Auto cue indicator ( laUto )
Illuminates when the auto cue button is pressed to
specify the auto cue mode.
(See page 19 for details.)
m Standby indicator ( / )
Illuminates when the unit switches to standby dur-
ing the auto cue mode.
(See page 19 for details.)
a Music
scan indicator (IM5Canl )
Illuminates when the music scan button on the
remote control unit is pressed and goes out when
music scan play is cancelled.
(See page 23 for details.)
aLevel indicator ( I )
Illuminates when the output level is reduced by
attenuation operations on the remote control unit.
(See page 23 for details.)
a Time mode indicators lelapEedl GXIi
(-1 riml
The time display mode is shown here during play.
(See page 19 for details.)
a Emphasis indicator (0)
Illuminates when a disc recorded with pre-emphasis
Is played.
(See pages IO-11 for details.)
a Remote control sensor (0)
Receives signals from the infrared remote control
unit.
(See page 22 for details.)
m Remote control indicator (0)
Illuminates while remote control signals are re-
ceived.
(see page '22 for details.)
a Time display (min.dB, No. sec.)
Time (min., set, 1110th sec.), attenuation level (dB)
(when using remote control unit) and programming order
(No) (when recall button is pressed) are displayed here.
(See pages 11 and 18 for details.)
@@ Index number display (index)
Index numbers up to 99 can be shown here.
p: fists having no indexes, this display wilt always read
(C&e' page 12 for details.)
m Track number display (track)
Track numbers up to 99 can be shown here.
(See page 11 for details.)
