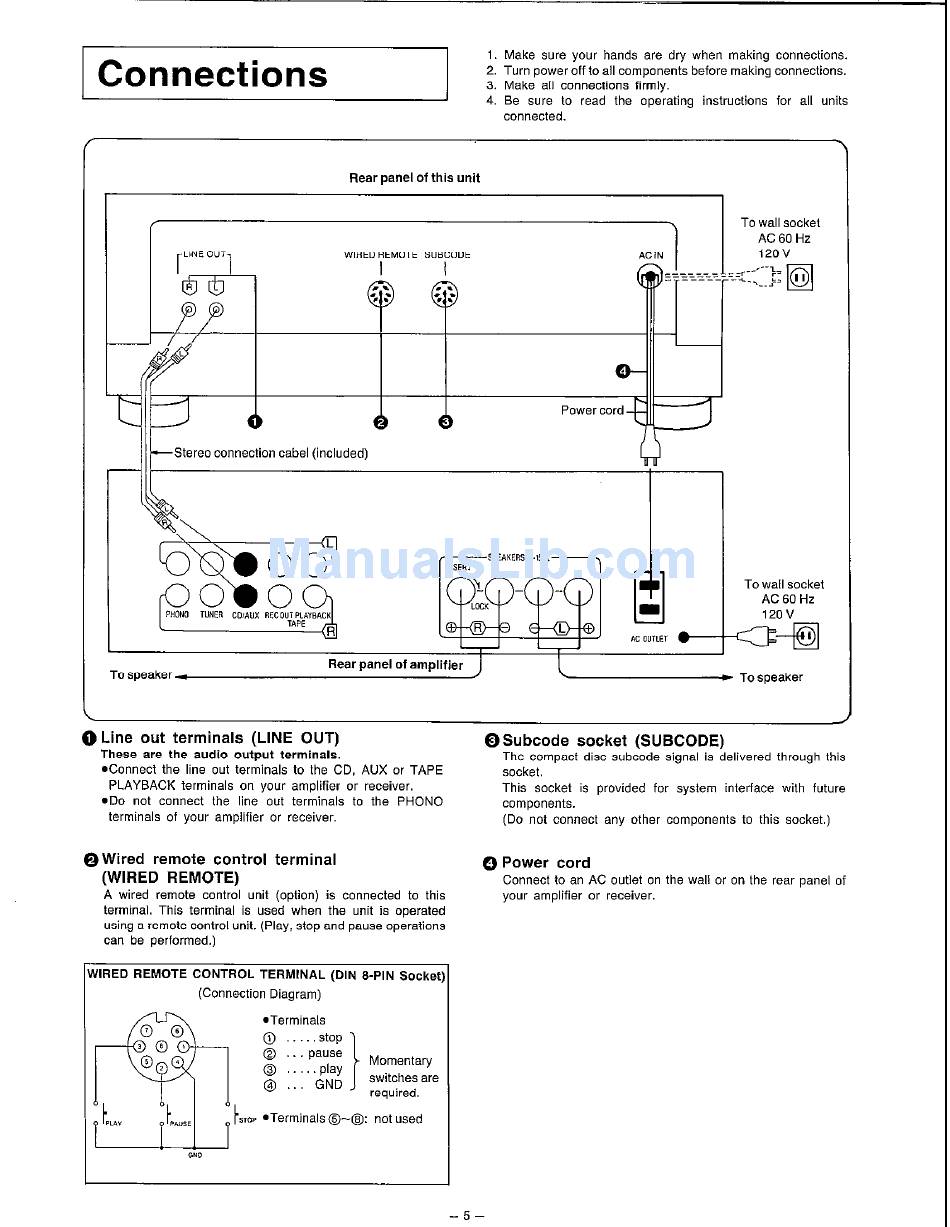

Connections
1. Make sure your hands are dry when making connections.
2. Turn power off to all components before making connections.
3. Make all connections iirmly.
4. Se sure to read the operatina instructions for all units
connected.
To wall socket
Stereo connection cabel (included)
To wall socket
AC 60 Hz
120"
To speaker e
Rear panel of amplifier
* TO speaker
a I :.._ ___A ~__-:--I- II I.,,- m,,.F\
^^ .-.. -----.
" LIIItr ""L ,0r,,,,,,a15 (LIIYC ""I,
These are the audio output terminals.
W3nnect the line out terminals to the CD, AUX or TAPE
PLAYBACK terminals on your amplifier or receiver.
*Do not connect the line out terminals to the PHONO
terminals of your amplifier or receiver.
@Wired remote control terminal
(WIRED REMOTE)
A wired remote control unit (option) is connected to this
terminal. This terminal is used when the unit is operated
using a remote control unit. (Play, stop and pause operations
can be performed.)
"IRE0 REMOTE CONTROL TERMtNAL (DIN S-PIN Socket
(Connection Diagram)
c9sutxoae sowet (suscoDt)
The compact disc subcode signal is delivered through this
socket.
This socket is provided for system interface with future
components.
(Do not connect any other components to this socket.)
0 Power cord
Connect to an AC outlet on the wall or on the rear panel of
your amplifier or receiver.
-5-
