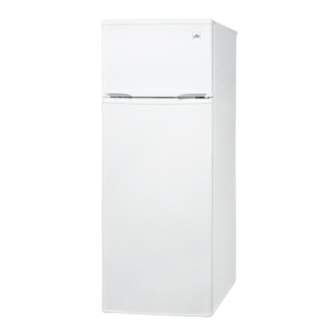

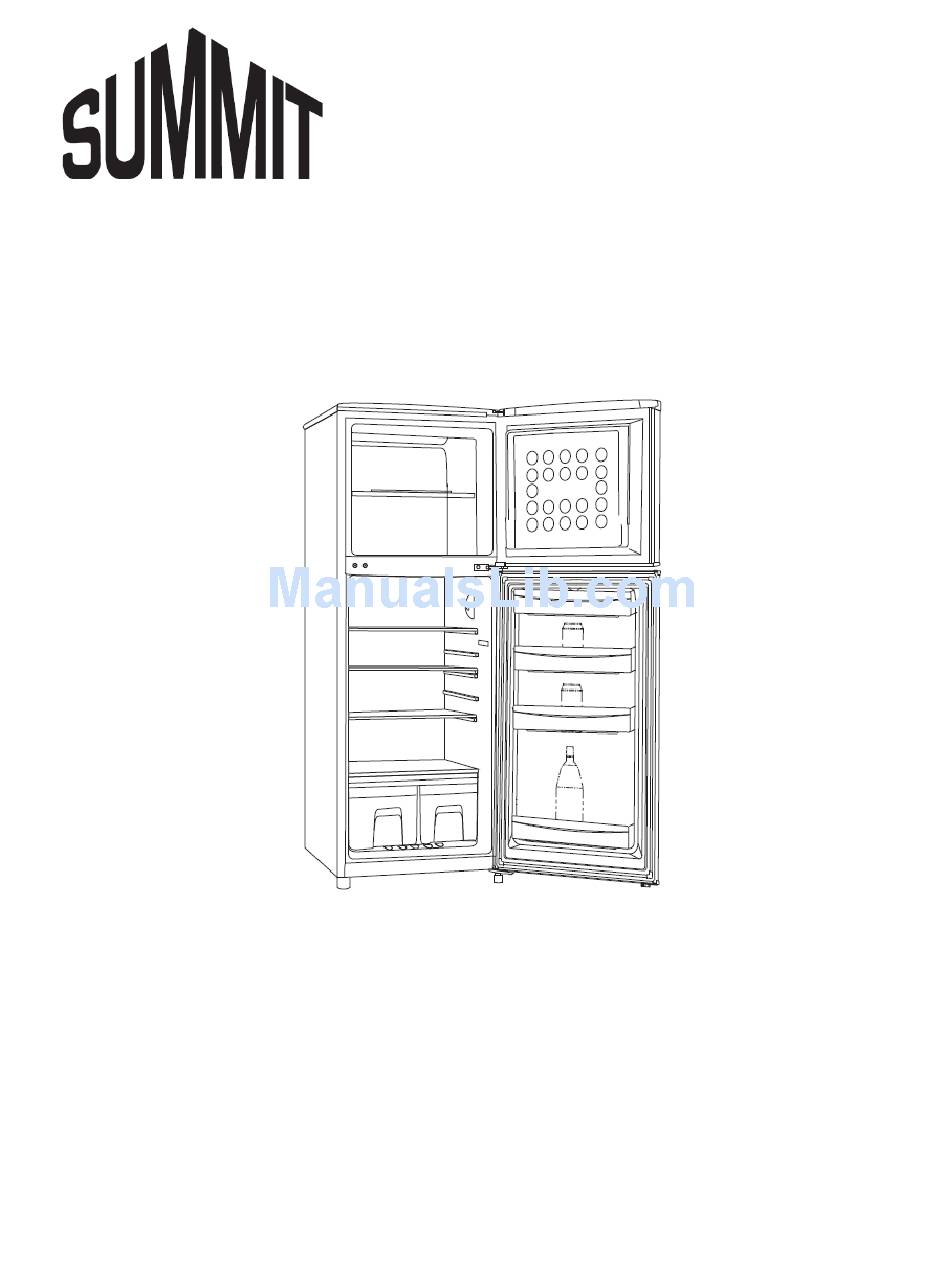

- Page 1 REFRIGERATOR / FREEZER CP97R-1 Model Instruction Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Felix Storch, Inc. Summit Appliance Division 770 Garrison Avenue Bronx, New York, 10474 www.summitappliance.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safeguards ................2 - 3 In Case of Problems ..................4 Location of Parts ...................5 Installation Instructions ................. 6 - 7 Before Using Your Appliance ...............6 Installation of Your Appliance ...............6 Electrical Connection ..............6 - 7 Reversing the Door Swing of Your Appliance ........ -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Before the refrigerator/freezer is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using this appliance, follow basic precautions, including the following: ... - Page 4 FOLLOW WARNING CALL-OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL Use two or more people to move and install the refrigerator. Failure to do so can result in back or other injury. To ensure proper ventilation for your refrigerator, the front of the unit must be completely unobstructed.
-
Page 5: In Case Of Problems
Save time and money. Before you call for service, check the Troubleshooting Guide on page 12. It lists causes of minor operating problems that you may be able to correct yourself. If you still need service, call the Summit Customer Help number at 1-718-893-3900... -
Page 6: Location Of Parts
LOCATION OF PARTS 1. Freezer shelf 2. Temperature control (thermostat) 3. Refrigerator shelf 4. Crispers with glass cover 5. Compressor 6. Leveling legs 7. Door bins... -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Before Using Your Appliance 1. Remove the exterior and interior packing. 2. Check to be sure you have all the following parts: 3 door bins 1 bottle bin 3 refrigerator shelves 1 freezer shelf 2 crispers 1 glass crisper cover 1 ice cube tray Instruction manual 3. -
Page 8: Reversing The Door Swing Of Your Appliance
This refrigerator has the capability of opening either from the left or the right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please call Summit Customer Service at 1-800-932-4267 for reversal instructions. -
Page 9: Operating Your Appliance
OPERATING YOUR APPLIANCE Temperature Control Your appliance has only one control for regu- ating the temperature in the fresh food and freezer compartments. The temperature con- trol, or thermostat, is located on the upper right hand side of the fresh food section. ... -
Page 10: Freezer Compartment
3. Leave the door open for a while so that you can easily scrape off the frost. Use a plastic scraper but be careful not to damage the inner surfaces of the freezer. 4. Wipe up the scraped ice before it is completely defrosted. 5. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE Cleaning Your Appliance 1. Turn the temperature control to 0, unplug the appliance and remove the food, shelves and trays. 2. Wash the inside with a solution of warm water and baking soda. The solution should be about 2 tablespoons of baking soda to a quart of water. 3. -
Page 12: Moving Your Appliance
Moving Your Appliance 1. Remove all the food and disconnect the unit from the power source. 2. Securely tape down all loose items inside your appliance. 3. Turn the leveling screws up to the base to avoid damage. 4. Tape the doors shut. 5. -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Appliance does not operate. Not plugged in. The circuit breaker has tripped or the fuse has blown. Appliance does not cool. Temperature control is set at 0. Compressor turns on and off Condenser coil at back of the unit is dirty. frequently. -
Page 14: Wiring Diagram
WIRING DIAGRAM... - Page 15 NOTES...
-
Page 16: Limited Warranty
LIMITED WARRANTY ONE YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship.
