Step 2: Strip 3/16" off the ends of one pair of low voltage wires. Attach the wires to the terminal
block marked RELAY OUTPUT on the keypad control board as shown. Connect the other
end of the wires to the gate opener's control board as shown in Control Board Connections
(below).
Step 3: Strip 3/16" off the ends of the second pair of low voltage wires.
Attach the wires to the terminal block marked AC/DC POWER IN
on the keypad control board as shown. Connect the other end of
the wires to the opener's battery: one end to the POSITIVE
(RED) pole and the other to the NEGATIVE (BLACK) pole.
Step 4: Connect the jumper between the two terminals on the
keypad control board (ON) as shown.
Step 5: Slide the keypad into the
housing and secure with the small
screws provided.
Step 6: Replace the control board cover
CALLING
GRANTED
2
3
1
and turn the power switch ON.
ABC
DEF
4
5
6
GHI
JKL
MNO
8
9
7
TUV
WXY
PRS
0
STATUS
PROGRAM
CALL
3. Test Keypad
Turn the gate opener power switch to ON. Test the keypad by entering "1234."
rev - 09-20-10

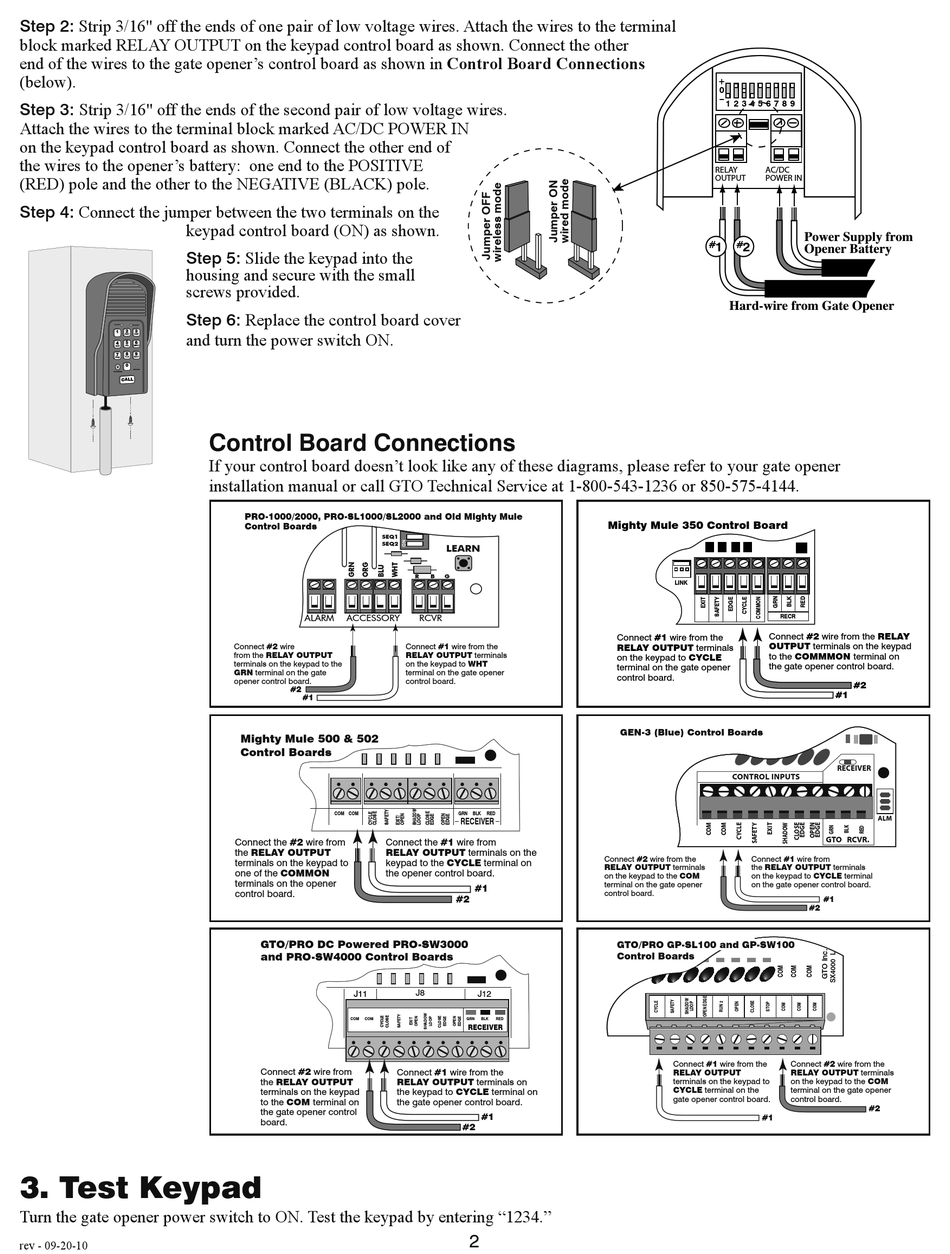

Control Board Connections
If your control board doesn't look like any of these diagrams, please refer to your gate opener
installation manual or call GTO Technical Service at 1-800-543-1236 or 850-575-4144.
PRO-1000/2000, PRO-SL1000/SL2000 and Old Mighty Mule
Control Boards
SEQ1
SEQ2
ALARM
ACCESSORY
Connect #2 wire
from the RELAY OUTPUT
terminals on the keypad to the
GRN terminal on the gate
opener control board.
#2
#1
Mighty Mule 500 & 502
Control Boards
COM COM
Connect the #2 wire from
Connect the #1 wire from
the
RELAY OUTPUT
RELAY OUTPUT terminals on the
terminals on the keypad
to
keypad
one of the COMMON
the opener control board.
terminals on the opener
control board.
GTO/PRO DC Powered PRO-SW3000
and PRO-SW4000 Control Boards
���
���
��M
��M
Connect #2 wire from
the RELAY OUTPUT
terminals on the keypad
to the COM terminal on
the gate opener control
board.
LEARN
R
B
G
RCVR
Connect #1 wire from the
RELAY OUTPUT terminals
on the keypad to WHT
terminal on the gate opener
control board.
GRN
BLK
RED
RECEIVER
to the CYCLE terminal on
#1
#2
�8
��2
GRN
B�K
R�D
RECEIVER
Connect #1 wire from the
RELAY OUTPUT terminals on
the keypad to CYCLE terminal on
the gate opener control board.
#1
#2
2
+
0
–
1 2 3 4 5 6 7 8 9
RELAY
AC/DC
OUTPUT
POWER IN
#
1
#
2
Hard-wire from Gate Opener
Mighty Mule 350 Control Board
LINK
RECR
Connect #2 wire from the RELAY
Connect #1 wire from the
OUTPUT terminals on the keypad
RELAY OUTPUT terminals
to the COMMMON terminal on
on the keypad to CYCLE
the gate opener control board.
terminal on the gate opener
control board.
GEN-3 (Blue) Control Boards
CONTROL INPUTS
Connect #2 wire from the
Connect #1 wire from
RELAY OUTPUT terminals
the RELAY OUTPUT terminals
on the keypad to the COM
on the keypad to CYCLE terminal
terminal on the gate opener
on the gate opener control board.
control board.
GTO/PRO GP-SL100 and GP-SW100
Control Boards
Connect #1 wire from the
RELAY OUTPUT
terminals on the keypad to
CYCLE terminal on the
gate opener control board.
#1
Power Supply from
Opener Battery
#2
#1
RECEIVER
ALM
GTO RCVR.
#1
#2
Connect #2 wire from the
RELAY OUTPUT terminals
on the keypad to the COM
terminal on the gate opener
control board.
#2
